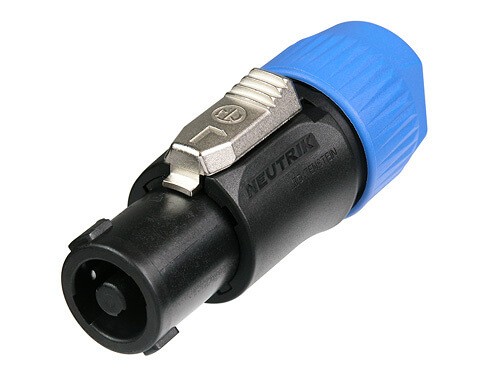

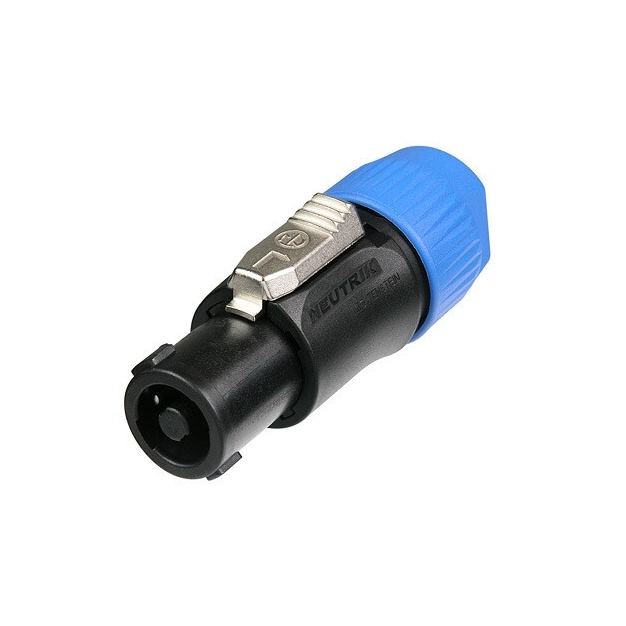

4-pin cable connector speakON female, plastic housing
MAIN SETTINGS
Manufacturer : Neutrik® AG
Country of manufacture : Switzerland
Connector type : Speakon
Number of contacts : 4
View all products of the brand:
Neutrik

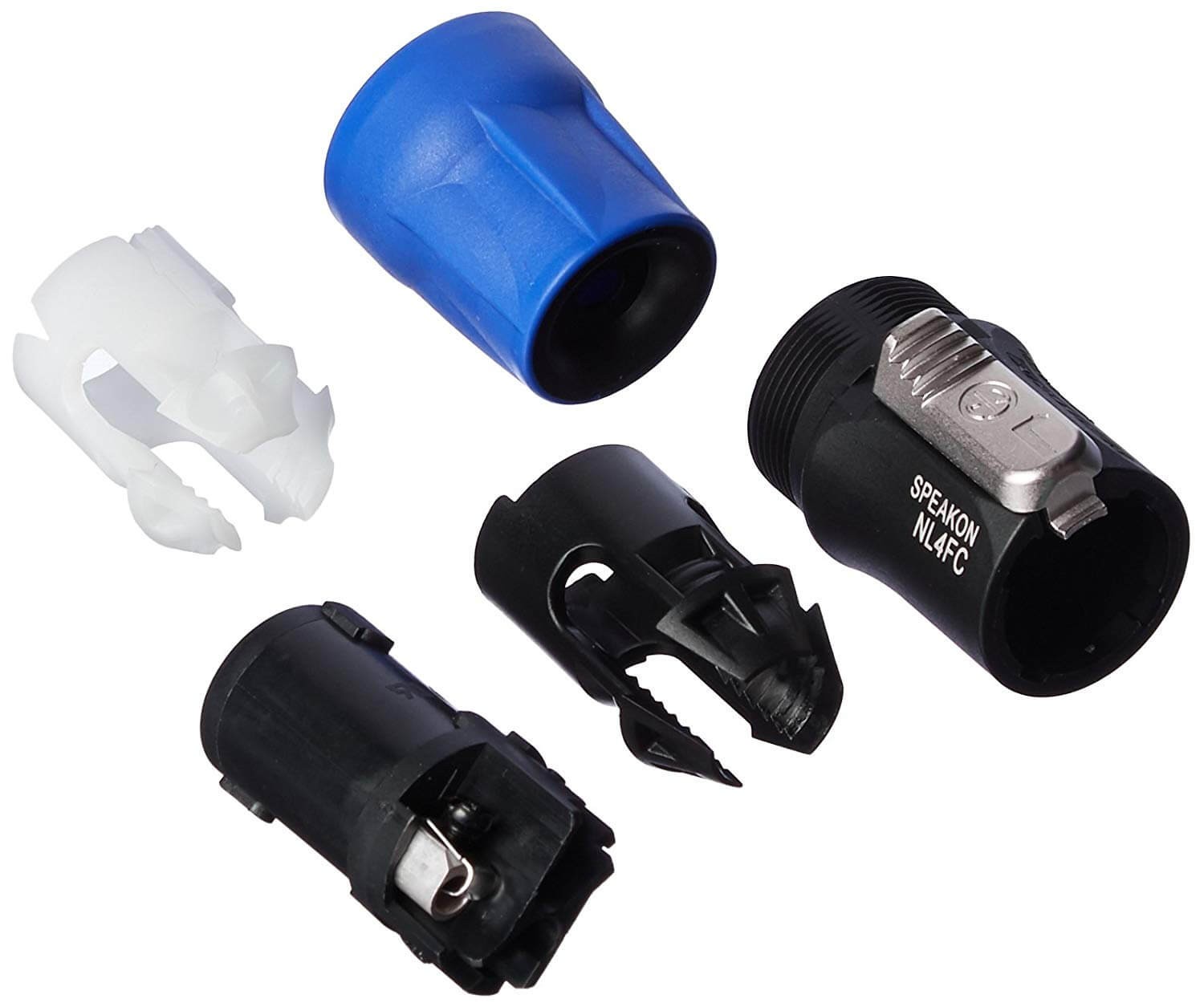

NL4FC is a unique locking system with a metal latch, a robust plastic housing and brass contacts that provide a high density and reliability of the connection between the amplifier and the speaker system. Screw terminals for connecting cables with a cross section of up to 4 mm2 and an outer diameter of 5 to 15 mm. Speakon NL4FC Neutrik is installed on the cable.
Specifications Speakon NL4FC Neutrik | |
connector type | Speakon "mother" |
| Electrical parameters | |
Contact resistance | ≤ 3 mΩ |
Dielectric Strength | 4 KV |
Insulation resistance | > 1 GΩ (after thermal test) |
Rated contact current | 30 A rms continuous |
Rated contact current | 40 A audio signal, 50% duty cycle |
Rated voltage | 250 V |
| Mechanical parameters | |
Cable outer diameter | 5 - 15 mm |
Conductor cross section | max 4 mm² |
Lifetime | > 5000 cycles |
Conductor connection | screw terminals or soldering |
locking device | lock with interlock |
| Material | |
Sputtering of contacts | 4 µm silver |
Sleeve | polyamide (PA 6 15% GR) |
Contact | brass (CuZn39Pb3) |
Mandrel | polyamide (PA 6 30% GR) |
Insert | PBTP 20%GR |
locking element | zinc (ZnAl4Cu1) |
| Environmental parameters | |
Approved | UL, CSA |
Certificate | EN/IEC 61984 |
Solderability | Complies with IEC 68-2-20 |
Temperature Range | -30 °C to +80 °C |
| Type of connector | Speakon |
|---|
