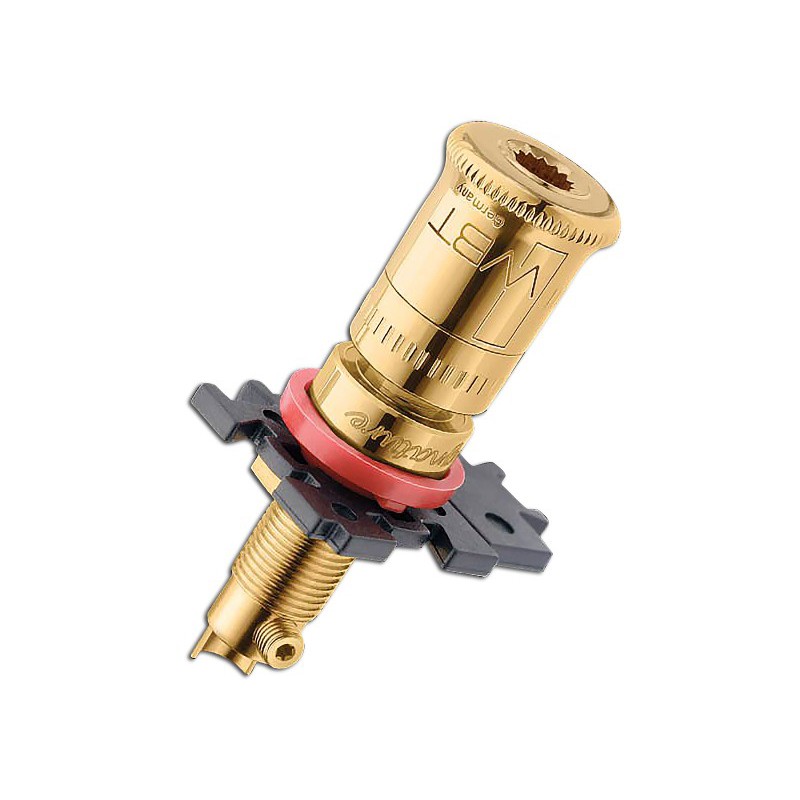

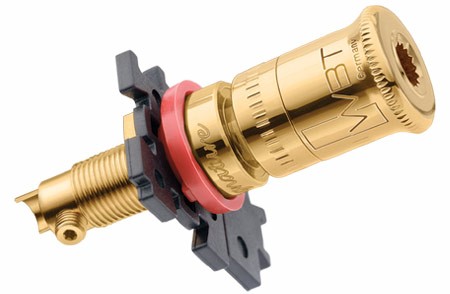

WBT-0730.11 speaker terminals made of a special alloy with a high copper content, plated with a layer of 24K gold (0.3 microns), and carefully polished by hand. The insulation material used is polyamide reinforced with glass fiber (10%) and polycarbonate with the addition of glass fiber (30%).
Price per piece
View all products of the brand:
WBT
WBT-0730.11 speaker terminals made of a special alloy with a high copper content, plated with a layer of 24K gold (0.3 microns), and carefully polished by hand. The insulation material used is polyamide reinforced with glass fiber (10%) and polycarbonate with the addition of glass fiber (30%).
Thoughtfully designed terminals provide high contact pressure with low resistance, which improves sound quality. Thanks to the integrated clamping mechanism, connection can be made by soldering or by means of branded Torx screws. The so-called "puzzle" mounting system includes plates that prevent cable twisting and provide additional protection against vibrations.
Characteristics
- Copper alloy with high conductivity
- 24K gold-plated, nickel-free, hand polished
- High contact pressure through fine milling and knurled threads
- Compatible with bananas (4.0 mm), spatulas (6.0 or 8.0 mm)
- Mounting with Torx screws or soldering
- Internal mounting conductor cross section up to 10.0 mm² (7 AWG)
- Speaker cable cross section up to 6.0 mm² (9 AWG)
- Rated current: 70A
- Effective isolation
- Puzzle mounting system
- Producer: WBT (Germany)
| Brand | WBT |
|---|---|
| Model | 0730.11 |
| Type of connector | Акустический терминал |
| Maximum cable section | 4 mm² |
| Cable attachment type | Screw Пайка |
| Connector housing | Металл |
| Contact material | 24K позолоченная медь |
| Country of manufacture | Germany |
| Delivery/payment | Price is for 1 pc |
