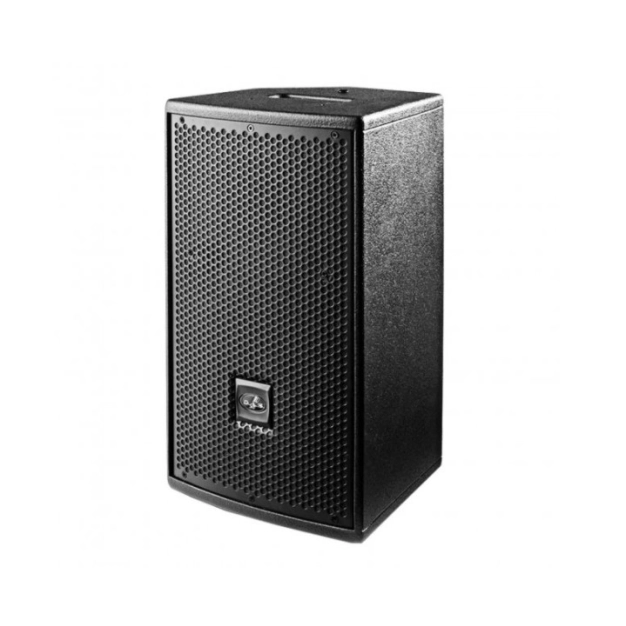

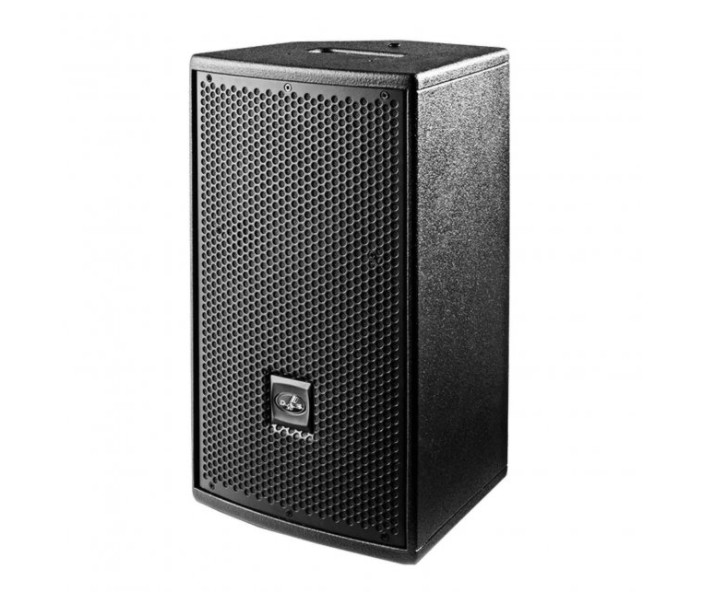

Активная акустическая система D.A.S. Audio ACTION-8A
DASAudioAction 8A is a compact active 2-way speaker. It uses a class D amplifier with 720W peak power with improved dynamic range and ultra-low distortion. ASACTION 8A is a powerful and compact multi-purpose loudspeaker with stage monitor positioning.
DASAudioAction 8A is a compact active 2-way speaker. It uses a class D amplifier with 720W peak power with improved dynamic range and ultra-low distortion. The ASACTION 8A is a powerful and compact multi-purpose loudspeaker with stage monitor positioning. System components include a high-performance 8" woofer and a 1" titanium diaphragm compression tweeter loaded on an 80 x 80 horn. Built-in class D amplifier develops a rated power of 360 watts and a maximum of 720 watts. Over the entire frequency range, the amplifier provides a wide dynamic range with an exceptionally low level of distortion. The system has an adjustable balanced input with switchable sensitivity: microphone / line. A balanced XLR loop-through connector allows you to connect both a line-level signal and directly a dynamic microphone or a wireless microphone system receiver. You can also turn on the DAS logo on the front of the system on the rear panel. Optimum interaction between the components of the ACTION 8A speaker system is ensured by the presence of an amplifier in the circuitry 24-bit DSP processor. In addition to control functions, the processor also switches the frequency response of the speaker system, optimizing its operation as a stand-alone speaker or in conjunction with a subwoofer (BOOST / FLAT modes). To protect the ACTION 8A system, a peak limiter and an acoustically transparent RMS limiter are provided to limit peak signals and protecting the acoustic system from prolonged overloads and thermal destruction of components. A 35mm hole is provided for mounting on a tripod. Special brackets are available as an option for mounting ACTION 8A to the ceiling or wall.
RMS power, W Amplifier: 720 W Peak, 360 W Continuous Class D, Biamplified
Frequency range, Hz 60 Hz-20 kHz (-10 dB)
SPL sound pressure, dB 120 dB
Dispersion 80 x 80

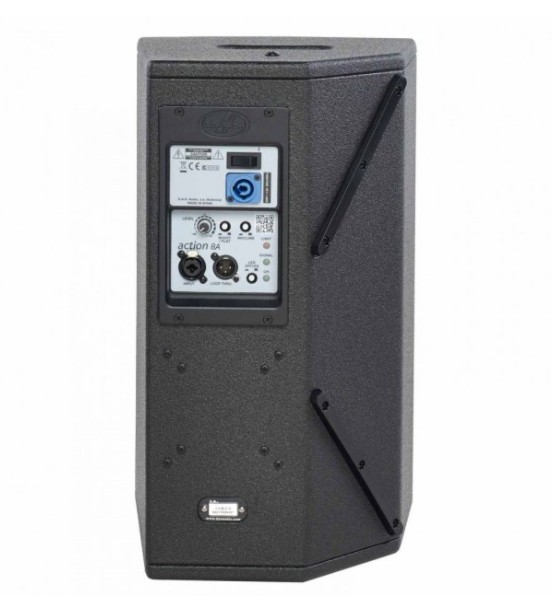

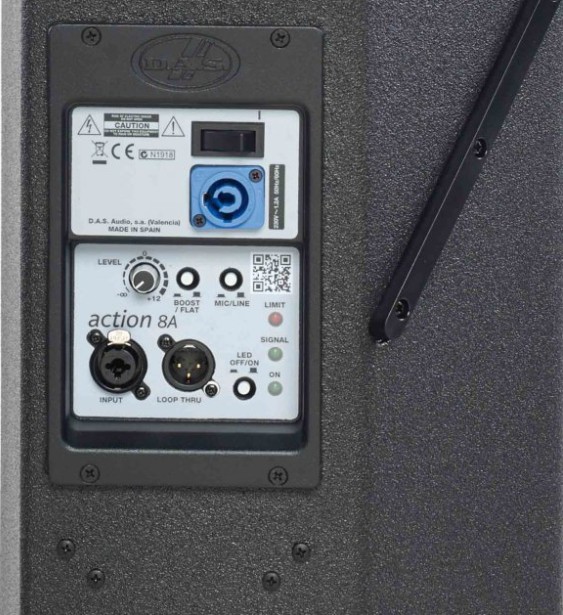

Input/Output Type INPUT: Female XLR LOOP THRU: Male XLR AC INPT: powerCON
Dynamic heads, type LF - 8B; HF-M-26
Dynamic head size, in. 1 x 8-in., 1 x 1-in.
Body material birch plywood
Body coating ISO-flexPaint
Dimensions (HxWxD), mm47.5 x 27.9 x 25.5 cm
Weight, kg 9.9 kg
Characteristics Active speaker system DAS AudioACTION-8A
Maximum power 700W
Crossover frequency 20 kHz
