Active speaker JBL EON712D-EK

12" active Bluetooth speaker

Released in 1995, the best-selling JBL EON PA family set the benchmark for how great a powered speaker system can be.

The JBL EON712 12" loudspeaker is part of the new JBL EON700 active power amplifier series, which represents a major step forward in innovation and technology, delivering truly intelligible, clear consistent coverage at any volume level.

The EON700 series uses the latest advances in acoustics, transducer designs, enclosure materials, and advanced digital signal processing and control technologies to deliver exceptional performance in a fully professional, highly flexible, easy-to-use portable system.

With four models available, including the 10" EON710, 12" EON712 and 15" EON715 active loudspeaker, as well as the 18" EON718S subwoofer, the EON700 systems meet the needs of today's musicians and sound engineers.

Functions

Specially designed 12" woofer

2414H compression driver

Redesigned high frequency horn

Power: 1300W peak / 650W RMS

Frequency response: 50Hz-20kHz (-10dB); 60 Hz–20 kHz (-3 dB)

Maximum sound pressure level: 127 dB

Dispersion: 100° H x 60° V

Audio inputs/outputs: 2 combo XLR, 1 XLR loop through

Advanced dbx DSP: Automatic Feedback Suppression, Ducking, 100ms Speaker Delay, Parametric EQ

Built-in 3-channel digital mixer.

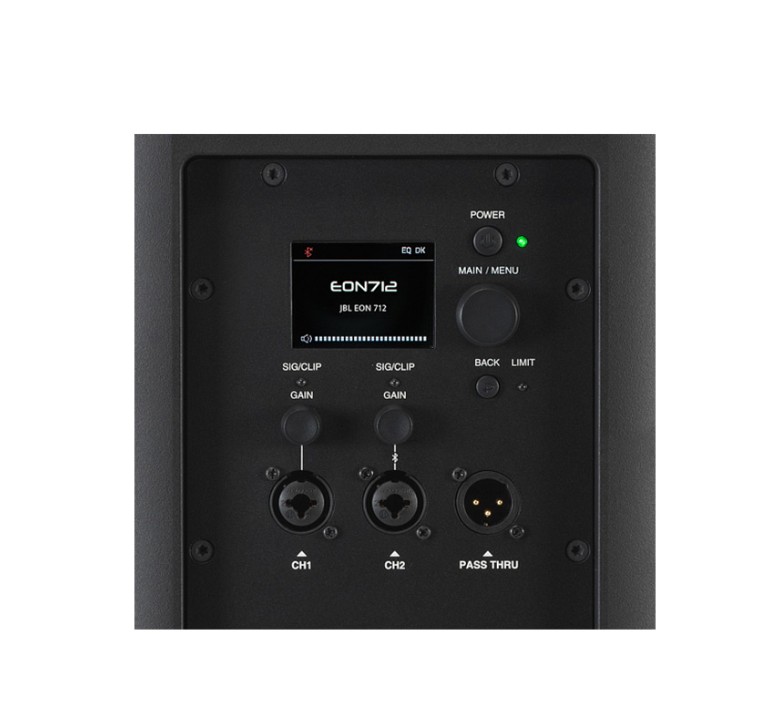

Backlit color LCD screen for easy access to functions

Universal control of the JBL Pro Connect app

Bluetooth 5.0 streaming and control

Durable polypropylene body and metal grille

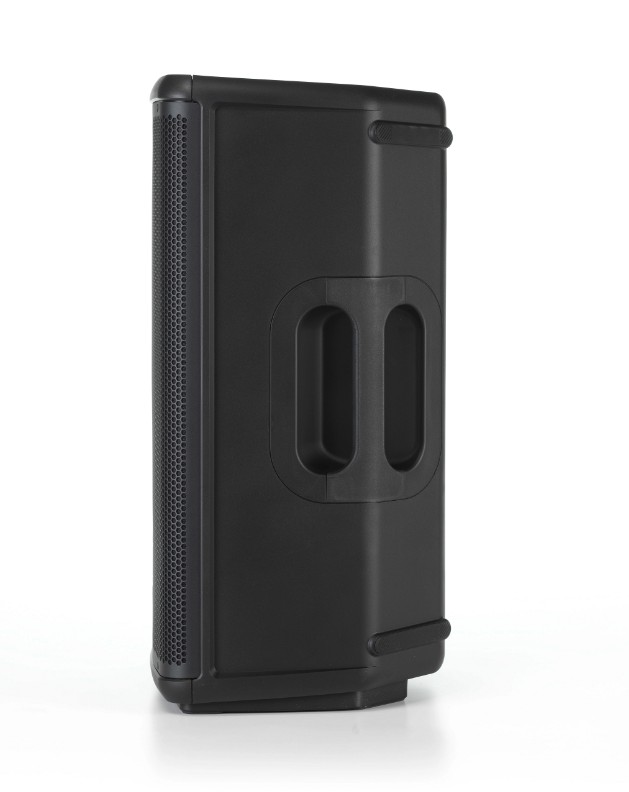

Two ergonomic handles make transport easy

Integrated pole mount and optional EON700 universal mount expand system configuration options.

Stackable cabinets allow for easy storage

Dimensions: 26.3 x 15 x 12.75 inches (669 x 382 x 324 mm) (HxWxD)

Weight: 32 lbs (14.5 kg)

Shipping dimensions: 27.8 x 19.64 x 17.28 inches (706 x 499 x 439 mm) (HxWxD)

Shipping weight: 40.1 lbs (18.2 kg)

More

Acoustics and amplifier

JBL's advanced waveguide and transducer technologies, combined with highly efficient amplification, provide uniform coverage across the entire listening area, even when you're pushing your system to the limit.

The EON712 woofer has been redesigned for lower impedance and higher efficiency, an improved horn provides smooth off-axis beamwidth, and the powerful JBL 2414H compression driver features a premium neodymium magnet for balanced response at a low weight. The speaker is powered by an ultra-efficient 1300W Class D discrete amplifier for pure and clear sound. All this ensures excellent coverage, consistency and intelligibility at any volume.

Advanced DSP and control

The advanced EON712 DSP package gives you full control over EQ, limiters, delay, dbx auto-feedback suppression, ducking and more. Access settings on the speaker using the built-in backlit LCD screen, or from anywhere in the room using the JBL Pro Connect app. Built-in Bluetooth 5.0 audio streaming and control takes advantage of the latest protocol security features, low latency, wide range, and improved audio fidelity.

System versatility

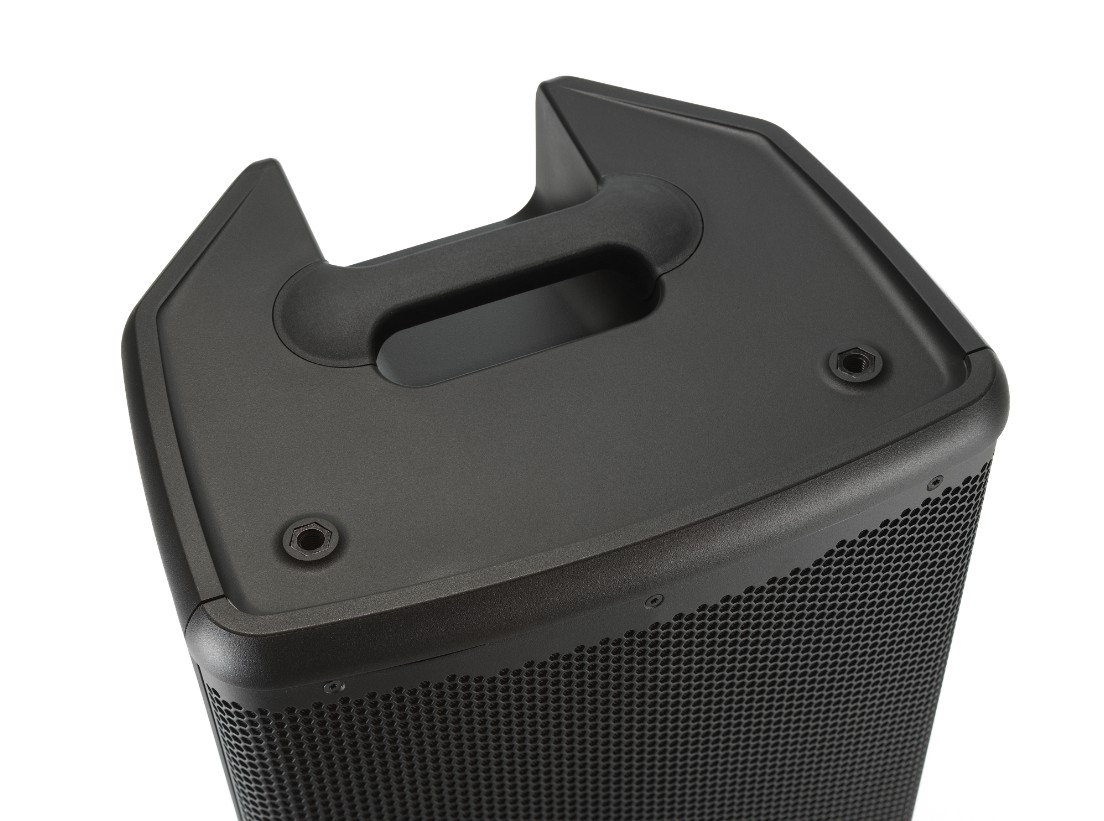

The EON712 speakers can be used as main speakers or floor monitors. Top and rear suspension points let the speakers fly; the rear suspension points serve as connections for fixed installations using the optional universal fork mount.

Indexed feet built into the cabinets provide a wide range of acoustic configurations and secure stacking for traditional upright configurations, as well as easy storage and transport. (The Companion EON718S subwoofers are threaded for full-range speakers and fold easily for cardioid configurations.)

Rugged and reliable

All audio products have a lifespan, and JBL engineers are committed to maximizing that lifespan—not just in terms of reliability, but also in terms of the sound quality of the system every time you turn it on.

The EON712 is housed in a finite element-optimized composite housing that uses injection molding and mechanical molding techniques to improve durability without sacrificing package size or performance. Ergonomic computer-optimized handles make it easy to move boxes.

Like any JBL Professional product, the EON712 goes through rigorous testing that goes beyond any conditions the product might encounter in the real world. Our industry-leading 100-hour power test ensures durability, so musicians and sound engineers can rely on JBL components in any scenario.
