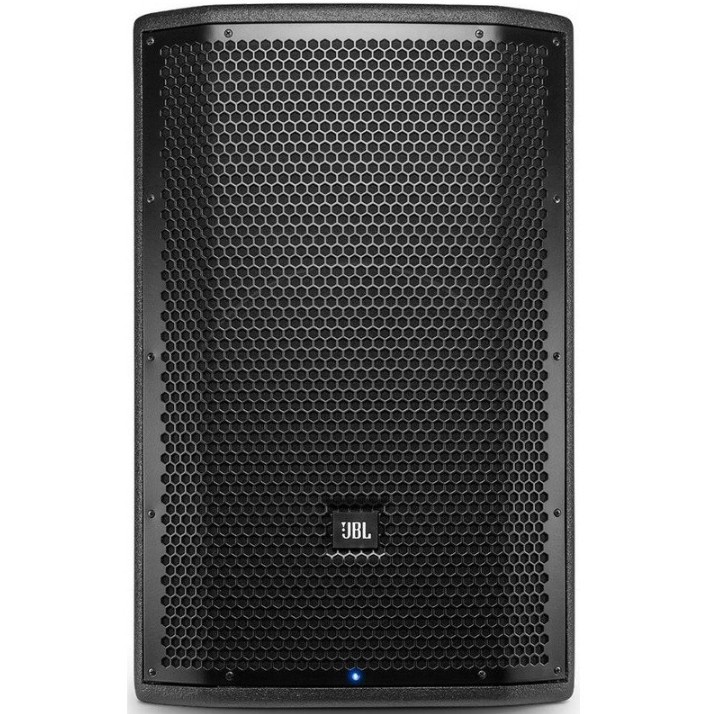

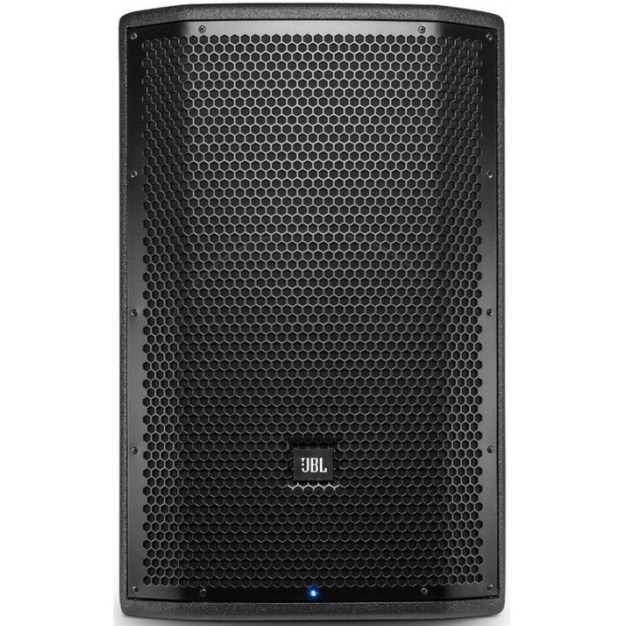

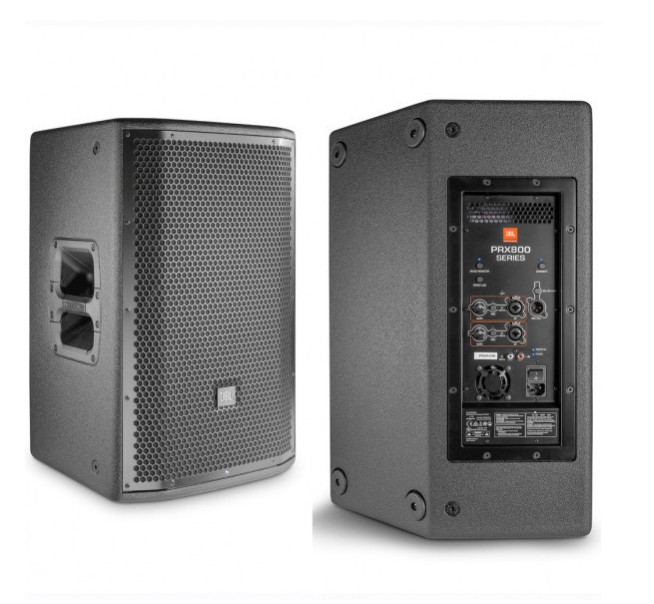

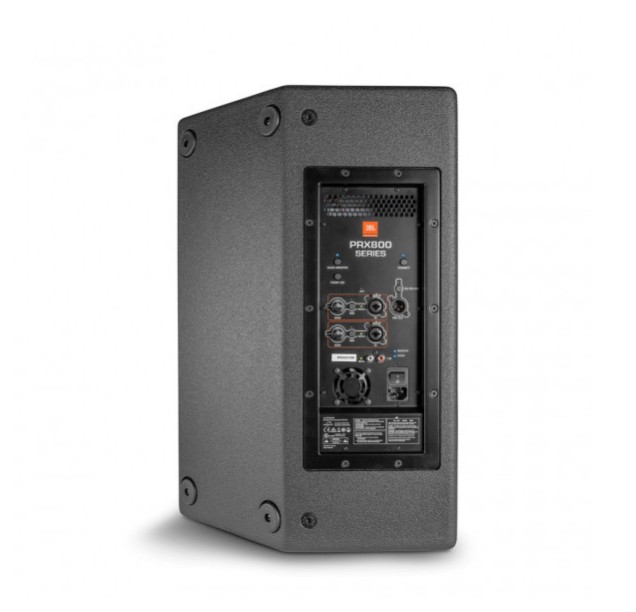

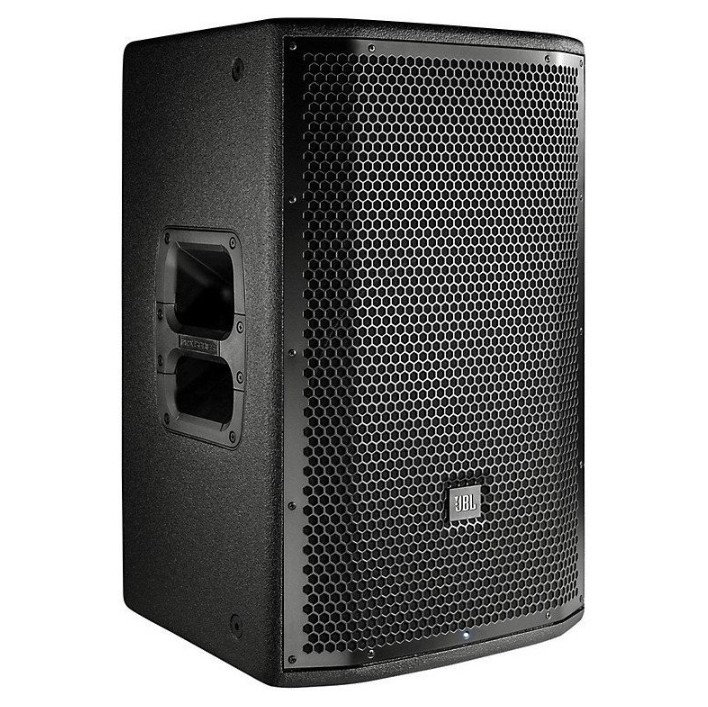

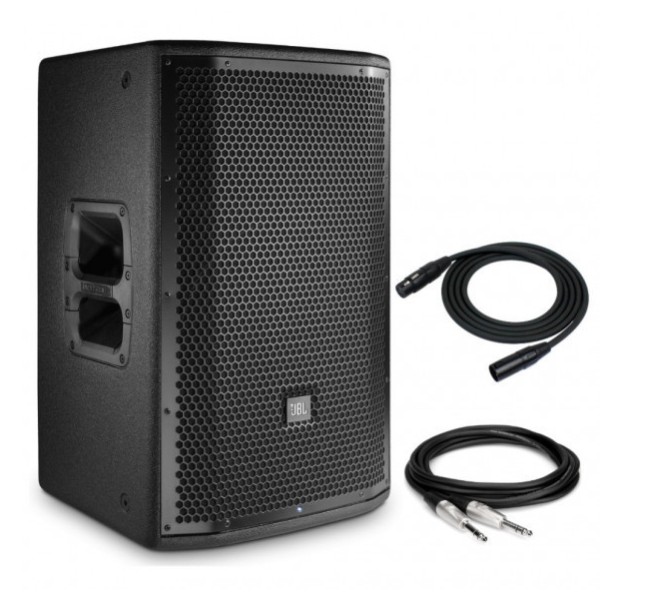

Active speaker system JBL PRX812W/230

PRX812W/230 is a speaker system in a compact and lightweight body. The JBL PRX812W speaker system can be used as a full-featured sound reinforcement system, as well as a stage monitor. JBL PRX812W is easy to install, and the built-in Wi-Fi module allows you to control the system and adjust sound settings from anywhere in the hall. To optimize system performance depending on the specifics of the application, there are two options for setting the equalizer.

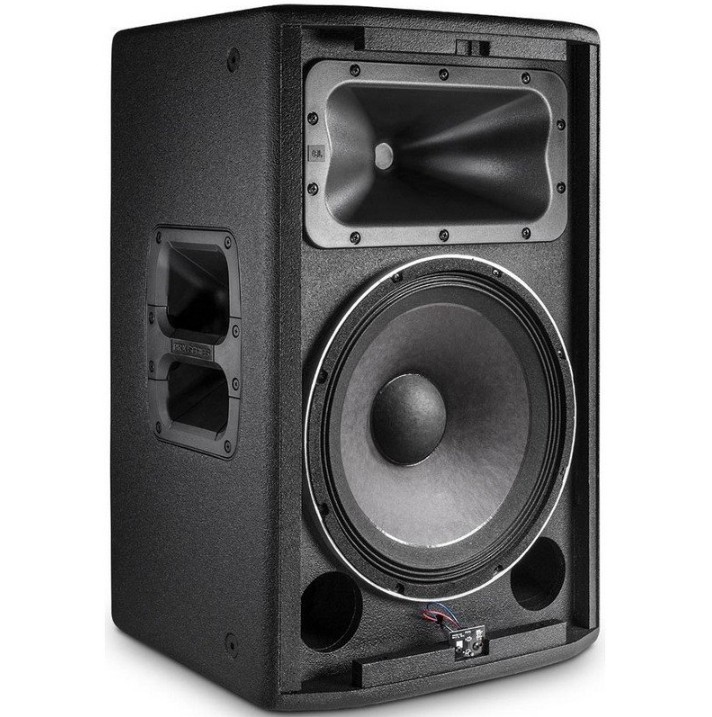

 The JBL PRX812W is equipped with a 1500-watt Class D digital amplifier. The 12" Differential Drive® 272G woofer and 2408H-1 tweeter deliver powerful, tight sound that is clear and crisp. Active acoustics JBL PRX812W can be used both independently and in combination with a subwoofer JBL PRX818XLFW as a satellite. The system is housed in a robust poplar wood case. The plywood is 25mm thick on top and bottom for maximum strength, with sidewalls 18mm thick. The case has a reliable coating of DuraFlex ™ in black, the grill is made of durable steel, convenient recessed carrying handles are provided on the sides.

Characteristics:

type: active speaker system (with amplifier);

amplifier: class D;

amplifier power: 1500W;

Tweeter: 12'' (JBL 2408H);

Woofer: 1.5'' (JBL 272G);

coverage angle: 90° x 50° nominal;

maximum SPL: 135 dB peak;

frequency range (-10 dB): Main: 52.6 Hz - 20 kHz, Monitor: 50.3 Hz - 20 kHz;

Inputs: 2 x balanced XLR / TRS, 2 x unbalanced RCA;

input impedance: 20 kΩ (balanced), 10 kΩ (unbalanced);

dynamic control: dbx Type IV™ limiter circuit;

crossover frequency: 1.850 kHz;

body: 18 mm poplar plywood;

installation: double 36 mm glass.;

power supply: 100V - 240V ~ 50/60 Hz;

dimensions: 599 mm x 385 mm x 341 mm;

weight: 21.2 kg.
