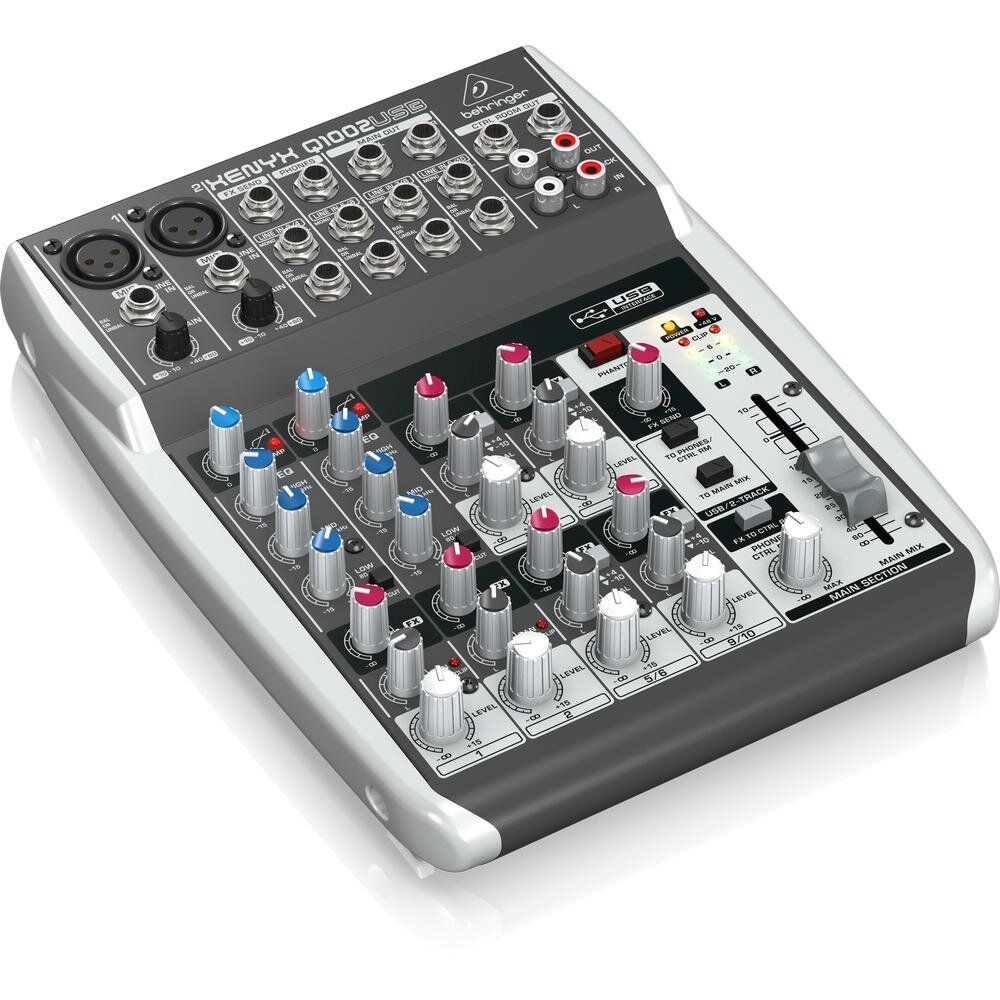

Микшерный пульт Behringer XENYXQ1002USB

Small mixing console for home use. Perfect as a replacement for a sound card, thanks to the presence of a USB port for connecting to a computer. XENYX high-quality microphone preamps allow you to connect 2 microphones at once and use phantom power for condenser microphones.

The Q1002USB analog mixing console has 2 microphone inputs for connection via XLR or JACK connectors. Each of the microphone inputs has its own GAIN control, LEVEL volume control and a 3-band EQ that adjusts the level of low, mid and high frequencies. The mic inputs are equipped with a LOW CUT button, a PAN balance control with an input clip indicator, and an FX send control. To operate condenser microphones, a button for supplying additional phantom power of 48 volts is used. Both microphone inputs are equipped with quality XENYX series preamps.

The console has 4 linear stereo inputs with the possibility of balanced and unbalanced connection using JACK connectors. Each input has its own volume control, balance control and send control to the effects loop.

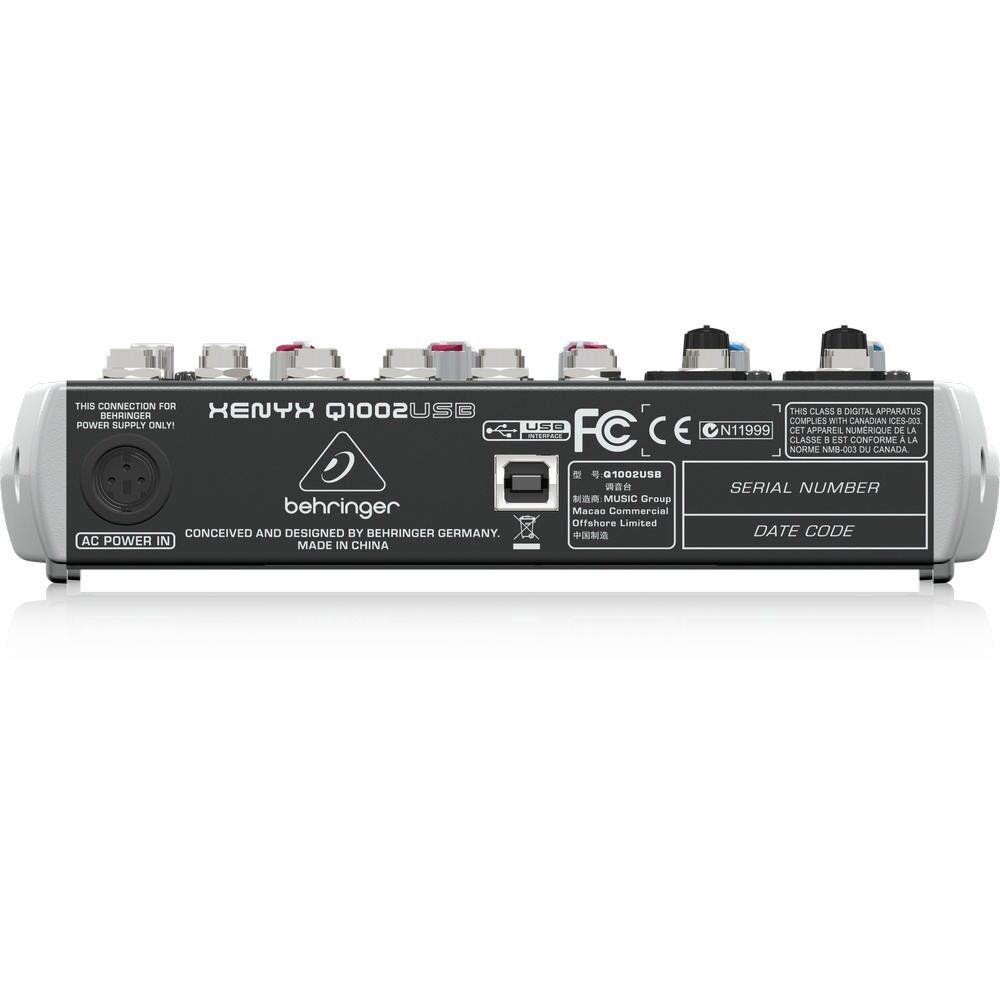

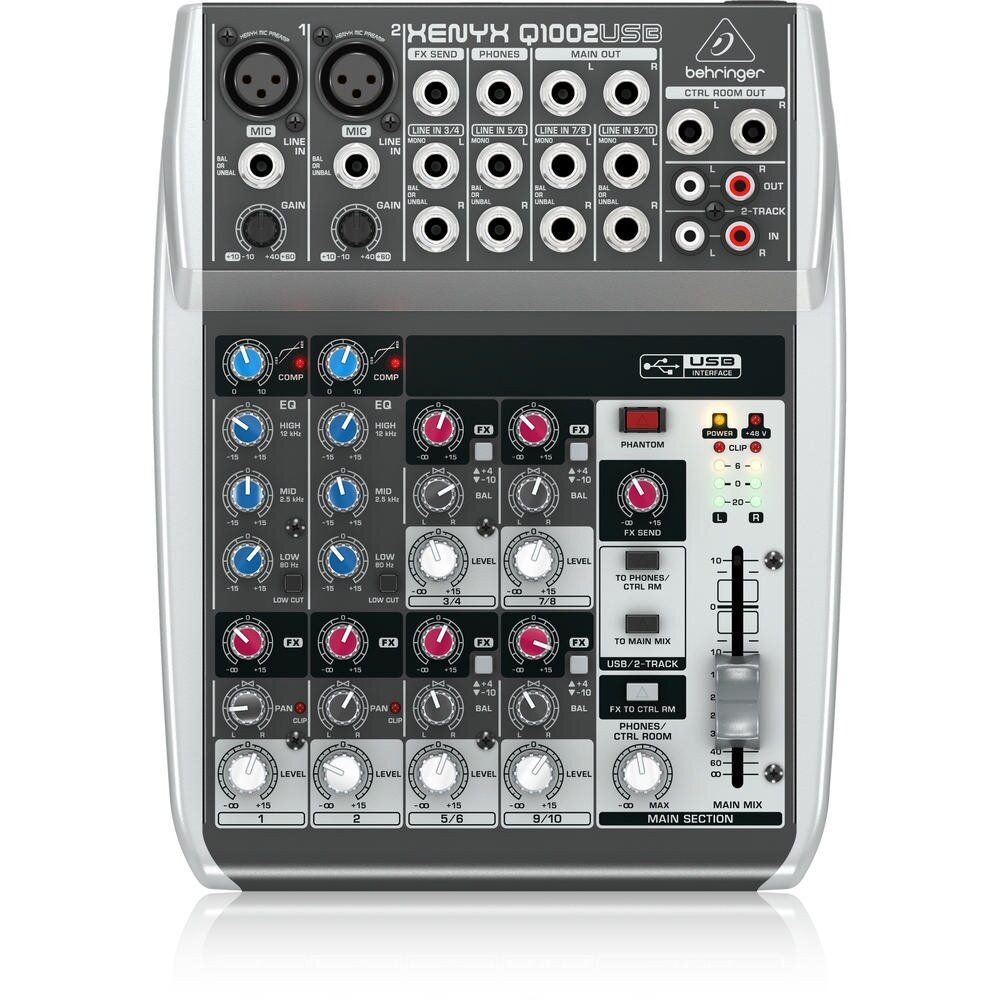

The console has a connector for connecting an effects processor, a stereo JACK headphone output, a 2 mono JACK power amplifier output, and a monitor output. Under the monitor connectors there is a stereo input for connecting a second remote control and a similar output for a recording device. In the lower right corner of the panel is the main mix volume fader, headphone / monitor volume control, send control to the effects loop. There is also a button for switching from headphones to monitors and a button for switching from the main output to the USB output. Above the fader are dual signal level indicators, a power indicator, and a phantom power indicator.

The remote control is designed for use in rehearsals, live performances and for work in the studio. The sound quality of the microphones is ensured by the famous XENYX preamps.

Characteristics

Model: Q1002USB

Number of channels: 10

Mono inputs: 2

Stereo inputs: 4

USB to computer: yes

Number of mic preamps: 2

Phantom power: yes

Mono channel equalizers: 3-band

Number of compressors: 2

Volume level indicator: 4 LEDs

Wireless connection (2 channels): no

Send/return buses: 1

FX Return Bus: No

effects processor: no

Length: 310 mm

Width: 350 mm

Height: 110 mm

Color: gray
