Микшерный пульт Behringer XENYX Q1202USB

The German company Behringer is a world leader in the design, manufacture and distribution of professional audio equipment, musical instruments and related products. The company provides a wide range of musical equipment, including various categories for a wide range of end users: professionals, corporations and hobbyists.

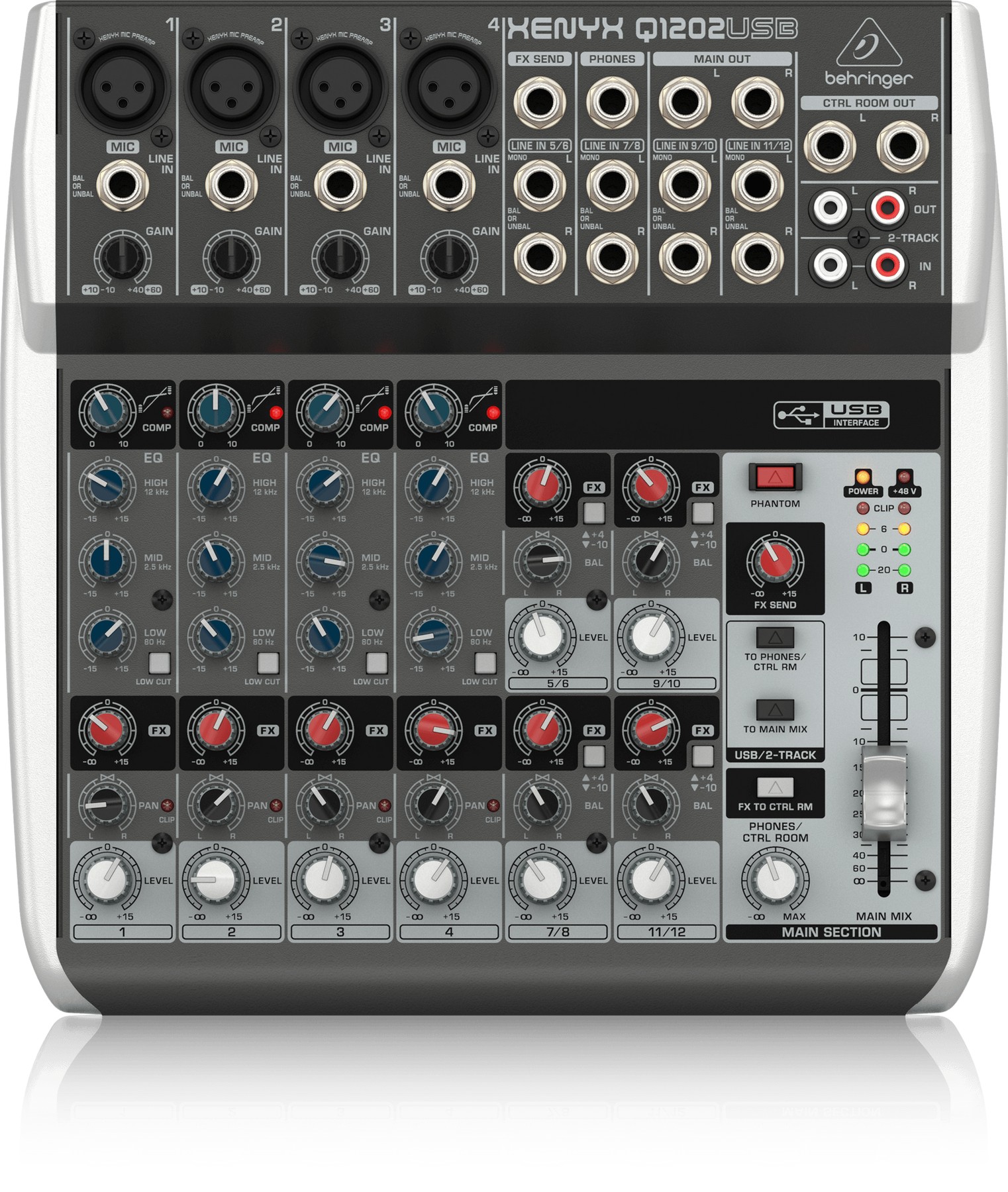

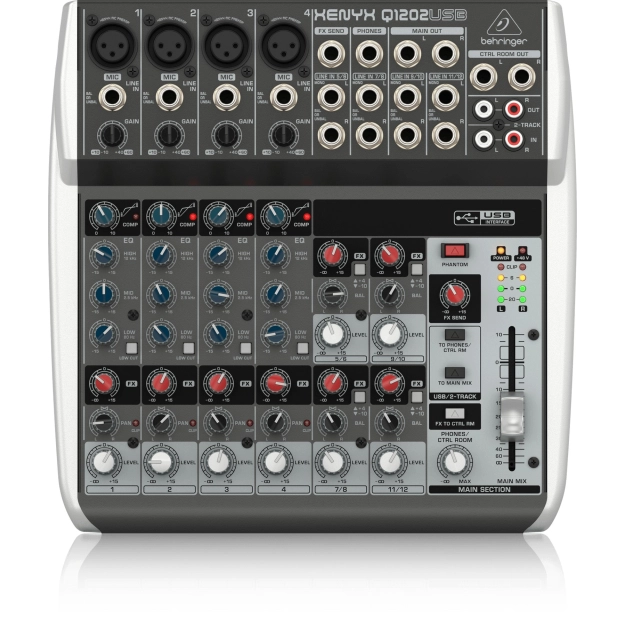

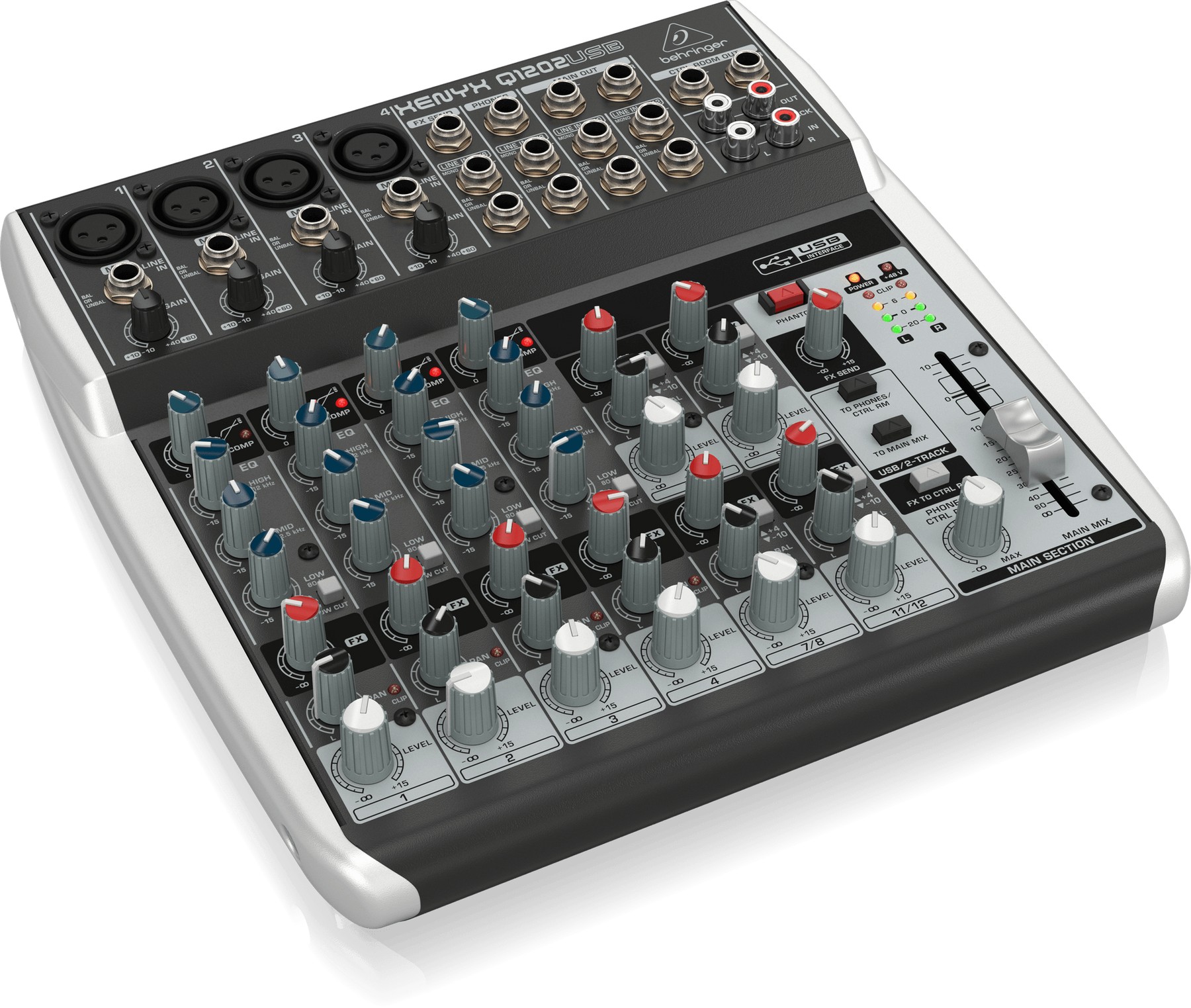

The Xenyx QX1202USB model presented here is a twelve-channel mixing console that combines great features and ease of operation. Obviously, the console is designed to quickly master the mixer even for a beginner, but at the same time a set of interfaces and connectors is enough even for an experienced sound engineer.

The channel section of the mixer contains connectors for 4 mono channels and 4 stereo channels. The 4 mic inputs are compatible with condenser and dynamic microphones as they are equipped with 48V phantom power and Behringer branded amplifiers. FI channels have compressors with LED indicators for pre-fader signal conditioning.

The mono channels also feature a 3-band British-style EQ for a warm, natural sound and are easy to adjust with sealed rotary controls. On the same channels, low-pass filters are installed that solve the problem of parasitic noise at the hardware level, and clipping indicators. Both mono and stereo channels have FX Send controls.

An FX Send can be used to process the sound with Klark Teknik's built-in effects processor, or with an external processing device on connected equipment. The built-in processor contains hundreds of installed programs, first of all - the most used ones: reverb, flanger, chorus, etc. under.

Setting a preset is very simple, with a rotary control, and the program number is displayed on the LED display. Directly in the effect processor section, an approximate "cheat sheet" is written, which is similar to the numbers of the programs you need. There are also signal and clipping indicators. The main section of the mixer, in addition to the effects control panel and send buttons to various output connectors, contains a logarithmic volume fader for the final mix, output signal volume and clipping indicators, and a phantom microphone power indicator.

The final mix can be routed to the main output, FX Send jack, microphones or Control room. If you need more complex routing, there is a 2-Track input and output. Finally, through the built-in USB interface, you can transfer the track to a computer, where further processing can be carried out both with the help of third-party software and with the help of applications and plug-ins freely downloadable from the Behringer website.

Characteristics

Manufacturer: Behringer

Type: mixing console

Design: compact

Operating principle: analog

Total number of channels: 12

Mono: 4

Stereo: 4

Additional inputs: 2TR stereo RCA input

Outputs: 6.3mm stereo out, 2TR stereo RCA out, 6.3mm send, Ctrl Room stereo 6.3mm out, 6.3mm headphones

EQ: 3-band EQ on each mono channel

FX Send/Return: Yes

Built-in effects processor: no

Faders: + master fader

USB interface: yes

Extras: Compressors on all mono channels, Gain control on each mono channel, Pan/Bal controls on each channel

Weight: 1.5 kg

Size: 250 x 248 x 50mm
