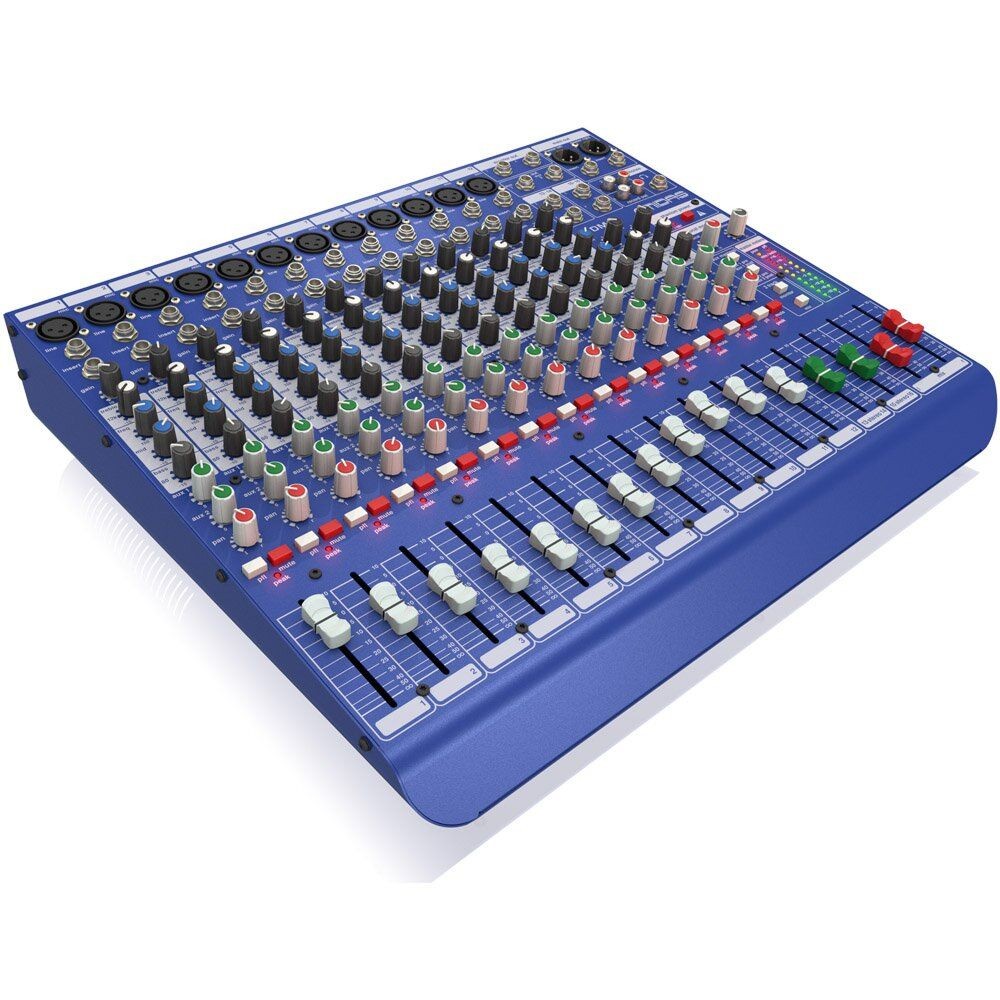

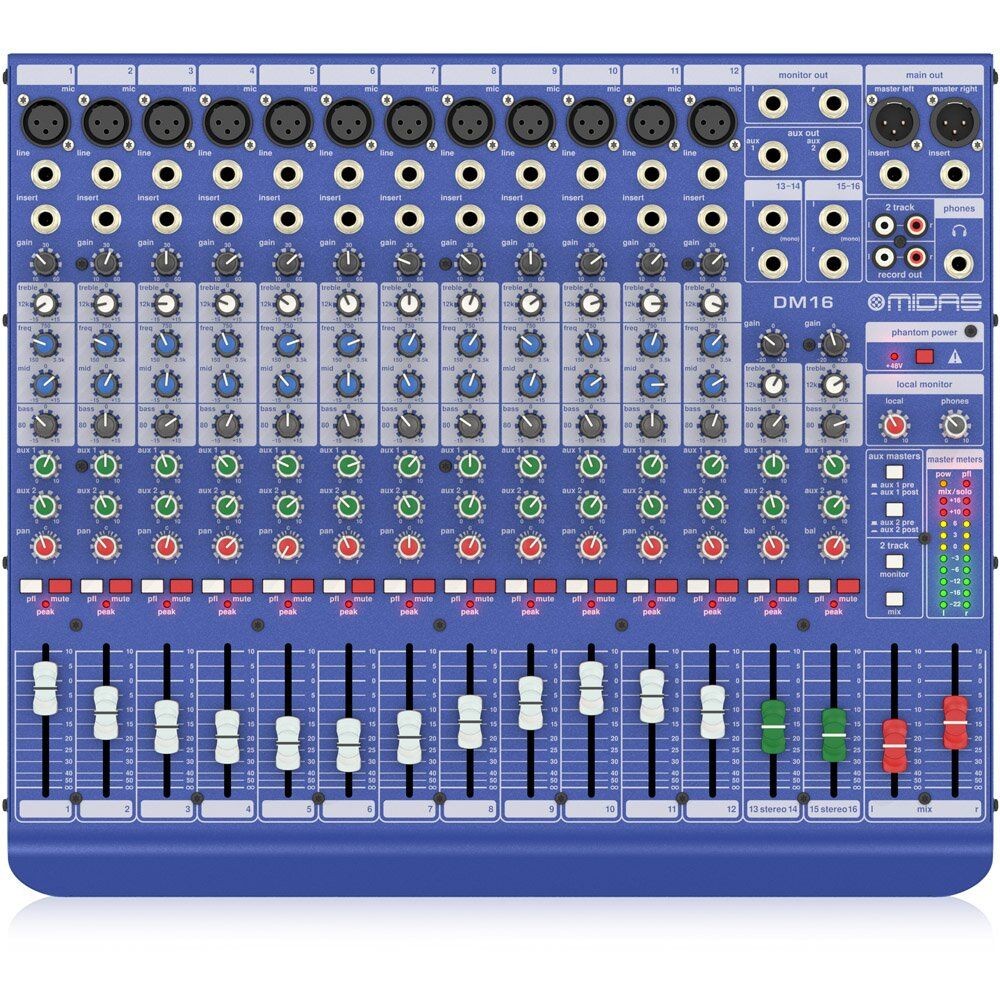

The compact MIDAS DM16 will brighten up your stage or studio desk, delivering incredible sonic performance, amazing versatility and unheard-of accessibility.

View all products of the brand: Midas

The compact MIDAS DM16 will brighten up your stage or studio desk, delivering incredible sonic performance, amazing versatility and unheard-of accessibility.

What's the secret to the DM16's superior studio-quality sound? The DM16 features 12 award-winning MIDAS microphone preamps with +48V phantom power, recognized by audio engineers around the world for their transparency and nuanced, low-noise, high-head design. Add to that TRS line inputs on all 16 channels (8 mono and 2 stereo), mono-channel inserts and a 3-band mid-sweep EQ, 2 switchable pre/post-fader inputs, 2 monitor outputs and 2-track RCA I/O, and you have an analog work of art - a fully functional DM16!

Characteristics of the mixer Maidas Europower DM12:

  • Mic Inputs (MIDAS Mic Preamp): 12
  • Type: XLR, balanced
  • Mic EIN at 60 dB gain, 50 ohm source to insert send: -131 dBu, unweighted, 20 Hz to 20 kHz
  • Mic EIN at 60 dB gain, 150 ohm source to insert send: -128 dBu, unweighted, 20 Hz to 20 kHz
  • Noise at 10 dB gain, when sending an insert: -97 dBc, unweighted, 20 Hz to 20 kHz
  • Frequency response (-1 dB) on main output: 20 Hz to 20 kHz (-1 dB)
  • Frequency response (-3 dB) at main output: 70 kHz (-3 dB)
  • Mic Gain Range: +10dB to +60dB
  • Maximum. input level: +11 dBu with +10 dB gain
  • Gain CMRR: +60dB Typical -90dB
  • Impedance: 2 kΩ, balanced
  • Distortion (THD + N) at 0 dBu: 0.005% at 1 kHz
  • Phantom Power Switchable +48V

line input

  • Type: ¼" TRS, balanced
  • Impedance: 20 kΩ balanced / unbalanced
  • Linear Gain Range: -10dB to +40dB
  • Maximum. input level: +30 dBu

Stereo inputs

  • Type: 4 x ¼" TRS jack, balanced
  • Impedance: 20 kΩ balanced / unbalanced
  • Gain Range: -20dB to +20dB
  • Maximum. input level: +21 dBu

Equalizer

  • Low: ±15 dB @ 80 Hz, shelving
  • Mid (mono inputs only): ±15dB @ 150Hz to 3.5kHz, adjustable semi-parametric
  • High: ±15 dB at 12 kHz, shelving

Channel inserts

  • Type: ¼" TRS connector, unbalanced
  • Maximum. input / output level: +21 dBu

Aux sends

  • Type: 2 x ¼" TRS jack, balanced
  • Impedance: 240 ohms balanced, 120 ohms unbalanced
  • Maximum. output level: +21 dBu

Monitor output

  • Type: 2 x ¼" TRS jack, balanced
  • Impedance: 240 ohms balanced, 120 ohms unbalanced
  • Maximum. output level: +21 dBu

Main Out

  • Type: 2 x XLR, electronically balanced
  • Impedance: 100 ohms balanced, 50 ohms unbalanced
  • Maximum. output level: +21 dBu

Inserts Main Out

  • Type: 2 x ¼" TRS jack, unbalanced
  • Maximum. input / output level: +21 dBu

Headphone output

  • Type: ¼" TRS connector, unbalanced
  • Impedance: 25 ohm
  • Maximum. output level: +21 dBu

2-track input

  • Type: 2 x RCA, unbalanced
  • Impedance: 20 kOhm
  • Maximum. input level: +21 dBu

record out

  • Type: 2 x RCA, unbalanced
  • Impedance: 1 kOhm
  • Maximum. output level: +21 dBu

Main mix system noise

  • Main Mix @ -?, Channel Fader @ -8: -104 dBu, unweighted, 20 Hz to 20 kHz
  • Main mix @ 0 dB, channel fader @ -8: -91 dBu, unweighted, 20 Hz to 20 kHz
  • Main Mix @ 0 dB, Channel Fader @ 0 dB: -84 dBu, unweighted, 20 Hz to 20 kHz

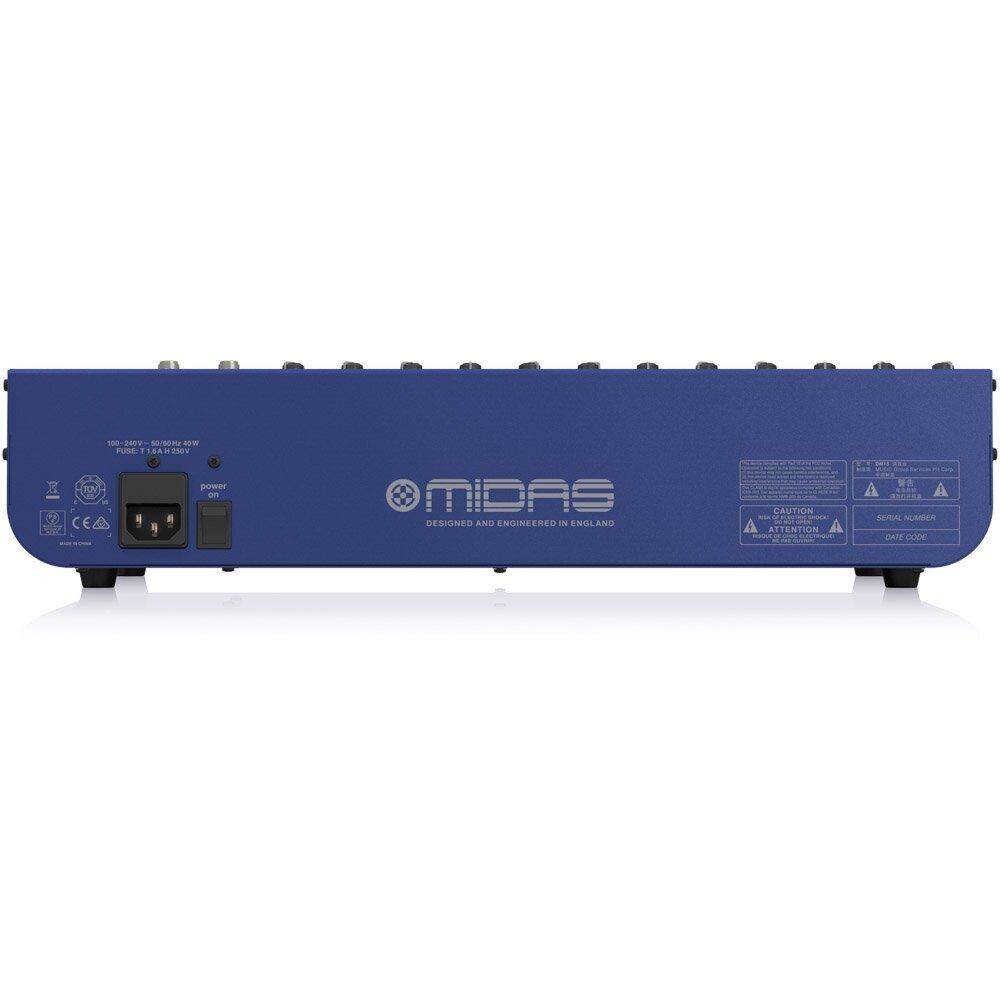

Power supply / voltage (fuses)

  • Switching power supply: 100-240V ~ 50/60Hz, switchable (T 1.6AH 250V)
  • Power Consumption: 40W
  • Mains connection: IEC standard socket

Dimensions / Weight

  • Dimensions: (H x W x D) 95 x 438 x 370 mm
  • Weight: 5 kg
BrandMidas
Model DM16
TypeМикшерный пульт
Number of channels16
Input level+21 дБу
Microphone inputЕсть
exitsmonitor out 2хjack 6,3 мм, aux out 2хjack 6,3 мм, main out 2хXLR, Insert виходи 2хjack 6,3 мм, recor out стерео RCA, вихід на навушники jack 6,3 мм
Nutrition100-240 В, 50-60 Гц
ConnectorsВходные разъемы (моно каналы): XLR, TRS
Входные разъемы (стерео каналы): TRS
Выходные разъемы: RCA (для записи), XLR (основные), TRS (мониторы, AUX)
Power consumption40 Вт
ColorСиний
Dimensions (H x W x D), mm95 x 438 x 370 мм
Weight5 кг
