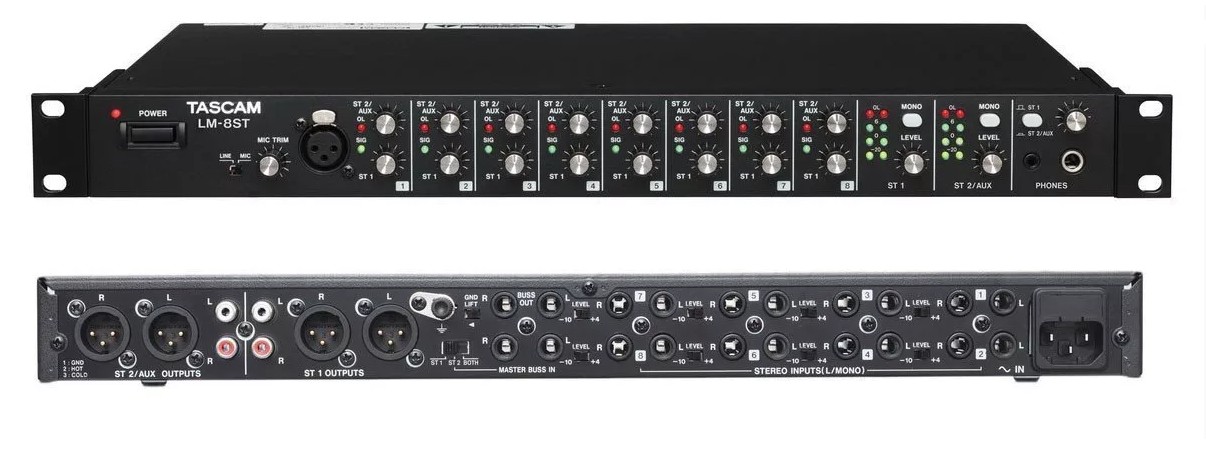

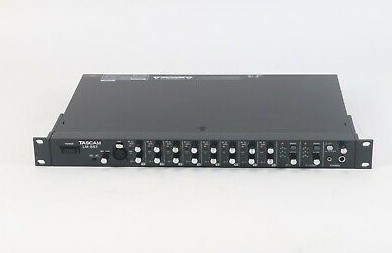

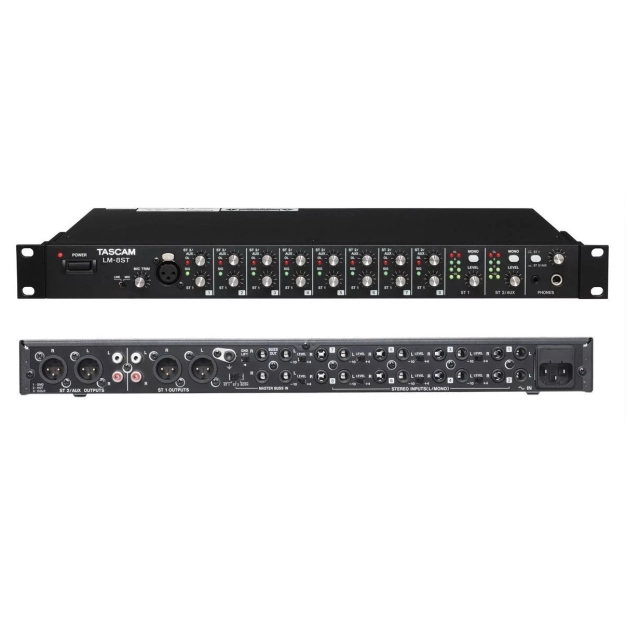

Рековый микшерный пульт TascamLM-8ST

Tascam LM-8ST is a compact line mixer for commercial installations and recording studios. It will be no less convenient in a set of concert equipment for musicians who are faced with the task of mixing several sources of a linear signal. Eight stereo inputs allow you to connect CD/MP3 players, radios, musical instruments and other devices and route their signals to a pair of stereo outputs independently. One of the LM-8ST's stereo outputs can be configured by the user in pre or post-fader mode. Input and output level controls, combined with appropriate meters, keep every signal under control. The LM-8ST mixer is equipped with a microphone input. The master bus I/Os are always available for cascading multiple devices. The LM-8ST is housed in a rack-mount housing and has a built-in power supply that has proven itself to be very reliable and safe over many years of operation.

Peculiarities:

Line Signal Mixer with Flexible Router

Ideal solution for installations in conference rooms, fitness clubs, on stage as an additional mixer for keyboards

8 stereo input channels for line sources: CD/MP3 players, radio, TV or VCR signals (TRS connectors)

Additional mic/line input with front panel level control (XLR connector)

2 stereo outputs (ST1 and ST2/AUX, balanced XLR / unbalanced RCA on each output)

Each stereo input, independently of the others, can be routed to any of the stereo outputs:

ST1: Input signal is routed to output ST1

ST2: The input signal will be taken down to the input level control (pre fader) and routed to the ST2/AUX output

AUX: The input signal will be taken after the input level control (post fader) and routed to the ST2/AUX output

ST2/AUX switches on bottom panel

Input level can be adjusted to +4 dBu or -10 dBV per channel

LED indicators for signal presence and overload on each channel

4-segment LED output level meters

Each stereo output can be switched to mono

Headphone output with level control and output switch (ST1, ST2/AUX)

Additional balanced master input and output (input can be selected between ST1, ST2/AUX and Mix)

Ground contact and disconnect switch on rear panel

Easy fuse replacement

Rack Mount, 1U Height

Specifications:

Supply voltage: 100-240W AC, 50-60Hz

Power Consumption: 15W

Dimensions: 482 x 44 x 280 mm

Weight: 3.8 kg

Operating Temperature Range: 5-35°C
