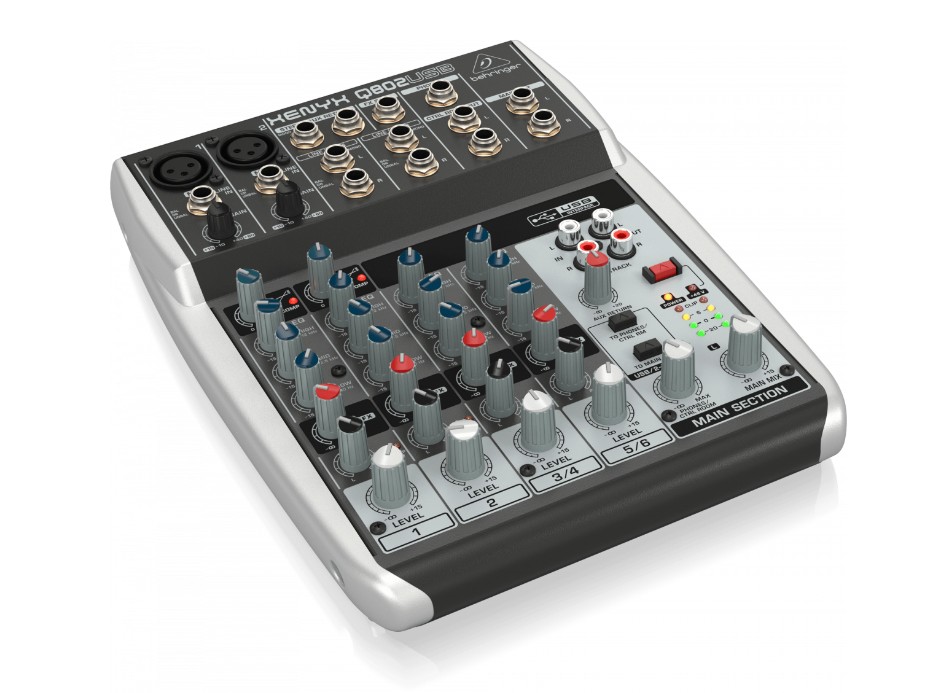

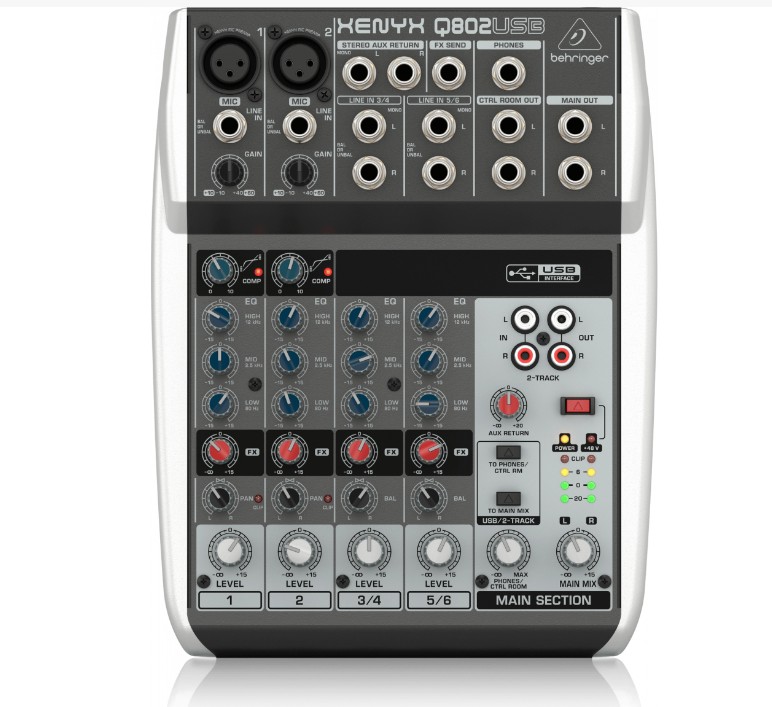

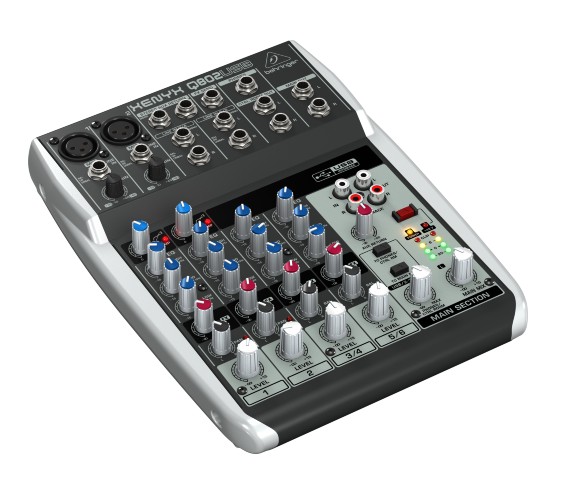

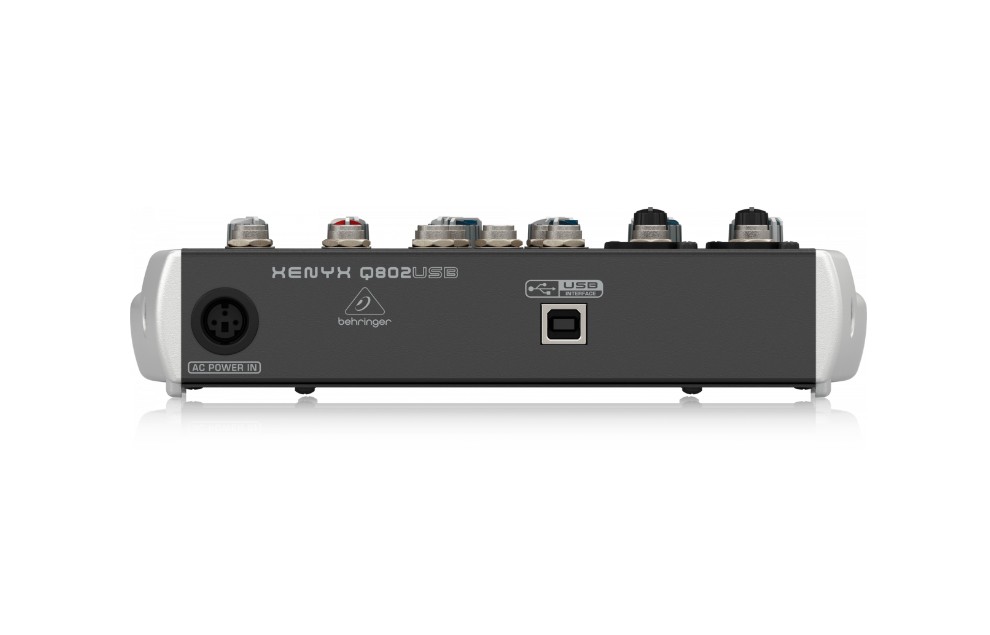

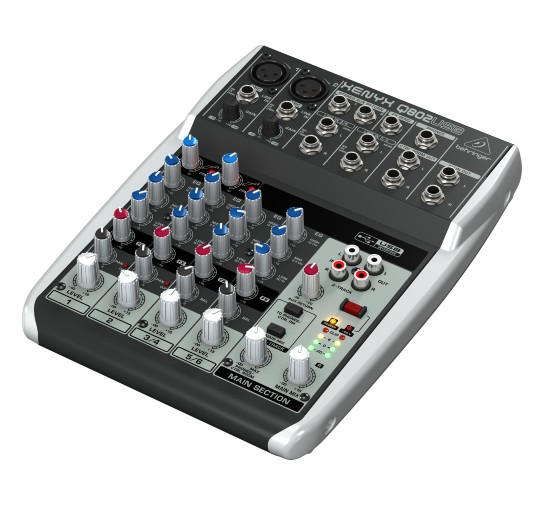

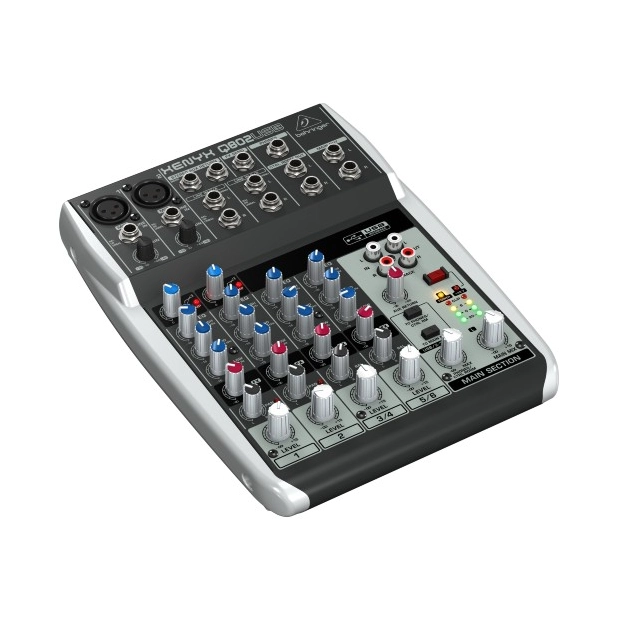

Микшерный пульт Behringer XENYX Q802 USB

The Behringer XENYX Q802USB is a low-noise 8-channel analog studio mixer with four XENYX mic preamps, allowing the use of both dynamic and condenser microphones.

Also on the inputs are three-band "British" equalizers in the form of knobs. The device has two buses: you can collect signals from one or more channels on one bus. Distinctive features of this model are the presence of a USB audio interface, which receives a signal similar to the master bus, as well as a compressor, which is controlled by a separate knob with an LED on each of the two channels.

The Behringer XENYX Q802USB has 2 XLR mic inputs, 2 mono line inputs, 2 stereo 2-channel line inputs and 2 RCA inputs. Outputs include a 1/4" TRS headphone jack, a main stereo TRS output (2 physical outputs), two TRS control outputs, and two RCA outputs: so you can record your signal from either RCA or In addition, there is a separate TRS output FX SEND: this is a send to external effects processors, which is controlled by separate knobs as on all channels, they also have their own volume and balance controls. there are volume controls for the headphones and master/control channel, a phantom power button, a four-segment overall two-channel level indicator with a clipping LED, and send-to-record buttons.

The Behringer XENYX Q802USB is an excellent entry-level studio mixer, providing plenty of channels, a variety of features and high sound quality.

Features of the Behringer XENYX Q802USB analog mixing console

Entry-level compact analog studio mixer

2 tires

2 XLR mic inputs

2 stereo line inputs (4 physical inputs)

2 mono line inputs

2 RCA inputs

Outputs to RCA and 1/4" TRS Jack

Send to external processors with separate control knobs on each channel

Three-band EQ on all inputs

Gain up to +60dB on each mic input

Output level adjustment knobs up to +15 dB on all channels

Four-segment level indicator with clipping

USB audio interface

Built-in compressor

Characteristics of the Behringer XENYX Q802USB analog mixing console

Type studio mixer

Category analog

Frequency response on microphone inputs <10 Hz - 150 kHz (-1 dB), <10 Hz - 200 kHz (-3 dB)

Equivalent noise level on the microphone channel -134 dB @ 0 ohms, -131 dB @ 50 ohms, -129 dB @ 150 ohms

Input impedance 1.9 kΩ (mic), 20 kΩ (line, balanced), 10 kΩ (line, unbalanced), 20 kΩ (line stereo, balanced), 10 kΩ (line stereo, unbalanced)

Output impedance 120 Ohm (main&control room), 150 Ohm (headphones), 1 kOhm (cd/tape)

Signal-to-noise ratio 110 dB, 112 dB (A-weighted)

Harmonic Distortion 0.005%, 0.004% (A-weighted)

Send/return resistance 120 ohms (aux send), 20 k ohms (balanced, stereo aux return), 10 k ohms (unbalanced, stereo aux return)

Power consumption 13 W

Inputs 2 x XLR-F, 2 x 1/4" TRS line in, 4 x TRS stereo line in, 2 x RCA 2-track in

Outputs 2 x 1/4" TRS Jack main out, 1 x 1/4" TRS Jack FX send, 1 x 1/4" TRS Jack phones, 2 x 1/4" TRS Jack ctrl room out, 2 x RCA 2- track out

Other connectors 1 x USB-B, 16bit/48kHz

Dimensions 195 x 248 x 50 mm

Weight 1.1 kg
