Плеер iBasso DX300 Obsidian Black

iBasso DX300 is the company's new top. The DX300's ease of use is powered by a 14nm Snapdragon 660 octa-core processor, 6GB RAM, 128GB storage, and Android 9.0 for Tidal and Spotify streaming with MQA support.

The player runs on Android 9 and also supports the proprietary Mango OS responsible for the audio part. The FGPA chip acts as a clock for all of the player's circuits, including the processor, clock, voltage regulator, DAC, and SPIDF output. Fourth generation means four times the decoding power: The DX300 contains four Cirrus Logic CS43198 DAC chips, allowing for a fully balanced digital/analog configuration. The result is high quality sound with minimal distortion. Signal to noise ratio - 125 dB.

It has two separate batteries (4000 and 2000 mAh) and completely isolated power supplies - for the digital and analog parts. An analog power supply independently powers a discrete architecture amplifier (AMP11) capable of delivering 1240 mW @ 32 ohms of pure power. This, in turn, allows the device to better handle demanding headphones.

The output is organized on a proprietary AMP11 module with outputs on 3.5 mm, 2.5 m and 4.4 mm jacks. The voltage at the balanced output reaches 7.1 V. This ensures excellent compatibility with headphones, no matter what connection standard you use.

Wireless technologies are implemented at the highest level. Bluetooth 5.0 with support for all the necessary codecs (L-DAC, AAC, Apt-X, Apt-X HD). iBasso DX300 can also be used as a bluetooth receiver (L-DAC, SBC). In addition, the player has Wi-Fi 5G 2 × 2 MIMO antennas with 2 input and 2 output channels, which, in turn, ensures high speed and stable connection.

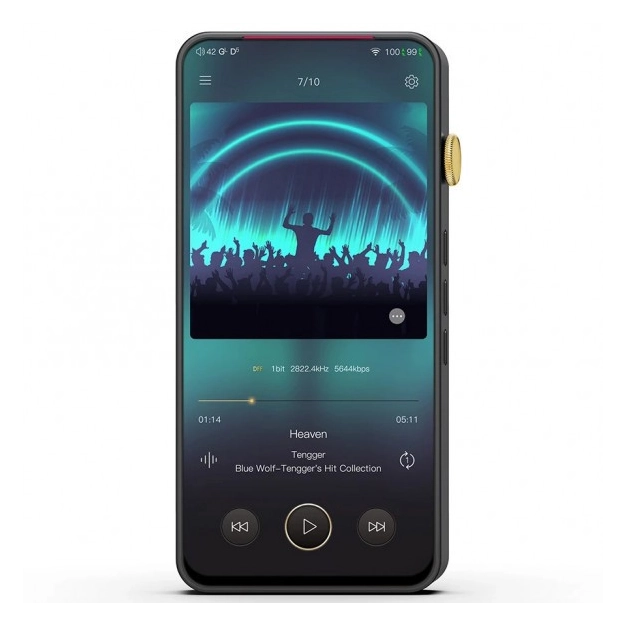

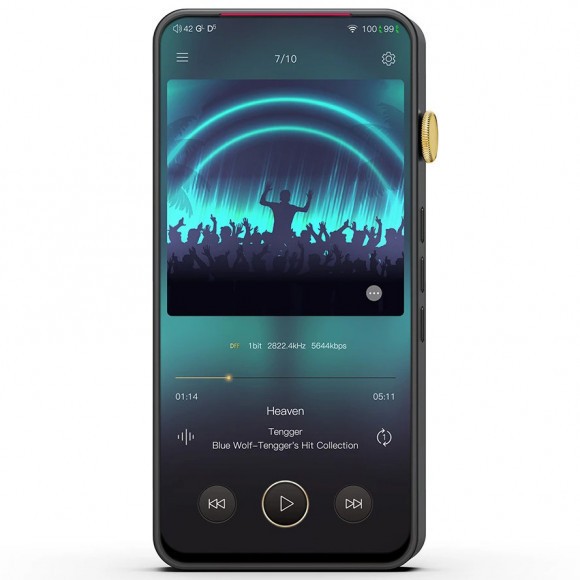

The design of the new iBasso is raised to the level of modern smartphones. A large high-quality display with a diagonal of 6.5 "on an IPS matrix (2340 x 1080) occupies more than 85% of the front surface.

Characteristics
