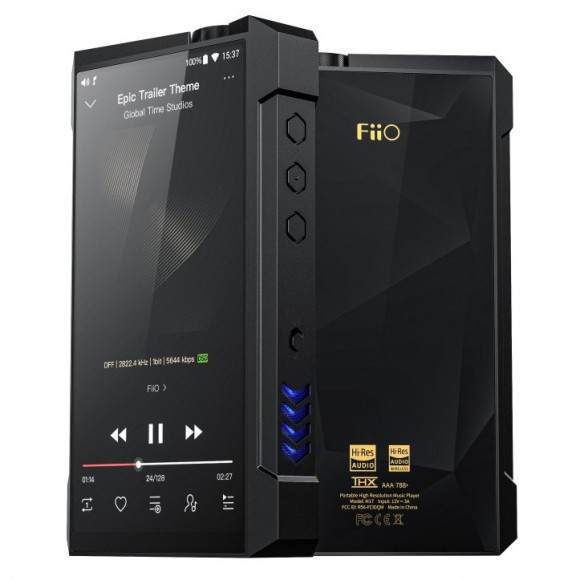

Аудиоплеер FiiO M17 Black

The FiiO M17 Black audio player is an excellent Hi-Fi player in classic black color with a wide range of outputs and the ability to connect an external power supply for stationary operation.

Peculiarities:

• 2 x DAC ES9038PRO
• 2 x THX AAA-788+ amplifiers
• Dual Power
• 2 volume control modes
• Qualcomm QCC5124
• XMOS XUF208
• supercapacitor
• Display 5.99 inches
• 5 x audio outputs
• 2 x USB Type-C
• Battery 9200 mAh
• RGB backlight

Rethinking the portable device. The M17 desktop class player is a brand new chapter in the history of FiiO portable players. Desktop-specific DACs, amplifiers, and power deliver power and sound that rivals or exceeds some desktop devices while remaining portable.

Desktop-class DAC ES9038PRO. The left and right channels of the audio path are equipped with separate 8-channel flagship ES9038PRO DACs. This means that each audio channel has 8 parallel outputs summed together to provide exceptionally clear audio reproduction of excellent resolution with minimal distortion.

Desktop class amplifier THX 788+. The desk class buff also plays an important role in the M17. FiiO and THX have jointly developed the exclusive THX AAA-788+ amplifier, an updated version of the original op-amp. Compared to the original, the output power is increased by 225%, up to 3000mW per channel, with lower output impedance, making it easy to drive any type of headphones.

Amplification similar to desktop devices. On battery power, there are 4 gain levels: low, medium, high, and full-size headphone mode. Plugging in external power unlocks the advanced amplification mode of the over-ear headphones, delivering true desktop power. On a balanced output, the gain can reach up to 16dB, making the M17 easy to work with most headphones.

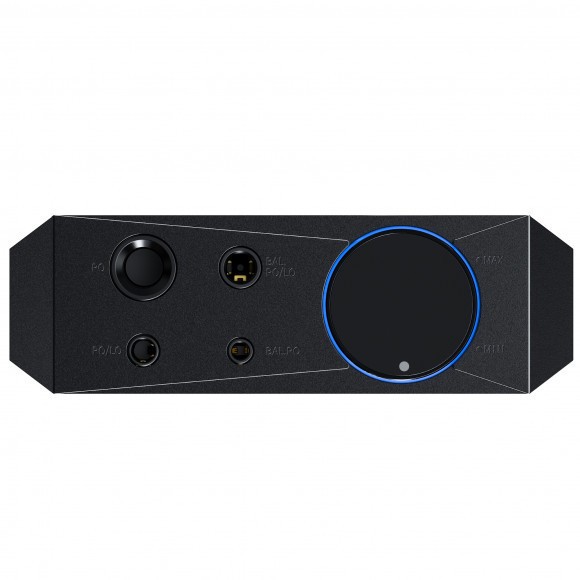

Amazingly wide range of interfaces. Thanks to its larger size, the M17 offers a variety of connection options, which expands the possibilities of using the player:

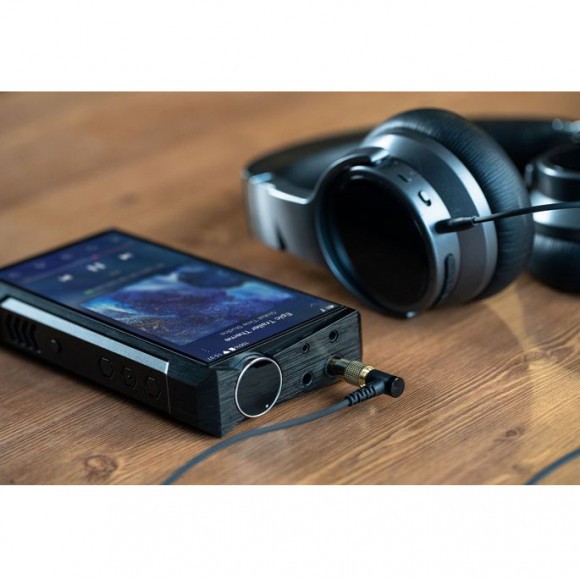

• 3.5mm output: headphone/line output
• 6.3mm output: headphone
• 2.5mm output: balanced headphone output
• 4.4mm output: balanced headphone output / balanced line output

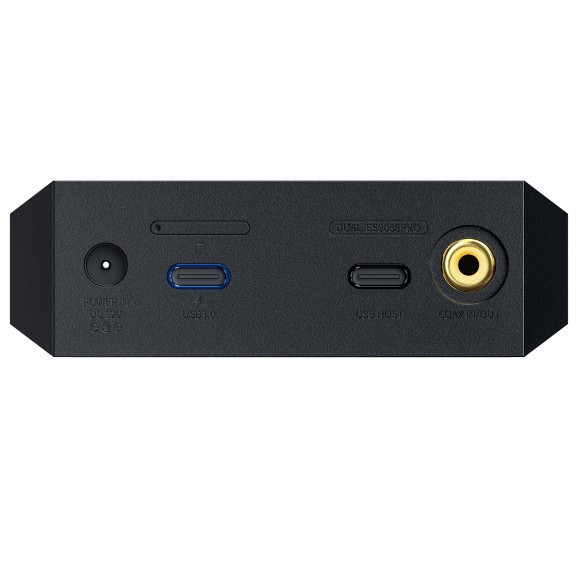

• RCA coaxial port: coaxial input and output
• USB 3.0 port: supports USB Host and Device modes, can be used for high-speed data transfer and fast charging
• USB 2.0 port: Supports USB Host mode, allowing you to connect an external DAC or hard drive

Powerful power supply. The M17 contains two power supplies, a battery power supply and an external DC power supply. The battery pack allows the M17 to be used in situations where a power outlet is not available. With DC power, the voltage in the analog circuit increases by 35% to 11.5 V compared to battery power; and the battery remains healthy as it is not used in this mode.

Advanced cooling system. Exceptional sound quality is combined with high power consumption, so when designing the M17, great attention was paid to efficient heat dissipation. The M17 not only uses an "H" type heatsink and VC liquid cooling, the 151g aluminum alloy one-piece body also effectively dissipates heat from the device. Lastly, the fan stand also provides fast heat dissipation.

To reduce interference. Inside the M17 are 17 gold-immersed printed circuit boards, with the analog and digital sections physically separated into two separate boards to reduce mutual interference between them. 7 high conductivity copper alloy shields also provide shielding to greatly reduce internal and external EMI for analog audio signals inside the M17.

Optimized modular internal structure. The development of the M17 took 1.5 years, followed by 6 major design iterations with 12 internal design optimization steps. The result is a device that makes excellent use of the interior space. Inside the M17, analog and digital boards are neatly stacked with clever use of stainless steel screws, allowing FiiO to achieve almost twice the PCB area of a typical PCB in such a limited space.

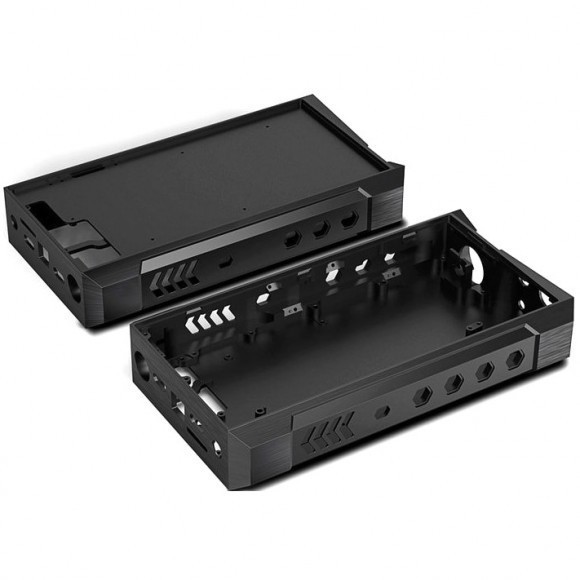

Futuristic design of the 7th generation. The futuristic CNC-machined aluminum one-piece body evokes the feeling of a technological marvel. The sharp lines of the case, buttons and lighting slots give the M17 a bold and charismatic aura.

Click or turn, enjoy. The volume can be adjusted either with the analog potentiometer knob or with the buttons. Quickly and easily set one of 120 volume levels using any of the methods.

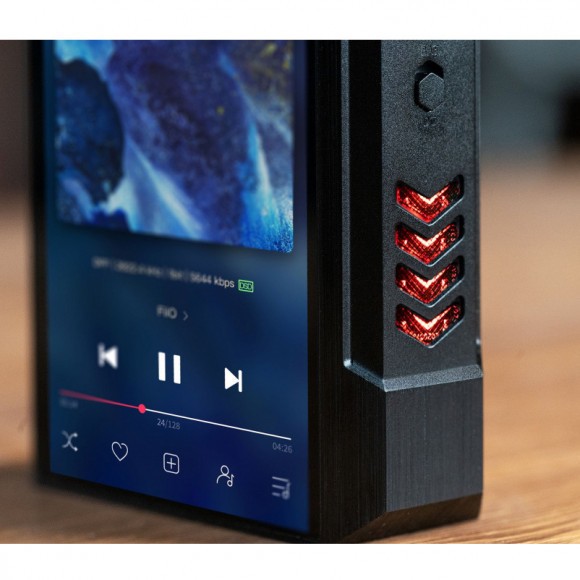

Stylish RGB lighting. The M17 is equipped with a seven-color RGB backlight system that is highly customizable. Colors can be fixed, follow sound or mode. The backlight brightness can be set to change depending on the current power, volume or temperature. The top and side lights can even be controlled separately, allowing you to choose your own unique style.

Big Screen:

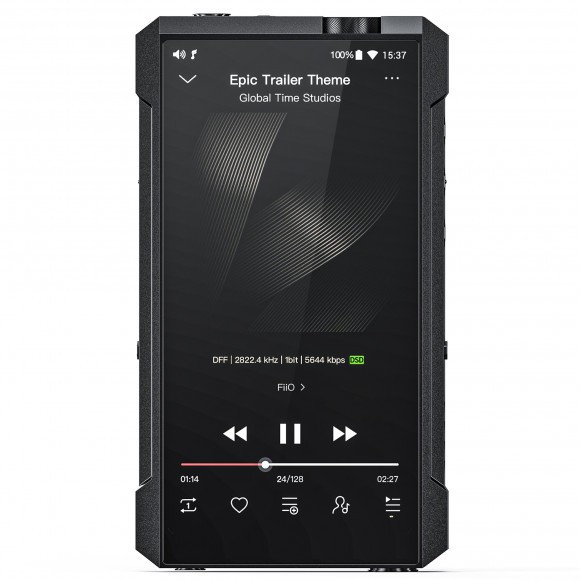

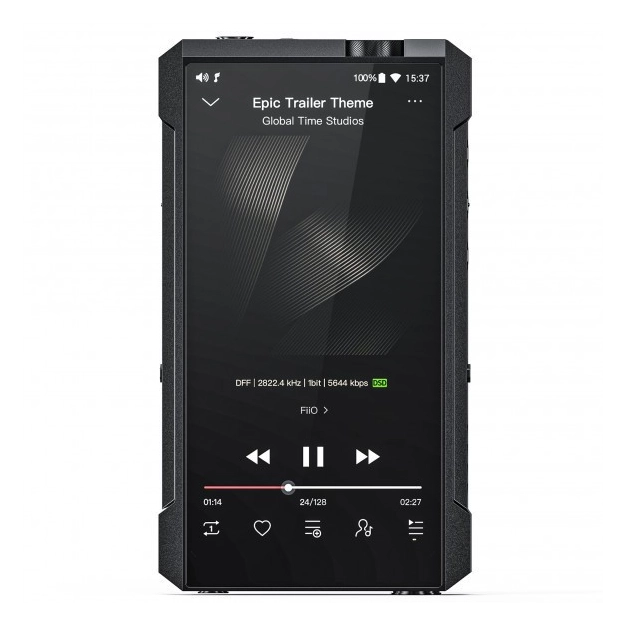

1. Large 5.99" FHD+ display with 1080 x 2160 resolution allows you to fully enjoy the player
2. Solid 9200 mAh battery
3. A massive 9200 mAh battery provides up to 10 hours of battery life for the M17. It can be charged via USB or external DC adapter
4. Battery capacity: 9200mAh
5. Charging time: 4.5 hours
6. Charging protocols: QC4.0+PD
7. Operating time: 10.6 hours (unbalanced), 8.6 hours (balanced)

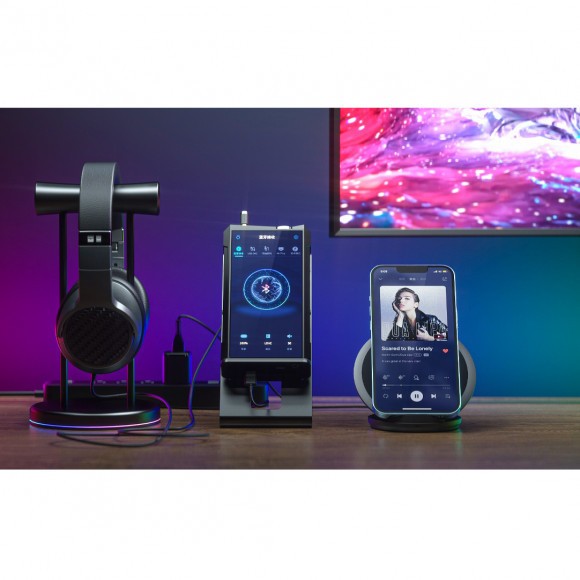

Connection scenarios:

1. With speakers: DC + LO + speakers
2. With computer: USB DAC + headphones
3. With desktop DAC: USB / coaxial output + DAC
4. With hard disk: DC + USB 2.0 + hard disk + headphones
5. With Bluetooth Headphones: Bluetooth Transmitter + Bluetooth Headphones
6. Decoding via coaxial input/output

Characteristics:

• Device type: Hi-Fi player
• Purpose: audiophile
• Chipset: Qualcomm Snapdragon 660
• DAC: 2 x ES9038PRO
• Amplifier: THX AAA-788+
• Bluetooth: QCC5124
• USB chip: XMOS XUF208
• Crystal oscillators: 2 x NDK femtosecond crystal oscillator
• Working Modes: Android/Pure Music/USB DAC/Bluetooth Receive/AirPlay/Decode via coaxial input
• Display: 5.99 inches (1080 x 2160)
• Supported formats: AIFF, MQA, AAC, WAV, WMA, OGG, DSD, ALAC, MP3, FLAC, APE, DSF
• Volume control: potentiometer or buttons
• RAM: 4 GB
• Memory capacity (available capacity): 64 GB (approximately 46 GB)
• Memory expansion: micro-SD card slot up to 2TB, external hard drive connection
• Gain: Low/Medium/High/Full Headphones/High Power Mode for Full Headphones (when external power is connected)
• Channel balance: L20 - R20 (0.5 dB per level)
• Recommended headphone impedance: 16 ohms - 150 ohms (unbalanced) / 16 ohms - 300 ohms (balanced)
• Charging: Support fast charging QC 3.0, QC 4.0, PD 2.0, and PD 3.0
• Battery capacity: 9200 mAh
• Operating time: approximately 10.6 hours (unbalanced), 8.6 hours (balanced)
• Charging time: Approximately 4.5 hours (quick charge)
• Standby time: >1000h
• Dimensions: 156.4mm x 88.5mm x 28mm
• Weight: 610 g
• Black color
