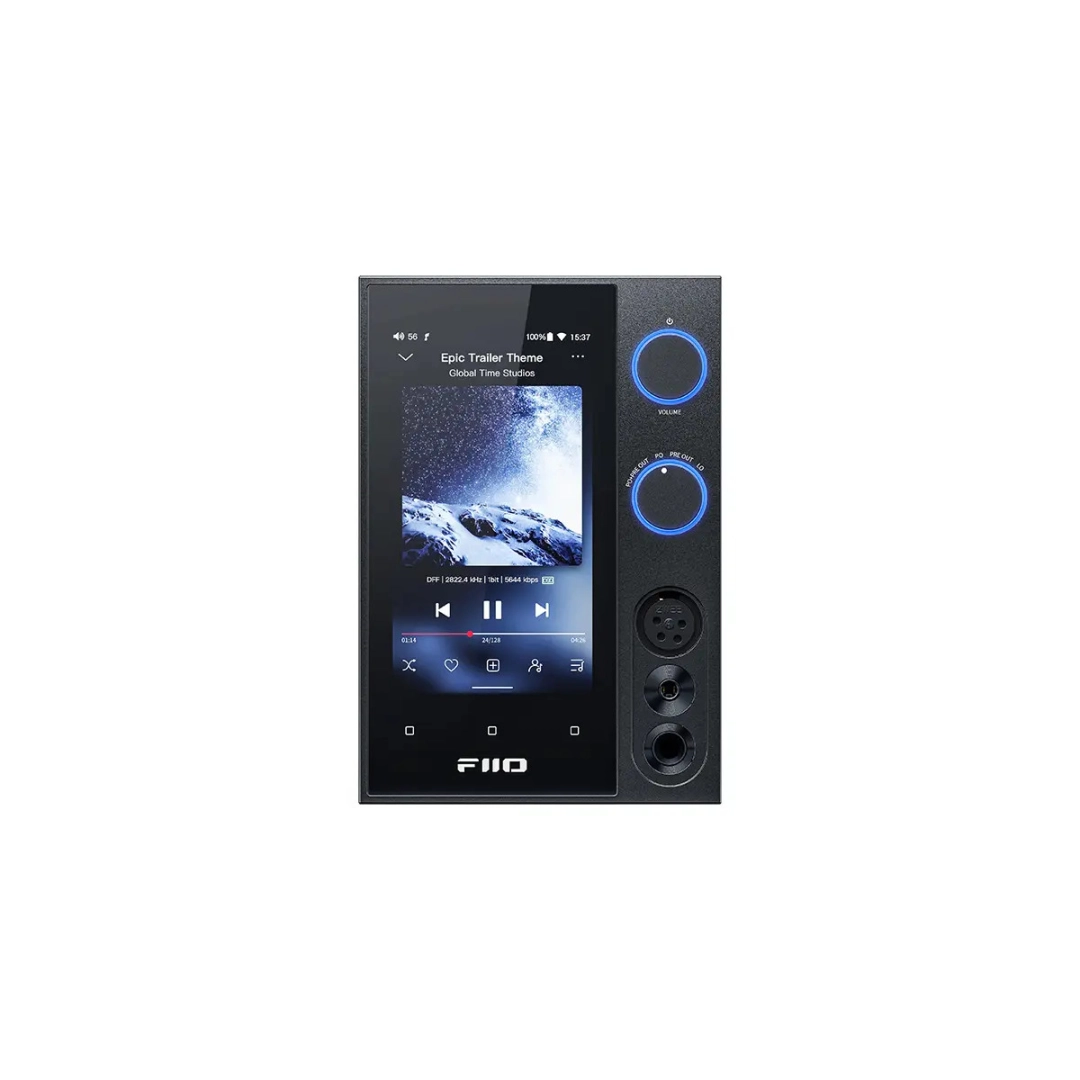

FIIO R7 Black Streaming Player

Description
FiiO R7 is a high-definition desktop audio player and streamer designed exclusively for stationary use.

The R7 fits well with FiiO's specialization, but it's the first such model in the history of the company known for its portables. R7 allows beginners and audiophiles to create their own desktop Hi-Fi system, it is capable of working as a network streamer and local storage of music files (USB, 64 GB "on board" plus a memory card up to 2 TB), supports high-resolution audio formats, up to MQA.

Connection options:
With a wide range of front and rear inputs and outputs, the R7 allows you to use it as the centerpiece of a modular Hi-Fi system of your own design. It can support a variety of audio connections, the USB-A port has a host function for additional hard drives or interfaces such as the KB1 keyboard, and the microSD slot supports cards up to 2TB.
Rear connectors: two RCA (in), one optical (in and out), one coaxial (in and out), two 3-pin balanced XLR (line out), one USB-C, one USB-A, one Ethernet and slot for microSD card.
Front connections: One 6.35mm headphones, 4.4mm balanced headphones and 4-pin XLR balanced headphones.

Control system:
The most obvious way to control the R7 and how it manages connected devices is with the built-in 5-inch high-definition portrait touchscreen. This screen provides an intuitive GUI based on Android 10 so you can enjoy a variety of third-party apps, including popular streaming services. The second way is using a mobile device that has the FiiO Music app downloaded.

4 use cases:
In order not to get confused between different usage scenarios, on the front panel above the volume control, there is a switch:
PO: Only front audio outputs are active.
LO: Only the rear audio outputs are active (maximum output is fixed).
PRE OUT: Only the rear audio outputs are active (with adjustable volume).
PO + PRE OUT: Default selection which has active front and rear outputs with adjustable volume.

Operating modes:
Android Mode: Allows you to use third-party apps such as streaming services.
Pure Music Mode: FiiO exclusive mode for more immersive music.
USB DAC Mode: Enhances the sound of any connected PC or mobile device.
Bluetooth Receiver Mode: Broadcasts high quality audio through R7. Supports AAC, SBC and LDAC.
AirPlay Receiver Mode: Wirelessly connect an Apple iOS device.
Roon Ready Mode: Get an ergonomic player in seconds with Roon Ready R7 certification.
Coaxial/optical decoding mode: Decode audio from connected components.

Nutrition:
The R7 has a built-in 30W switching power supply that supports the use of external 12V/3A DC power supplies. The AC circuit provides filtering and purification with a large capacity choke and special high voltage capacitors, while the DC circuit adopts a high voltage design. +/- 12 V.

It also offers the following features :
Twelve 470uF capacitors to adjust and clean power and reduce noise.
A metal cover fixes the transformer to the main power board to reduce jitter and stabilize the sound.
Each stage of the audio circuitry uses ultra-low noise LDOs to regulate voltage and provide stable, clean power.

Hi-Fi Internal Components:
Whether you're playing audio with the R7 or using it to enhance the sound of another device, it does it with precision thanks to its many high-quality internal components:

4th generation PLIC with phase-locked loop clock and tech+2 femtosecond crystal oscillators
ES9068AS DAC and pair of THX AAA 788+ headphone amplifiers
Four Panasonic PPS film capacitors
Qualcomm Snapdragon 660 core
Design:
The body of the device with a large display will logically look next to the monitor or laptop screen. It is very convenient when, in addition to the touchscreen, there are volume knobs and a choice of one of the 5 gain modes at hand.

Equipment:
Stationary audio player;
Remote control;
Power cable;
Stand;
Support legs;
Adapter for 6.3 mm;
Spare fuse;
USB cable;
Adapter for memory card;
Documentation.

FiiO R7 Features:

DAC ESS ES9068AS;
headphone amplifier THX AAA-788+;
support for PCM 32bit/768kHz, DSD512 formats;
5 gain modes;
8 operating modes;
line output XLR;
Snapdragon 660 octa-core SoC from Qualcomm and Android 10;
slot for microSD memory cards up to 2 TB;
custom RGB lighting;
network standards: LAN RJ45, Wi-Fi, Bluetooth 5.0 and LDAC, aptX-HD, LHDC codecs;
personalized screensaver;
Roon Ready certification and MQA x16 support;
headphone outputs: unbalanced 6.3 mm, balanced 4.4 mm (Pentacon) and XLR;
power supply mode from direct or alternating current.
Specifications:
Device type: Music system, all-in-one
Supply voltage, V: 100-240
Dimensions, mm: 110×134×160
Weight, g: 1282
Number of channels: 2
Headphone power: 1000 - 3650 mW (16-32 ohms), 630 mW (300 ohms)
Frequency range, Hz-kHz: 20 - 50
S/W ratio, dB: 122
Harmonic coefficient, %: 0.0005
Output impedance: 0.5 ohm
Chip Model: ESS Saber
Audio DAC: ES9068AS
Supported formats: 32-bit/768 kHz (DoP/D2P/Native), Roon Ready, DSD, DXD, APE, AIFF, FLAC, WAV, WMA, DTS, MQA, MP3, OGG, WMA, AAC
Wireless connections: Wi-Fi Yes, AirPlay Yes, Bluetooth Yes
Connectors input: Coaxial 1 x S/PDIF (RCA), Optical 1 x TosLink, Ethernet 1 x Ethernet (RJ45)
WiFi: 2.4GHz/5GHz, DLNA, AirPlay, Roon Ready transmission
Bluetooth: 5.0, SBC, AAC, aptX, aptX HD, aptX LL, LDAC, aptX Adaptive
USB: 2 x USB-C/A
Connectors output: Coaxial 1 x S/PDIF (RCA), Optical 1 x TosLink, Analog audio 2 x RCA, 1 x XLR
Headphones: 1x6.35mm, 1x4-PinXLR, 1x4.4mm
