AV Процессор Marantz AV 8802 Black

The 11.2-channel flagship Marantz AV8802 Black replaces the AV8801 AV processor. Its main advantage is the ability to work with the Dolby Atmos format (up to a 7.1.4 configuration with 4 ceiling speakers), which allows you to get multi-dimensional sound with precise localization of audio effects. Optional installation of a decoder is available to support the new Auro-3D audio standard in 10.1-channel version, which is based on a three-layer surround sound construction principle.

The model is equipped with four DSPs and works with a variety of audio formats, including DTS Neo:X (11.1) and Audyssey DSX, thanks to which additional channels can be used. The flagship supports 4K Ultra HD resolution (50/60Hz, 4:4:4 Pure Color) and upscales any video to 1080p and 4K. ISFccc professional video calibration available. HDCP 2.2 content protection technology is planned to be supported for 4K Blu-ray disc playback in the future.

Each channel has an AK4490 DAC (32bit/192kHz) and a discrete HDAM module for high quality sound. The circuits use current feedback, and a toroidal transformer is installed in the power supply.

The unit uses Audyssey MultEQ XT32 (Pro ready) and Sub EQ HT auto calibration technology to optimize the sound of a dual subwoofer system, Dynamic Volume and Dynamic EQ to optimize signal level and frequency response. There is an Audyssey LFC function that eliminates bass leakage into adjacent rooms.

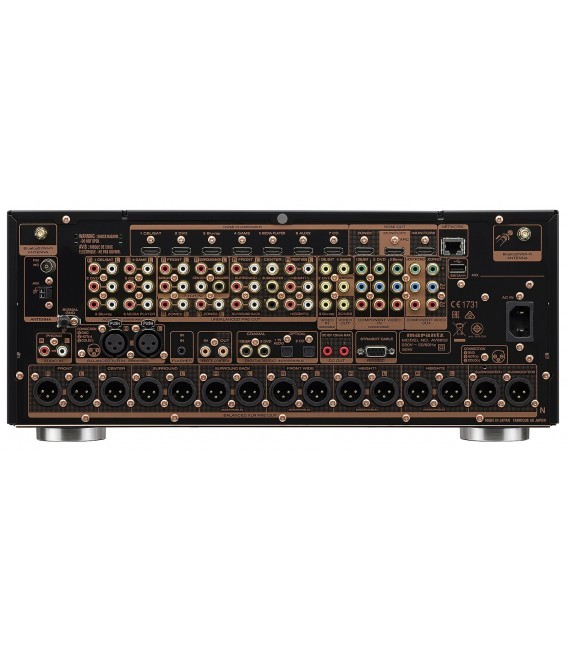

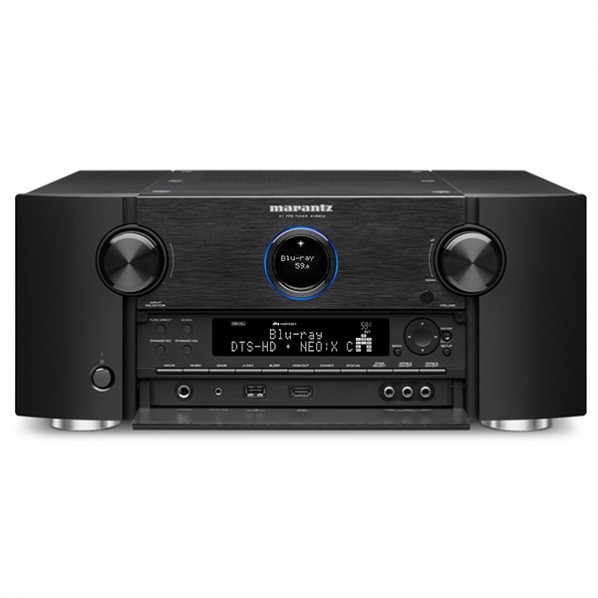

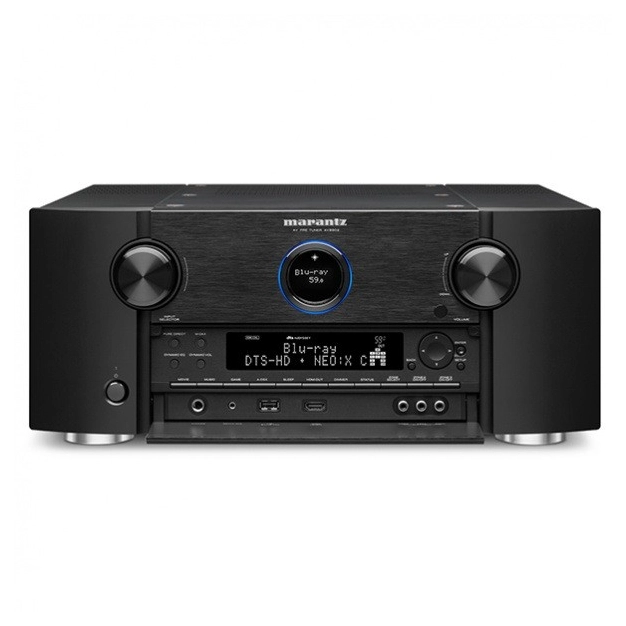

The flagship has built-in Bluetooth and Wi-Fi, supports AirPlay and the DLNA (v1.5) protocol for accessing the audio content of servers and computers when connected to a local network. High resolution audio formats are played, including DSD (2.8 MHz). Popular web services are supported, incl. Spotify. You can control the Marantz AV8802 using the remote control or through the application from devices based on iOS and Android. The chassis of the model has a copper coating. On the front panel there is a volume control and an input selector, between which there is a round display. A flip cover hides a second display, controls, 6.3mm headphone jack, mini jack for calibration microphone, USB port (with iPod/iPhone/iPad support), HDMI input and AV connections. The rear panel of the Marantz AV8802 has 7 HDMI (2.0) inputs and a rich set of composite, component, optical, coaxial and analog connectors. There is an XLR input, 7.1-channel RCA and MM phono inputs. There are 3 HDMI outputs for simultaneous image output to three screens and 13.2-channel outputs (RCA and XLR).

Features Marantz AV 8802 Black:

• Support for new generation formats Auro-3D (optional) and Dolby Atmos
• AK4490 DAC (32bit/192kHz) per channel
• Audyssey MultEQ XT32 (Pro ready), Audyssey LFC and Sub EQ HT functions
• 8 inputs and 3 outputs HDMI, 13.2ch balanced output

Characteristics:

• Number of channels: 11.2
• Frequency response: 10 Hz - 100 kHz (+1dB, -3dB, Direct mode, analog jacks)
• Signal-to-noise ratio: 105 dB (analogue connectors)
• Input sensitivity/impedance: 200 mV/47 kΩ (RCA), 400 mV/94 kΩ (XLR)
• Output voltage: 1.2V (RCA), 2.4V (XLR)
• Distortion Rate (Analog Connectors): 0.005% (20Hz - 20kHz, Direct Mode)
• Harmonic distortion (digital output): 0.008% (1kHz at 0dB)
• Signal-to-noise ratio (digital output): 102 dB
• AM/FM tuner: yes
• Built-in decoders (main): Dolby Atmos, Auro-3D (optional), DTS HD Master, DTS 5.1, DTS ES, DTS 96/24, Dolby Digital Plus, Dolby TrueHD, Dolby Surround, Dolby Digital EX, DTS Neo:X ( 11.1), Audyssey DSX
• Modes Pure Direct, Direct: yes
• DAC: AK4490 (32bit/192kHz)
• DSP processor: 4 pcs.
• Supported audio formats: MP3, WMA, AAC, FLAC, FLAC (24bit/192kHz), ALAC (24bit/96kHz), WAV (24bit/192kHz), DSD (2.8MHz)
• Compressed Audio Enhancer: MDAX2
• Gapless playback mode: for FLAC, WAV, ALAC, DSD
• Network Photo Format: JPEG
• Supported Web Services: vTuner, SiriusXM, Pandora, Spotify (Spotify Connect)
• DLNA protocol: version v1.5
• Auto speaker calibration system: Audyssey MultEQ XT32 (Pro ready)
• ISFccc Certified: Yes (Pro-standard video calibration) Audyssey Dynamic EQ/Dynamic Volume: Yes
• Audyssey Sub EQ HT/Audyssey LFC Yes
• WiFi support: yes
• Bluetooth Support: Version 2.1+EDR
• 4K Ultra HD Support: 4K (50/60Hz, 4:4:4 Pure Color)
• Video Conversion: CVBS > HDMI; Comp > HDMI
• Video upscaling up to 4K: yes
• Pass-through signal via HDMI in standby mode is
• 3D video pass-through: yes
• AirPlay support is
• Marantz Remote App control via iOS and Android devices: yes
• Management via IP address: yes
• Copper-plated chassis, split body cover: yes
• Number of additional zones: 2
• Setup Assistant system: yes
• Inputs: 7+1 HDMI (2.0)
• Outputs: 3 HDMI (2.0, one with ARC, one for zone 2), 2 component, 2 composite, two RCA for zone 2 and 3, 13.2ch RCA, 13.2ch XLR, 6.3mm headphone jack
• Other connections: 3.5 mm calibration microphone, RS-232C, two trigger outputs (3.5 mm), IR connector (mini-jack), 2 system bus connectors, ground terminal, AM/FM antenna jacks, combined antenna jacks WiFi and Bluetooth
• Power supply: toroidal transformer, 4 x 10000uF capacitors
• Power consumption: 90 W, standby: 0.2 W
• Remote control: RC027SR, learnable, with LCD display
• Dimensions (WxHxD): 440x185x390 mm
• Weight: 13.9 kg
