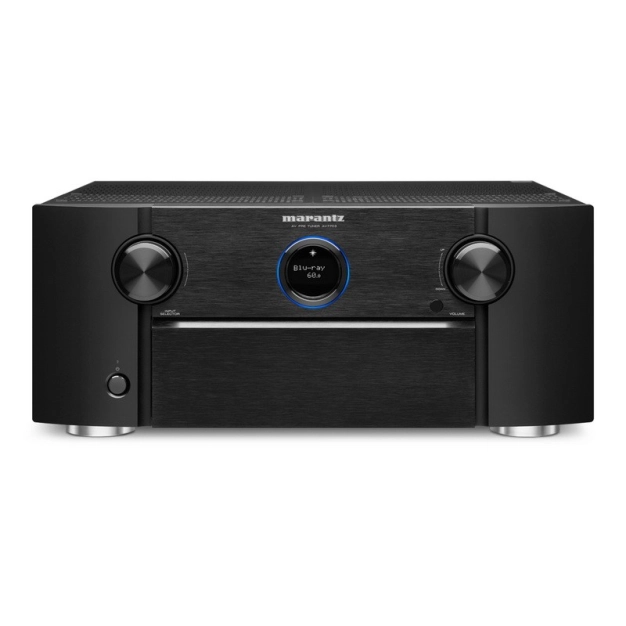

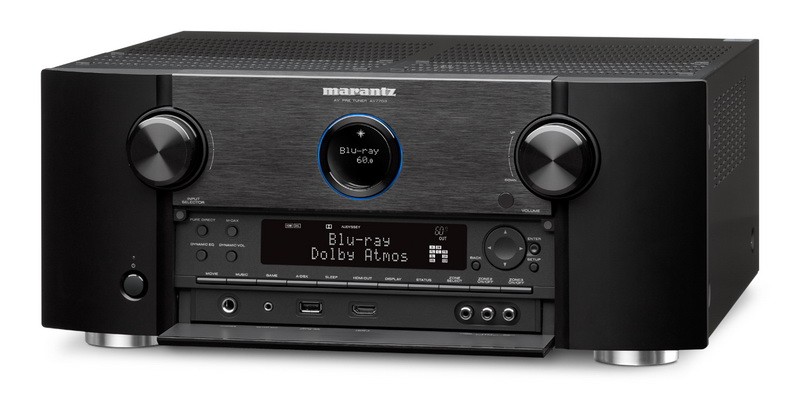

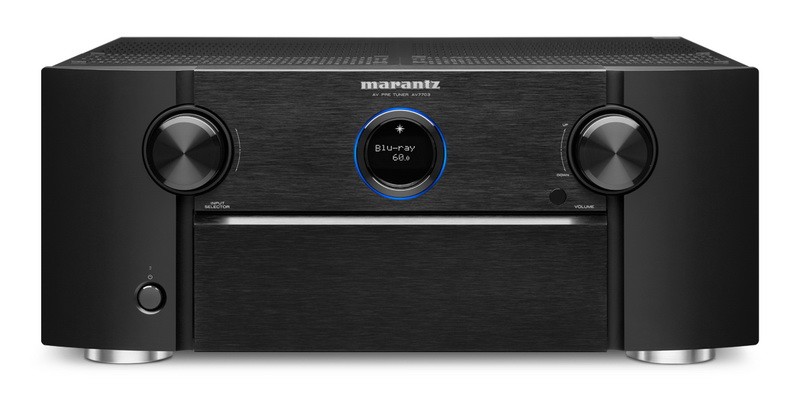

AV Processor: Marantz AV-7703 Black

AV Processor: Marantz AV-7703 Black

The extremely versatile AV 7703 handles any high-resolution multi-channel audio format beautifully and expertly. Superb sound quality from the latest 3D audio formats including Dolby Atmos, DTS:X and Auro-3D (optional, upgrade fee). Before passing signals to high quality 11.2 channel XLR connectors or 11.2 RCA outputs and a separate amplifier, the Marantz A V7703 delicately processes all signals by passing them through proprietary HDAM amplifier modules, which can significantly improve sound quality.

Full wireless support is provided by the presence of both Wi-Fi and Bluetooth. The device also has support for Airplay technology for easy wireless music streaming from Apple devices. Full support for Hi-Res audio formats lets you experience incredible fidelity, while the Phono MM input is sure to please vinyl lovers.

Built-in HEOS technology makes the Marantz AV 7703 part of a wireless multi-room music network so you can enjoy your favorite music anywhere in your home. By installing the free HEOS app, you can manage and play music from your own library, streaming music services or internet radio stations.

Advanced video processing section, compatible with the latest HDMI and HDCP 2.2 specifications on all HDMI terminals, support for 4K UltraHD 60Hz video, 4:4:4 Pure Color subsampling, High Dynamic Range (HDR), 21:9 resolution, and 3D pass-through and BT.2020 on every input make the Marantz AV 7703 ready to work with next-generation 4K UltraHD Blu-ray players and set-top boxes, as well as any other modern source of 4K UltraHD content.

Characteristics of AV Processor Marantz AV-7703 Black :

Number of processor channels: 11.2;

Built-in decoders (primary): Dolby Atmos, DTS-HD Master, Dolby TrueHD, Dolby Digital, Dolby Digital Plus, Dolby Digital EX, Dolby Pro Logic IIx, DTS-ES, DTS 96/24;

Auro-3D support: yes (upgrade required);

DAC bit depth: 32 bit / 192 kHz in all channels;

Auto Calibration: Audyssey MultEQ-XT 32;

Crossover frequency adjustment: yes;

Upscaling to 4K UltraHD: yes, for digital and analog video signals;

FM tuner with RDS: yes;

USB Compatibility: iPod Classic, iPod Nano (up to 7th generation), iPod Touch (up to 5th generation), iPhone (up to 5th generation); formatting USB drives FAT16/FAT32;

Modes for best audio quality: Pure Direct;

Supported audio file formats (USB, Ethernet, Wi-Fi): MP3, WMA, AAC, ALAC (24bit/96kHz), FLAC, FLAC HD (24bit/192kHz), WAV (up to 24bit/192kHz), DSD 5.6 MHz, JPEG;

Compressed audio enhancer: MDAX 2;

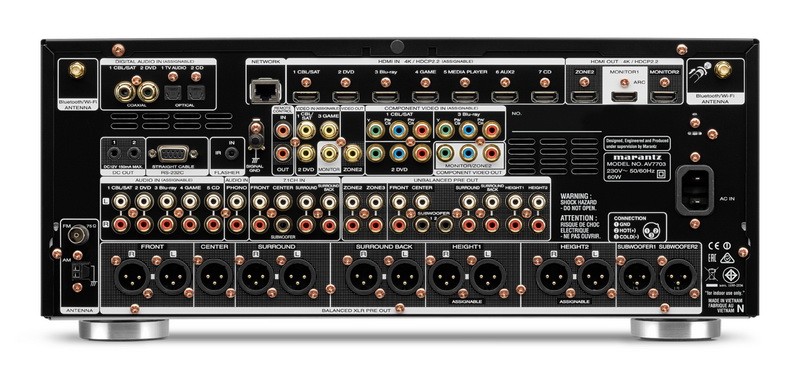

Inputs: 7 HDMI (2.0a)/HDCP2.2 (one on the front), USB (iPod/iPhone, mass storage, 3 composite video (one on the front), 3 component, 7.1ch, 6 line RCA (one on front panel), for MM-pickup, 2 coaxial, 2 optical;

Outputs: HDMI (2.0a), Composite, Component, 11.2ch Pre Out (11.2ch from processor), 2-zone, 6.3mm headphone;

Optional: Bluetooth, Wi-Fi, AirPlay;

Others: Ethernet port, RS232, IR input, remote control, sockets for FM and AM antennas, sockets for Wi-Fi and Bluetooth antennas, ground socket;

Ability to rename inputs: yes;

Output terminals for connecting acoustics: 11.2 pairs of screw terminals, 11.2 XLR;

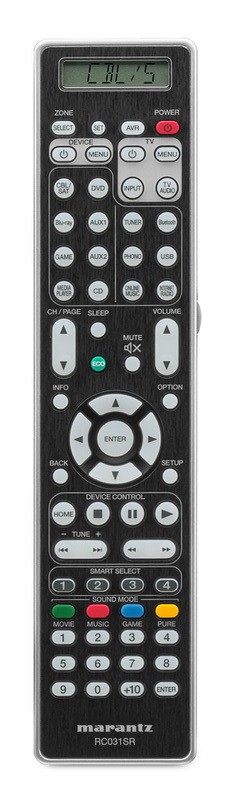

Receiver control using the Marantz Remote App: yes;

Number of additional zones: 2;

Power consumption: 60 W;

Minimum power consumption in standby mode: 0.2 W;

Dimensions (W x H x D): 440 x 185 x 411 mm;

Weight: 10.4 kg
