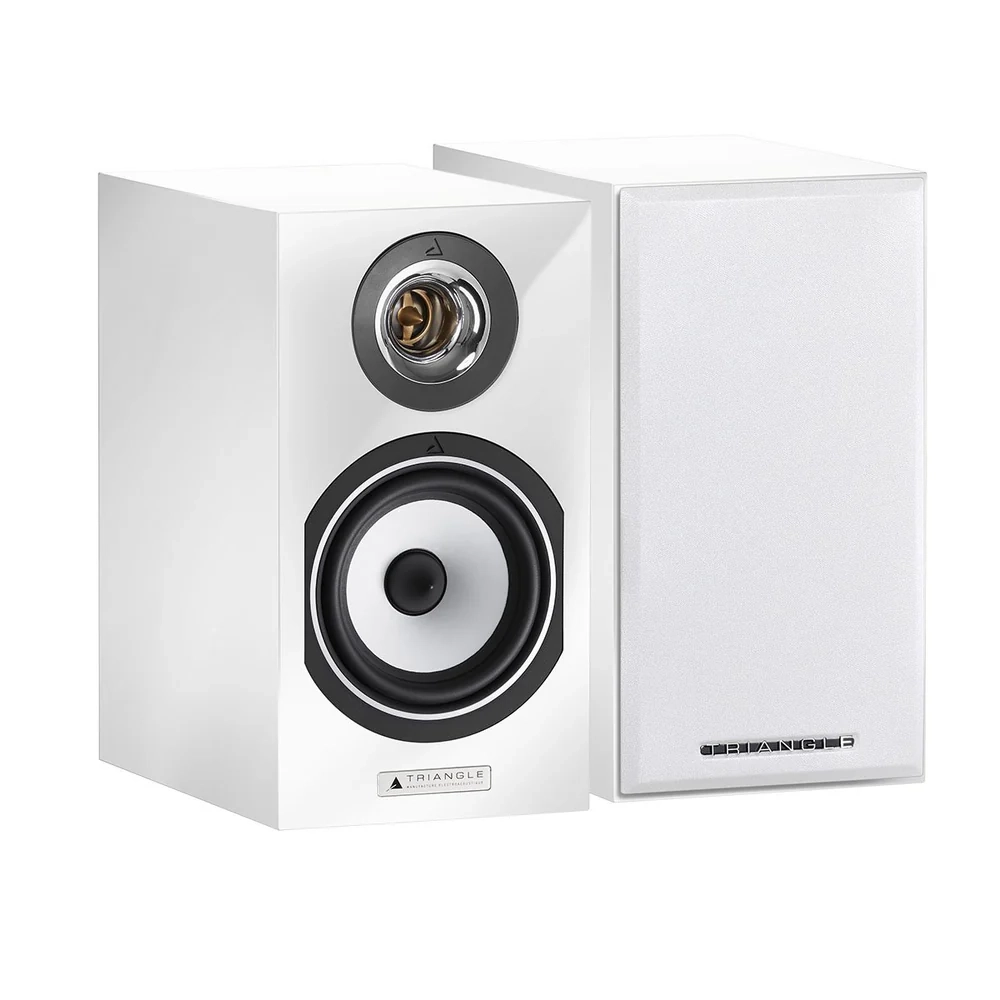

Bookshelf Speaker Triangle TITUS EZ White

The Titus Ez bookshelf speaker earns its reputation as one the best ‘ambassadors’ of the Triangle sound. This 30cm tall and 17cm wide compact speaker is an excellent introduction to audiophile sound and includes TRIANGLE’s key technologies.

Easily blending to its surroundings, and easy on the eye, this discreet and elegant speaker masterfully fills a room with high quality sound. The speaker offers outstanding musical intensity and a powerful bass for a product of its size.

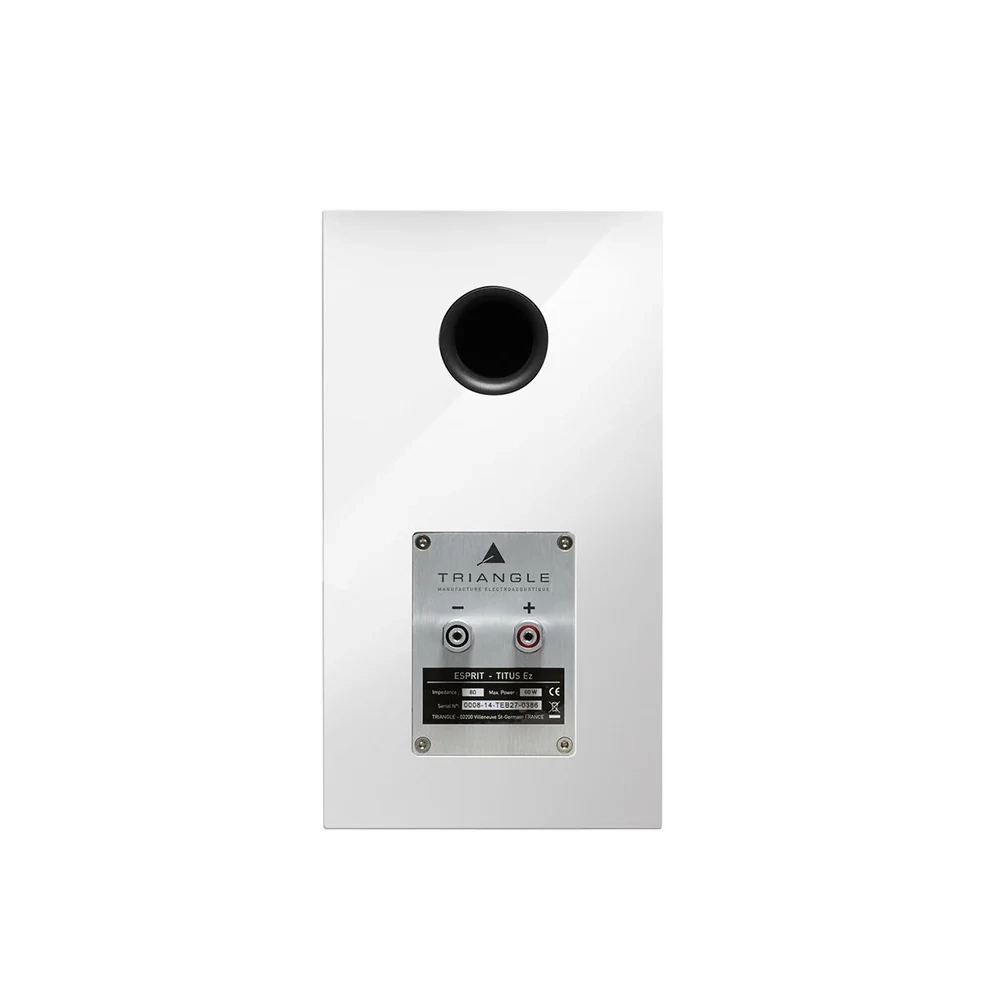

The Titus Ez uses the Esprit Ez horn loaded Tweeter and one 13cm (5.25 inch) mid-woofer with the 100% natural cellulose diaphragm. The low frequencies are extended with a rear located port. The Titus Ez surprises from the very first listening with its details and huge sound stage.

The performance of the Titus Ez will entice music lovers looking for a very compact speaker, offering liveliness and detail on each with a wide range of music. It is recommended for rooms of between 8m2 to 20m2.

Musicality & Design

ESPRIT Ez offers music lovers lively and dynamic sound without compromise. Rediscover the emotion of your first listens and let yourself be surprised by the thrill of the ESPRIT Ez range.

The latest vintage from ESPRIT brings a major innovation in the midrange driver for surprising sound realism. It also incorporates an improvement to its famous horn tweeter and optimizes its fiberglass bass drivers for even greater speed and transparency.

TWEETER TZ2550

A real TRIANGLE trademark of technology and performance, the TZ2510, is the latest incarnation of a titanium dome in combination with a compression chamber. This technology provides high efficiency with low distortion and excellent directivity.

Made out of 100% natural cellulose paper, white membrane is used to avoid any coloration. It is combined with a small pleat peripheral suspension to increase the emissive surface area.

Midrange driver

Special attention has been paid to a number of details in the development of the midrange: the profile of the membrane, the shape of the suspension, and the new dust cap, are directly inspired from the MAGELLAN project.

WOOFER

Fiberglass was selected for its excellent affect on the lower midrange / higher bass.An ESPRIT Ez innovation is the overlay of textile material and fiberglass, which improves the rigidity of the membrane. The speaker is equipped with a new chassis, which quickly dissolves the heat generated by the coil.

Recommended room size

The Titus EZ is recommended for listening rooms with an area of up to 20m².

Find a model in the Esprit EZ range that suits your listening room:

• < 15m2 : Titus EZ
• from 15 to 30m2: Comète EZ
• from 15 to 50m2: Antal EZ
• > 30m2: Australe EZ

Amplifier and Power Handling

• Recommended Amplifier power : from 15 to 100 Watts (8 Ohms)
• Power Handling : 60W

* The power handling of a speaker is the average continuous power that the speaker can accept without damaging the drivers. You can use an amplifier more powerful than the permissible speaker power by limiting the volume to 70% of the maximum capacity. Conversely, an amplifier that is too underpowered will clip and create distortion, which can also damage the speakers if it is used beyond its capacity.

Speaker Specifications

• Type : Bookshelf speakers with back bass reflex port
• Crossover : 2 Ways
• Sensitivity (dB/W/m) : 90dB
• Bandwith (+/-3dB Hz) : 55Hz-22 000Hz
• Nominal impedance : 8Ω
• Minimum impedance : 3,8Ω

* The impedance of a speaker can be simplified as an electrical resistance. The lower is the impedance of the speaker, the more current the amplifier will have to deliver.

- Nominal impedance is measured at a frequency of 1kHz

- Minimum impedance is measured at low frequencies.

TRIANGLE loudspeakers never fall below 3 Ohms, which means they can be used with almost all Hi-Fi and Home Cinema amplifiers.

Driver informations

2 Drivers :

• 1 x Horn tweeter with 25mm titanium dome
• 1 x Midwoofer 13cm small pleat suspension with natural cellulose pulp membrane

Crossover

• Crossover Frequencies : 3100 Hz

Weight & Dimensions

Speaker dimensions

• Width : 168 mm
• Height : 305 mm
• Depth : 267 mm
• Box dimension (per unit) (W x H x D): 380 x 410 x 220 mm

Weight

• Net weight : 5,9 kg
• Gross weight : 13 kg

Accessories

• Magnetic protection grille
• Rubber feet
