Усилитель Work PA 190 USB/R

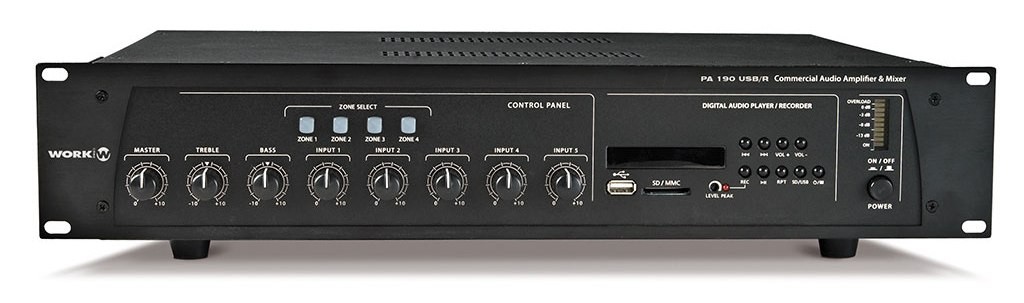

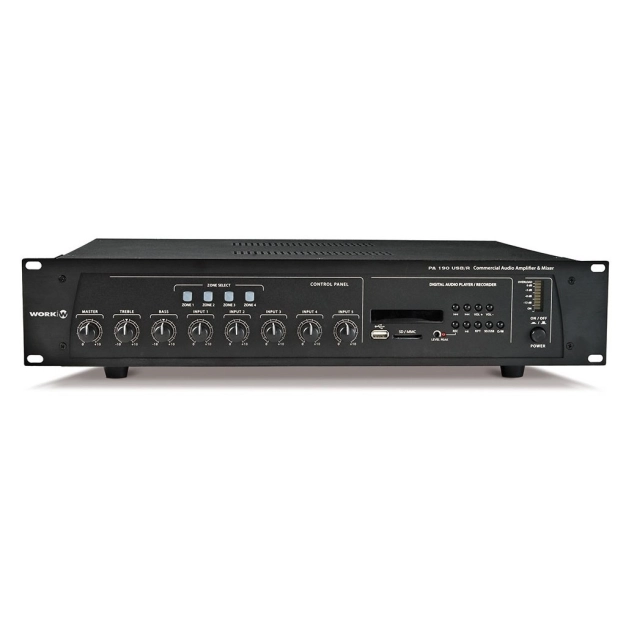

The Work PA 190 USB/R amplifier with mixer and player is a 180W installation amplifier that includes a USB/SD media player/recorder, as well as a 5-input mixer for audio control with independent volume control, master level control and tones bass/treble.
The Work PA 190 USB/R Amplifier with Mixer and Player is a 180W installation amplifier that includes a USB/SD media player/recorder and a 5-input audio control mixer with independent volume control, master level control and tones bass/treble.
In addition, 4 different audience zones can be selected. The model includes a preamp output for sending the mixed signal to an external amplification system or for connecting external devices such as equalizers or processors. The Work PA 190 USB/R has a 1W monitor output that allows you to connect a speaker for monitoring.
In addition, for maximum safety, there is an alert on/off switch and a TEL/Emer connection for emergency messages.
Functions:
- 2 x 19" racks;
- USB/SD/MMC recorder/player;
- 4 selectable audience zones;
- phone/emergency.
Peculiarities:
- Installation 4-zone power amplifier and 5-channel mixer.
- Digital player/recorder (USB/SD) supporting standard formats (MP3, WMA).
- Support for drives up to 32 GB.
- 4 x microphone inputs / 4 x line inputs.
- 1 x Aux/CD/Tuner/Tape input.
- Mixer with independent controls for volume, tone and overall level.
- Additional output Pre Out.
- Support for low-impedance speakers (4, 8 and 16 ohms) and high-voltage lines (25, 70, 100 V).
- monitor output.
- Disabled sound signal (Chime).
- Ports for telephone/emergency alerts.
- Chassis height 2U.
Characteristics:
- Device Type: Amplifier
- Installation method: shelf, desktop
- Type: low resistance (4/8/16 ohm), line (25/70/100V)
- Power: 180W
- Input sensitivity (microphone): 2.7 mV
- Input sensitivity (line): 300mV
- Input impedance (microphone): 600 ohms
- Input impedance (line): 56 kΩ

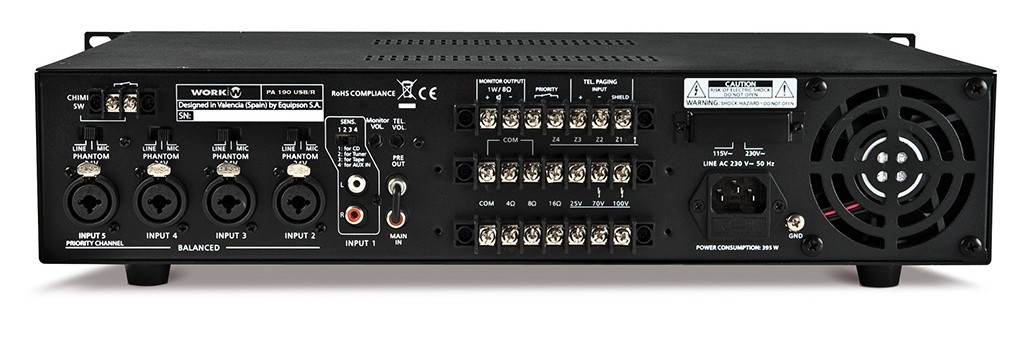

- Connectors: Microphone: 4 x XLR3/1/4" Jack, Line: 1 x RCA pair, Phone/Priority/Monitor: Terminals, Amplifier Out: Terminals
- Controls: independent volume for each input channel, master volume, tone control (treble/bass), audience area selector, player recorder control
- Frequency response: 30Hz - 20kHz
- THD + N (at 1 kHz): less than 0.5%
- Signal to noise ratio (line): more than 80 dB
- Signal-to-noise ratio (microphone): more than 60 dB
- Phantom Power: +24V
- Other functions: auditorium area selection, voice recorder/player, 4 horns, telephone/emergency
- Power supply: 115/230V AC - 50/50Hz, 24V - 4A
- Consumption: 395 W
- Dimensions: 483mm x 88mm x 355mm
- Weight: 11.6 kg
- Black color
Brand | Work |
---|---|
Model | PA 190 USB/R |
Type | Трансляционный микшер-усилитель |
type of instalation | Полочный |
Control | независимая громкость для каждого входного канала, общая громкость, регулировка тембра (высокие/низкие частоты), селектор зоны аудитории, управление рекордером проигрывателя |
Power | 180 Вт |
Frequency range | 30 Гц - 20 кГц |
Signal to noise ratio | более 80 дБ (лин.), более 60 дБ (микроф.) |
Nutrition | 115/230 В переменного тока - 50/50 Гц, 24В - 4А |
Notes | низкое сопротивление (4/8/16 Ом), линия (25/70/100 В) |
Form | Прямоугольная |
Sensitivity | 2.7 мВ (микроф.), 300 мВ (лин.) |
Input impedance | 600 Ом (микроф.), 56 кОм (лин.) |
Connectors | микрофон: 4 x XLR3/1/4" Jack, линия: 1 x RCA пара, телефон/приоритет/монитор: терминалы, выход усилителя: терминалы |
Power consumption | 395 Вт |
Color | Black |
Dimensions | 483 мм х 88 мм х 355 мм |
Additionally | выбор зон аудитории, диктофон/проигрыватель, 4 звуковых сигнала, телефон/экстренная связь |
Weight | 11.6 кг |
THD+N | менее 0.5% (1 кГц) |
Phantom power supply | + 24 В |
