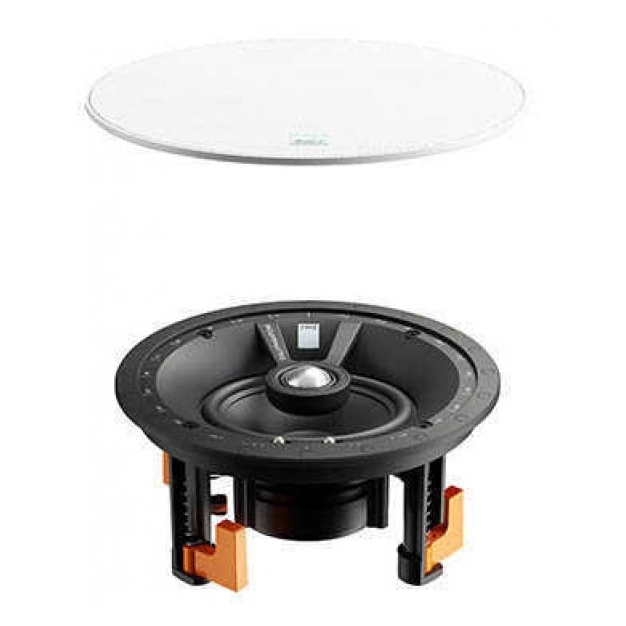

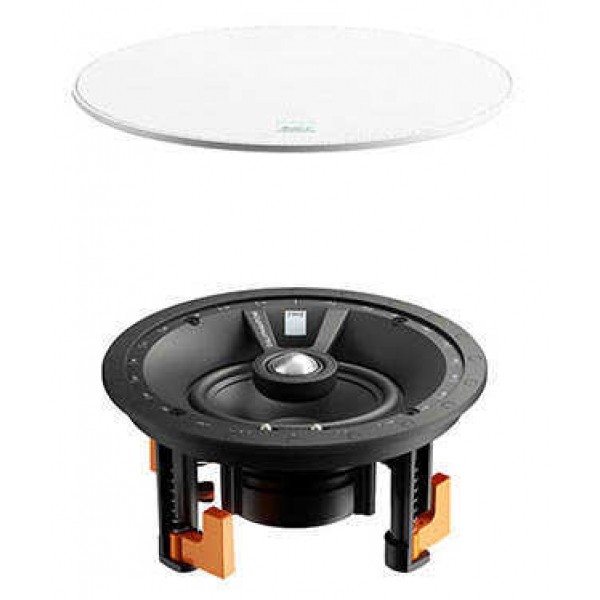

Built-in acoustics DALI Phantom E80

The DALI PHANTOM E series of loudspeakers marks the beginning of a new era of built-in DALI speakers. Having built an excellent reputation in the in-ceiling/in-wall speaker sector with their existing DALI PHANTOM range, the Danes are now expanding the PHANTOM family with models in new sizes and designs.

The DALI PHANTOM E series is the perfect starting point to start installing high quality in-ceiling speakers. Available in three standard sizes - 5", 6½" and 8", the PHANTOM E-50, E-60 and E-80 models offer easy-to-install kits that do not require special tools for installation.

Based on the proven DALI PHANTOM KOMPAS 6M speakers, the new DALI PHANTOM E series builds on proven technology and takes it one step further. The retractable feet, which facilitate installation, have been improved for even easier and more precise installation in the ceiling. The protective grilles have also been updated to reflect the lifestyle of buyers and the requirements of installers. Finally, two more sizes are offered to expand your choice and fill even large rooms with great sound.

With a choice of three models in the PHANTOM E series, the flexibility of using DALI in-ceiling built-in speakers is greatly improved. Using new models, it is now possible to voice almost everything - from small rooms to large halls, living rooms and even public institutions.

PHANTOM E-80

This speaker is designed to create a large sound pressure. With an 8" (203mm) woofer, it can fill even very large rooms without losing control of the bass. This makes it ideal for spacious living rooms, both for stereo systems and for home cinema.

Specifications:

• Frequency range (+ / -3 dB) [Hz]: 49 - 25000
• Sensitivity (2.83V/1m) [dB]: 89.5
• Rated resistance [Ω]: 6
• Maximum sound pressure level [dB]: 107
• Recommended amplifier power [W]: 30 - 150
• Crossover frequency [Hz]: 3200
• Tweeter 1 x 28 mm Soft dome fabric
• Low frequency driver 1 x 8" polypropylene cone
• Connection input(s): single wire
• Normal / HF + curtain
• Dimensions (ØxD) [mm]: 294 x 109
• Cut-out dimensions (ØxD) [mm]: Ø261
• Weight [kg]: 2.36
