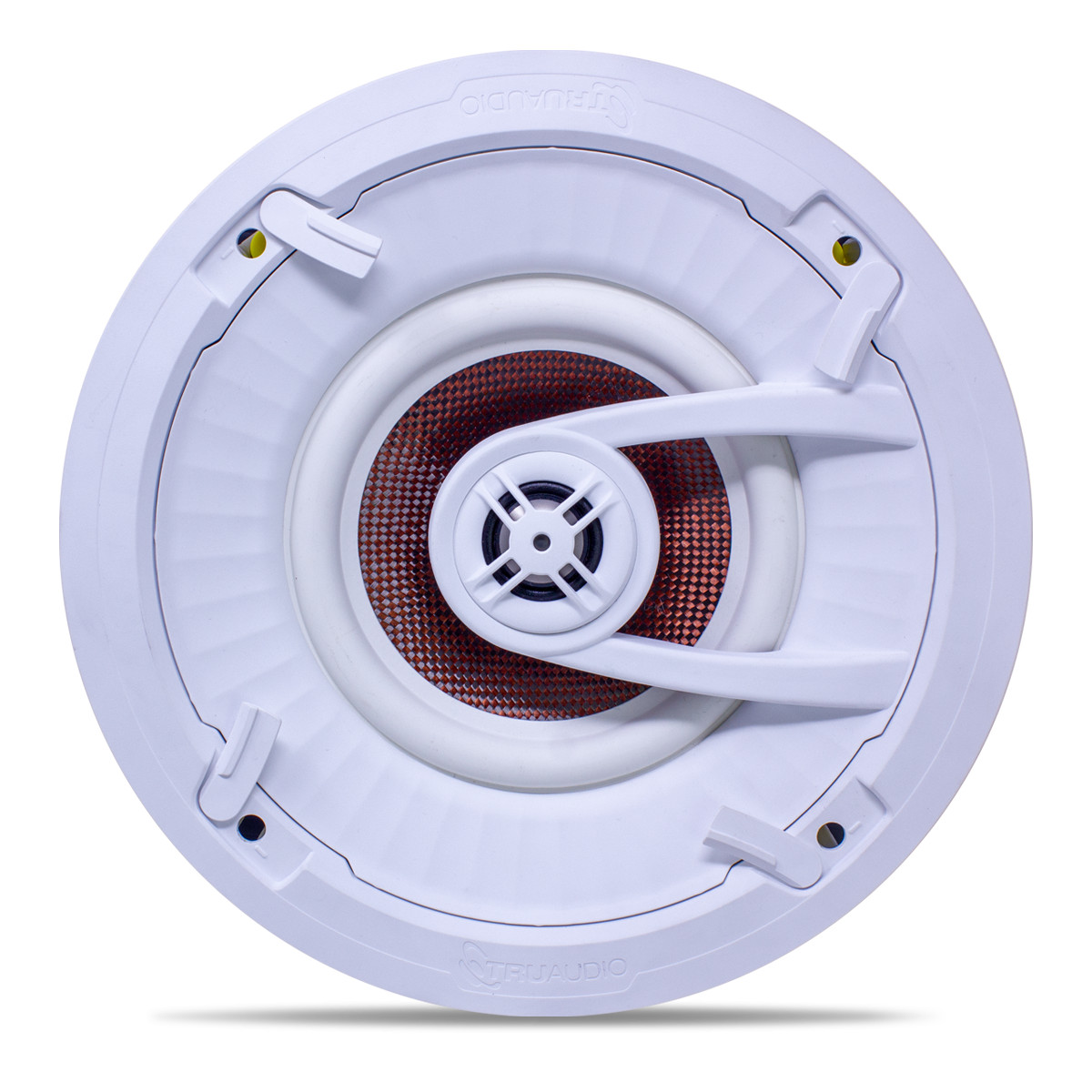

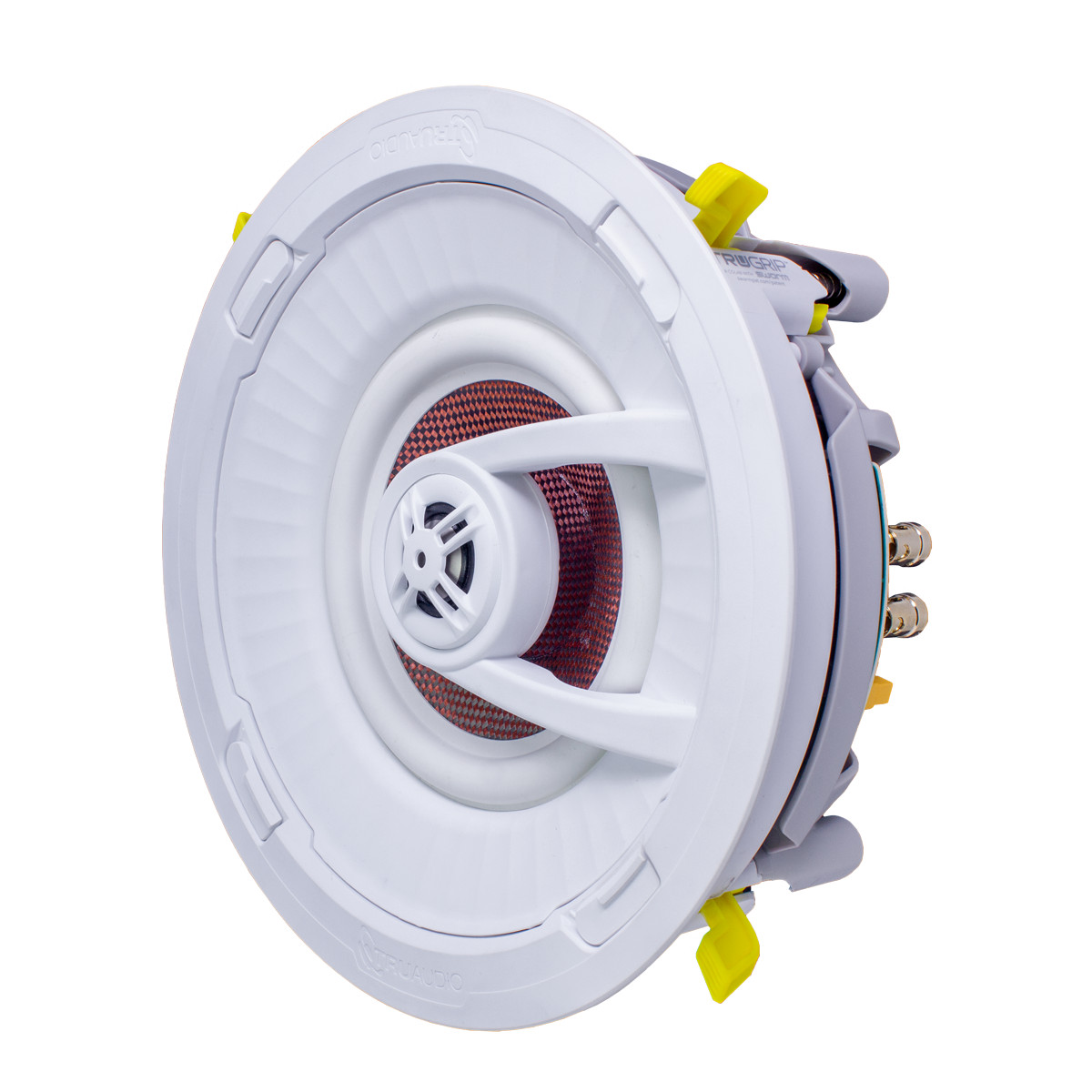

TruAudio G71 in-ceiling speaker system
Ghost 7" in-ceiling speaker with tool-free TruGrip™ design, carbon fiber woofer and Quick Connect™ technology. Pre-mount ring: RC-879. Replaces GC-6.
In 2007, the Ghost™ series revolutionized the architectural speaker market with its stunning design and installation performance. After 13 years, TruAudio repeats its success. The new Ghost™ Series has been reimagined from the ground up: looks, performance, functionality, and updated low-impact packaging.
The series has been updated from 6.5" and 8" to 7" and 9" speakers, providing even warmer tones for your living space. The 9" model now features a 3-way design (rotatable tweeter and midrange, paired with a fixed woofer). The depth of penetration into the living space has been reduced by 40%, allowing the speakers to virtually disappear into the ceiling.
TruAudio's new Ghost™ Series features revolutionary and patented TruGrip™ technology, featuring a spring clamp and mechanical fastening that significantly reduces frame installation time. TruAudio's QuickConnect™ adapters have also been incorporated, further reducing frame installation time if QuickConnect™ pre-structural brackets (RC-879) were used during the rough installation phase. Finally, all new Ghost™ speakers now include a vented protective rear box to protect critical components on the back of the speaker.
Quick Connect™ technology
Simply connect the speaker cable to the pre-wiring terminals while wiring. When it comes time to install the speaker, use the Quick Connect™ cable to link to the speaker's Quick Connect. Patent pending.
Speaker diameter 7"

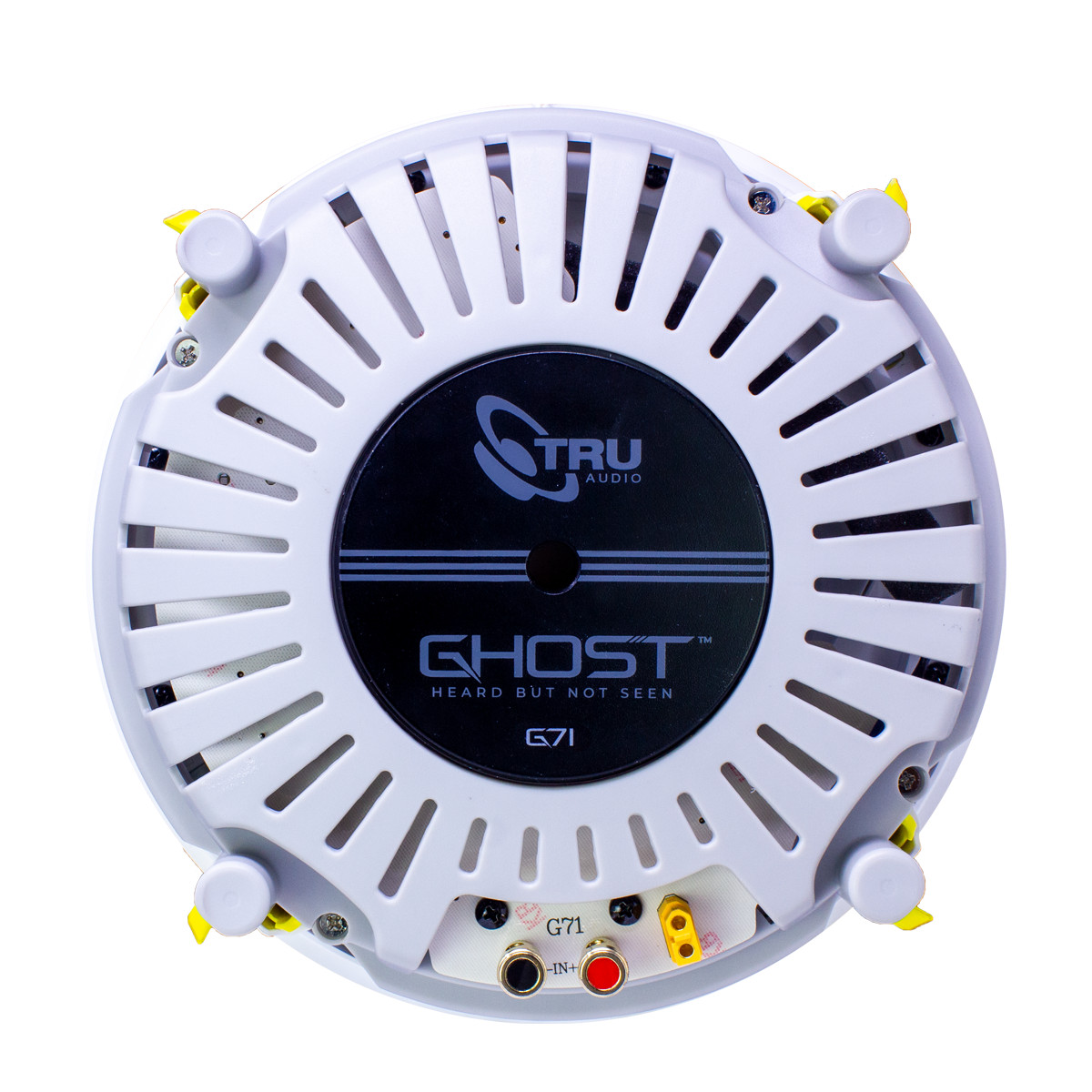

New design, 7" driver for improved acoustic performance. The durable tweeter bridge also serves as a handle for easy installation. Protective rear box on all Ghost models. 40% reduced detectable size. Thanks to its reduced size, the grille practically disappears into the ceiling.
One pre-mount ring for 9" and 7" speakers
All Ghost™ Series speakers now install using the same pre-mount ring (RC-879).
Parameter | Value |
---|---|
Speaker Type | In-ceiling, 2-way |
Tweeter | 1" titanium |
Woofer | 7" carbon fiber |
Power | 25-150 W |
Grill Type | Microperf, Ghost style frameless |
Sensitivity | 90dB |
Frequency Response | 36-20kHz |
Impedance | 8Ω |
Cutout Dimensions | 9.9" (251mm) |
Finish Dimensions | Diameter: 10.51" (267mm) x Depth: 3.9" (100mm) |
Speaker Wire Connector | Quick Connect™ or gold binding post |
Rough-in Ring | RC-879 |
Brand | TruAudio |
---|---|
Model | G71 |
Type of built-in acoustics | Built-in ceiling |
Power | 25–150 W |
Frequency range | 36 Hz - 20 kHz |
Applications | For multiroom system |
Resistance | 8 Ohm |
Impedance | 8 ohms |
Number of lanes | 2 |
Speakers | Woofer - 7-inch carbon fiber |
1 inch titanium | |
Sensitivity | 90 дБ |
Color | White |
Dimensions | Diameter 267 mm, depth 100 mm |
Outer diameter (including grill), mm | 267 |
Mounting depth, mm | 100 |
Diameter of the cut hole, mm | 251 |
Speaker diameter | 7" (178 mm) |
Connection standard | Low impedance systems |
Type of acoustic system | Mono Passive |
