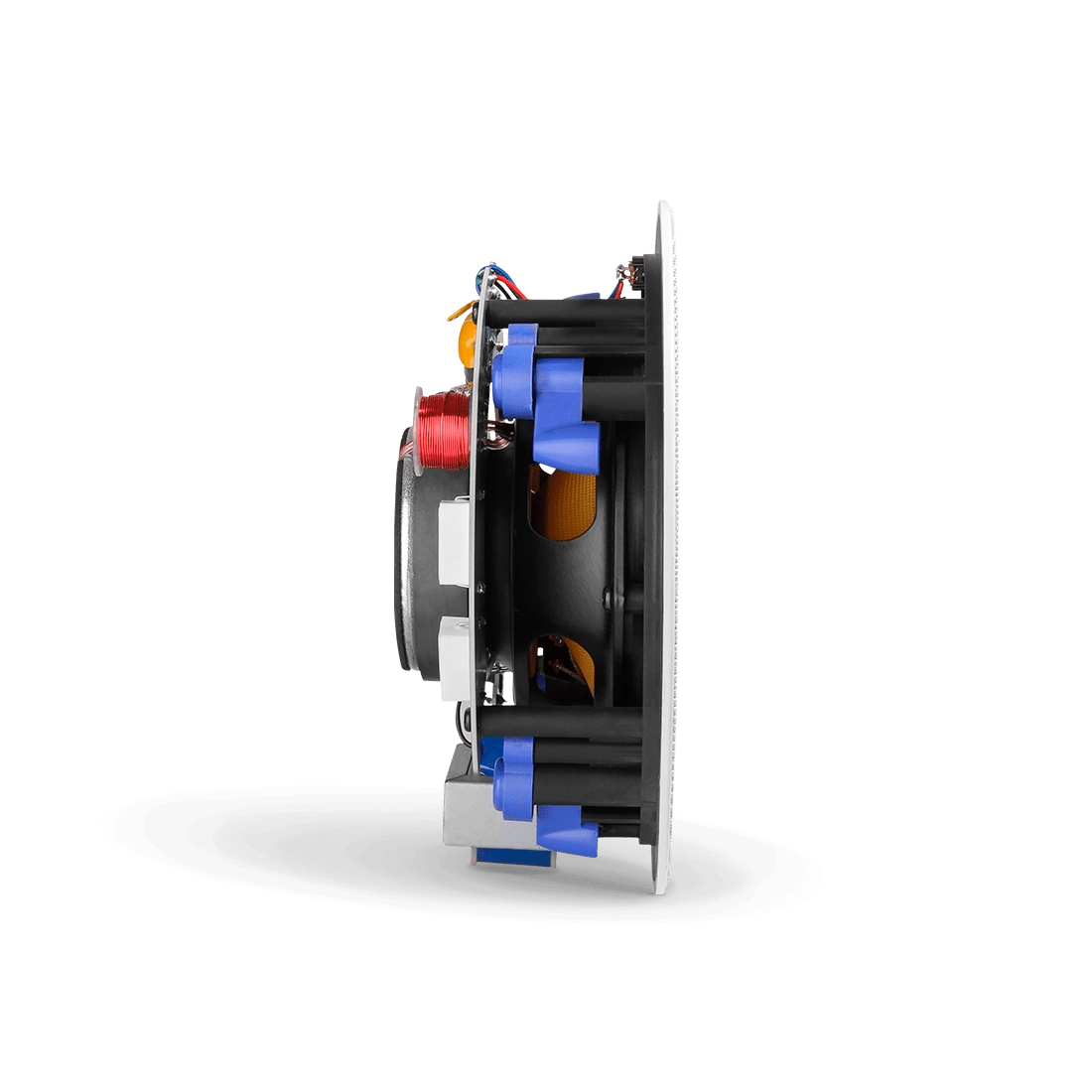

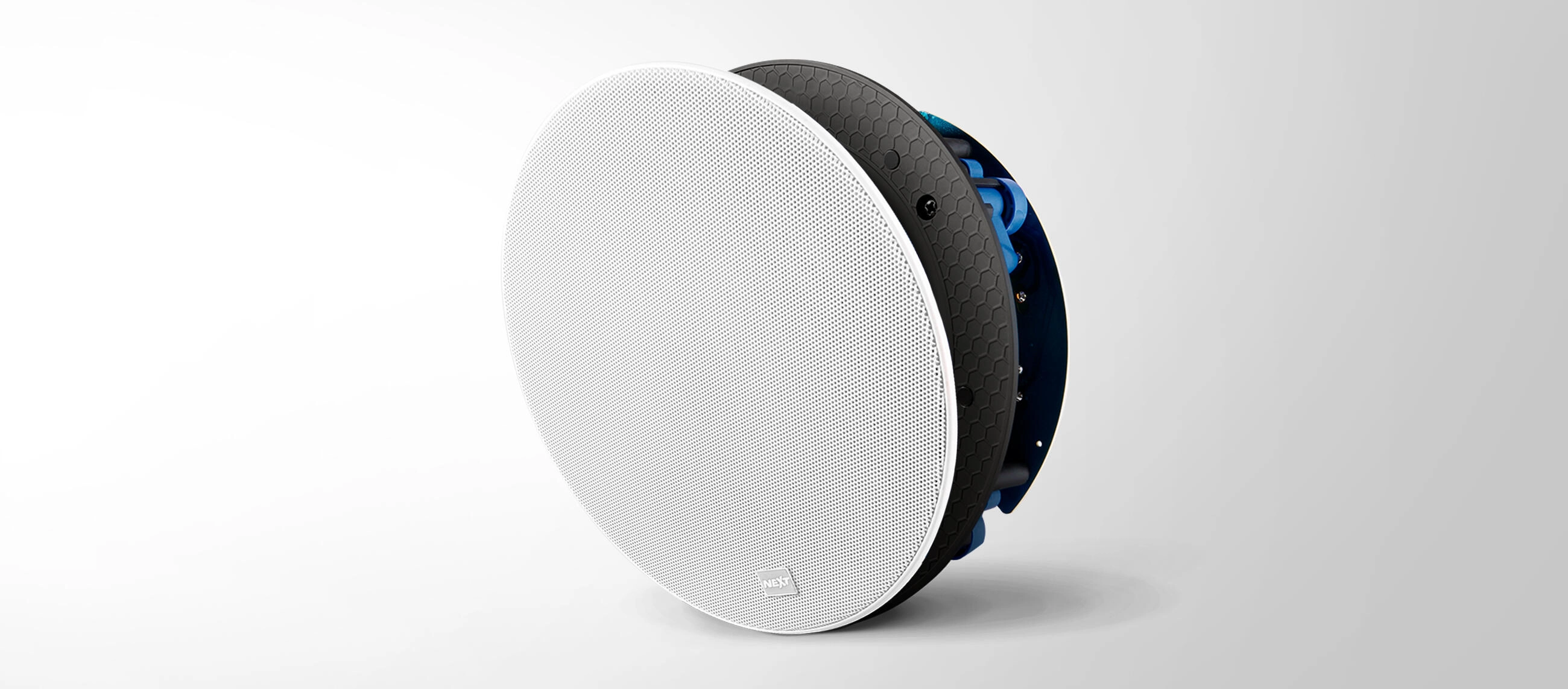

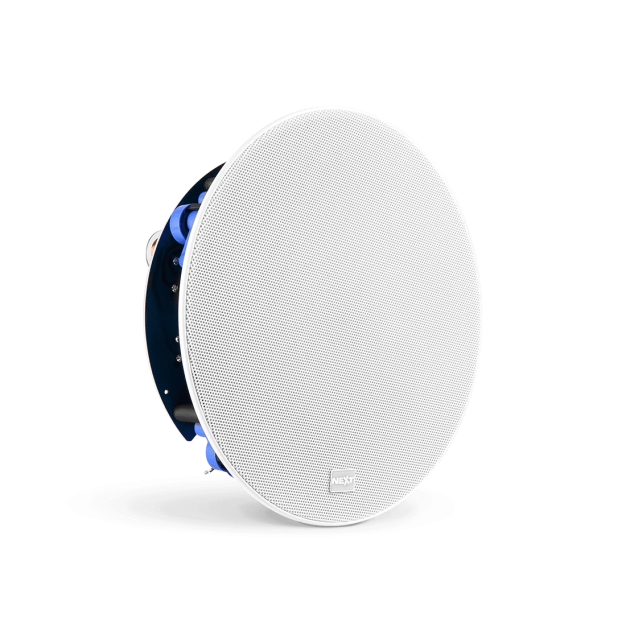

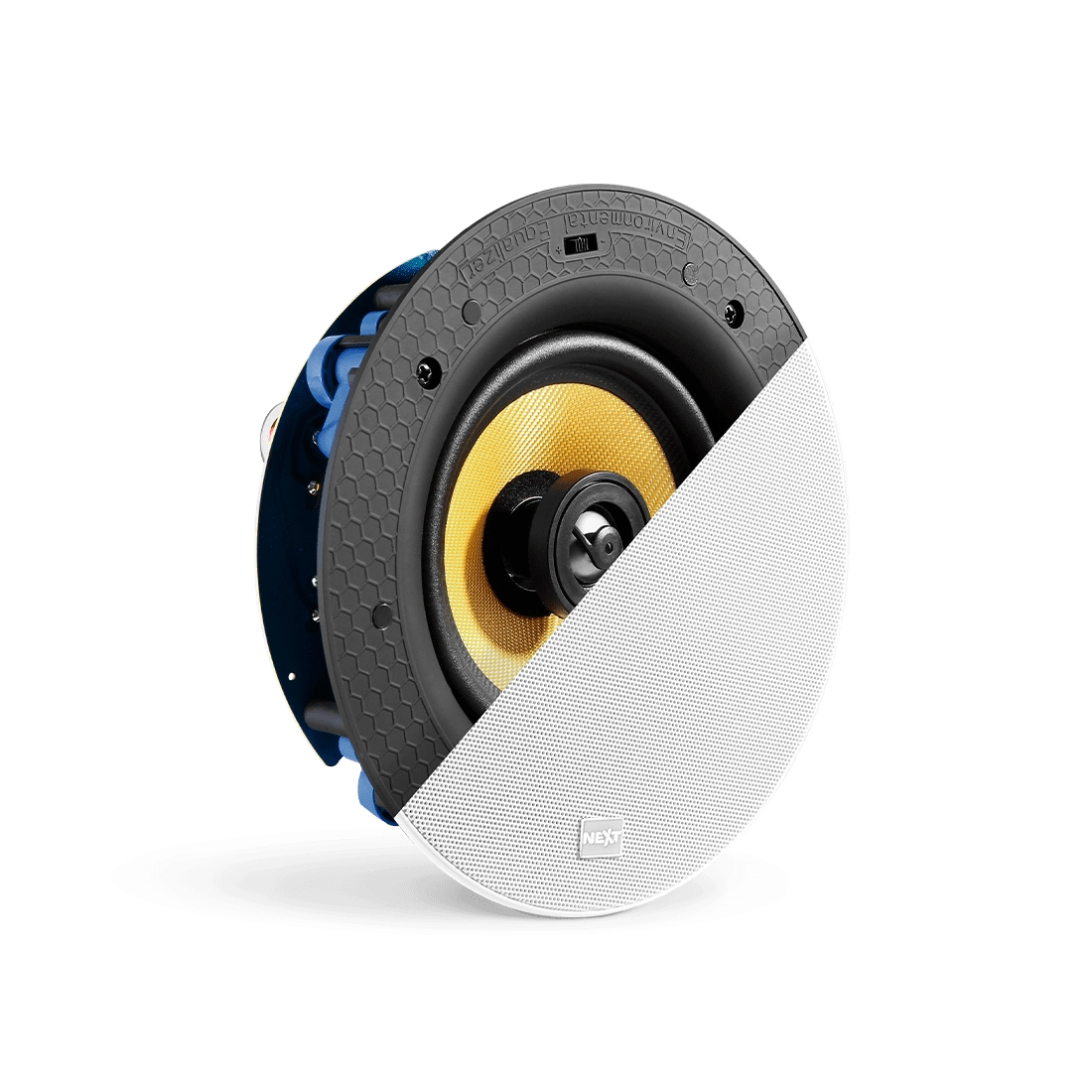

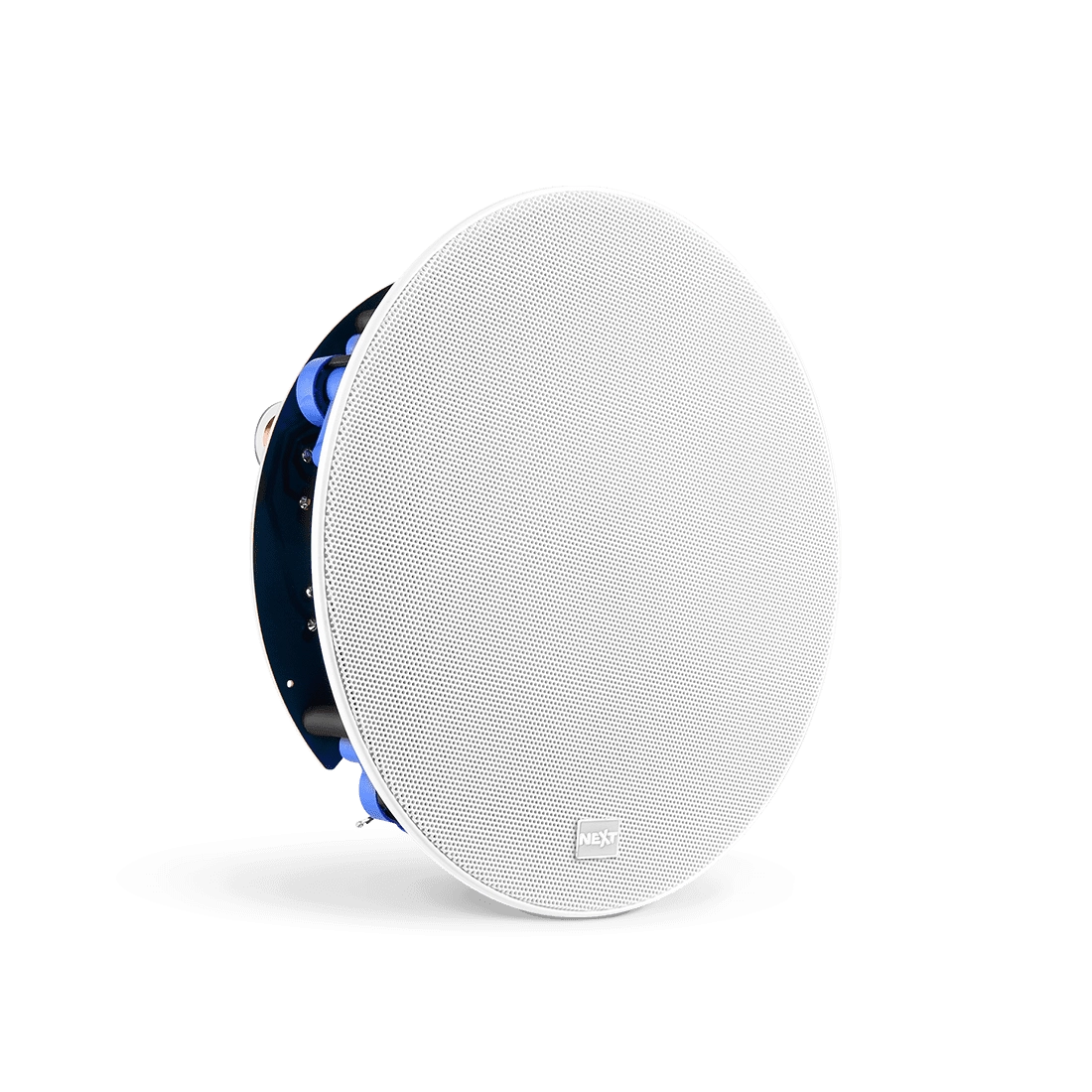

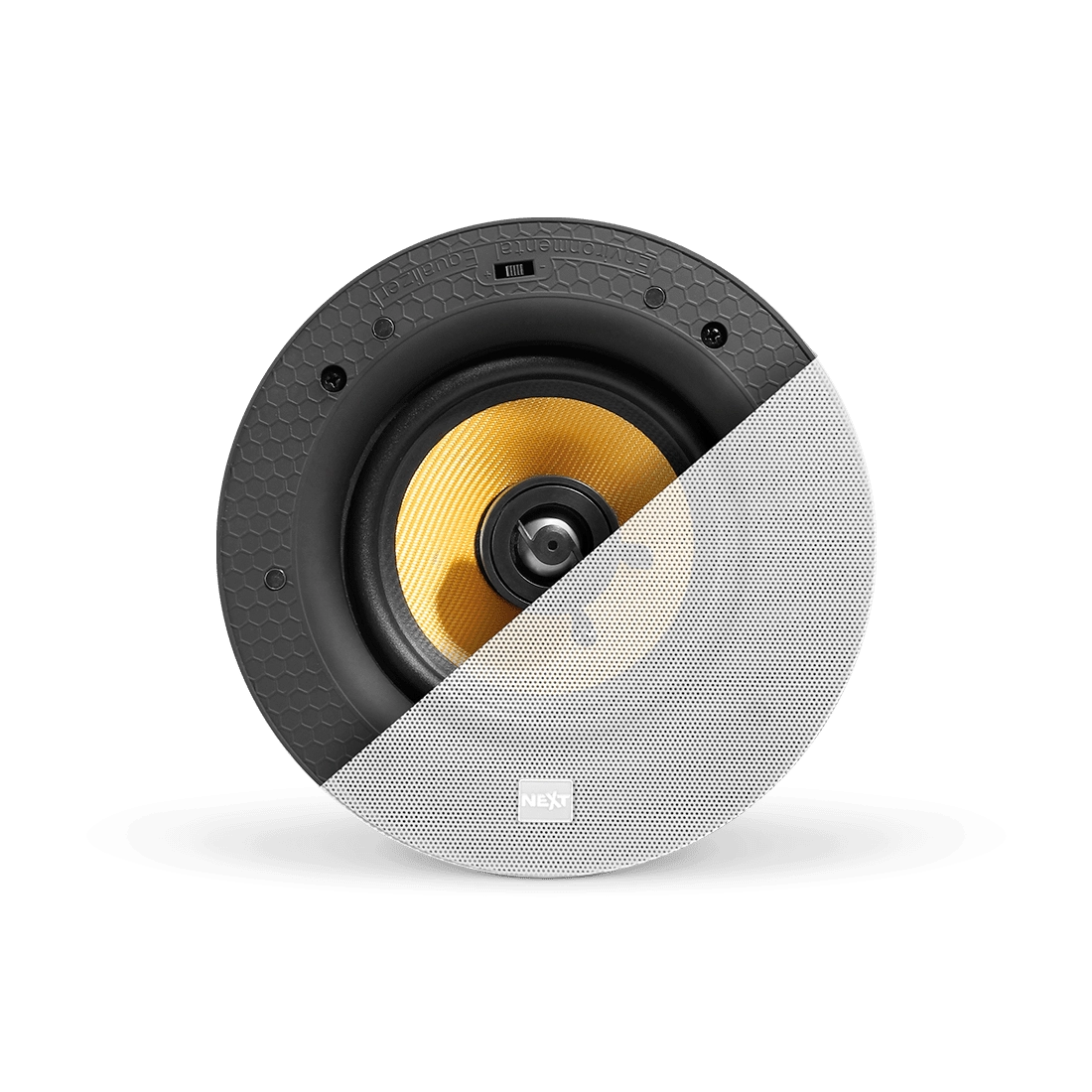

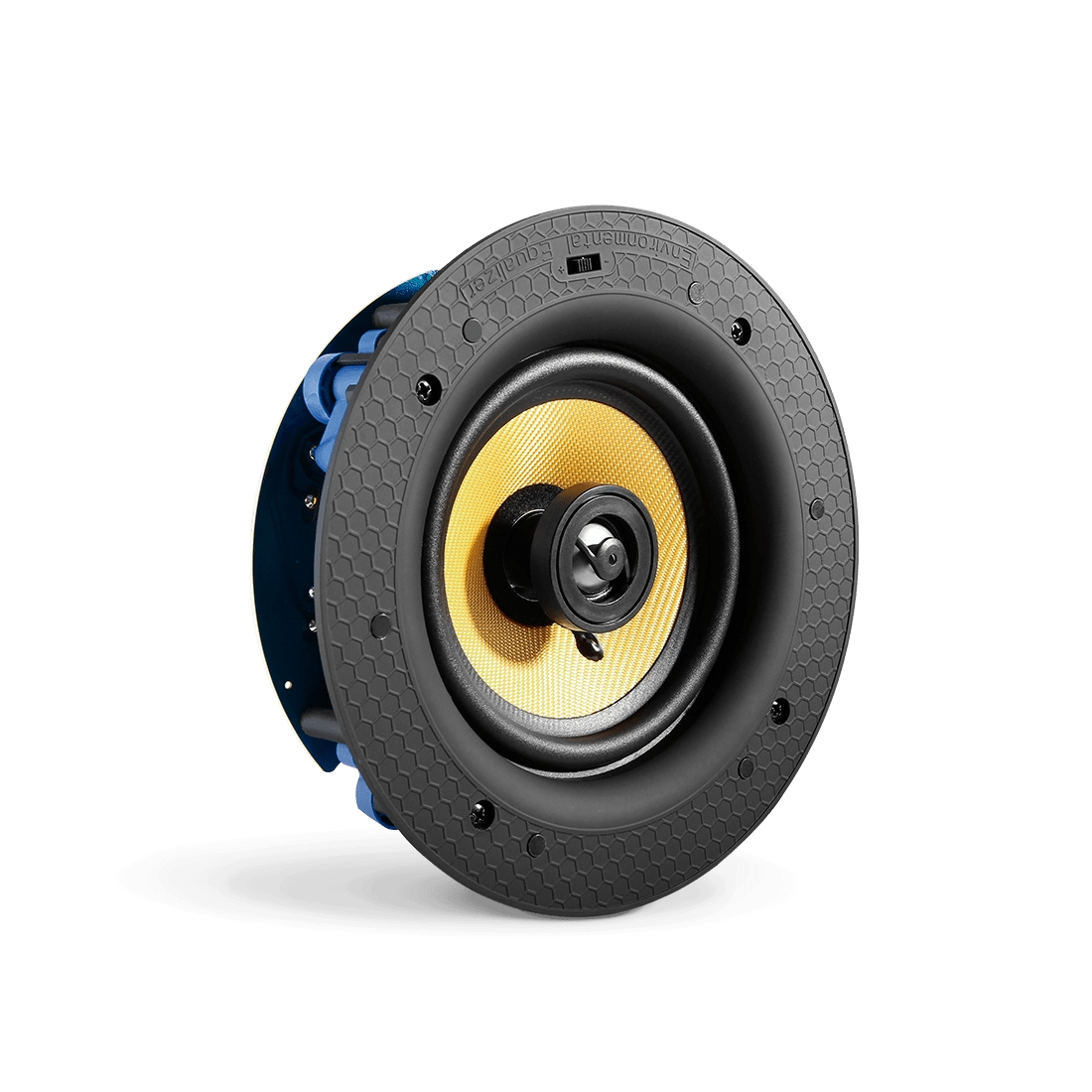

Built-in acoustics NEXT Audiocom C5 Pro White
5" Premium Ceiling Speaker [100W | 8Ω]
The C5 Pro is a sleekly designed ceiling speaker designed for installation in suspended ceilings, walls or panels. It combines contemporary style with superior audio performance, filling the room with powerful, warm and detailed sound. The built-in transformer allows the C5 Pro to be used on either a 100V line or a low-impedance 8Ω line, depending on the needs of your installation.
The mounting system allows the speaker to be easily installed in the ceiling or wall, without requiring high technical skills to achieve a successful result, ensuring quick and easy installation.
With an ultra-slim design, the C5 Pro speakers are ideal for any installation where appearance is important.
You can customize the tweeter to direct the sound exactly where you want it, covering the areas you want.
Whether the installation is small or large, the C5 Pro delivers impressive audio clarity and powerful sound, even when used on a 100V line. The C5 Pro is capable of reaching high volume levels while maintaining hi-fi sound quality for a comfortable audio experience.
You can use the ambient equalizer to automatically adjust the sound based on the area where the ceiling speaker is installed.
Key Features
Input 100V / 8Ω:
The built-in transformer allows the speaker to be used on either a 100V line or a low impedance 8Ω line, depending on the needs of your installation.
HF Driver Protection:
HF Driver Protection provides additional protection for the HF driver from unexpected audio peaks during music playback.
Frameless design:
The frameless design allows the speaker to be used in interiors without violating the architectural requirements of the installation.
Removable logo:
The logo is removable, allowing it to be removed if a cleaner design is desired for installation.
Ambience Equalizer:
The ambient equalizer automatically adjusts the sound depending on the area where the ceiling speaker is installed.
Magnetic grid:
The magnetic grille allows for easy installation without the need for screws. Simply place the speaker on the wall or ceiling and attach the magnetic grille, which will automatically lock into place.
Technical specifications | Meaning |
---|---|
Product type | 2-way premium ceiling speaker (8Ω/100W) |
Frequency range (-6 dB) | 70 Hz - 20 kHz |
Nominal coverage (-6 dB) | 100° conical |
RMS Power | 40 W (8 Ω) |
Software power | 80 W (8 Ω) |
Nominal impedance | 8Ω (transformer bypass) |
Sensitivity (1W, 1m) | 90 dB |
Maximum SPL Pgm/Peak (calculated) | 109 dB |
Low frequency driver | 5.25" polymer woofer |
High frequency driver | 0.75" swivel (±10°) titanium tweeter |
Transformer taps 100V | 2.5W | 5W | 10W |
Transformer taps 70V | 1.25W | 2.5W | 5W |
Connectors | Gold plated terminals (8Ω) / Quick release connector (100V) |
Recommended amplifier | A40 | A200 | MX120 | MX350 |
Special functions | Adjustable ambient EQ (±3dB) |
Lattice | White Frameless Magnetic Grille (Paintable) | Removable Logo |
IP protection class | For indoor use |
Dimensions (ØxH) | 204 mm x 78 mm (8" x 3.1") |
Cutout diameter | 179 mm (7") |
Installation depth | 78 mm (3.1") |
Wall/ceiling thickness | 3 mm - 15 mm (0.12" - 0.59") |
Fastening | Plastic clamps for fixing in the ceiling |
Net weight | 1.2 kg (2.6 lbs) |
Shipping weight | 1.5 kg (3.3 lbs) |
Type of built-in acoustics | Built-in ceiling |
---|---|
Resistance | 8 Ohm |
Number of lanes | 2 |
Color | White |
Outer diameter (including grill), mm | 204 |
Mounting depth, mm | 78 |
Diameter of the cut hole, mm | 179 |
Speaker diameter | 5.25" (133mm) |
Connection standard | 70V/100V transmission lines |
Type of acoustic system | Mono Passive |
