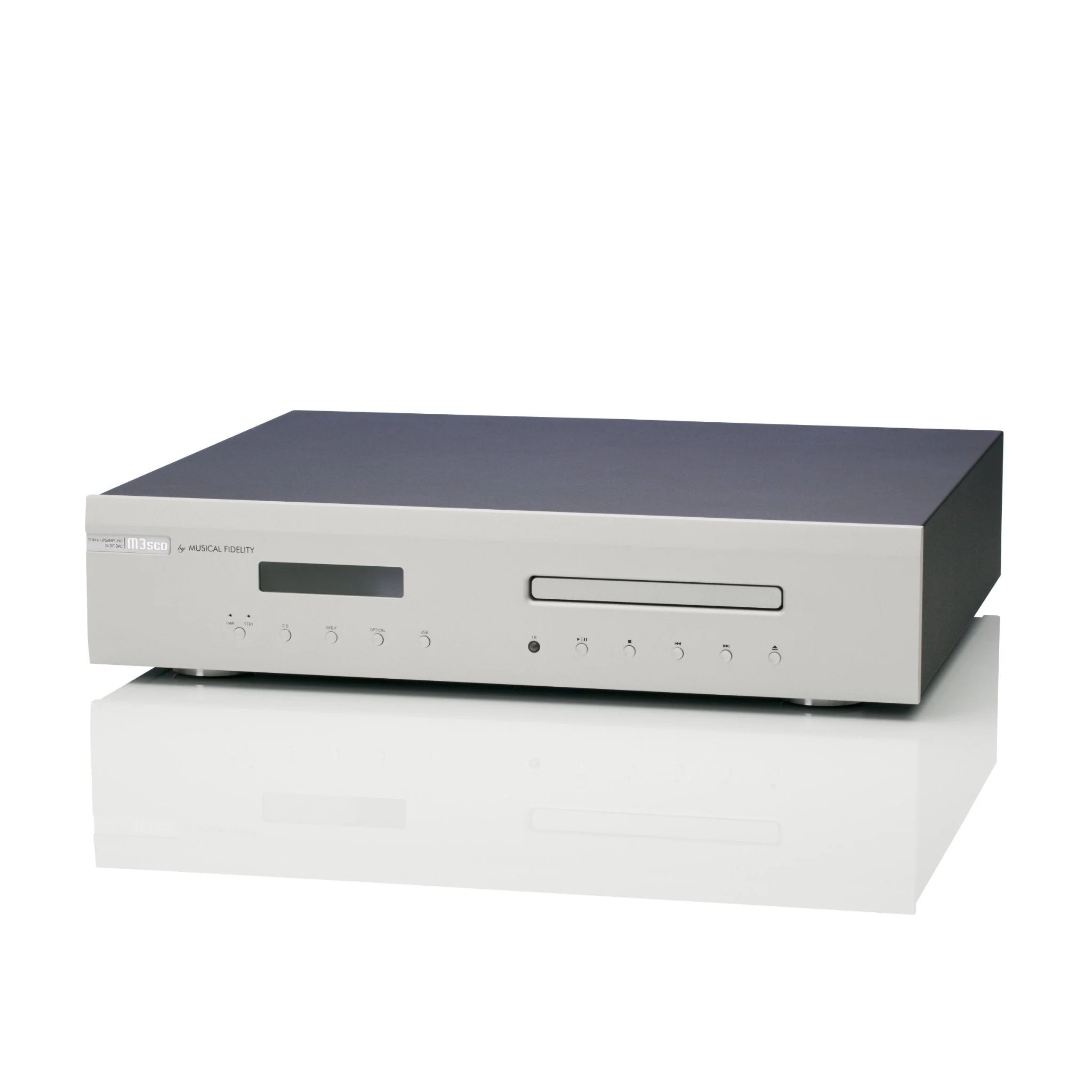

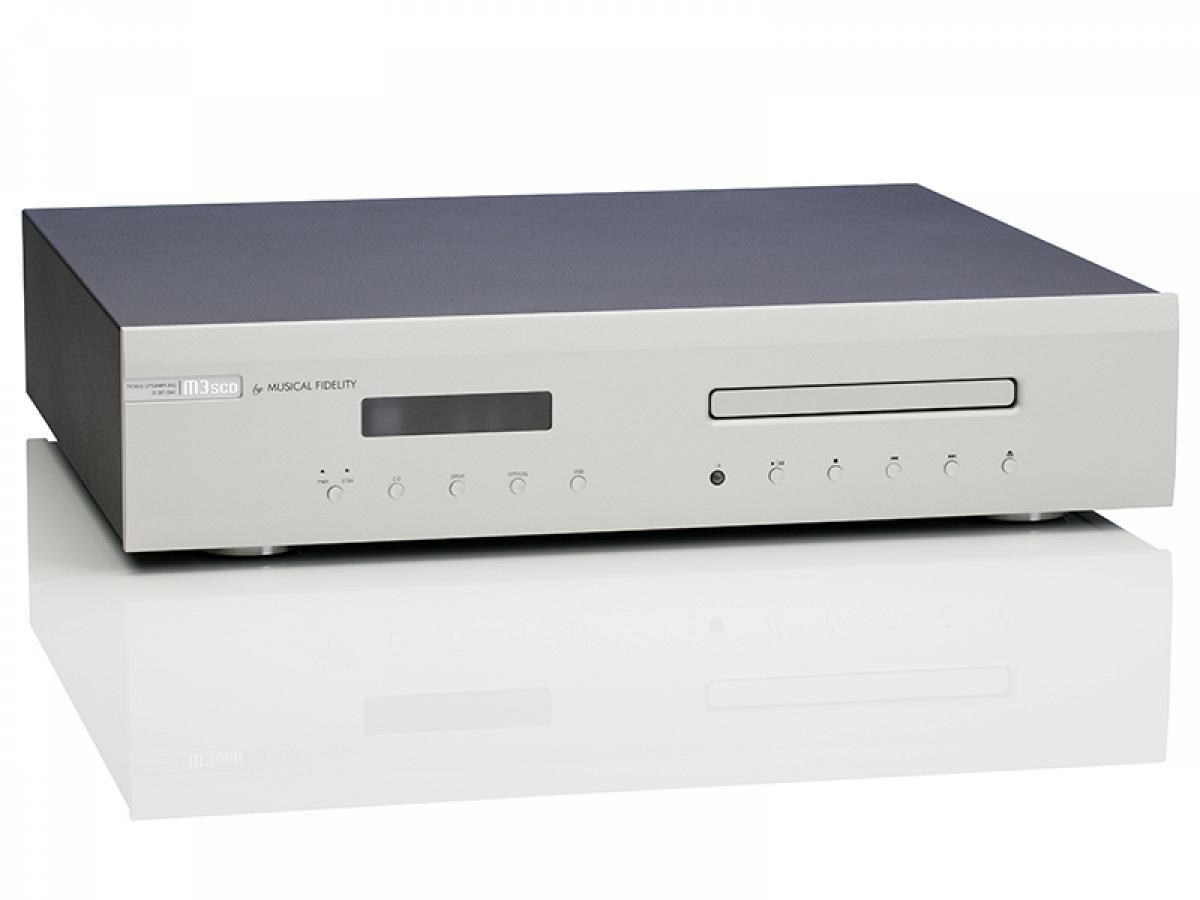

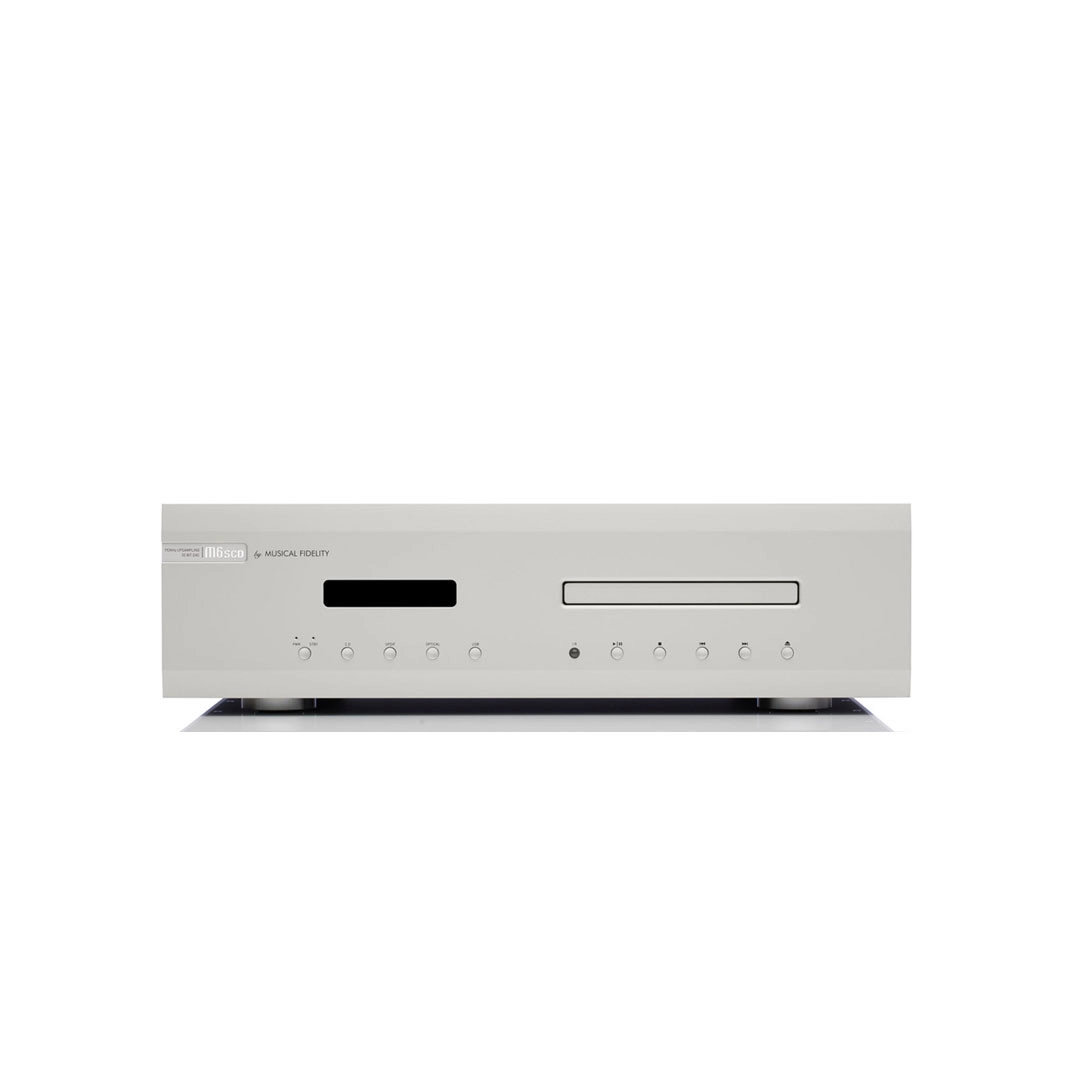

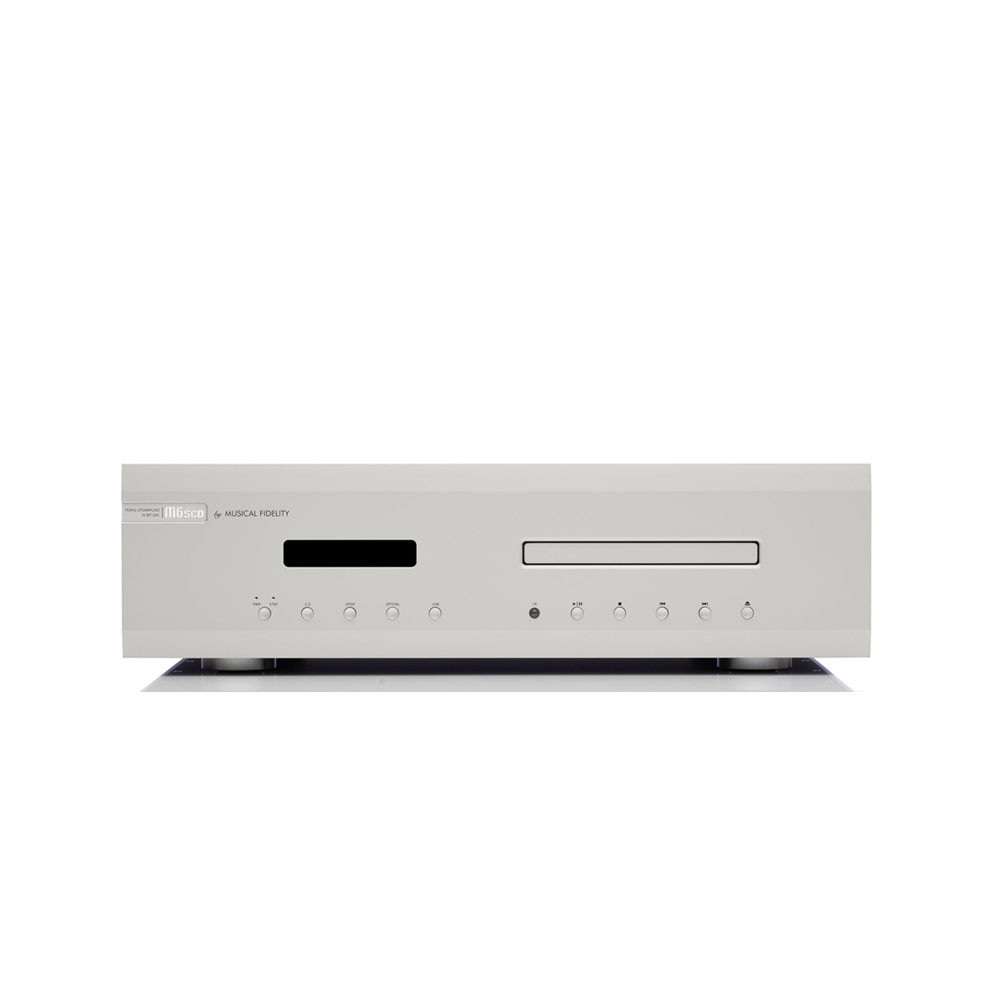

CD player Musical Fidelity M3SCD Silver
The M3scd was designed to provide superior CD playback and become a digital hub.
In addition to CD, it has 3 digital inputs: coaxial, optical and asynchronous USB. This makes it especially suitable for use with set-top boxes and/or for enhancing TV sound. The specifications of the device are excellent: very low distortion, very low jitter, excellent signal-to-noise ratio, very flat frequency response, exemplary linearity and excellent channel separation.
Overall, the M3scd provides excellent CD playback while also serving as a versatile digital hub.
Brief description of M3scd
- CD player and digital hub
- Excellent technical characteristics
- Very good CD readability
- Multiple digital inputs - coaxial, optical and asynchronous USB
- Very low jitter
- Excellent build quality and convenient size
Characteristics:
Performance
- Jitter: <135 ps peak to peak
- Frequency response: 10 Hz - 20 kHz -0.2 dB max.
- Signal-to-noise ratio: >117 dB
- THD(+ noise): <0.003% from 10 Hz to 20 kHz
- Linearity: <0.1 dB to -96 dB
- Channel Separation: 105 dB from 20 Hz to 20 kHz
Hardware
- DAC: 24-bit delta-sigma (bitstream) with dual differential 8x oversampling

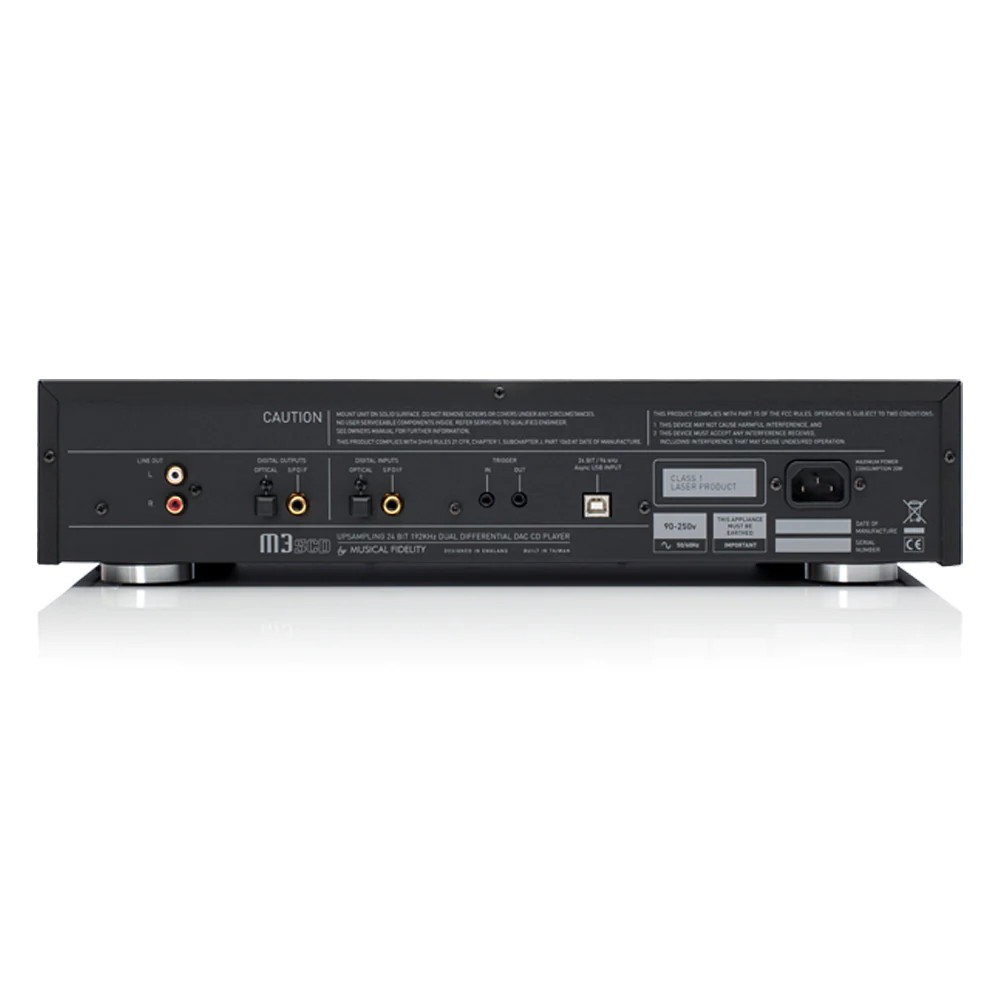

Exits
- 1x RCA line level
- 1x RCA coaxial (digital SPDIF)
- 1x Toslink optical connector (digital SPDIF)
- 1x Trigger Output - 3.5 mm (1/8") +12 VDC mono jack
Inputs
- 1x RCA coaxial connector SPDIF 32-192 kHz
- (16-24 bit stereo PCM)
- 1x TOSLINK optical connector 32-96 kHz
- (16-24 bit stereo PCM)
- 1x USB type 'B' connector
- Asynchronous data stream up to 24 bit/96 kHz
- Trigger input
General information
- Dimensions - WxDxD (mm): 440 x 100 x 380
- Weight (unpacked / packed): 6.05 kg / 9.9 kg
Brand | Musical Fidelity |
---|---|
Model | M3SCD |
Type | CD player |
Frequency range | 10 Hz - 20 kHz |
Inputs | 1x RCA coaxial connector SPDIF 32-192 kHz (16-24 bit stereo PCM) 1x optical TOSLINK connector 32-96 kHz (16-24 bit stereo PCM) 1x USB type 'B' connector Asynchronous data stream up to 24 bits/96 kHz Trigger input |
exits | 1x RCA Line Level 1x Coaxial RCA (Digital SPDIF) 1x Optical Toslink (Digital SPDIF) 1x Trigger Out - 3.5mm (1/8") +12VDC Mono Jack |
Signal to noise ratio | more than 117 dB |
Color | Grey |
Dimensions (W x D x H), mm | 440 x 100 x 380 |
DAC | 24 bit Delta-Sigma (bitstream) dual differential, 8x oversampling |
Channel separation | 105 dB |
Net weight | 6.05 kg |
Shipping Weight | 9.9 kg |
THD+N | less than 0.003% |
