CD player Atoll CD80 Signature Black

CD player Atoll CD80SE-2

The player is a modified version of the well-known CD 80SE model. Its main difference is the ability to install an optionally available module, which includes a USB port, as well as coaxial and optical inputs. This option allows you to use its internal converter as a digital-to-analog converter for external sources and connect the player to a computer and other audio devices with digital output.

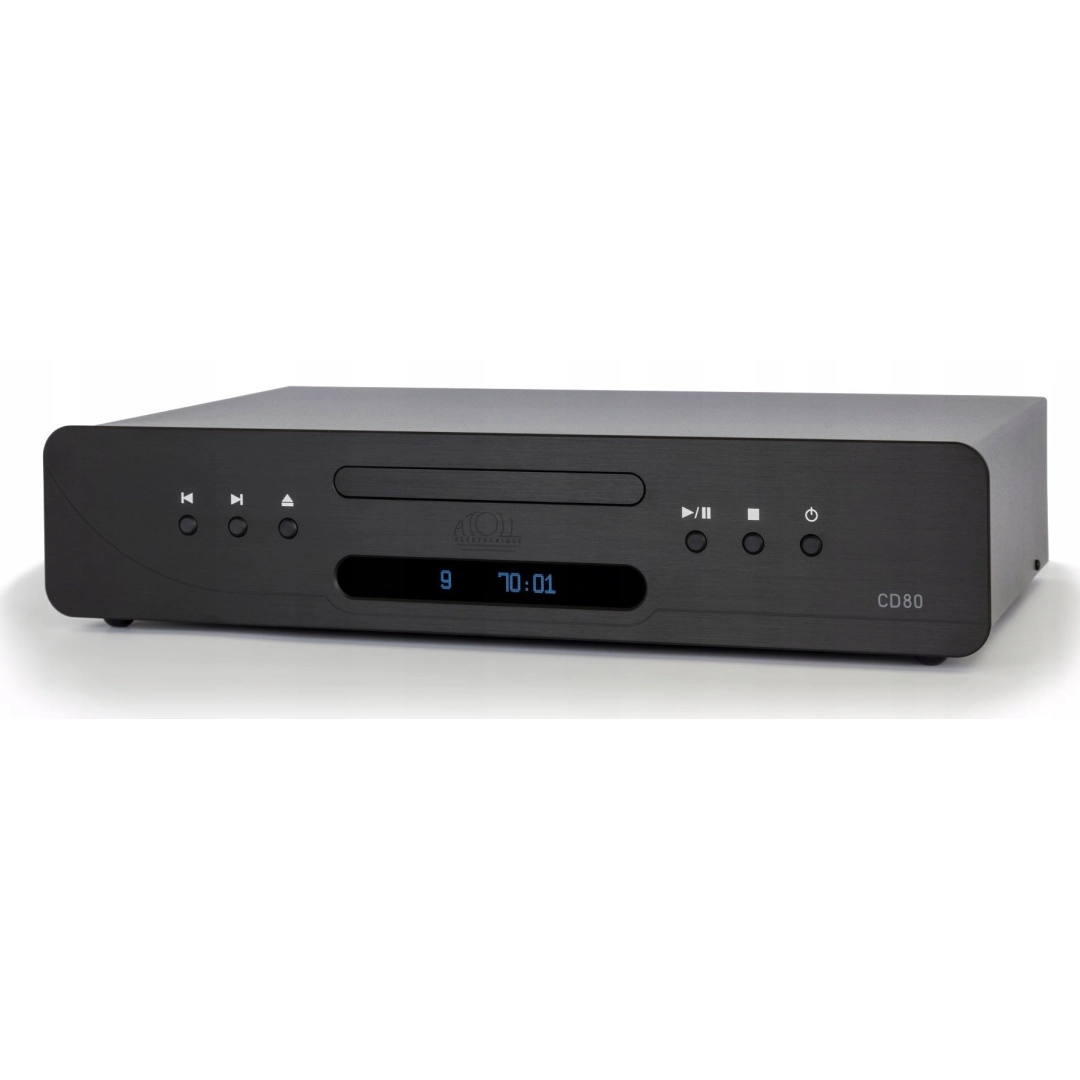

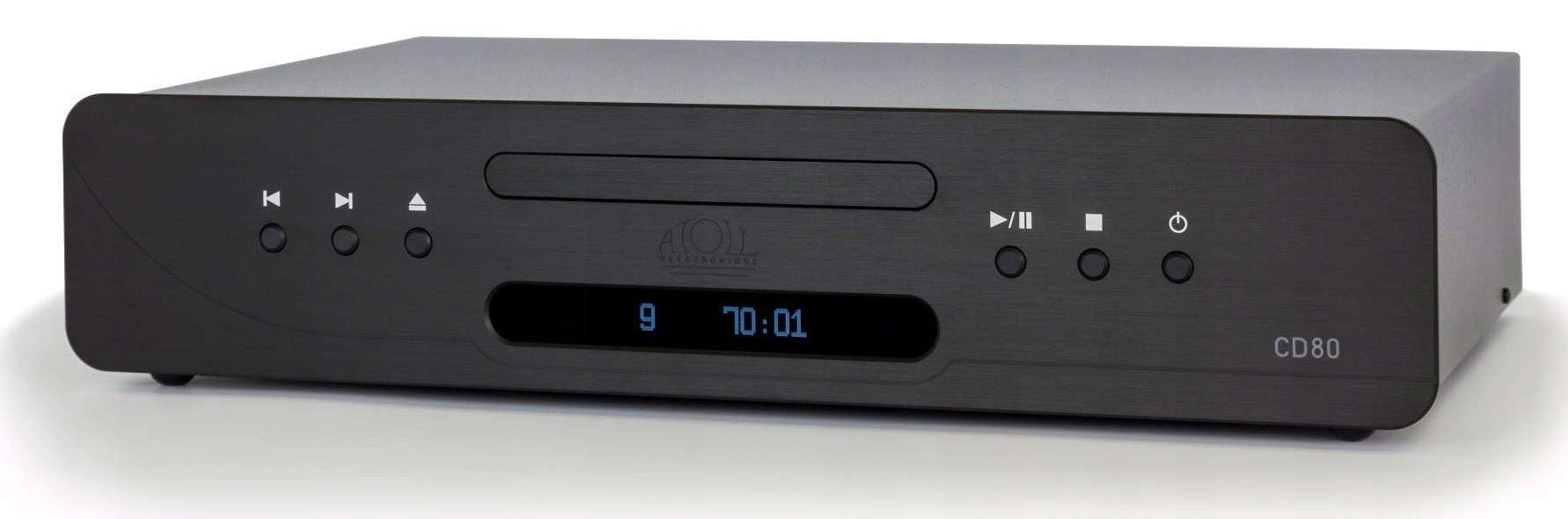

The model is assembled by hand in France and has a metal body with a high-quality aluminum front panel. The design of the facade is symmetrical and neat. The geometry of the display fits perfectly with the shape of the centrally mounted disk tray cover, and its large characters are readable even at a relatively large distance. Below are seven keys made of aluminum. The first of them opens the disc tray, and the rest control other functions of the model. A TEAC CD drive is used, which allows you to play both factory compacts and CD-R/RW. It is possible to read MP3 files recorded on the disc. CD text supported. The drive is mounted on a chassis that absorbs vibrations and resonances.

The CD player is equipped with a Wolfson WM8729 DAC. The module's coaxial and optical inputs allow you to receive a signal with a resolution of 24 bit/192 kHz, but the USB port is designed only to receive audio with parameters of 24 bit/96 kHz. The model has the same symmetrical output section as its previous version. It is based on discrete elements and operates in class A. The output contains bipolar transistors.

The analog and digital circuits are powered separately. Moreover, the circuits of this device use seven stabilized power supplies. A high-quality transformer has been installed. The elements used in the CD 80SE-2 circuitry have been carefully selected. Audiophile MKT film capacitors and other high-quality components are used. The total capacitance of the capacitors in the filter is 17000 μF. Outputs: coaxial and linear RCA.

The sound of the player is light and open. This ensures a wide surround scene and excellent detail. Articulated bass, correct tonal balance and precise placement of images in space are the characteristic features of this model.

Peculiarities

• Wolfson WM8729 DAC
• CD transport TEAC
• Ability to use the player as an external DAC (after installing an additional module)
• The output stage operates in class A

Options

• Supported formats (CD drive) CD-DA, CD-R/RW, CD-burned MP3 files
• CD text available
• Wolfson WM8729 DAC
• Frequency range 5 Hz – 20 kHz
• Signal-to-noise ratio 105 dB
• Harmonic distortion less than 0.002%
• Inputs (with optional module installed) coaxial, optical, USB port

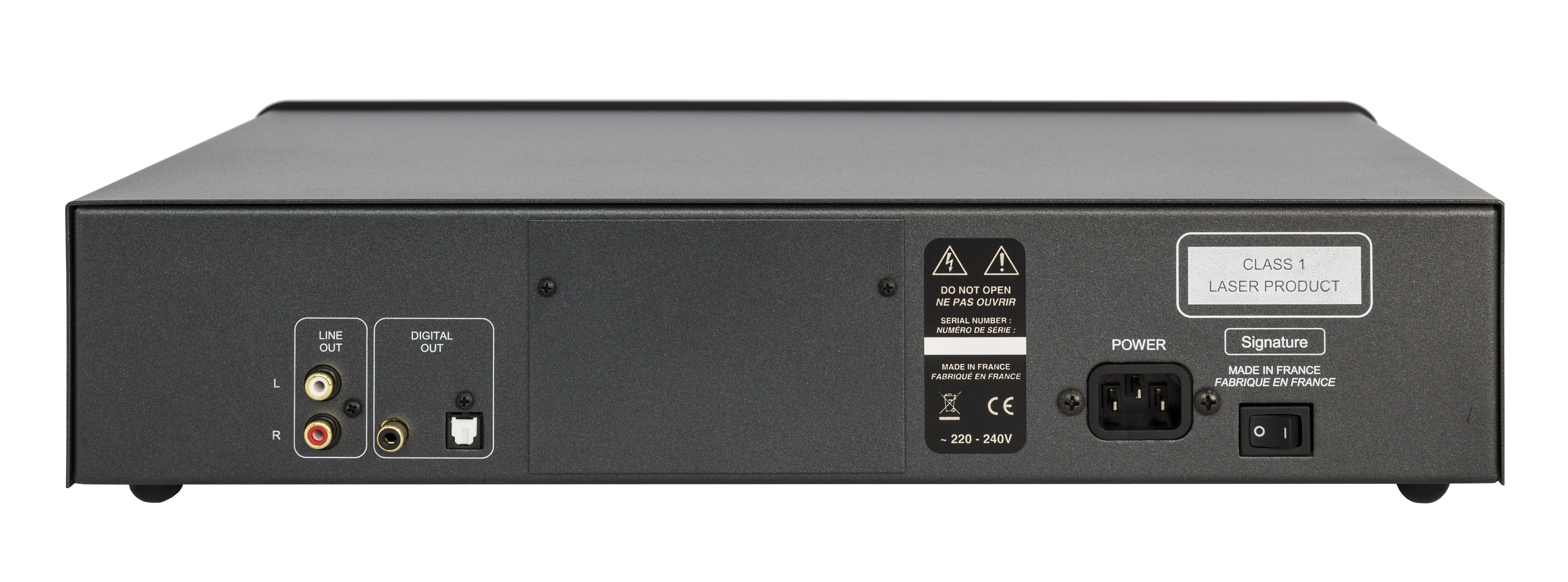

• Outputs linear RCA and coaxial with gold-plated connectors
• Output voltage 2.5 V
• Power supply power 15.5 + 3.6 VA
• The total capacity of the filter capacitors is 17000 µF

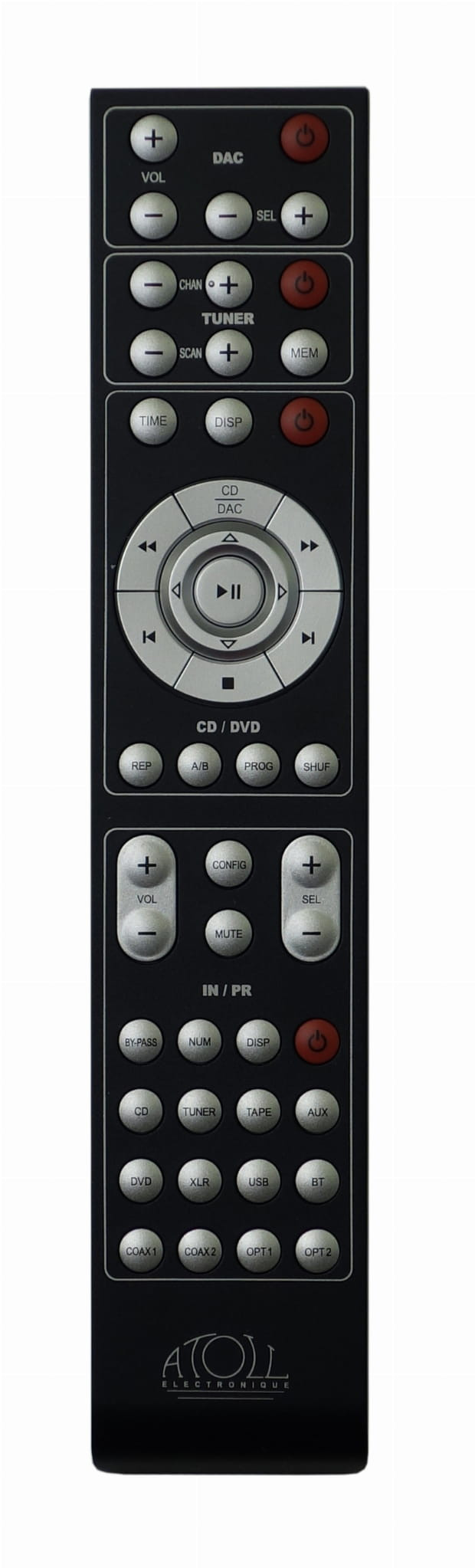

• Universal remote control
• Dimensions (WHD) 440x90x280 mm
• Weight 5 kg
