Acoustic system ITC Audio T-565

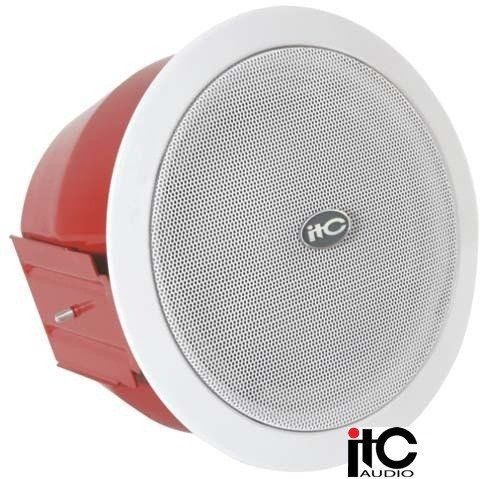

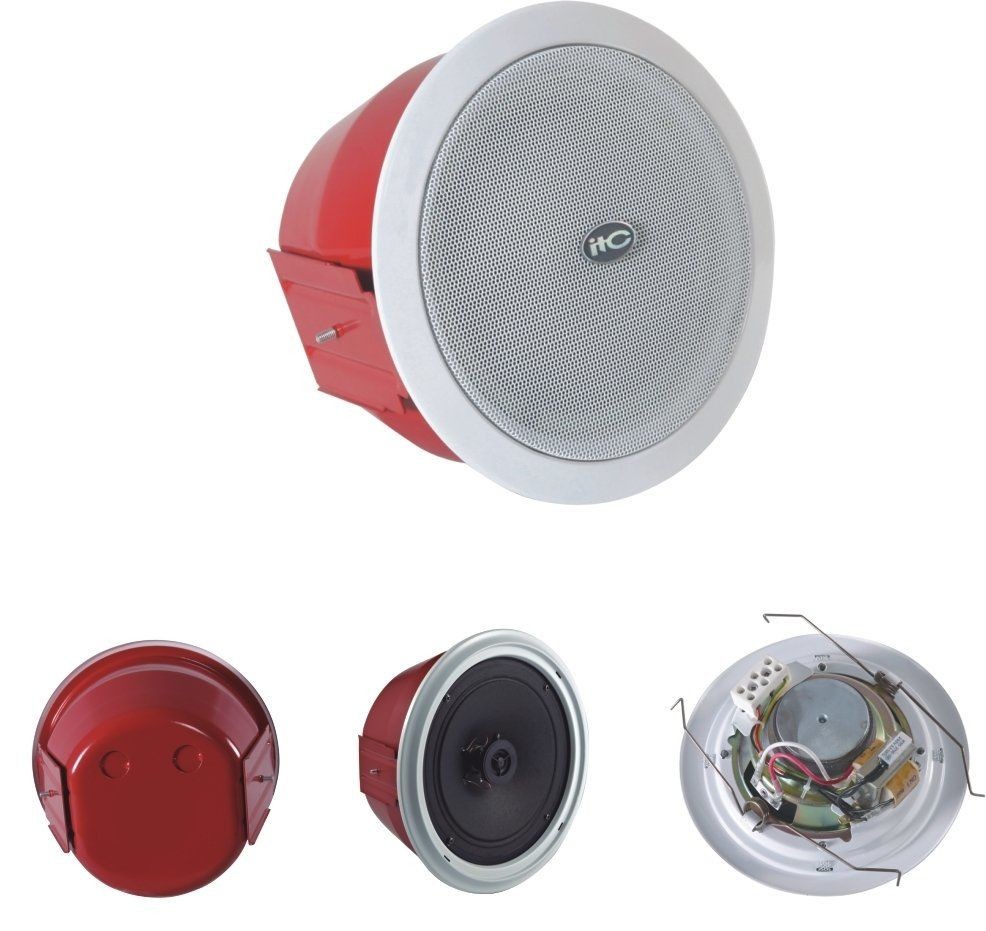

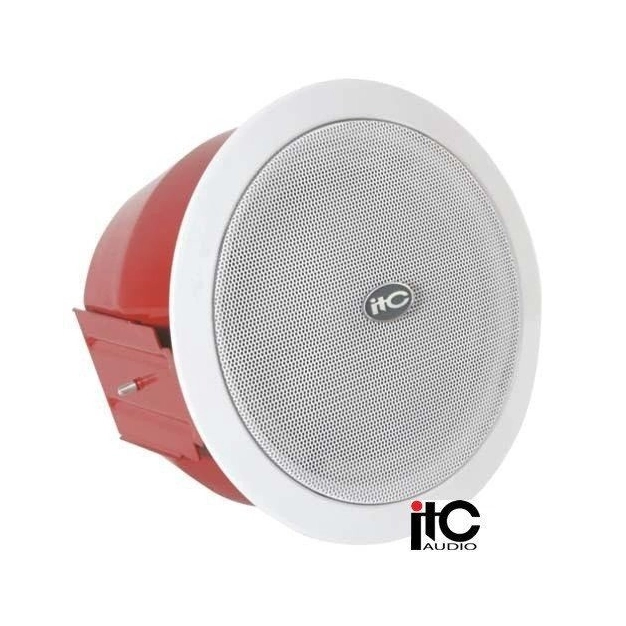

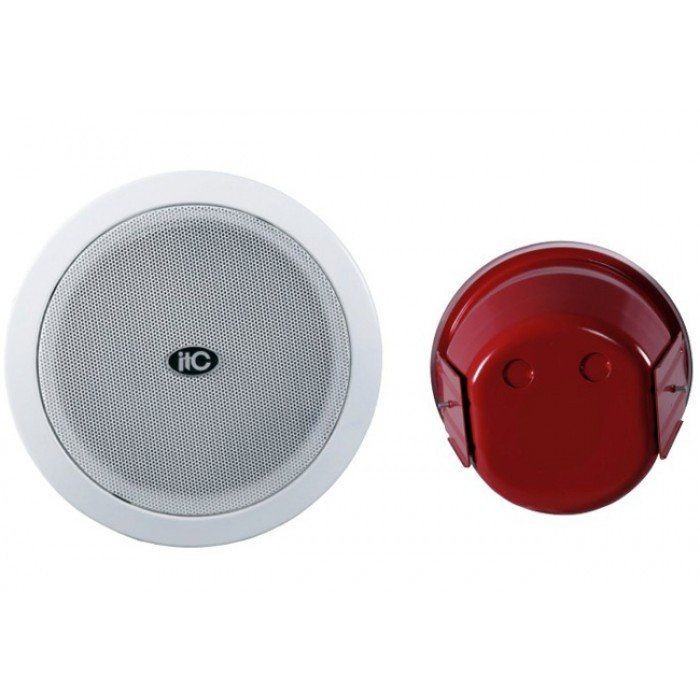

ITC Audio T-565 is an in-ceiling (mortise) loudspeaker with a fire-resistant design: metal housing, grille and back cover, fire-resistant cable, ceramic connectors, thermal fuse. The loudspeaker is specifically designed for fire alarm and voice evacuation systems in accordance with the EN54 standard.

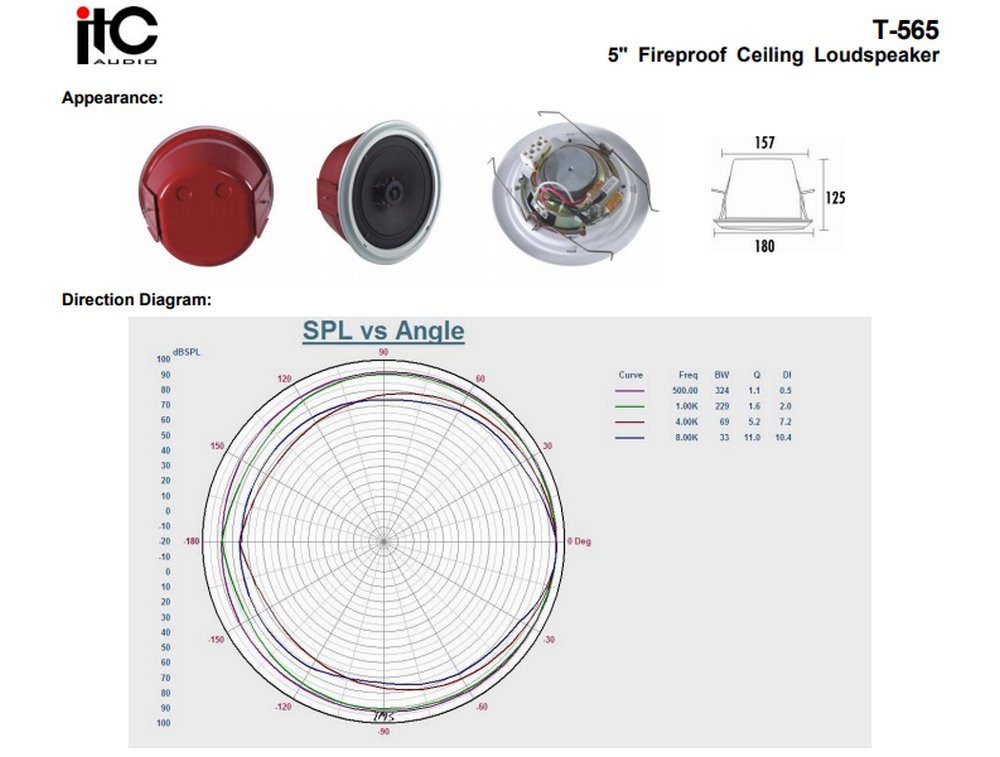

Technical characteristics of ITC Audio T-565:

• Emitter: 5"
• Power: 100V: 0.38W, 0.75W, 1.5W, 3W, 6W; 70V: 0.19W, 0.38W, 0.75W, 1.5W, 3W
• Transformer: 100V/70V
• Frequency range: 130 - 15000 Hz
• Sensitivity (SPL): 92 dB (1 W, 1 m)
• Sound pressure level (Max. SPL): 100 dB
• Dimensions (mm): d=180 x 125 (depth)
• Weight: 1.2 kg.
• Visible color: white (RAL 9016)
• Mounting Hole Diameter: 157mm
