Center channel speakers Klipsch Reference R-30C Black

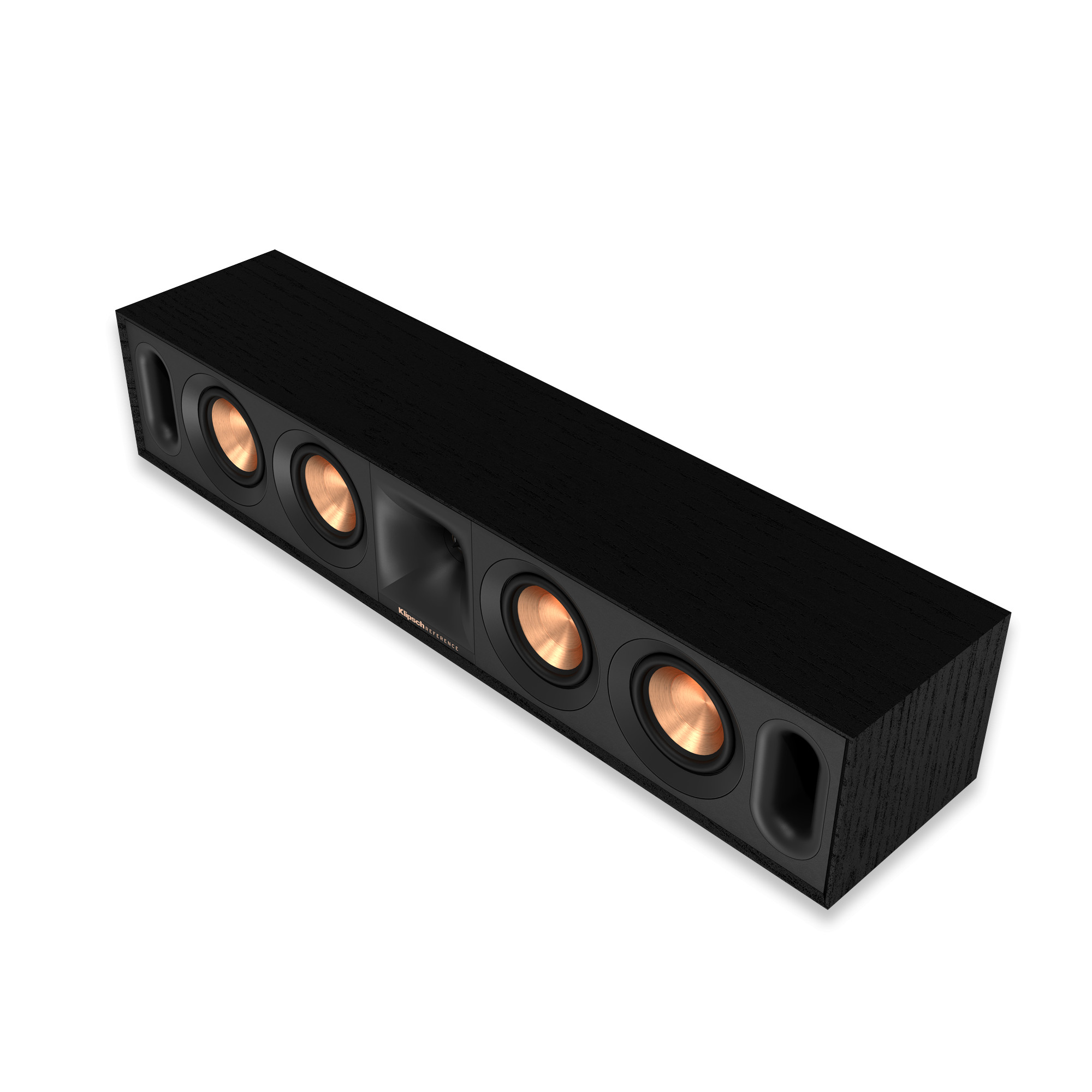

The Klipsch R-30C speaker system is part of the company's updated Reference Base series and is designed for use in the center channel of a home theater. Despite the fact that by the name of this model it can be considered junior relative to the second speaker for the center channel in this line, in fact this conclusion would not be entirely correct. In terms of its configuration, the Klipsch R-34C has no analogues in the previous Base series, since four woofers of a relatively small diameter are installed on its front panel.

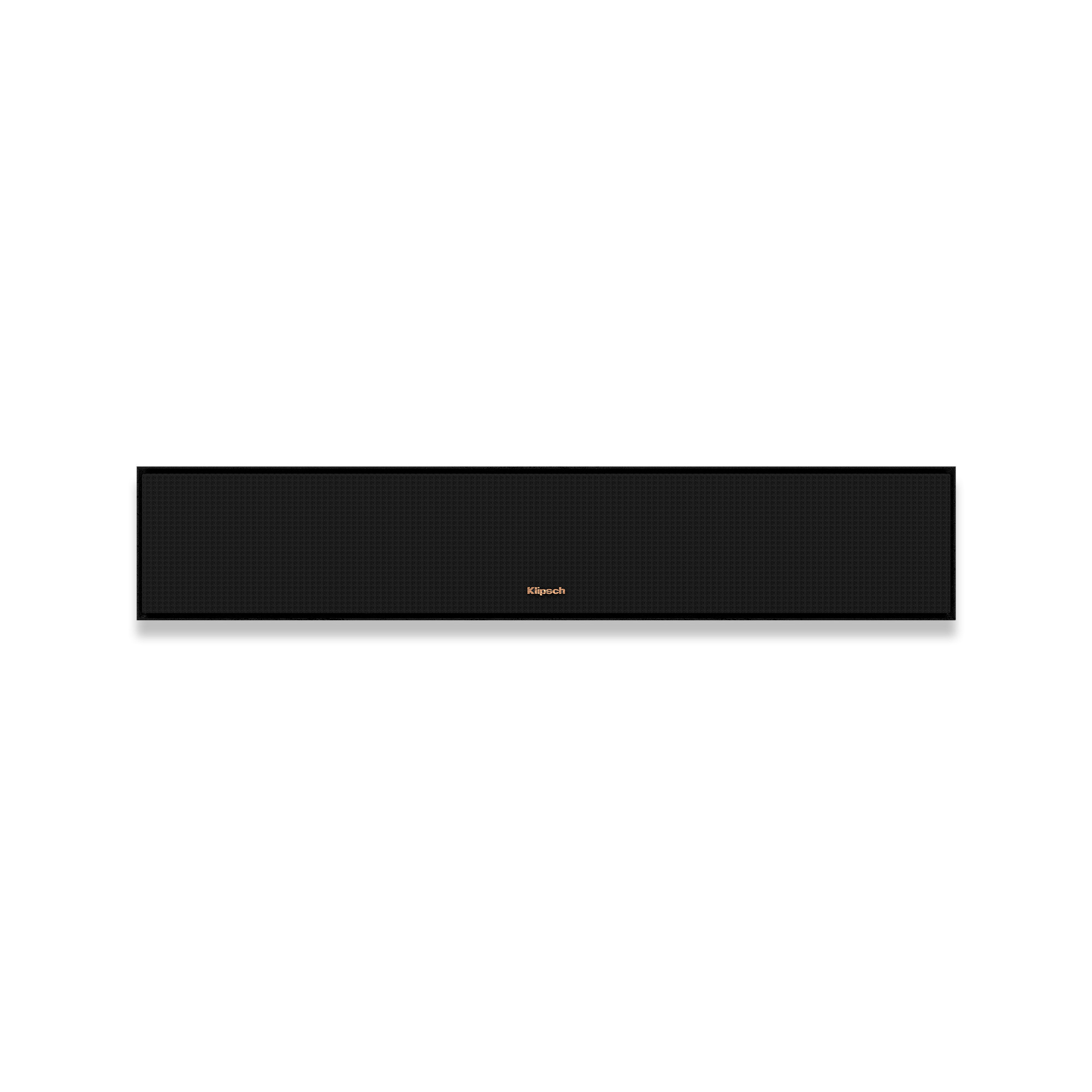

This solution made it possible to make the speaker body of a small height with its considerable width. The Klipsch R-30C is great for use with large screen TVs or even video projectors. The front panel of the speaker is covered with a protective mesh with magnetic fixation.

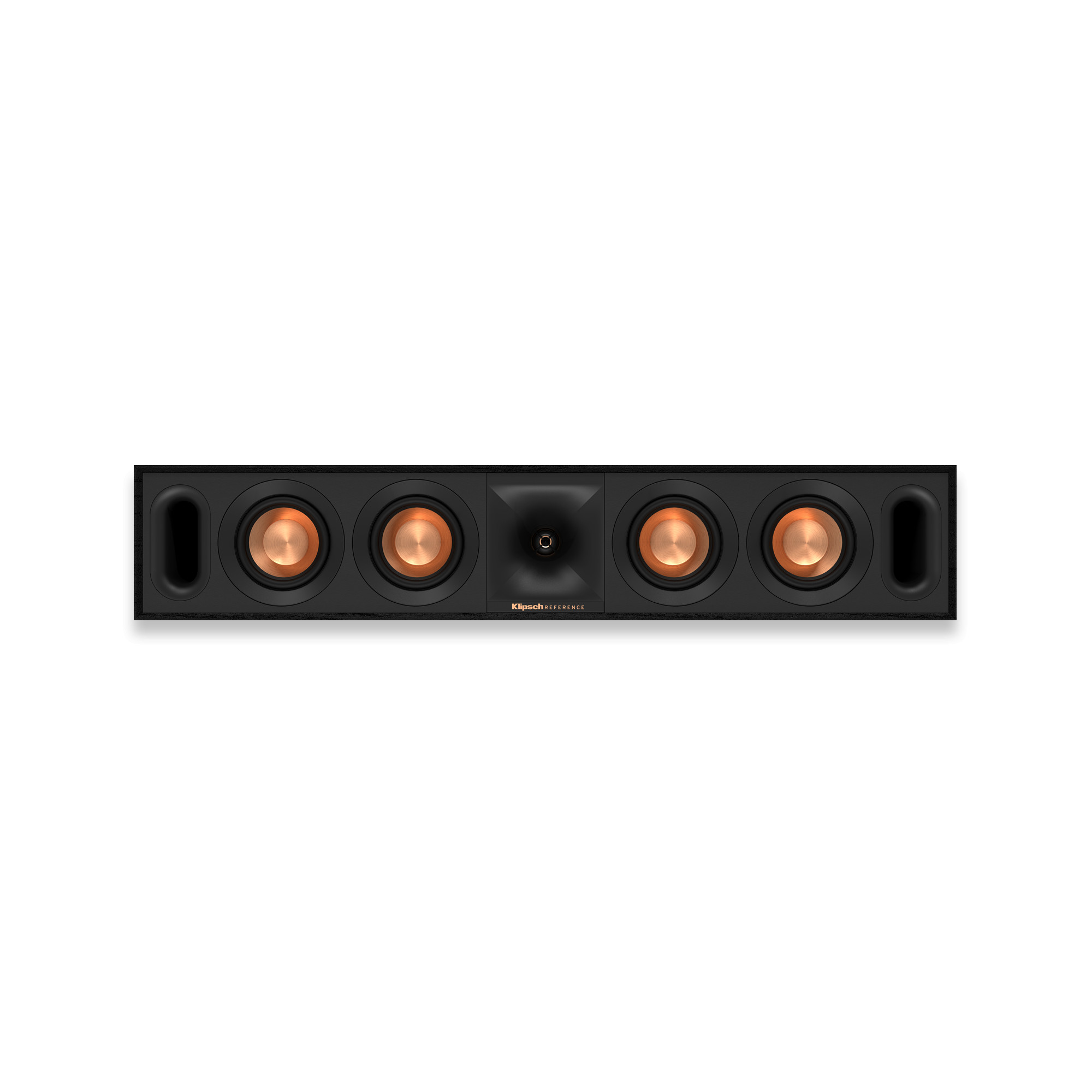

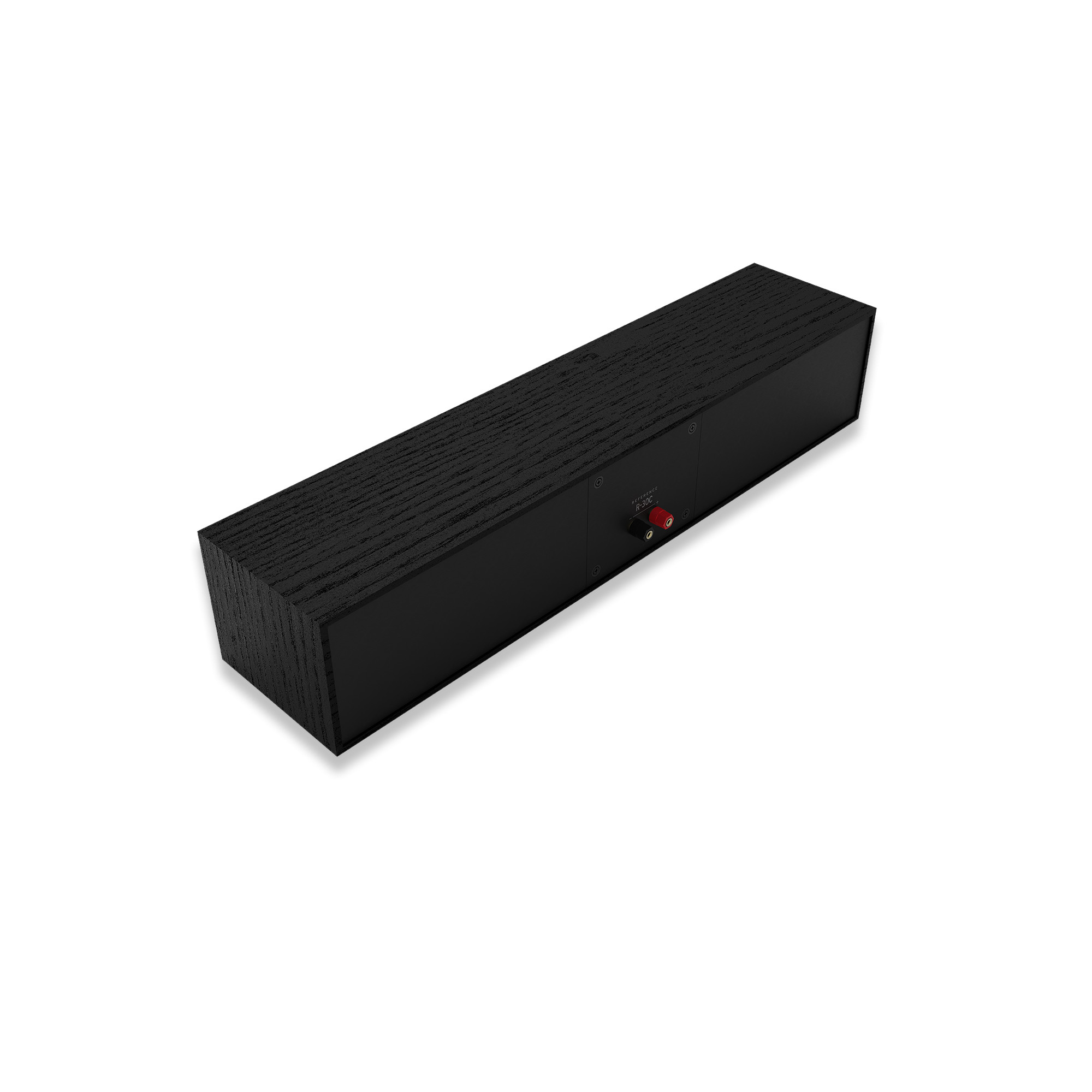

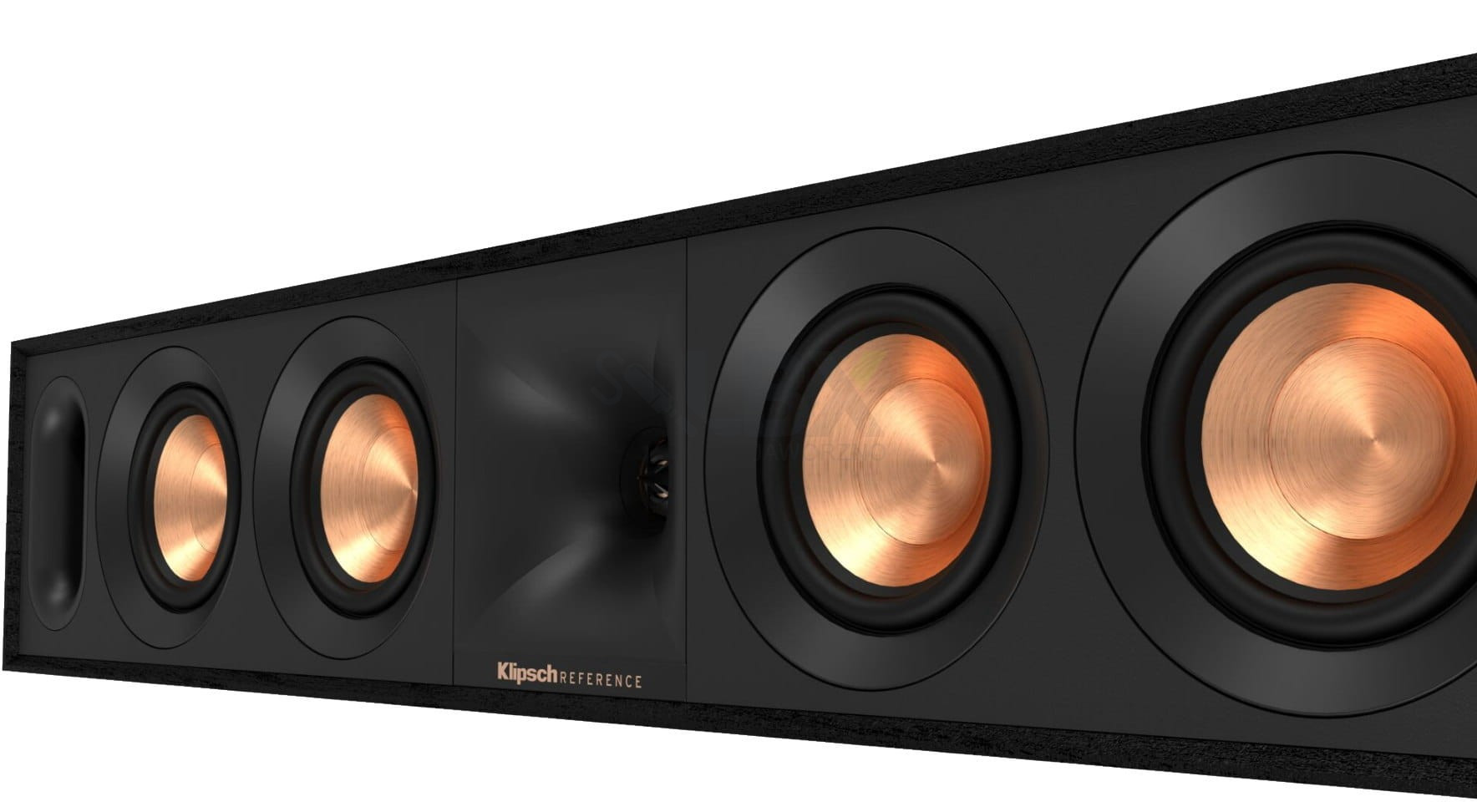

The speaker is equipped with woofers with a diameter of 3 inches, the cast cones of which IMG have a copper coating. The drivers are secured to the front panel with screws with large decorative heads, which is one of the changes in the design of the new Reference Base series acoustics. In the center of the speaker is the signature Tracrtix horn, with a new internal geometry. Like other speakers in the series, the Klipsch R-30C has a 1-inch diameter aluminum dome tweeter. The tweeter arches are mounted on a suspension made of Kapton (polyamide film), which ensures its linear movement (LTS technology). The crossover filter in the speaker is configured in such a way that, while maintaining the overall tonal balance consistent with other speakers in this series, it makes the sound of dialogue as intelligible and natural as possible. One pair of screw terminals is provided for connection to the amplifier.
The Klipsch R-30C's cabinet is made from MDF and has good internal damping to eliminate sound coloration. The holes of two patented Trastrix bass reflexes with a reduced level of acoustic noise are displayed on the front panel. Consequently, the Klipsch R-34C can be installed close to a wall or in enclosed alcoves without fear of low-frequency distortion.
Specifications Klipsch R-30C
- Number of lanes 2
- Number of speakers 5
- Housing type: Trastrix bass reflex on the front panel
- Tweeter 1" (25mm) aluminum dome tweeter housed in a 90 x 90 degree Tracrix horn
- Midrange/bass driver 4 x 3" (89 mm) Midrange/bass driver with IMG diffuser coated with copper
- Frequency range 82 Hz - 21 kHz
- Sensitivity 96 dB (2.83 V/1 m)
- Nominal impedance 8 ohms
- Amplifier input power 100-400 W (peak)
- Crossover frequencies 1600 Hz
- Input connectors: pair of screw terminals
- Grill is removable
- Dimensions (WxHxD) 660x133x157 mm
- Weight 5.9 kg.
Brand | Klipsch |
---|---|
Model | Reference R-30C |
Type | Center channel acoustics |
Recommended Amplifier Power | 100-400 W |
Frequency range | 82 Hz - 21 kHz |
Impedance | 8 ohms |
Number of lanes | 2 |
Sensitivity | 96 дБ |
Crossover frequency | 1650 Hz |
Housing material | Wood (MDF) |
Color | Black |
Dimensions (H x W x D), mm | 133 х 660 х 157 |
Weight, kg | 5,9 |
