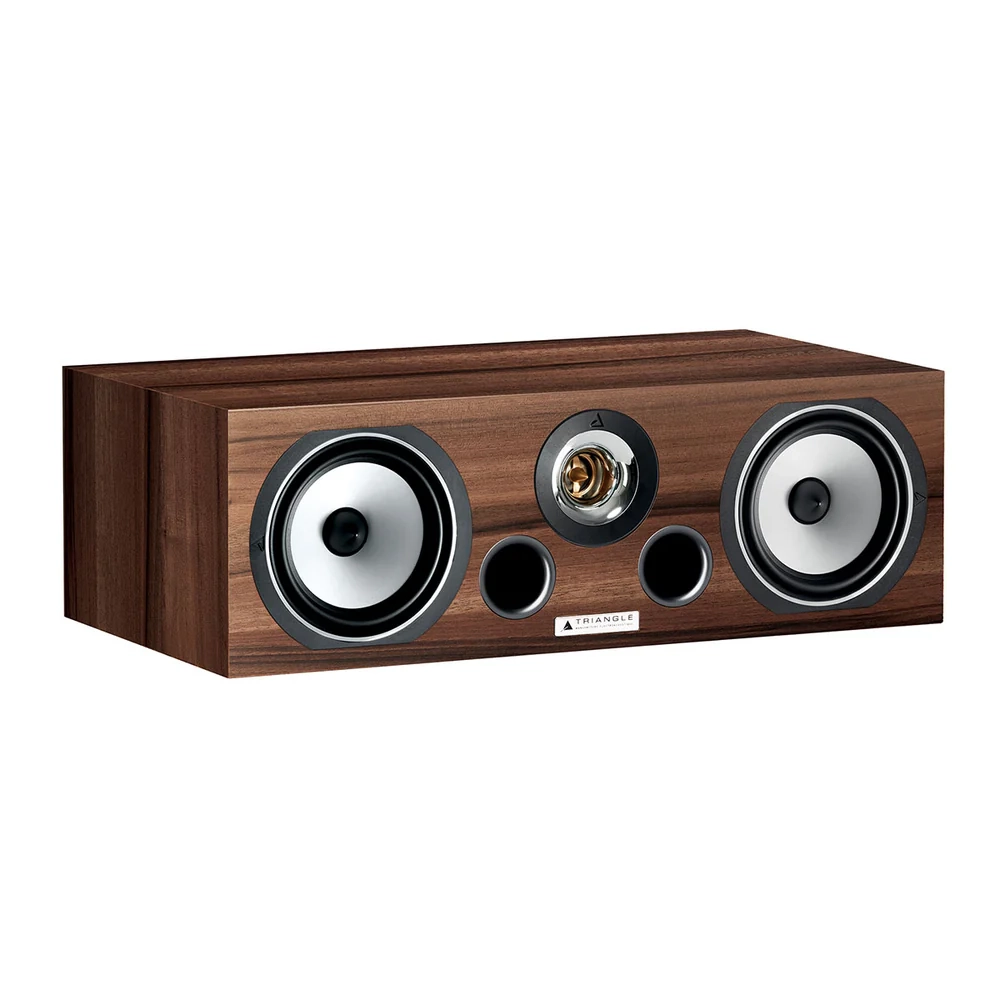

Acoustics of the central channe Triangle VOCE EZ Walnut

Triangle VOCE EZ Center Channel - The Voce Ez is the center channel of the Esprit Ez. Designed to be located below your screen, the speaker reproduces human voices and mid-frequencies with incredible precision and dynamism.

In order to ensure a perfect tonal balance and sonic uniformity in home theater, the center channel includes the same drivers as the rest of Esprit Ez range. It is equipped with one horn loaded tweeter and two 5-inches (13cm) midrange drivers, using the same natural cellulose membrane.This set up is perfectly fitted for cinema set-up. The horn tweeter gives efficiency to the speaker and the phase plug located inside the tweeter guarantee a good dispersion of high frequencies all around the room. The natural paper diaphragm is perfect for reproducing the tone of human voices for more realism.

The voce Ez has a bass-reflex configuration with two ports in the front of the cabinet to extend lower frequency response and facilitate the speaker positioning in the room.

Musicality & Design

ESPRIT Ez offers music lovers lively and dynamic sound without compromise. Rediscover the emotion of your first listens and let yourself be surprised by the thrill of the ESPRIT Ez range.

The latest vintage from ESPRIT brings a major innovation in the midrange driver for surprising sound realism. It also incorporates an improvement to its famous horn tweeter and optimizes its fiberglass bass drivers for even greater speed and transparency.

TWEETER TZ2550

A real TRIANGLE trademark of technology and performance, the TZ2510, is the latest incarnation of a titanium dome in combination with a compression chamber. This technology provides high efficiency with low distortion and excellent directivity.

Made out of 100% natural cellulose paper, white membrane is used to avoid any coloration. It is combined with a small pleat peripheral suspension to increase the emissive surface area.

Midrange driver

Special attention has been paid to a number of details in the development of the midrange: the profile of the membrane, the shape of the suspension, and the new dust cap, are directly inspired from the MAGELLAN project.

WOOFER

Fiberglass was selected for its excellent affect on the lower midrange / higher bass.An ESPRIT Ez innovation is the overlay of textile material and fiberglass, which improves the rigidity of the membrane. The speaker is equipped with a new chassis, which quickly dissolves the heat generated by the coil.

Amplifier and Power Handling

• Power Handling : 60W

* The power handling of a speaker is the average continuous power that the speaker can accept without damaging the drivers. You can use an amplifier more powerful than the permissible speaker power by limiting the volume to 70% of the maximum capacity. Conversely, an amplifier that is too underpowered will clip and create distortion, which can also damage the speakers if it is used beyond its capacity.

Speaker Specifications

• Type : Center speakers with front bass reflex port
• Crossover : 2 Ways
• Sensitivity (dB/W/m) : 91dB
• Bandwith (+/-3dB Hz) : 60Hz-22 000Hz
• Nominal impedance : 8Ω
• Minimum impedance : 5,3Ω

* The impedance of a speaker can be simplified as an electrical resistance. The lower is the impedance of the speaker, the more current the amplifier will have to deliver.

- Nominal impedance is measured at a frequency of 1kHz

- Minimum impedance is measured at low frequencies.

TRIANGLE loudspeakers never fall below 3 Ohms, which means they can be used with almost all Hi-Fi and Home Cinema amplifiers.

Driver informations

3 Drivers :

• 1 x Horn tweeter with 25mm titanium dome
• 2x Midwoofer 13cm small pleat suspension with natural cellulose pulp membrane

Crossover

• Crossover Frequencies : 3300 Hz

Weight & Dimensions

Speaker dimensions

• Width : 510 mm
• Height : 168 mm
• Depth : 290 mm
• Box dimension (per unit) (W x H x D): 600 x 260 x 390 mm

Weight

• Net weight : 9,5 kg
• Gross weight : 10,8 kg

Accessories

• Magnetic protection grille
• Rubber feet
