AV receiver Onkyo TX-RZ30 Black

THX Select and IMAX Enhanced certifications ensure an immersive cinematic experience. The IMAX Enhanced soundtrack uses a special “proprietary” version of the DTS:X audio format, which IMAX claims helps preserve the full dynamic range of the original film mix.

Onkyo TX-RZ30 develops up to 100 W per channel, and its amplifiers are built using the proprietary Dynamic Audio Amplification technology. The power supply of the device has a specially made transformer with increased output current and low noise level, as well as high-capacity filter capacitors. The output stages are mounted on massive radiators, damped to eliminate vibrations. The design of the AV receiver is made in such a way as to completely eliminate mutual interference between its individual functional blocks.

The Onkyo TX-RZ30 has six HDMI inputs and two outputs. The main HDMI output supports the eACR rotary audio channel, and the additional signal can be transmitted to the second zone. HDMI switching supports signal transmission with a resolution of up to 8K. The model also has a full set of analog and digital AV connections, including for the MM cartridge of a vinyl player. The Onkyo TX-RZ30 is equipped with an 11.2-channel output from the surround sound processor, which will allow you to upgrade the system in the future.

The Dirac Live calibration system is provided for automatic sound adjustment. Also available as an additional option is Dirac Live Bass Control technology, which quickly optimizes the settings of your subwoofer. Connection to the network occurs via Ethernet or dual-band Wi-Fi. You can play content from network drives, through popular online services, or using Chromecast or AirPlay 2 technology. Onkyo TX-RZ30 is compatible with Sonos and DTS Play-Fi platforms, as well as with the Alexa voice assistant. The AV receiver also has Bluetooth, which works both for reception and transmission.

Onkyo TX-RZ30 Specifications

• Number of channels 9.2
• Output power 100W per channel (8 Ohm, 1 kHz, 1 Channel Driven, IEC)
• Input sensitivity/impedance 200 mV/47 kOhm (line input), 3.5 mV/47 kOhm (Phono)
• FM Tuner 87.5 MHz - 108 MHz
• AM Tuner 522 kHz - 1611 kHz; 530 kHz - 1710 kHz
• Number of memory presets 40
• Built-in decoders (main) Dolby Atmos, DTS: X, Dolby Pro Logic IIz, Dolby Digital Plus, DTS-HD High Resolution Audio, DTS-HD Express, Dolby TrueHD, DTS-HD Master Audio, Dolbyight He Virtalizer and DTS VirtuX:
• Dolby Surround, DTS Neural:X processors
• Auto-calibration system
• Number of additional zones 1
• Output to the second zone is linear (including after the DAC), acoustic
• Wireless multiroom DTS Play-Fi, Flare Connect
• DSP processor 32 bits
• Enhancer for compressed music files
• Supported Streaming Audio File Formats (LAN/USB) MP3, WMA, WMA Lossless, FLAC, WAV (24-bit/192kHz), Ogg Vorbis, AAC, Apple Lossless, DSD (11.2MHz), LPCM
• DLNA v1.5 protocol
• Wi-Fi 5/2.4 GHz support
• Chromecast support
• AirPlay 2 support
• Support Bluetooth version 4.2
• Pioneer App Support for iPhone and Android
• Direct Mode
• Supported Internet Services: TuneIn Radio, Tidal, Spotify, AUPEO!, Deezer
• Independent crossover frequency adjustment for each channel 40/50/60/70/80/90/100/120/150/200 Hz

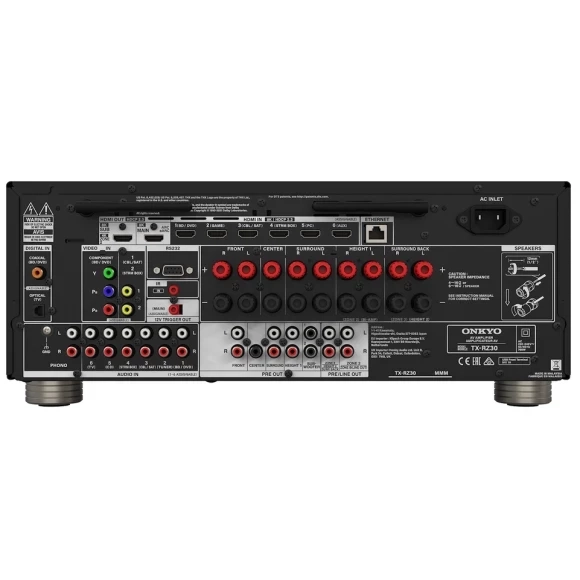

• Inputs 6 HDMI 2.1 inputs with support for 8K/60 Hz, HDCP 2.2/HDR10/Dolby Vision, Phono, 4 line (RCA), 1 coaxial, 1 optical, 2 composite, composite, USB port, Ethernet
• Outputs 2 HDMI 2.0 with support for 8K/60Hz, HDCP 2.2/HDR10/Dolby Vision, line-in (for zone 2), 2 subwoofer outputs, 6.3 mm headphone jack
• Robust RS232 connectivity, mini-jack for calibration microphone, AM and FM antenna jacks, ground terminal
• Output terminals for AC 9 pairs of screw terminals
• Power supply high current transformer
• Power consumption 760 W, in standby mode: 0.15 W
• Dimensions (WxDxH) 435x177x380 mm
• Weight 11.5 kg
