Cooling system AC Infinity AIRCOM S6
- Quiet fan system
- Protects components from overheating
- Programming includes two thermostat modes and four speed control parameters.
- Contains two fans with PWM motor control for noise reduction.
- Dimensions: 29.5 x 16 x 3.8 cm | Exhaust: rear | Airflow: 100 CFM | Noise: 20 dBA | Bearings: Dual Ball

- Quiet fan system designed to cool receivers, routers, game consoles and other AV components.
- Protects components from overheating, performance issues and reduced lifespan.
- Programming includes two thermostat modes and four speed control parameters.
- Contains two fans with PWM motor control for noise reduction.
- Dimensions: 29.5 x 16 x 3.8 cm | Exhaust: rear | Airflow: 100 CFM | Noise: 20 dBA | Bearings: Dual Ball
PRODUCT DESCRIPTION

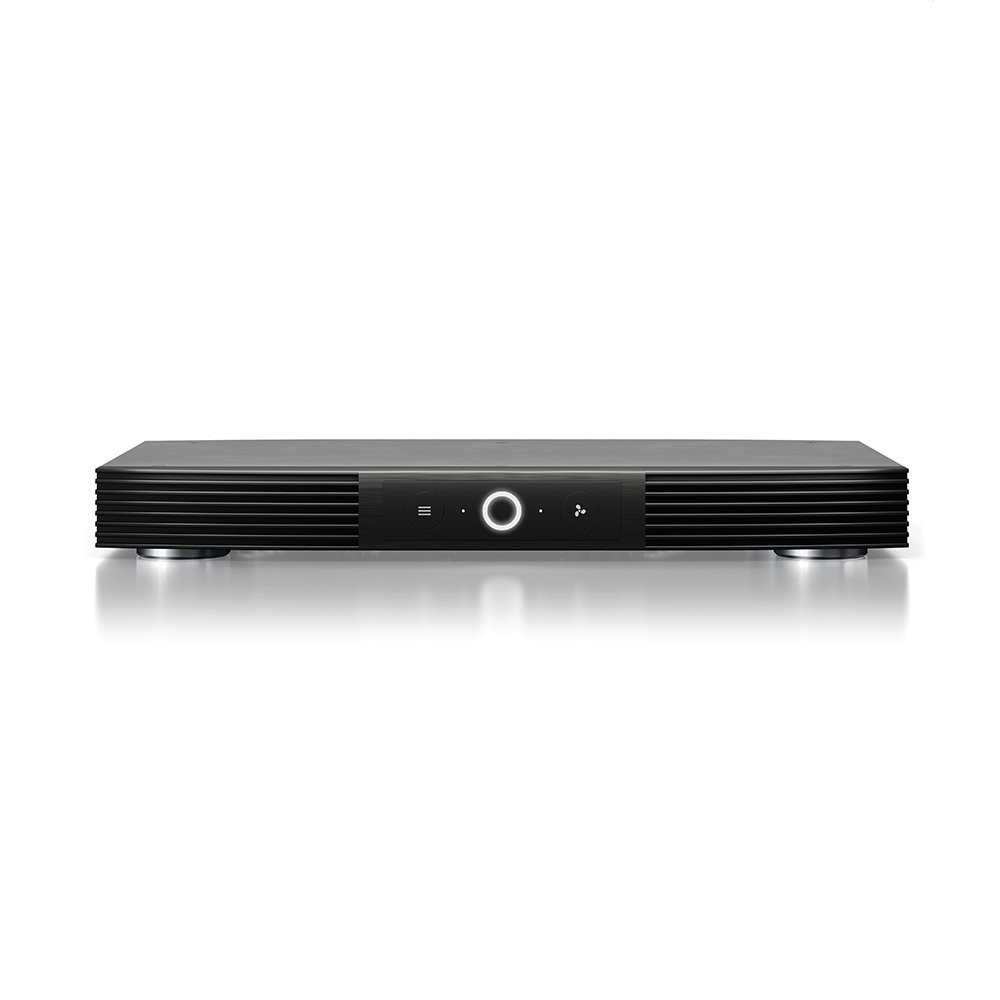

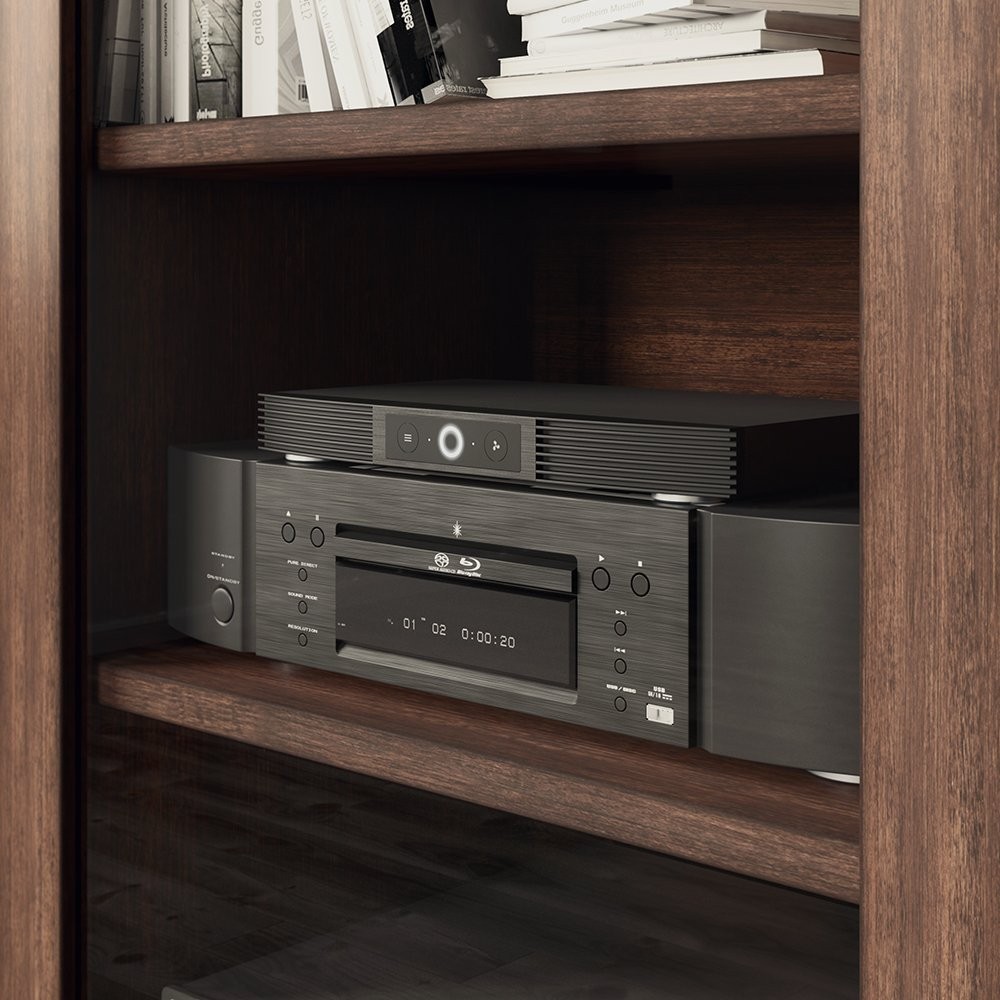

Silent cooling fan system designed to be placed on top of AV components such as receivers, routers, game consoles and AV components. Maintaining the optimum temperature of the components prevents overheating, ensures continuous operation and extends the service life. The controller on the front of the cooling system is equipped with an intelligent thermostat trigger and fan speed control. The steel case houses two fans with two ball bearings, which draw heat from the equipment and blow it out from the bottom. Its low profile design allows the unit to fit into tight spaces. Includes AC power adapter for connecting the fan system to a wall outlet.
INTELLIGENT PROGRAMMING
There are three programming options available that include two thermostat modes. The fans can also be set to continuously turn on or off. Four fan speeds are available for each active mode and will determine the speed at which the fans run when they are triggered. This ensures optimum airflow and sound levels for your application.
DESIGN AND CONSTRUCTION
Each system features 67,000 hour Dual Ball bearing fans and is CE, UL and RoHS certified. The cooling system contains a PWM controlled motor used to minimize noise when changing speed and is suspended in the air on silicone mounts to absorb vibrations. The low profile design allows the device to fit in applications with limited height clearance. The aluminum and steel construction can withstand up to 4.5 kg above it.
Brand | AC Infinity |
---|---|
Model | AIRCOM S6 |
Power | 5,2 Вт |
Cord length | 1.8 m |
Nutrition | Адаптер питания От 100 до 240 В переменного тока |
Number of fans | 2 |
Noise | 20 дБА |
Total air flow | 100 CFM |
Operating voltage | 12 В постоянного тока |
Current | 0.43 A |
Static pressure | 1 мм-H2O |
Operating Humidity | От 35 до 85% относительной влажности |
Fan bearings | dual ball |
Bearings have a service life | 67 000 часов |
Fan Quality Approvals | UL, CE, TUV, RoHS |
Maximum load capacity | 4.5 кг |
Exhaust | задний |
Color | Black |
Dimensions | 29,5 х 16 х 3,8 см |
Guarantee | 12 months |
Working temperature | От 14 до 230 ° F |
