Cooling system (blowing) AC INFINITY AIRCOM S8
The AC INFINITY AIRCOM S8 cooling system is an innovative solution for efficient heat dissipation of your electronics. It is designed to take into account the high thermal load that modern devices can create. AIRCOM S8 provides active cooling using advanced ventilation technology. This helps prevent overheating, improve performance and extend the life of your appliances. Ease of installation and reliable operation make AIRCOM S8 an indispensable accessory for maintaining the optimum temperature in your equipment.

- The silent fan system is designed to cool receivers, amplifiers, DVRs and other AV components.
- Protects components from overheating, degraded performance and shortened life.

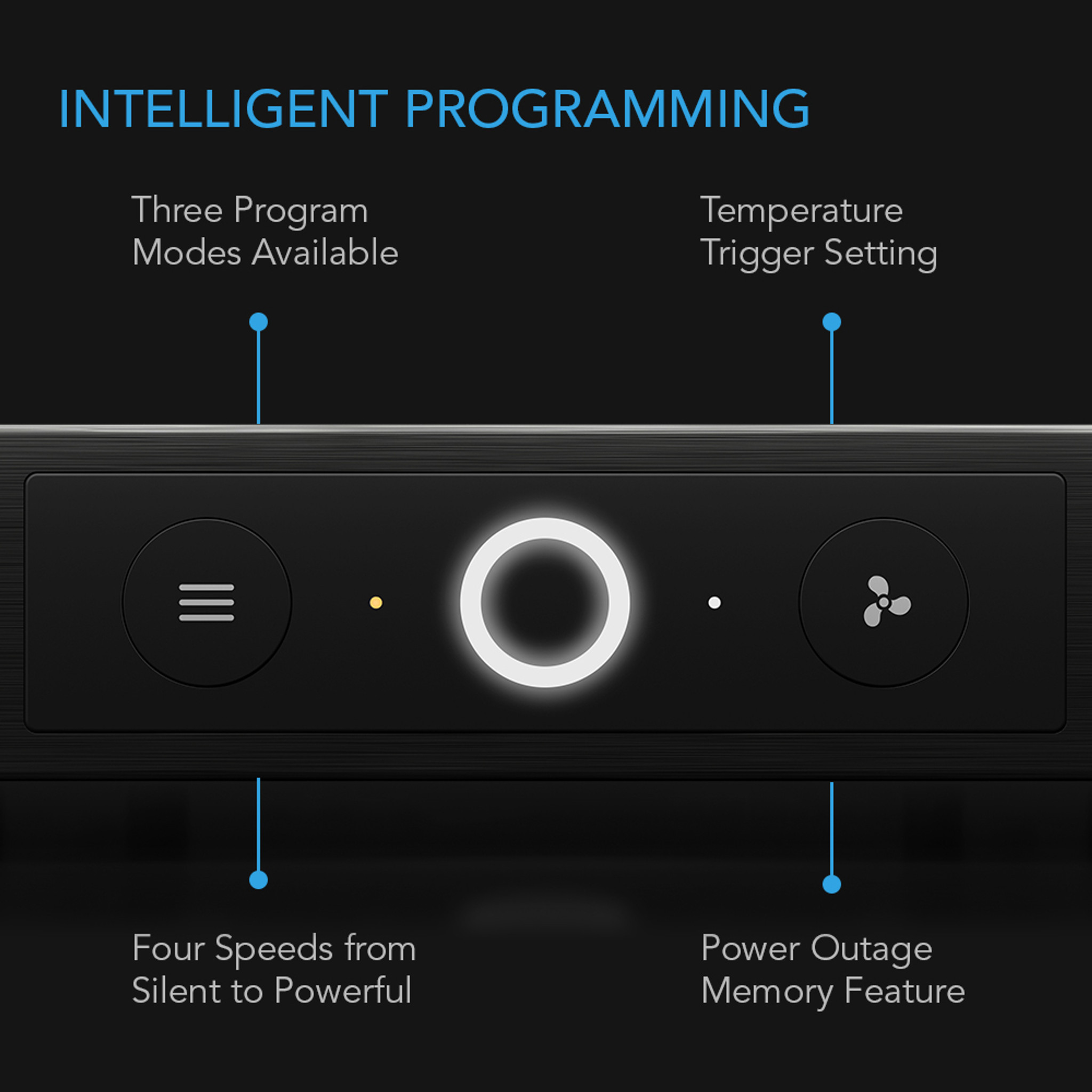

- Programming includes two thermal start modes and four speed control options.
- Contains three fans with double ball bearings and PWM motors to minimize noise.

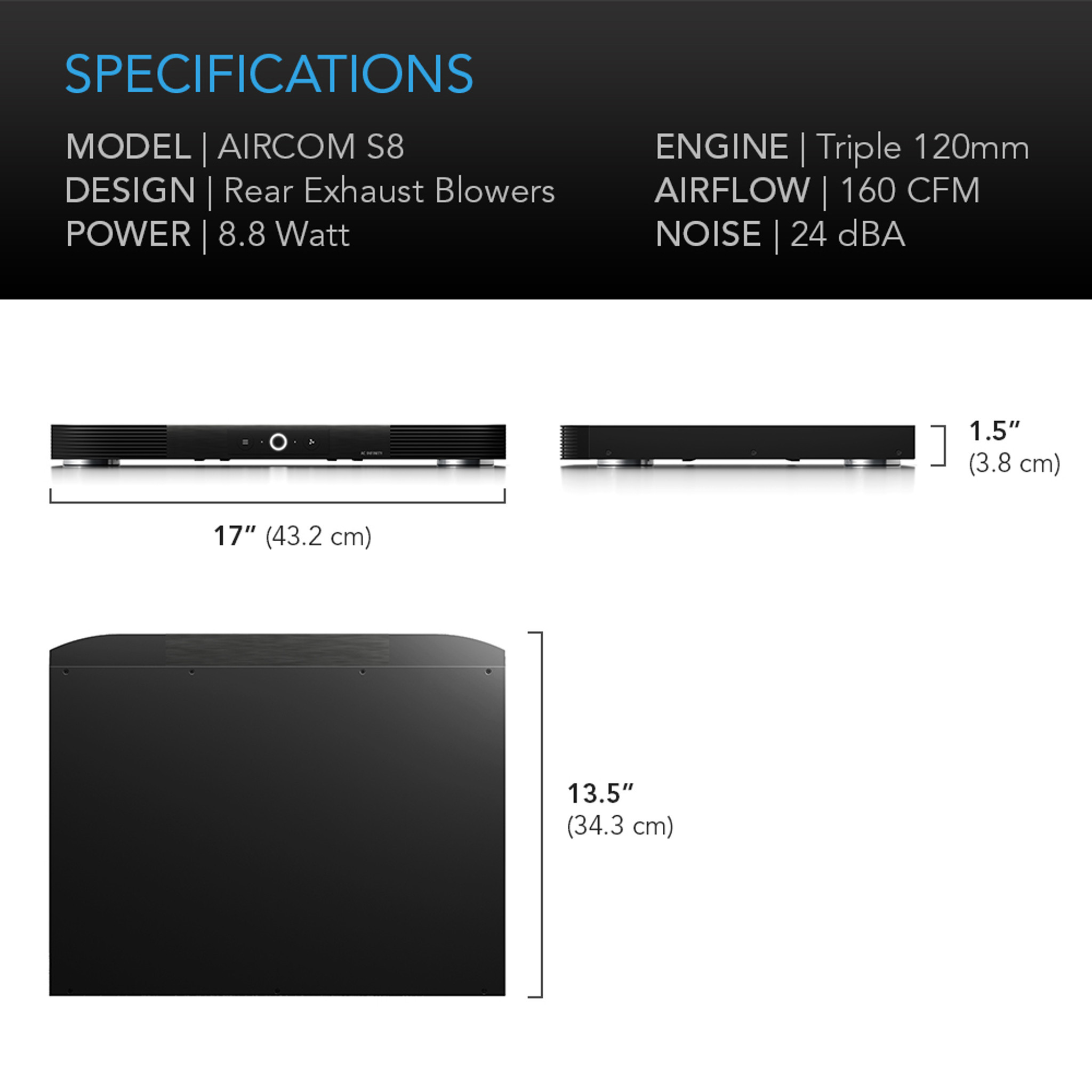

- Dimensions: 17 x 13.5 x 1.5 inches. | Exhaust: Rear | Airflow: 160 CFM | Noise: 24dBA | Bearings: Double ball
Product Description

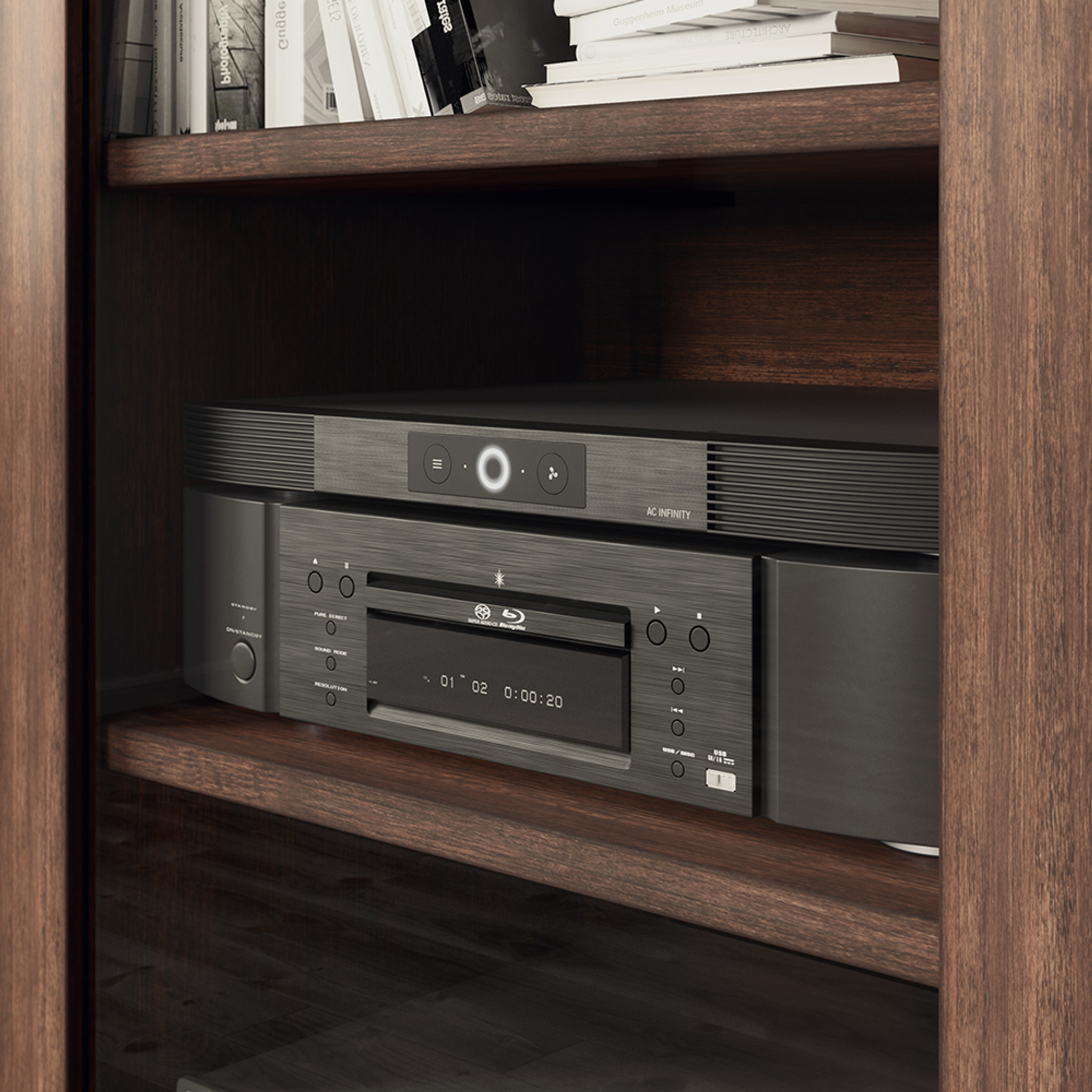

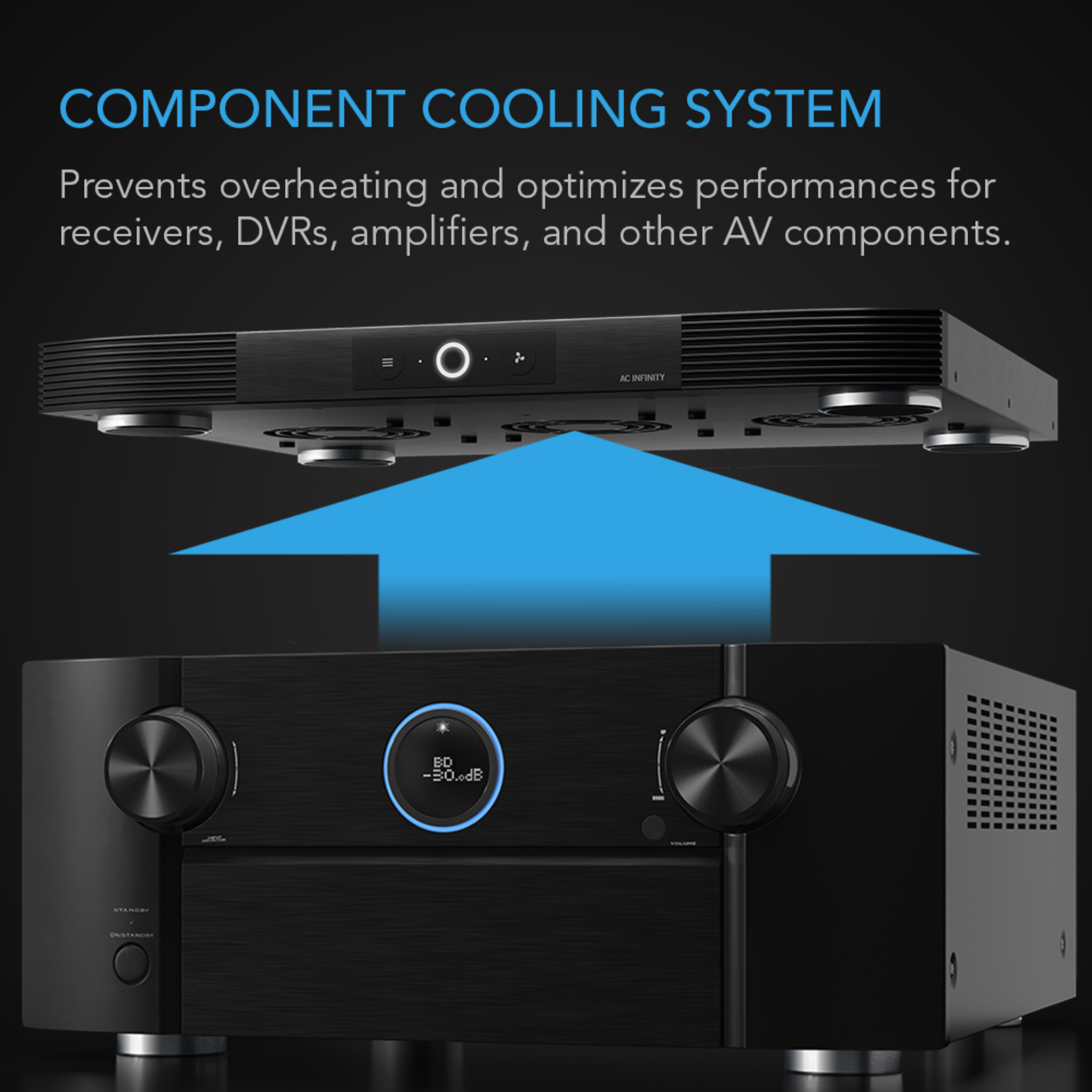

The silent fan system is designed to be installed on AV components such as receivers, routers, game consoles and AV cabinet components. Maintaining the optimal temperature of the components prevents them from overheating, ensures continuous operation and extends the service life. The controller on the front of the cooling system is equipped with an intelligent thermostat trigger and fan speed control. The steel chassis houses three double ball bearing fans that draw heat away from the components and out through the back. Dual ball bearings also allow this fan system to be mounted horizontally or vertically. The low profile design allows you to place the device in a limited space. The scope of supply includes a power adapter for connecting the fan system to a power outlet.
Design and construction

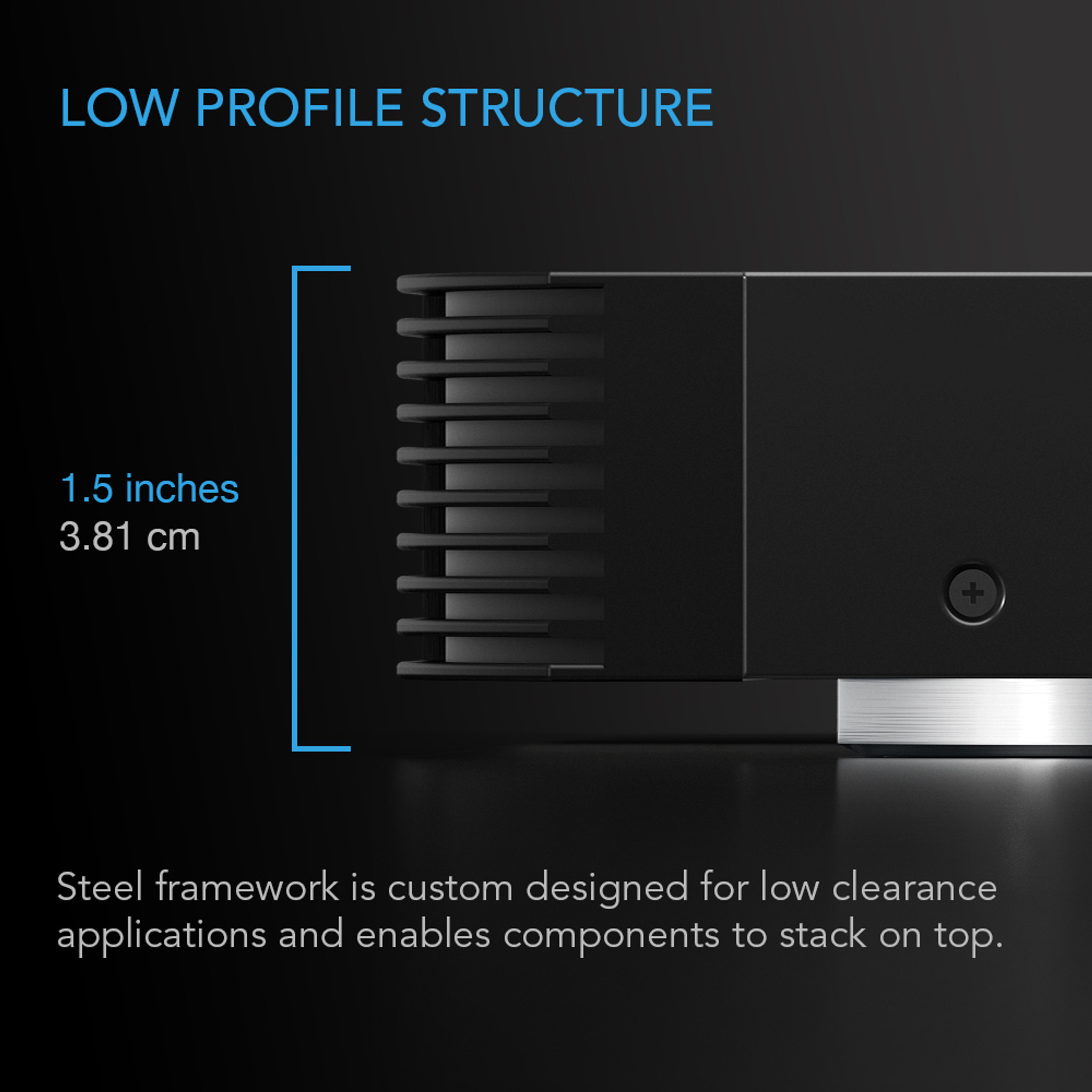

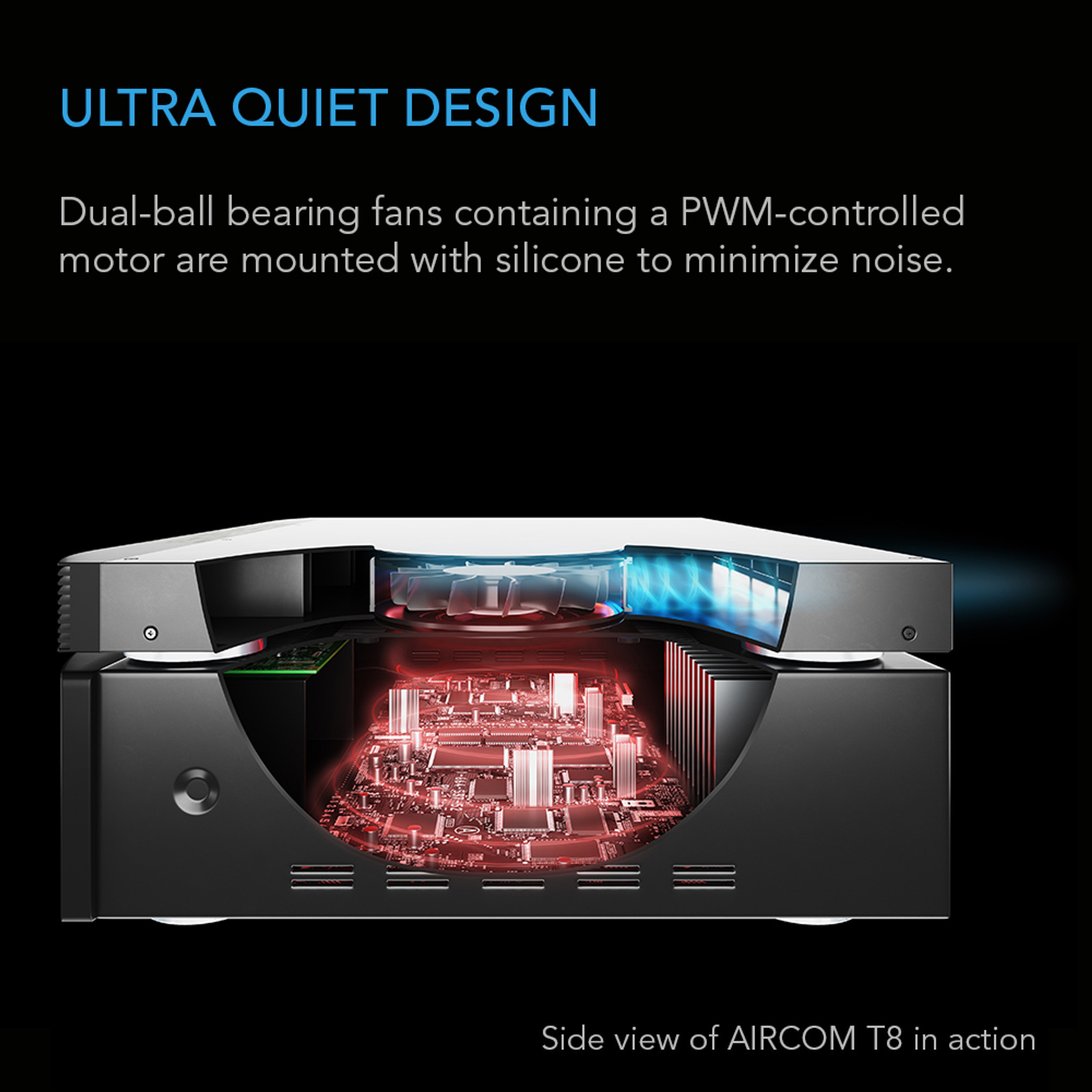

Each system is equipped with blowers with two ball bearings, rated for 67,000 hours of operation and is CE and RoHS certified. The blowers are equipped with a PWM controlled motor to minimize noise when changing speed and are suspended in the air on silicone mounts to absorb vibrations. The low profile design allows the device to be installed in systems with limited height. The aluminum and steel construction allows the installation of additional components weighing up to 30 kg.
Brand | AC Infinity |
---|---|
Model | AIRCOM S8 |
Cord length | 1.8 m |
Number of fans | 3 |
Noise | 24 dBA |
Total air flow | 160 CFM |
Operating voltage | 12 В постоянного тока |
Current | 0.73 А |
Static pressure | 1 мм-H2O |
Operating Humidity | От 35 до 85% относительной влажности |
Maximum load capacity | 13.6 кг |
Exhaust | задний |
Color | Black |
Dimensions (H x W x D), mm | 432 x 343 x 38 |
Working temperature | от 0 до 158°F |
