Одноканальный активный DI Box DI20

Single channel active DI Box DI20

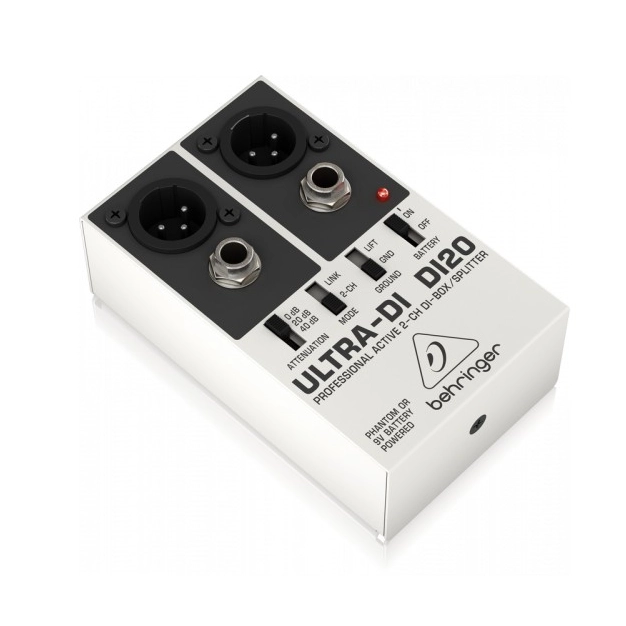

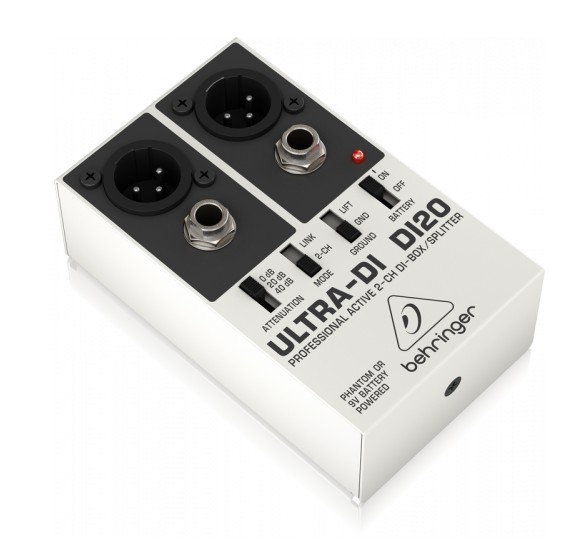

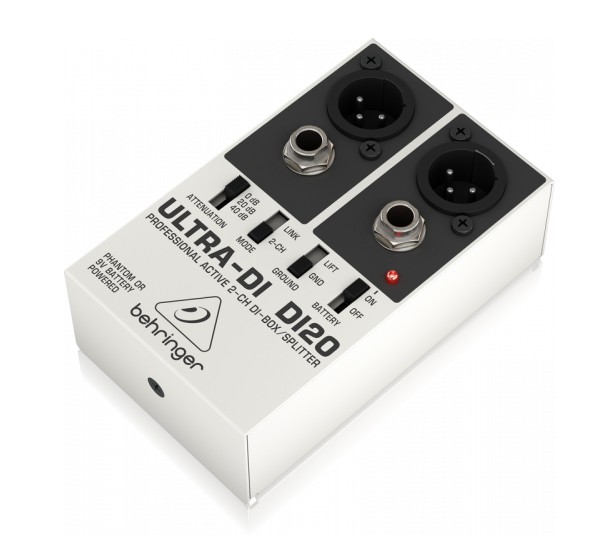

The ULTRA-DI DI20 is an innovative active 2-channel DI box/splitter that takes the signal directly from an unbalanced high-impedance output - say, an electric guitar or bass - and sends it directly to a mixing console or recorder. Its place is in the "gig bag" of any musician (especially a guitarist or bassist), as well as among the standard equipment of studio, radio, concert or entertainment engineers, or installation technicians.

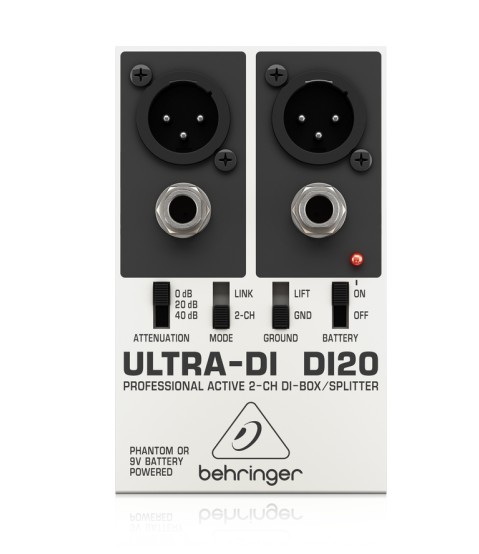

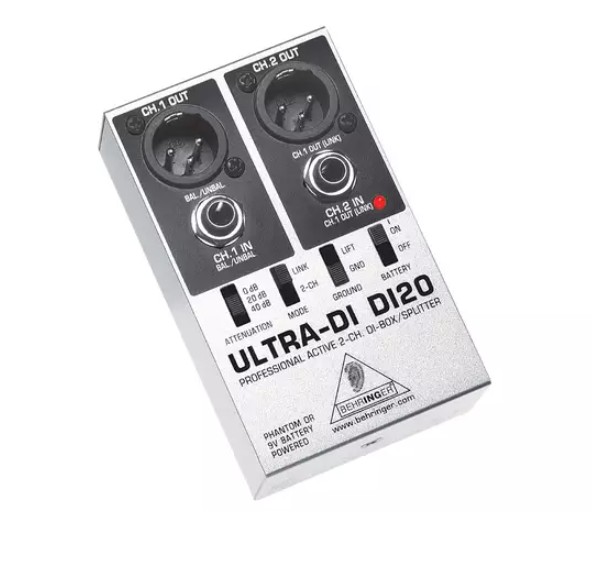

The DI20 converts 2 separate unbalanced 1/4" inputs to 2 balanced XLR outputs. 2-channel and Link modes of operation provide flexible use as a mono or 2-channel DI box or splitter. In Link mode, the signal channel 1 is fed simultaneously to both balanced XLR outputs and an unbalanced 1/4" channel 2 output. With a 3-position attenuator, the input level can be up to +48 dBu, while the Ground Lift switch eliminates common grounding problems. Powered by battery (9V) or phantom power (48V). The device is made of reliable components in a compact, extremely rugged housing.

Peculiarities:

Converts 2 separate unbalanced signals on 1/4" TRS inputs to 2 balanced signals on XLR outputs

Flexible DI configuration: mono, 2-channel or stereo

Optional splitter mode: channel 1 signal is routed to both XLR outputs

Powered by 9V battery or phantom power supply

Switchable input attenuator allows up to 3,000 watts of power to be connected to the output of an amplifier

In Link mode, the channel 1 signal is also routed to the channel 2 input (in addition to the XLR output)

"Ground Lift" switch to break the ground loop

Compact rugged body

High quality components and exceptionally robust construction guarantee a long service life

Characteristics:

Audio inputs: unbalanced 1/4" TS;

Resistance: 250 kOhm;

Max. input level: +12dBu/+32/+52dBu;

Audio outputs: balanced XLR;

Resistance: 600 Ohm (balanced);

Frequency response: 10 Hz - 70 kHz (-3 dB);

Signal-to-noise ratio: -100 dBu;

THD: < 0.014% (1kHz? 0dBu);

Phantom Power: 18V DC to 48V
