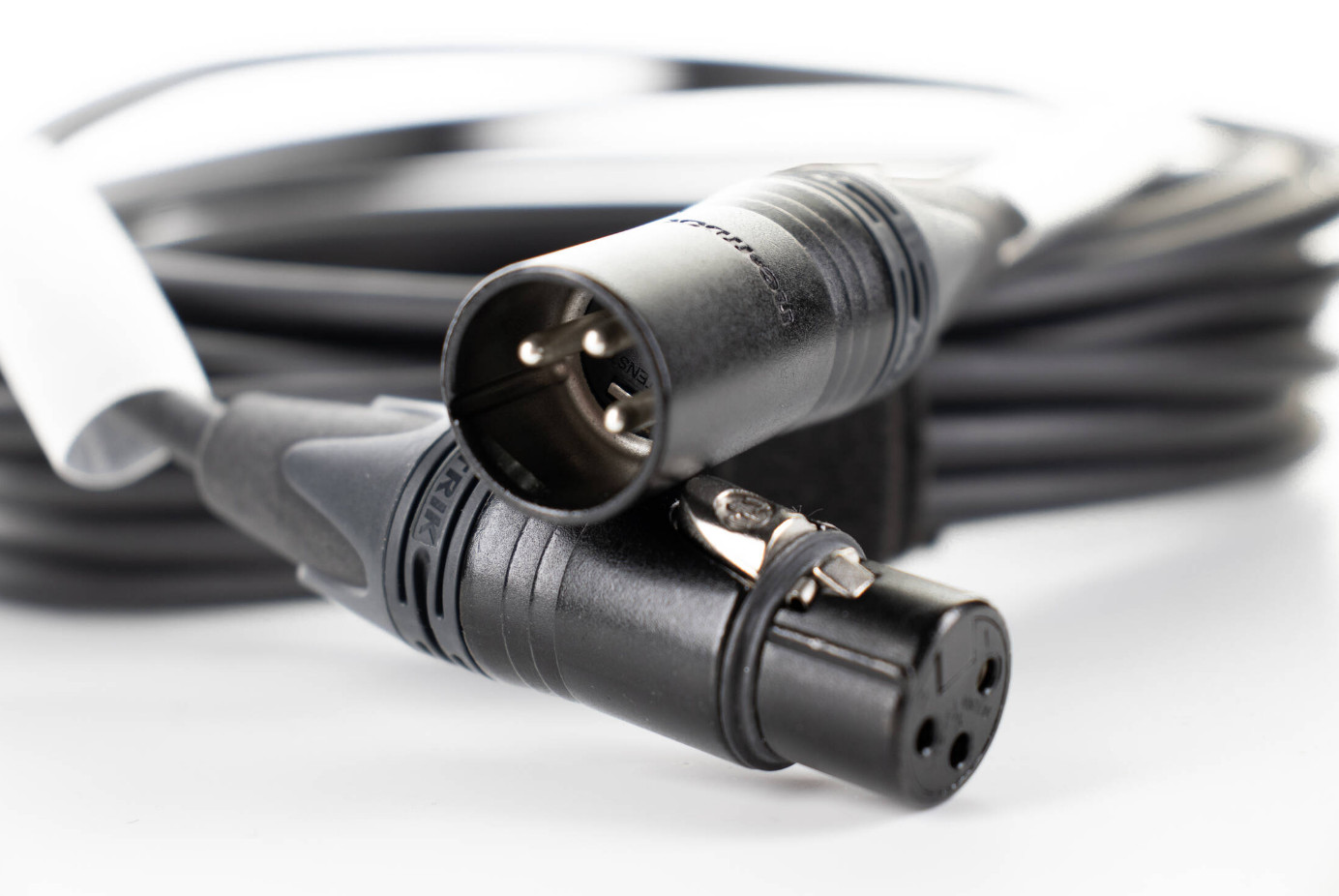

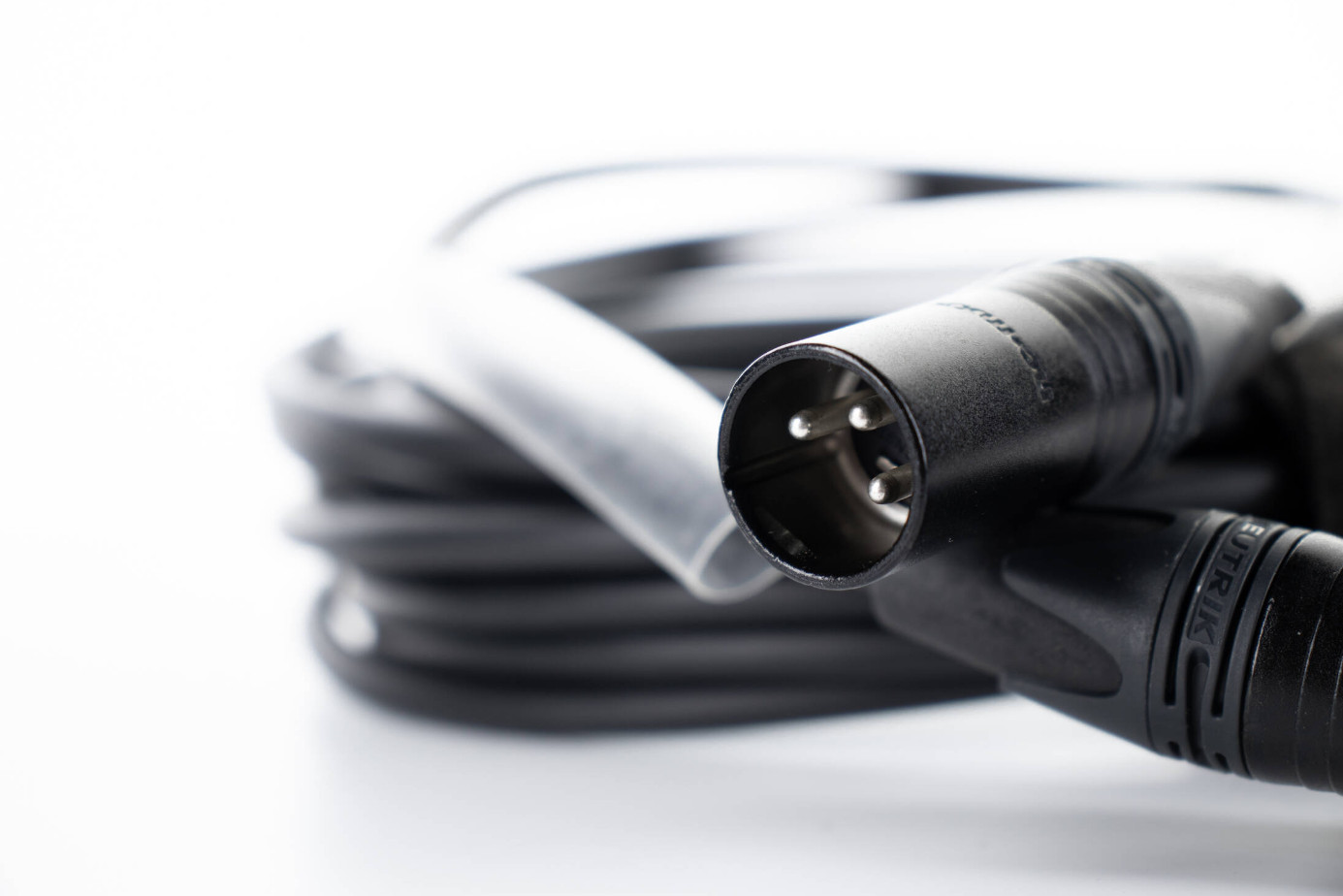

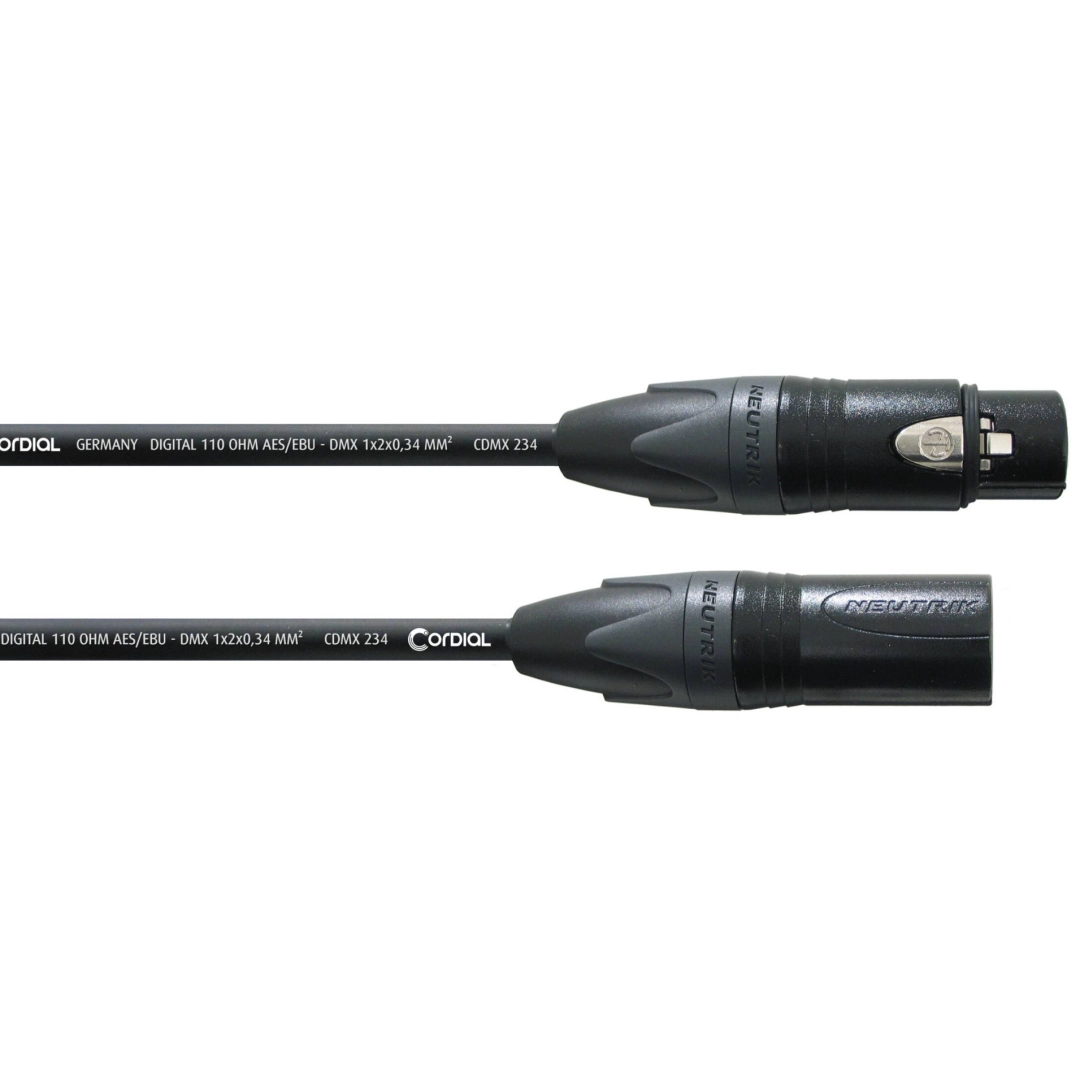

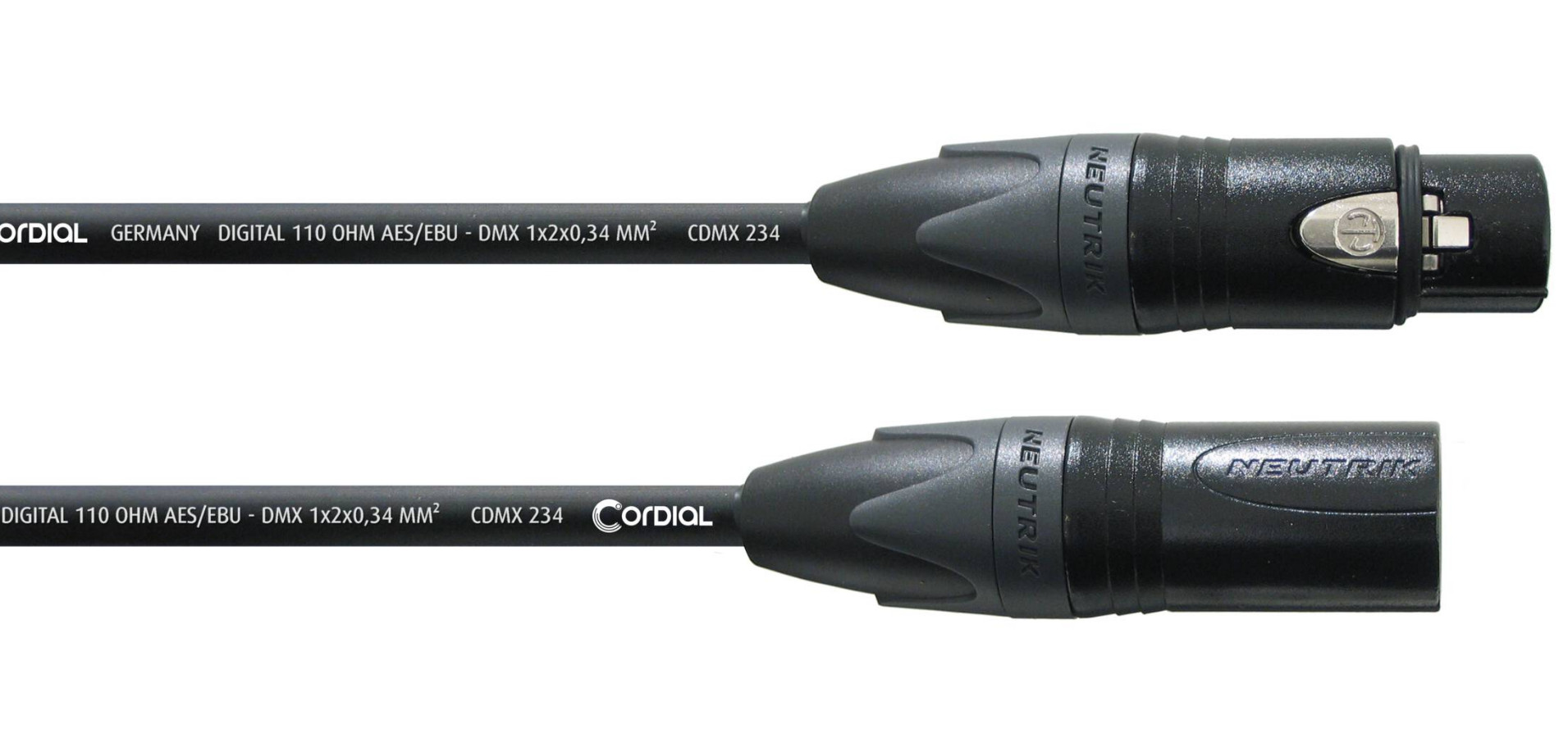

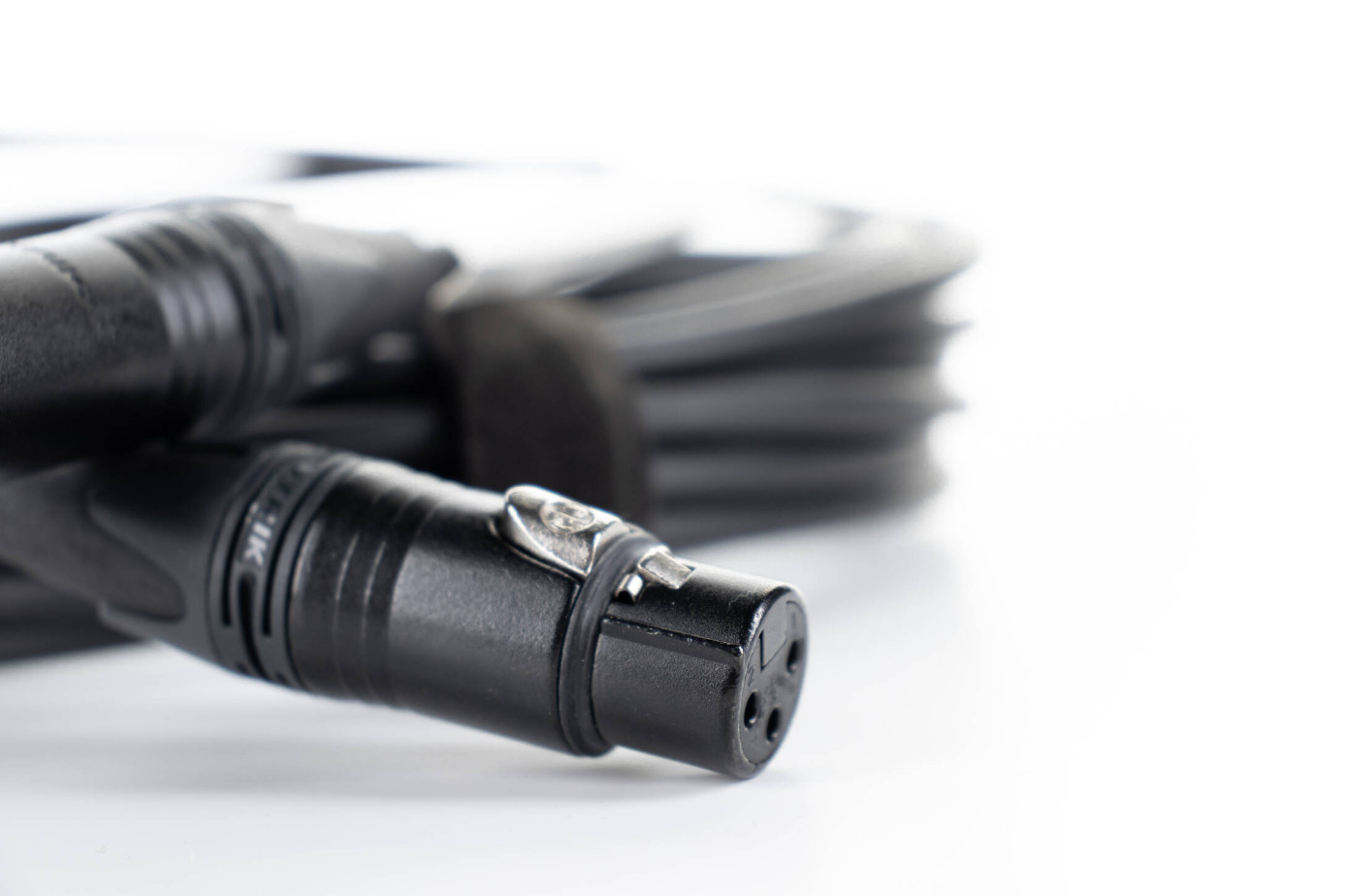

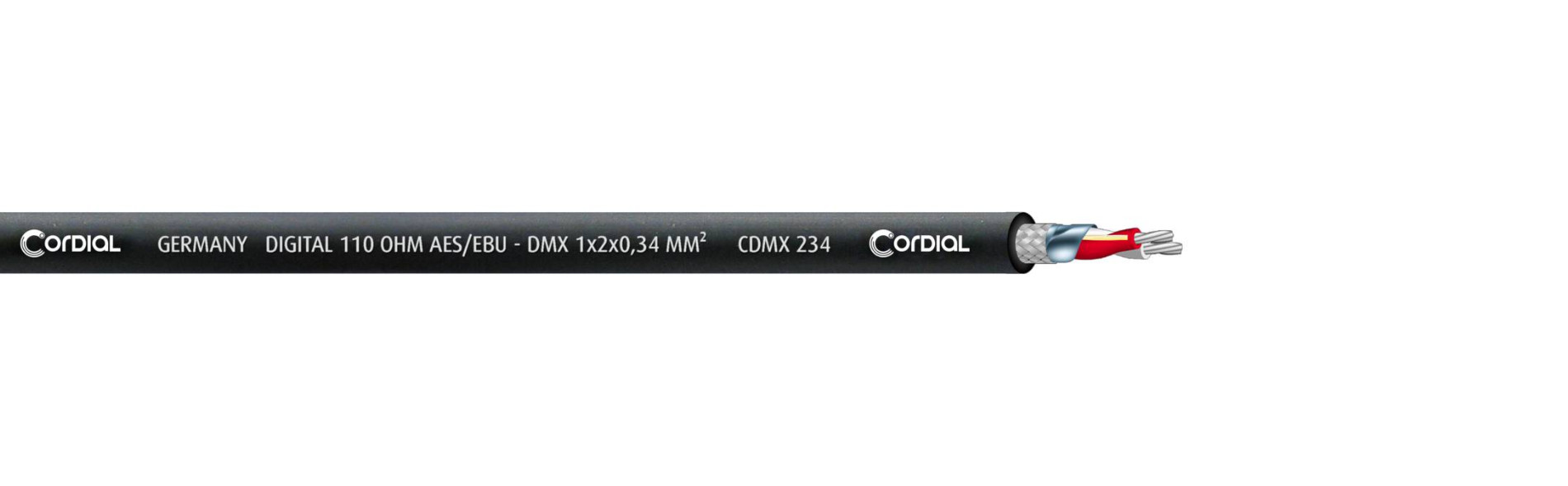

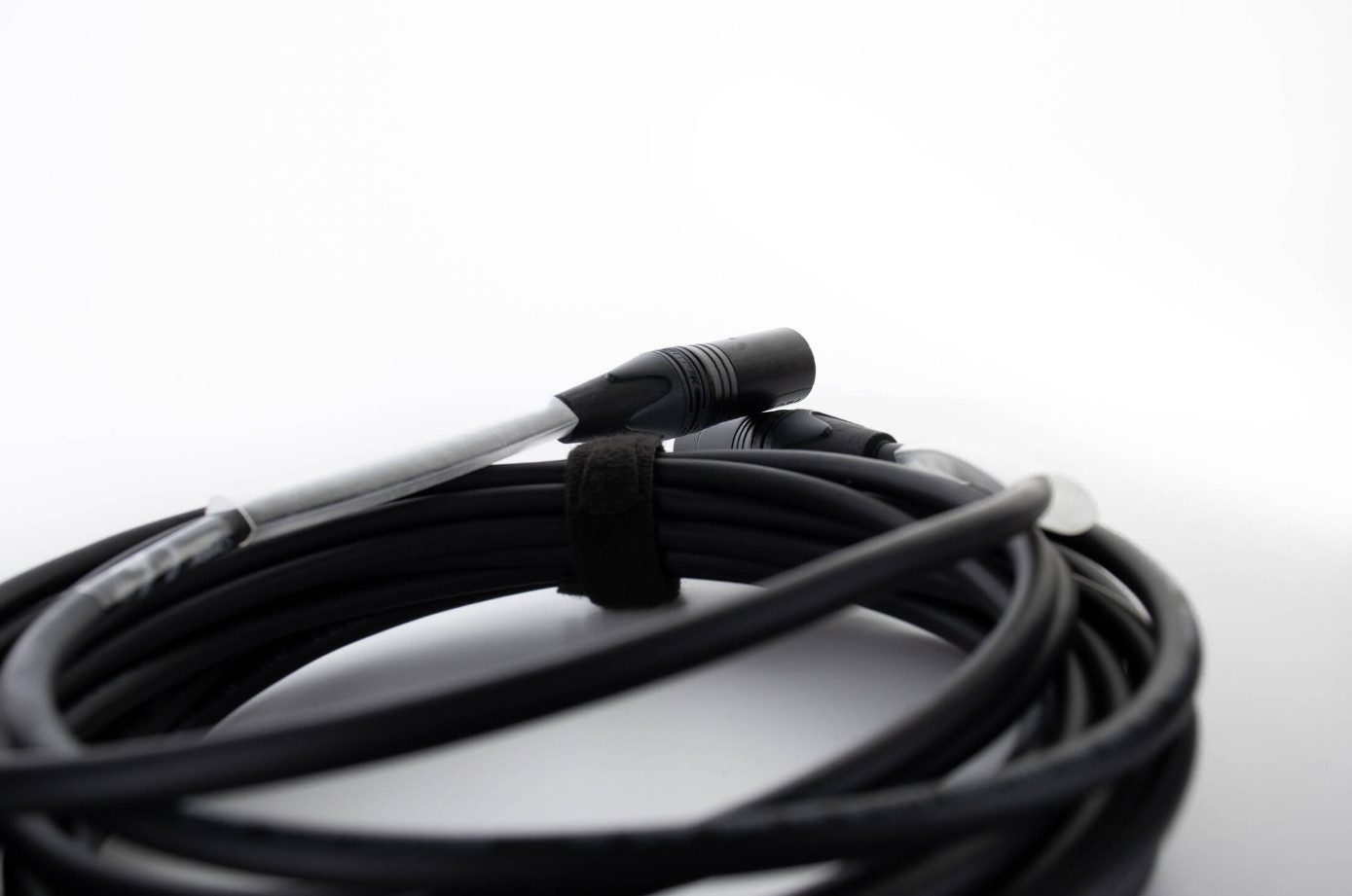

CPD FM is a 3-pin 110 ohm DMX cable. The CDMX 234 cable cross-section is 2x 0.34 mm². The CPD FM digital cable has been designed for optimal performance on stage, thanks to its durable and flexible bulk cable design and original Neutrik® connectors (black).
View all products of the brand:
Cordial
DMX control processes are an integral part of event technology. As with MIDI transmission, manufacturers have agreed upon a technical standard for the purpose of the connector (XLR) and the characteristic impedance (110 ohms) of the cable material used.

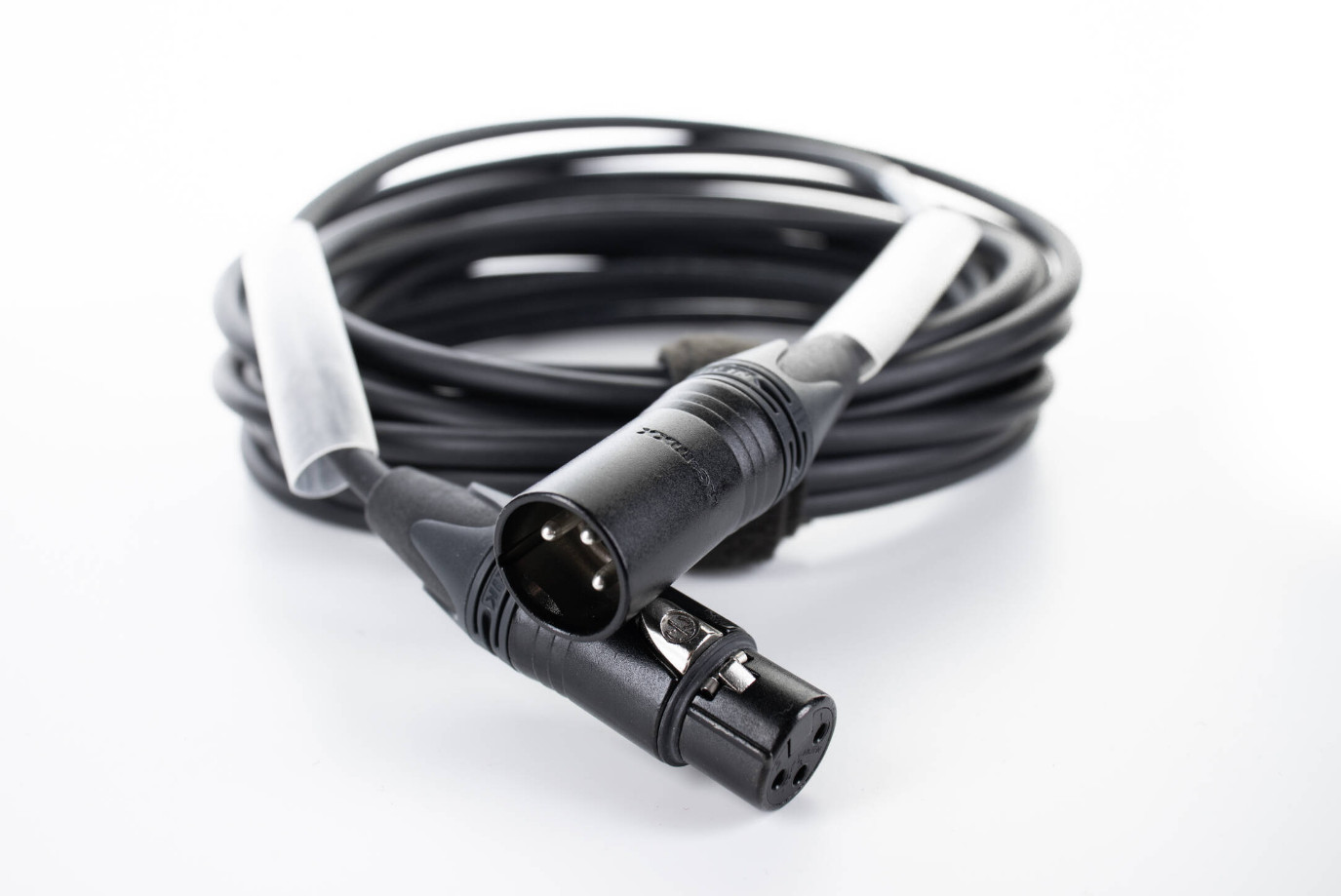

Clear shrink sleeve is used for custom marking while minimizing the risk of twisting.
AES/EBU CPD FM is the ideal cable for transmitting digital or high frequency signals without interference or distortion.
Characteristics:
- Conductor cross-section: 0.34 mm2
- Conductor design: 7x0.25mm
- Conductor resistance: 56 Ohm/km
- Capacitance (conductor/conductor): 42 pF/m
- Shell: black
- Diameter: 6mm
- Weight: 50 g/m
- Length: 5 m
| Brand | Cordial |
|---|---|
| Model | CPD 5 FM |
| Type | Cables |
| Cable type | AES/EBU DMX cable |

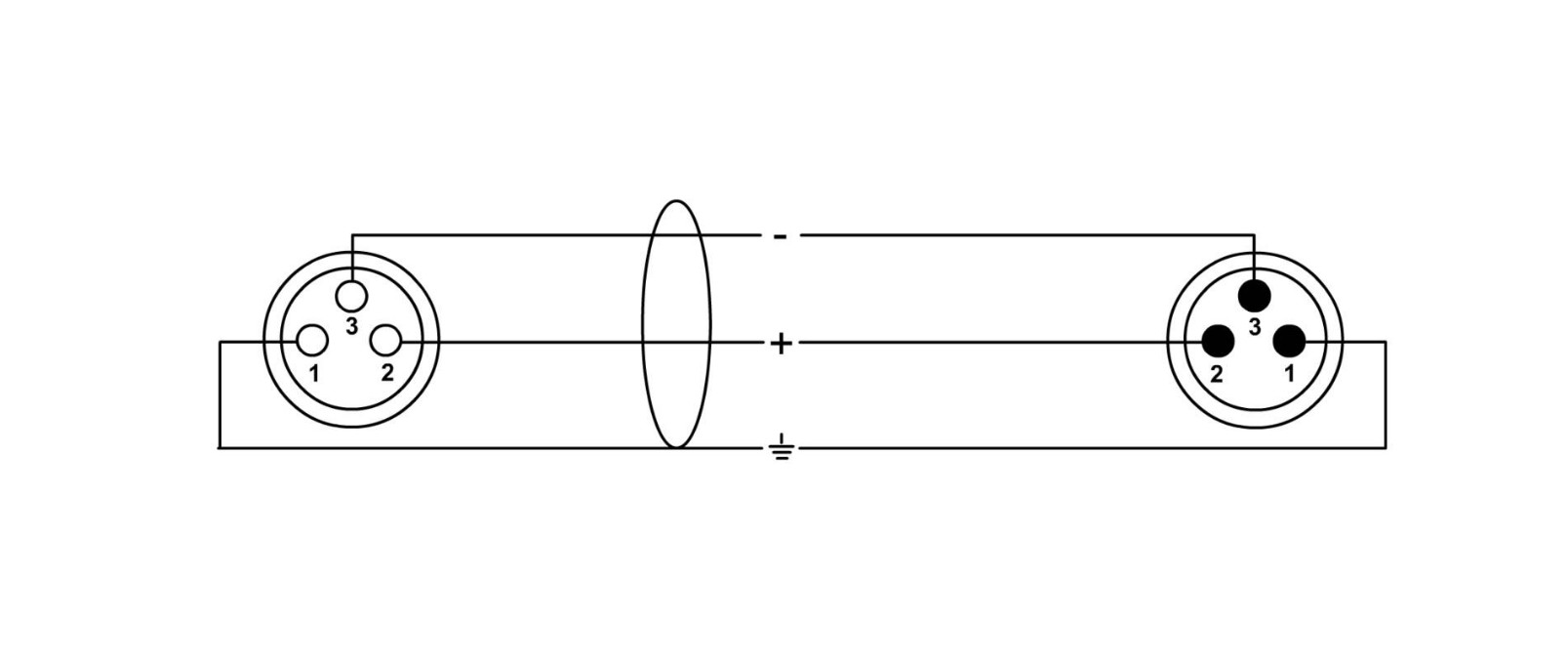

| Cord type | XLR F - XLR M |
| Cord length | 5 m |
| Cable diameter | 6.0 mm |
| Insulation material | polyvinyl chloride (PVC) |
| Conductor material | Tinned copper |
| Conductor gauge (section) | 0.34 sq. mm |
| Number of conductors | 1 |
| Number of cores in the conductor | 7 x 0.25 mm |
| Resistance | 56 Ohm/km |
| Capacitance conductor-conductor | 42 pF/m |
| Shielding | Yes |
| Color | Black |
| Weight | 50 g/m |
