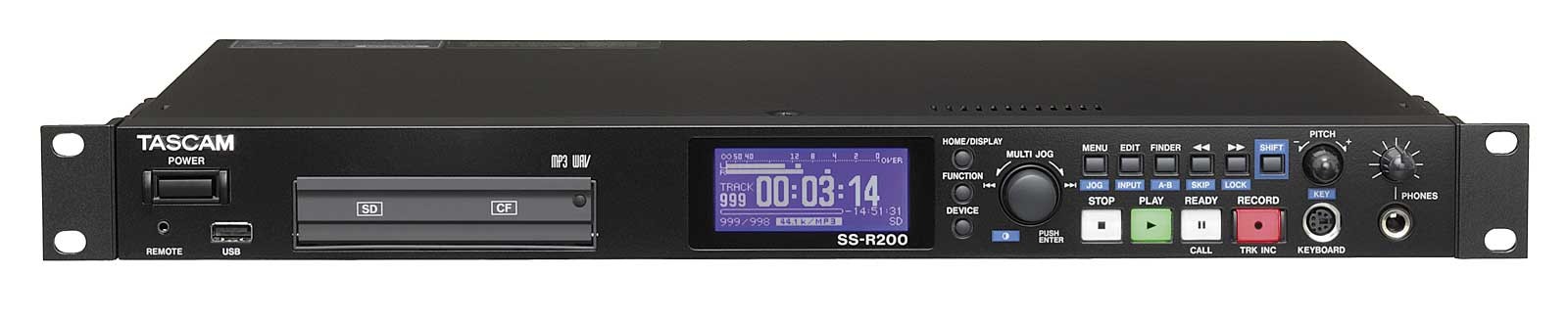

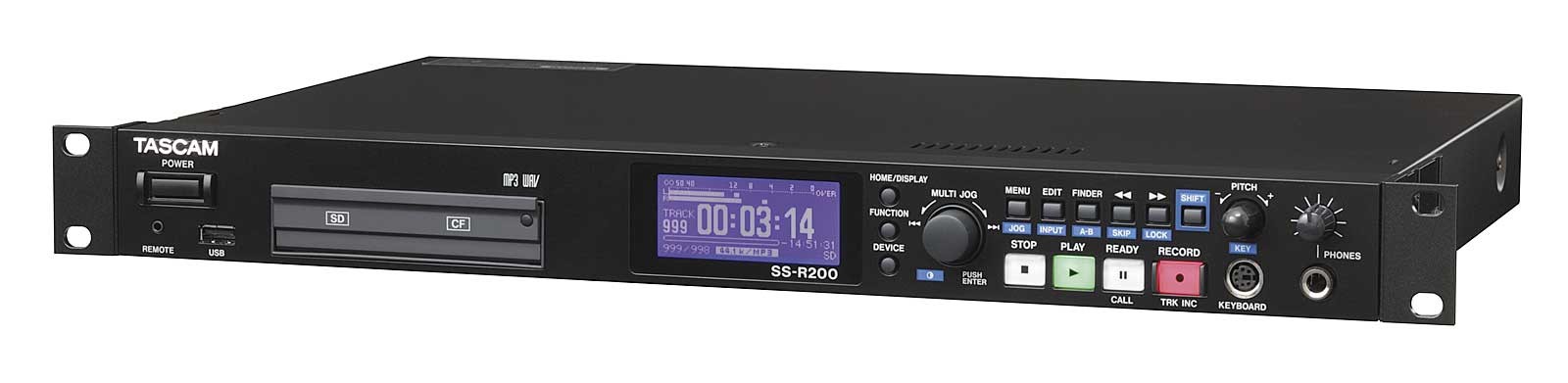

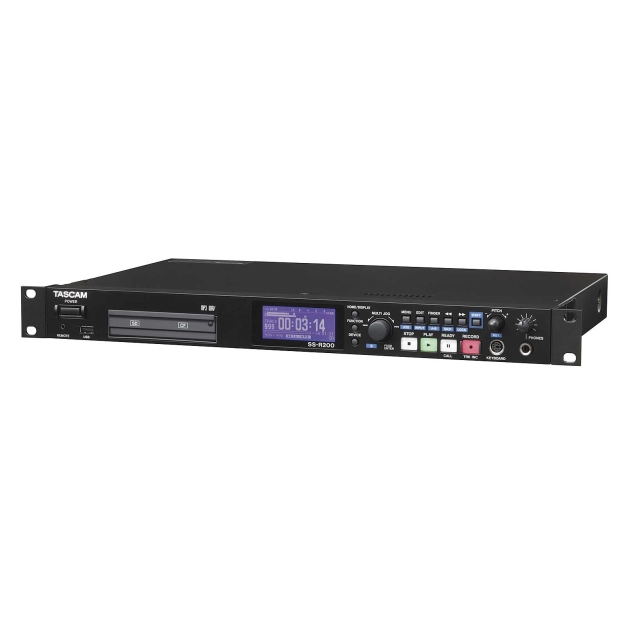

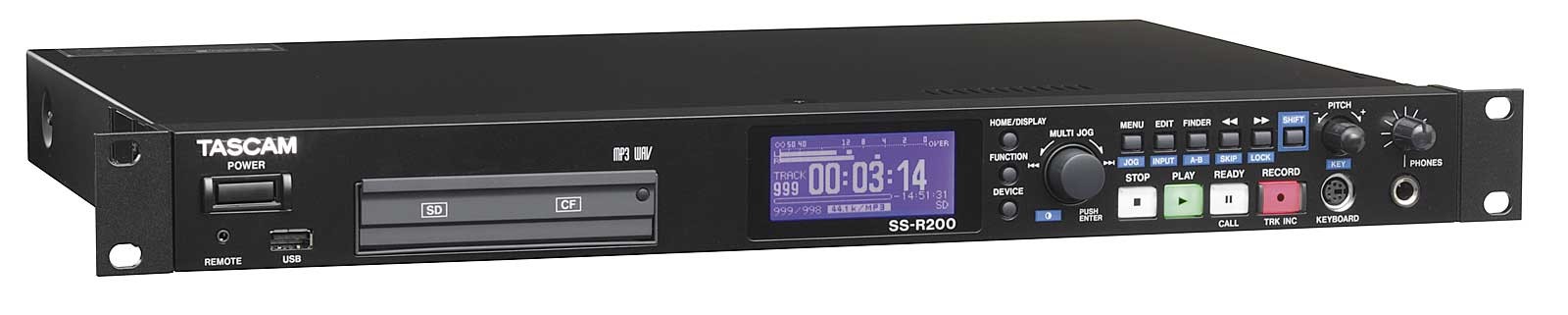

Стерео аудио рекордер Tascam SS-R200
The Tascam SS-R200 is a professional stereo recorder, perfect for upgrading a system that already uses a cassette recorder or CD/MiniDisc recorder. This model is capable of recording both on CF and SD memory cards, and on USB drives.
The SS-R200 is an audio recorder only 1U high. It's perfect for upgrading any system that already uses cassette, CD or MiniDisc recorders.
The SS-R200 can record to SD, CF, or external USB drives in WAV or MP3 format. The technology used makes it possible to record many hours on affordable and reliable solid-state media and easily transfer the recorded material to a computer for further work and publication.

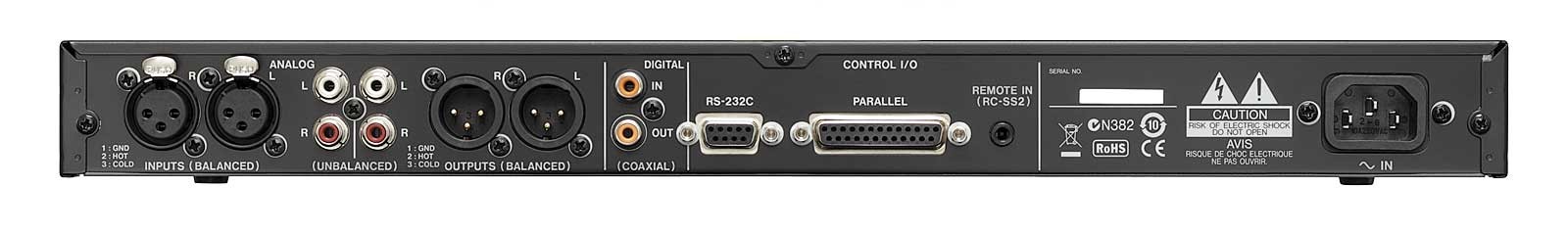

The SS-R200 features balanced and unbalanced inputs and outputs, digital coaxial input and S/PDIF output with sample rate converter, parallel and serial RS-232 control port, wired remote control, computer keyboard input for quick track naming and control. And, of course, users are provided with the traditional functions of changing the playback speed and pitch, auto-pause, and many others.
Peculiarities:
- recording on SD, CF memory cards, external USB drives;
- adjustment of playback speed (± 16%) and pitch (± 6 semitones);
- auto cue functions (search for the actual beginning of the track sound), auto ready (jump to the beginning of the next track) and call function (return to the point at which playback started);
- Incremental playback - fast transition to the next track;
- return to the starting point mode - Resume playback;
- control devices in a cascade connection;
- Sync recording function (automatic start recording when a signal appears);
- compressor (only in record mode);
- editing WAV files (split, combine, delete and rename fragments);
- Power-on play timer function (automatically start playback when the device is turned on);
- built-in timer;
- blocking controls;
- balanced analog input and output on XLR connectors;
- unbalanced analog input and output on RCA connectors;
- coaxial digital input and output SPDIF;
- serial port for RS-232C control on 9-pin D-sub connector;
- parallel control port on 25-pin D-sub connector;
- automatic start / stop using the Fader start / stop function;
- EOM function (warning of the approaching end of the track);
- computer keyboard input (PS/2 or USB) for fast filename entry and remote control;
- wired remote control included (5 m);
- frame size: 1U.
Brand | Tascam |
---|---|
Model | SS-R200 |
Type | Стерео аудио рекордер на карты памяти CF/SD/USB |
Frequency range | 20 Гц - 20 кГц, ± 0,5 дБ |
Number of channels | 2 канала (стерео) и 1 канал (моно) |
Output power to headphones | 45 мВт + 45 мВт или выше (THD + N 0,1% или менее при нагрузке 32 Ом) |
Dynamic Range | 95 дБ |
Inputs | несбалансированный аналоговый вход RCA, цифровой аудиовход RCA, сбалансированный аналоговый вход XLR |
USB inputs | 4-pin USB, A-type |
exits | несбалансированный аналоговый выход RCA, разъем для наушников - 6,3-мм стерео разъем, цифровой аудиовыход - разъем RCA, сбалансированный аналоговый выход XLR |
Sampling frequency | 44,1/48 кГц |
Signal to noise ratio | 95 дБ или больше |
Crosstalk | 95 дБ |
Nutrition | AC 100–240 В, 50–60 Гц |
Impedance | выходной импеданс для несбалансированных аналоговых выходов 200 Ом, для сбалансированных 100 Ом |
Permission | до 24 бит |
Supported formats | MP3, WAV |
Output voltage | максимальное низкого уровня 0,5 В |
Operating voltage | максимальное входное напряжение +5,5 В |
distortion | 0,005% или меньше |
Working temperature | 5–35 ° C |
