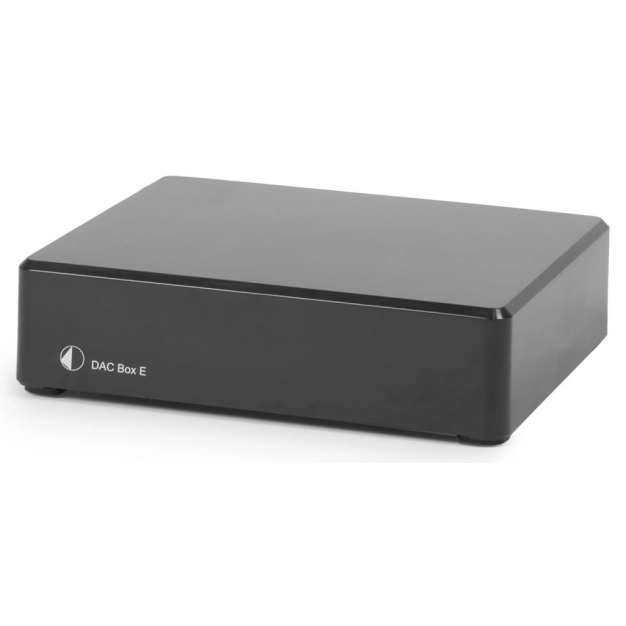

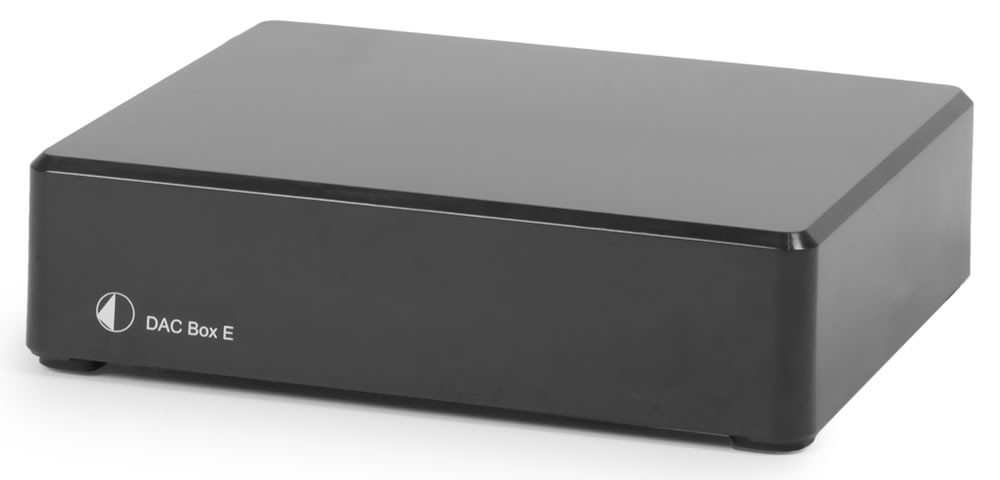

DAC Pro-Ject DAC Box E mobile Black

The Pro-Ject DAC Box E is an excellent entry-level D/A converter for digital audio sources using both optical and coaxial connections. Despite the low price, this unit sounds great and supports HD music formats up to 24/192 kHz. The Pro-Ject DAC Box E uses high quality components such as precision D/A converter chips and a low noise output stage. It will work as a perfect upgrade for any digital stereo audio sources, especially CD players, Blu-ray or DVD players, set-top boxes, etc.! All circuits are perfectly linear with low output impedance to avoid negative impact on cables and preamplifiers. In this class, the performance and price of the Pro-Ject DAC Box E is unmatched.

Peculiarities:

• 24 Bit / 192 kHz D/A conversion.
• Coaxial (RCA) and optical (Toslink) SPDIF input.
• SMD circuit.
• Special low noise components.
• Internal metal protection.
• The small size allows installation close to the source.
• Gold-plated RCA connectors.
• External power supply included.

Characteristics:

• Type - external audio DAC of a budget class.
• Line level output - 1 pair RCA.
• The output voltage is 0.7 Vrms.
• Digital inputs - 1 coaxial (S/PDIF), 1 optical (TOSlink®).
• DAC - Texas Instruments TLV320DAC23 Cirrus Logic CS4344 24 Bit / 192 kHz.
• Supported audio format is PCM (LPCM) (stereo only, no support for multi-channel formats).
• Sampling rates - optical and coaxial input 44.1 kHz, 48 kHz, 96 kHz and 192 kHz (coaxial).
• External power supply - 18 V / 500 mA DC.
• Power consumption - 200 mA DC, <1 W in standby mode.
• Overall dimensions (W*H*D) - 120*32*100 (106 mm with connectors) mm.
• Device weight - 250 grams without power supply.
• Black color
