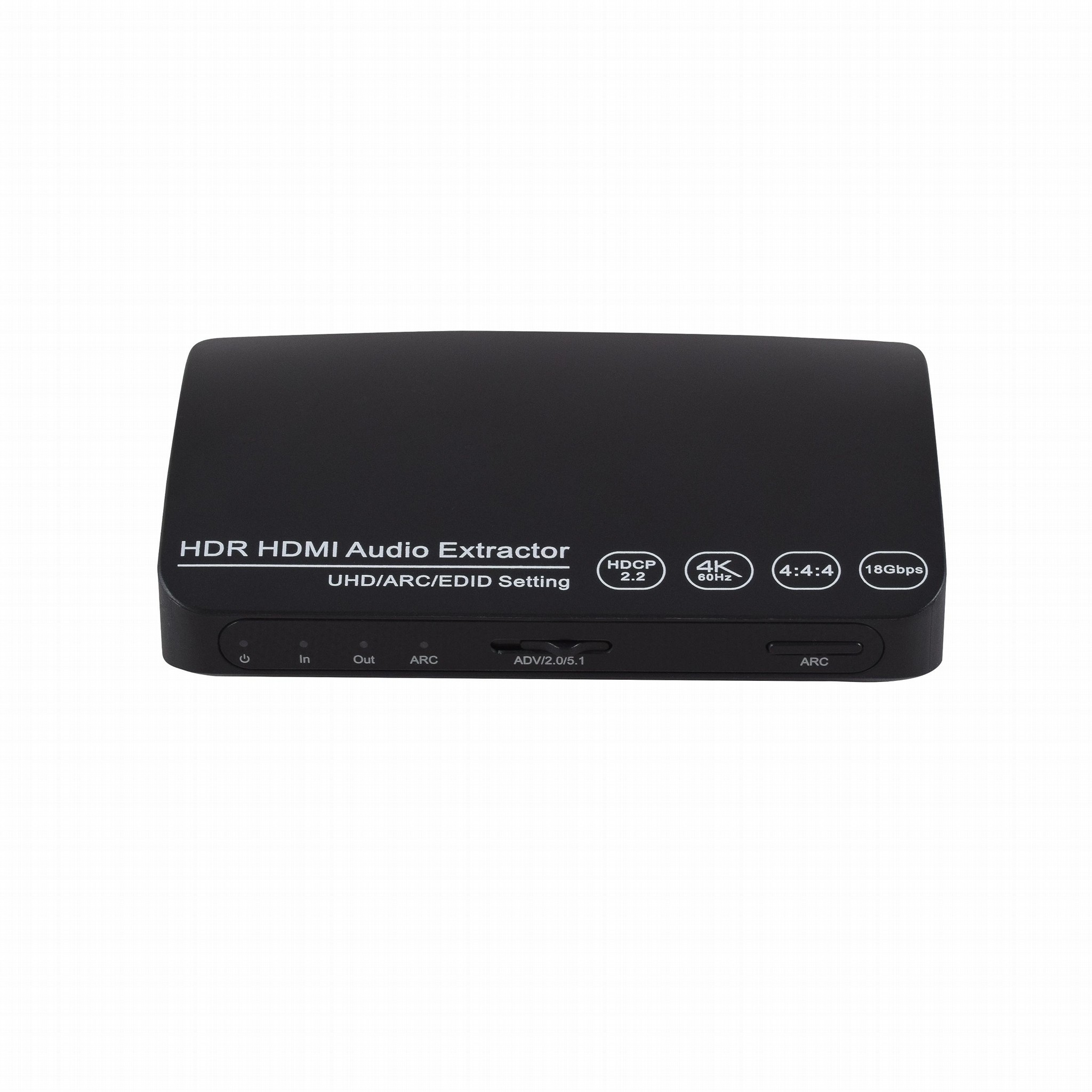

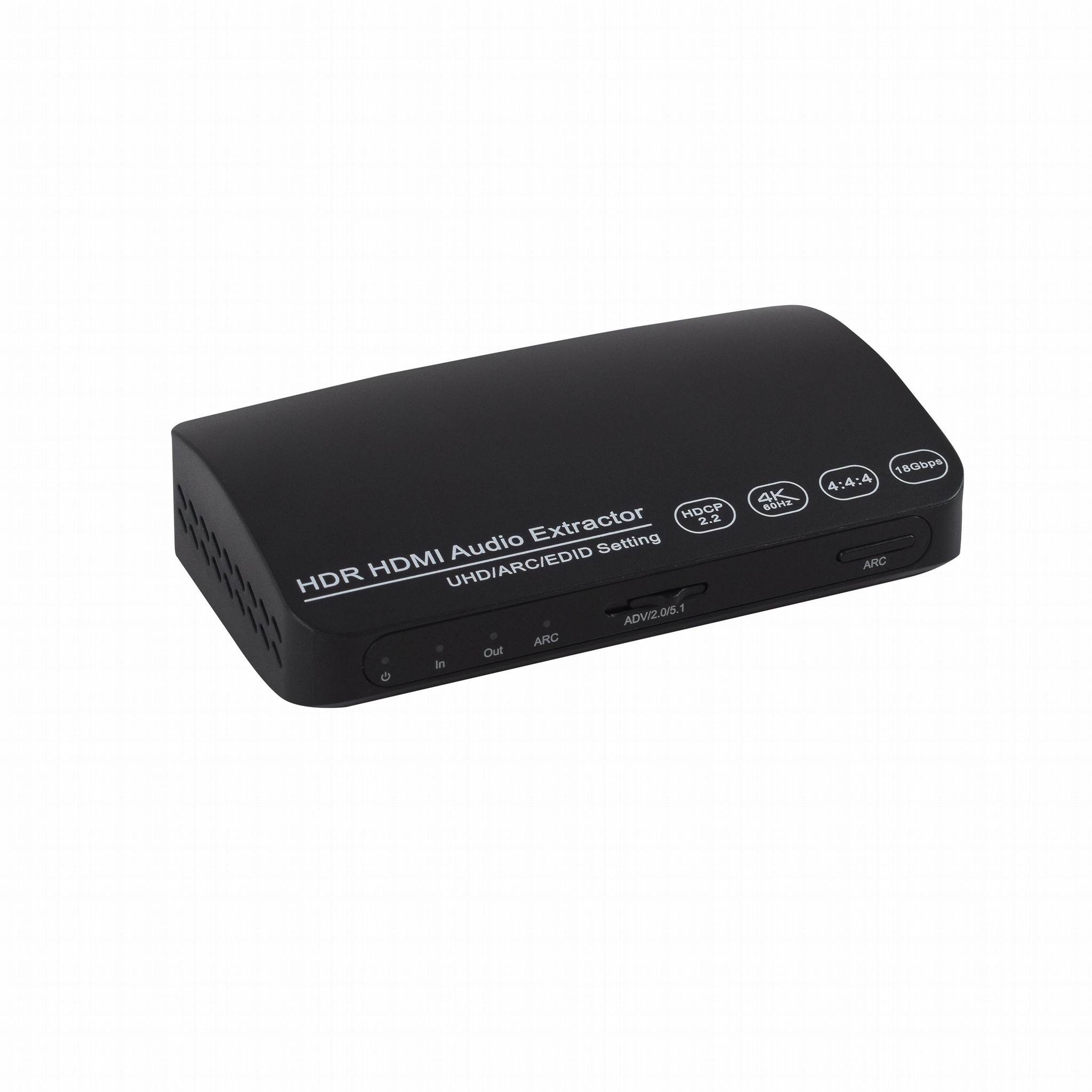

Audio extractor AirBase K-CN11A4K-P Black

Switch button for audio output mode, it can select 2.0, 5.1, ADV [Advance Audio] three kinds of audio output mode by cycling (When switching to 5.1 audio mode output, the digital audio receiving terminal must support DTS / DOLBY-AC3, or the audio receiving terminal will not have audio output;If you want the audio signal receiving terminal to be able to output audio, please switch to 2.0 audio mode.When the audio output is switched to ADV [Advance Audio] mode, the audio output will be determined by the ability of the device receiving the audio signal to decode audio.The device will output 7.1- channel audio signal while the output end connects the AV amplifier with HDMI port which supports 7.1ch audio decoding.(HD Source signal itself is 7.1ch)

After pressing the ARC button, the ARC function is turned on, and the corresponding LED indicator lights up, the Toslink output port outputs TV ARC sound (make sure your TV supports the ARC function); after pressing the ARC button again, the ARC function closes and the LED turns off, and the Toslink port and L/R output port output the extracted audio from the HDMI input.

Peculiarities:

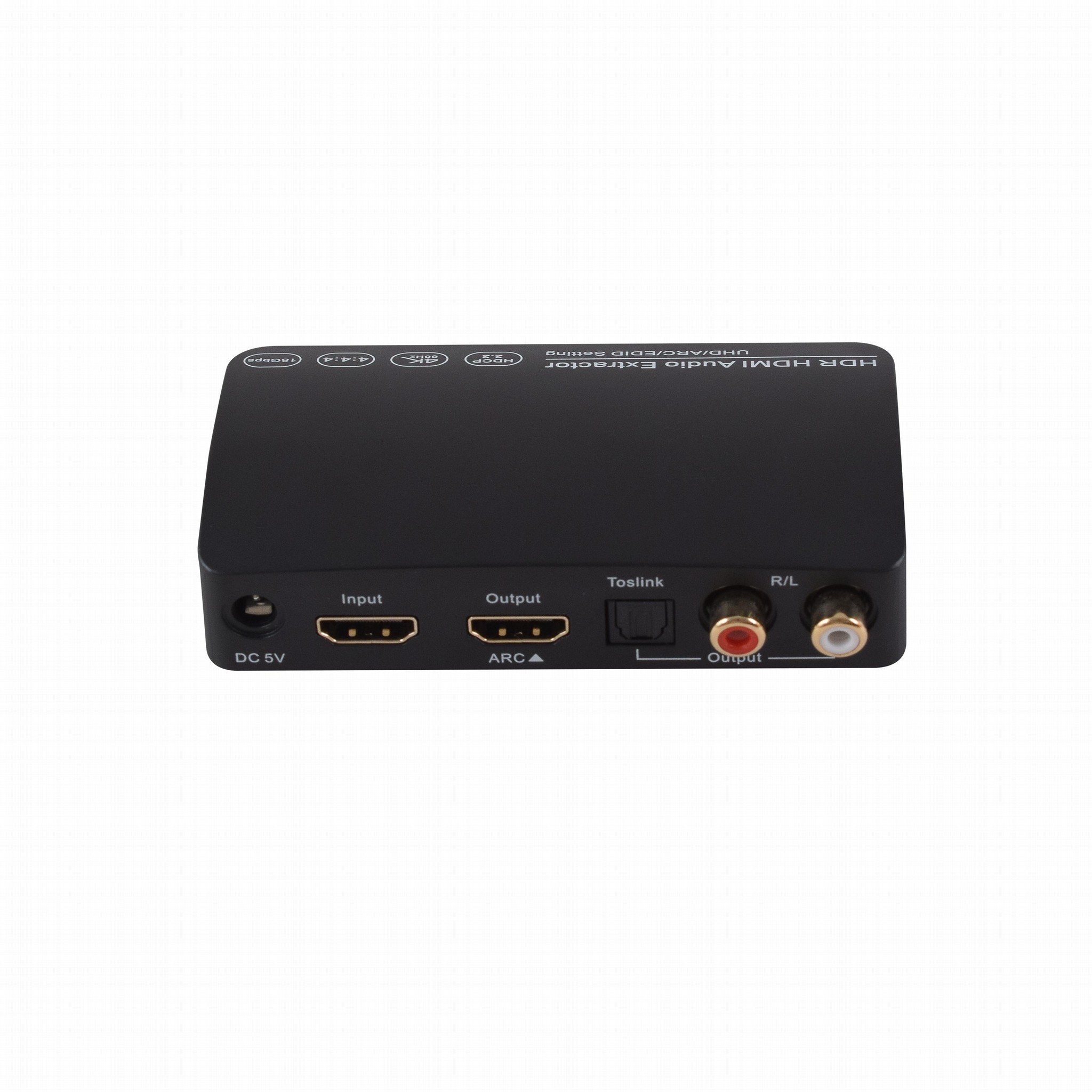

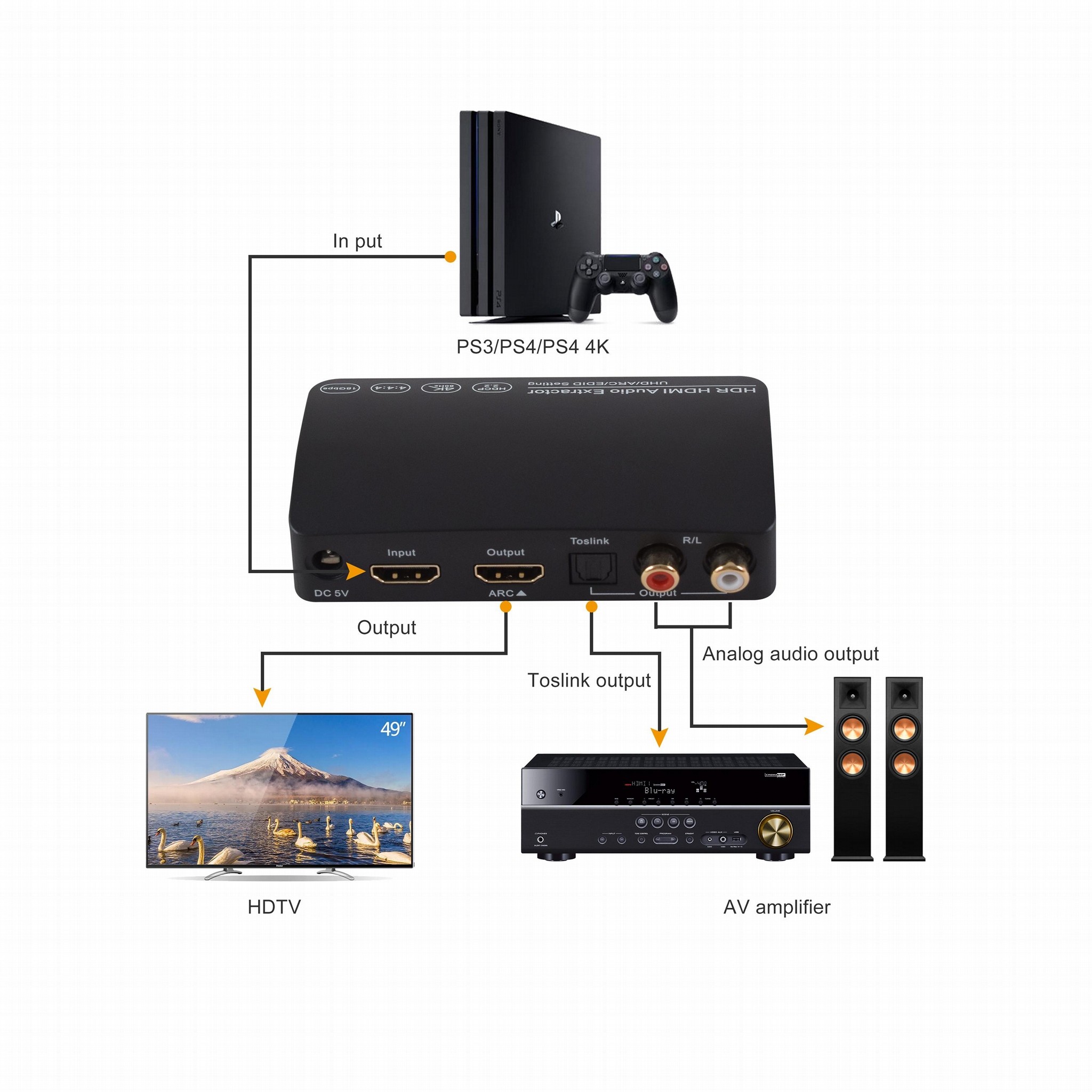

• Using an HDMI cable to connect an HD source to the device's HDMI input port.
• Using an HDMI cable to connect the HDMI output port of the device to the display.
• To use an optical cable to connect the device's Toslink output port to the AV receiver.
• To the L/R audio cable to connect the L/R output of the device to the speaker.
• For connecting the power adapter to the device's DC port.

Characteristics:

• HDMI Resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
• Video Color Depth Support: 8/10/12bit@480P/720P/1080P 8bit@2160P
• ARC Features: Support (Toslink output only)
• Audio Output: HDMI, Toslink, L/R
• Input channel: HDMI
• Bandwidth : 25-600MHz
• Transmission rate: 0.75-18Gbps
• Analog audio output amplitude: 2V RMS
• Audio format: LPCM2.0 / DTS / DOLBY-AC3
• DAC sampling frequency range: 32～192kHz
• DAC Bitrate Range: 16~24bit
• Input cable distance: 2160P/ less than 5m AWG26 standard HDMI cable; 1080P /less than 10m AWG26 standard HDM cable
• Output cable distance: 2160P/ less than 5m AWG26 standard HDMI cable; 1080P /less than 10m AWG26 standard HDM cable
• Maximum operating current: 700 mA
• Power adapter format: Input: AC (50Hz, 60Hz) 100V-240V; Output: DC5V/1A
• Operating temperature range: 0 to +40℃
• Storage temperature range: -15 to +55℃
• Operating Humidity Range: 5 to 85% RH
• Storage Humidity Range: 5 to 95% RH
• Size (W x D x H), mm: 106 x 60 x 27.3
• Weight: 85g
• Accessories: Manual, power adapter
