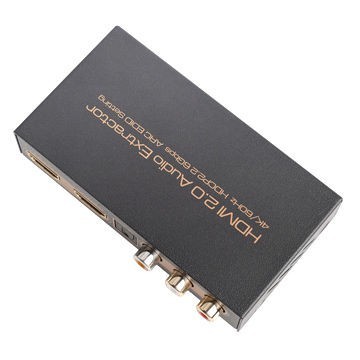

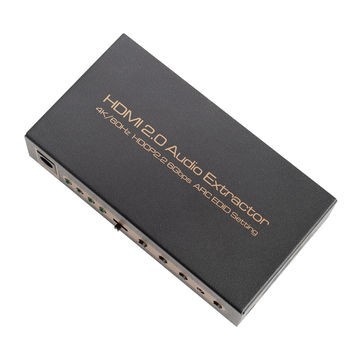

Audio Extractor HDMI V2.0 AirBase K-CN11A4K
Do you want to know more?
We are happy to answer all your questions, assist with the selection, and place your order.
Available from 9:00 AM to 9:00 PM
Delivery
In Kyiv:
By courier 90 UAH.
1-2 working days
For orders over 5,000 UAH
FREE
In Ukraine:
Nova Poshta
Order dispatch on the next day
Check cost and delivery times for details
Guarantee
Exchange/return within 14 days
Payment
- By card on the website
- Cash on delivery
- Transfer via Visa/MasterCard
Delivery
In Kyiv:
Pickup is FREE
Revutskogo st., 5
By courier 90 UAH.
1-2 working days
For orders over 5,000 UAH
FREE
In Ukraine:
Nova Poshta
Order dispatch on the next day
Check cost and delivery times for details
Guarantee
Exchange/return within 14 days
Payment
- By card on the website
- Cash on delivery
- Transfer via Visa/MasterCard

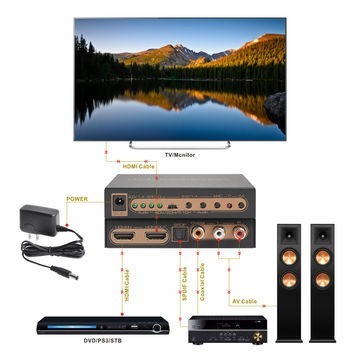

HDMI Audio Extractor can support 3D, HDR, 4K*2K/60Hz, ARC functions. It can connect one HD source to one HD display, and support one Toslink digital audio output + one coaxial audio output + one LR analog audio output.
View all products of the brand:
AirBase
HDMI to HDMI V2.0 Converter with Audio Extractor SPDIF, Coaxial, 2RCA-L/R
HDMI audio converter can support 3D, HDR, 4K*2K/60Hz, ARC function. It can connect one HD source to one HD display and support Toslink digital audio output + coaxial audio output + LR analog audio signal.
Peculiarities

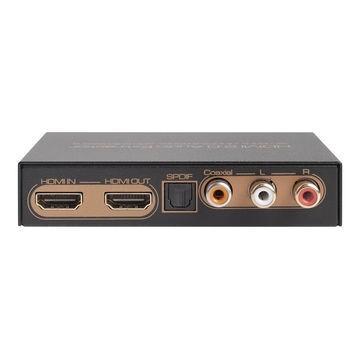

- One HDMI to One HDMI Input Converter + One Toslink Audio + One Coaxial Audio + One L/R Audio Output
- Audio output support: Toslink audio + coaxial audio + L/R analog audio output
- HDR support
- Support 4K * 2K @ 60Hz resolution
- Video Format Support: 4Kx2K/60Hz 8Bit YcbCr4:4:4;
- Support ARC, TV sound will be returned and output through the optical port;
- HDMI to achieve audio separation synchronization. Support 2.0/5.1/ADV three kinds of sound mode options
- SPDIF digital audio support: Dolby digital (AC3), DTS and LPCM2.0

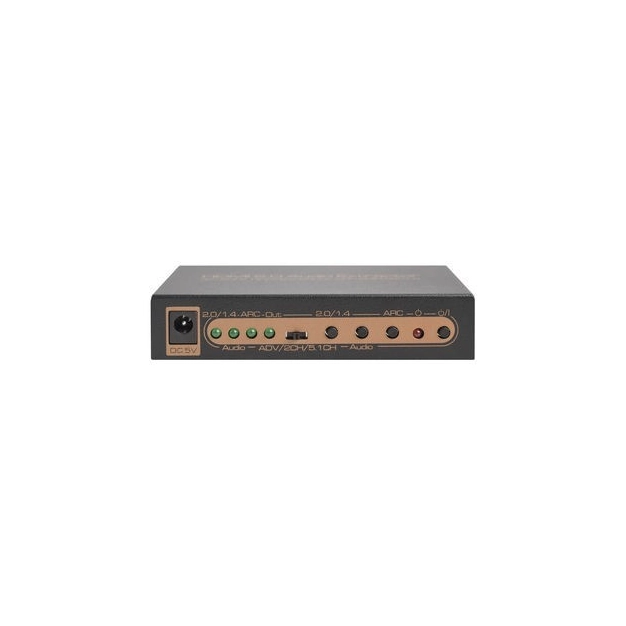

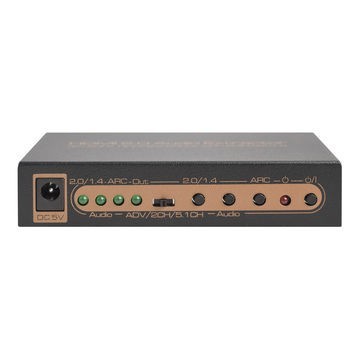

- LED Indication: When the source or sink is operating, the corresponding LEDs will light up.
- The status LED indicator allows the user to know the working status easily.
- No quality loss
- Need DC5V/2A power supply (included)
SPECIFICATIONS:
HDMI Resolution .4K @ 60Hz / 4K @ 30Hz / 1080P / 1080i / 720p / 576p / 576i / 480P / 480i
Audio format support .... ..... ... DTS-HD / Dolby-true HD / LPCM7.1 / DTS / Dolby-AC3 / DSD
Maximum Bandwidth ............................................................... 600 MHz
Maximum data transfer rate ..............................18 Gbps
Input/output signal TMDS .................... 0.5 ~ 1.5Volts pp (TTL)
Input/output DDC signal ...................... 5Volts pp (TTL)
Distance from input cable ... ... ≤ 10m (1080P) / 5M (4K) AWG24 HDMI standard cable
Output cable distance ...... ≤10m (1080P) / 5M (4K) Standard AWG24 HDMI cable
Maximum operating current .................................. 700 mA
Power adapter format. Input: ...... AC (50HZ, 60HZ): 100V-240V; Output: DC5V/2A
Operating temperature range ... -0 to + 40 ℃
Storage temperature range .......................... -20 to +60℃
Operating humidity range ............... ... .5 to 85% RH (non-condensing)
Storage Humidity Range ............... ... 5 to 95%
| Brand | AirBase |
|---|---|
| Model | K-CN11A4K |
| Type | HDMI V2.0 аудио экстрактор |
| Bandwidth | 600MHz |
| Permission | 4K@60Hz /4K@30Hz/1080P/1080i/720p/576p/576i/480P/480i |
| Operating Humidity | 5 до 85%RH (без конденсации) |
| Dimensions (W x D x H), mm | 105X56.8X22.5 (mm) |
| Delivery/payment | Price is for 1 pc |
| Guarantee | 12 months |
| Audio format support | DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
| Weight | 160g |
| Power adapter | AC (50HZ, 60HZ) :100V-240V; Выход: DC5V/2A |
| Working temperature | -0 до +40℃ |
| Storage Humidity | 5 до 95%RH (без конденсации) |
| Input cable length | ≤10m(1080P)/5M(4K) AWG24 HDMI standard cable |
| Output cable length | ≤10m(1080P)/5M(4K) AWG24 HDMI standard cable |
| HDMI transfer rate | 18Gbps |
| Maximum operating current | 700mA |
| Input/Output signal TMDS | 0.5~1.5Volts p-p(TTL) |
| Input/Output Signal DDC | 5Volts p-p (TTL) |
