HDMI ARC Converter AirBase K-CN1ARC
Are available
The HDMI ARC adapter allows you to connect an ARC (Audio Return Channel) compatible display to your old AV receiver.
The HDMI ARC adapter allows you to connect an ARC (Audio Return Channel) compatible display to an older AV receiver that does not support ARC. This may allow older AV Receiver hardware to also support ARC. (Note: if you need to use the ARC function, please confirm the CEC function with the display turned on and use a standard HDMI cable).
Peculiarities:

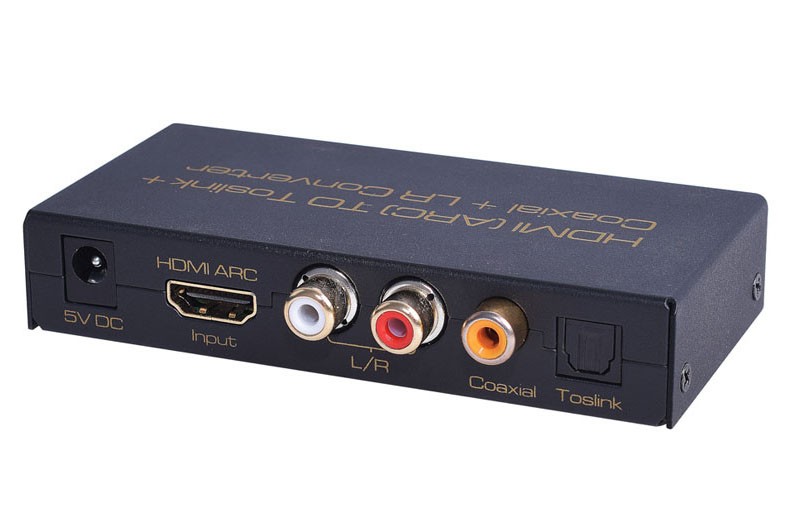

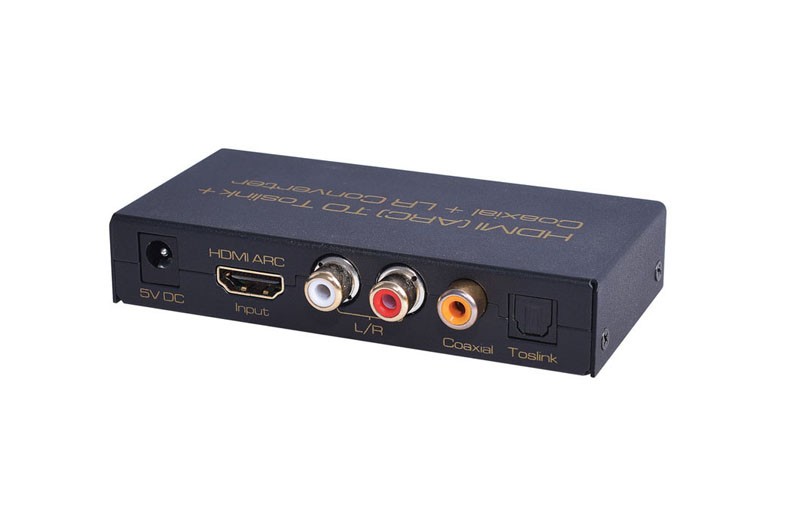

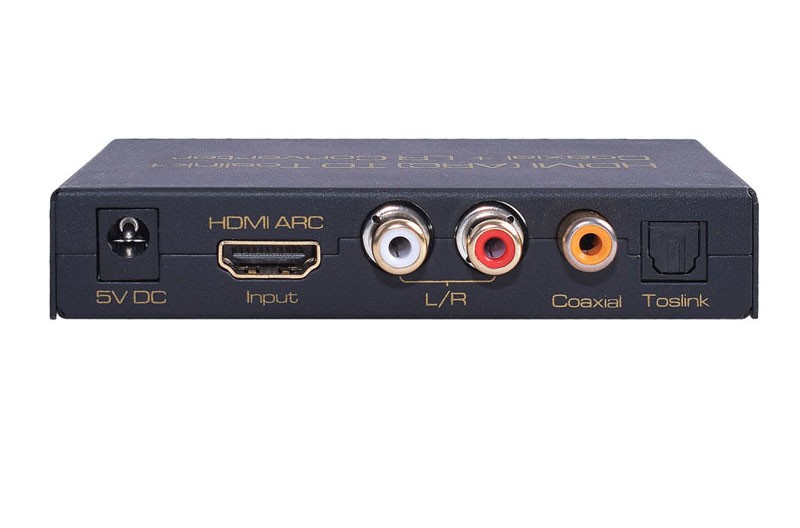

1. One HDMI ARC Audio input, one Toslink, one coaxial, one analog L/R audio output
2. Digital audio port (Toslink & Coaxial) can support 192KHz sampling rate (LPCM2.0 audio format)
3. Analog audio signal (L/R channel) supports maximum 1V RMS analog audio output.

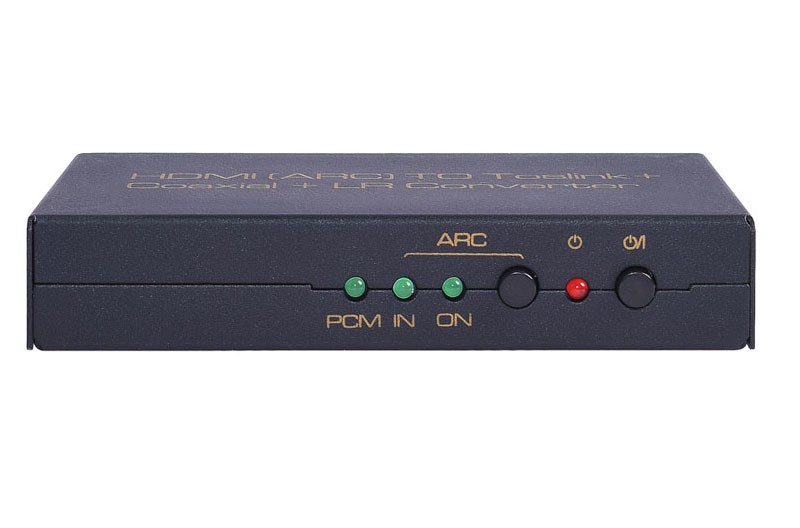

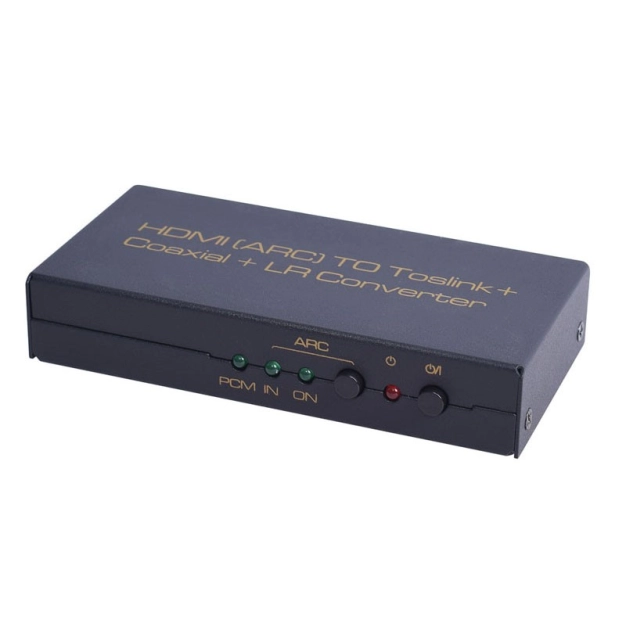

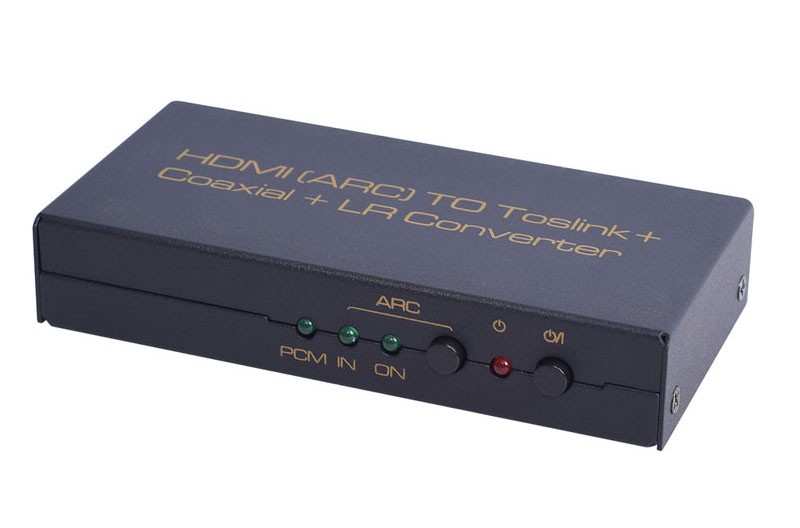

4. The device has an ARC switch and an indicator to let you know if the ARC function is disabled or enabled.
5. Installs in minutes
Specifications:
Support for ARC Auido audio format | PCM2.0 / Dolby AC3 / DTS |
Digital audio output Supported audio format | PCM2.0 / Dolby AC3 / DTS |
Digital audio output sampling rate | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz |
Maximum analog audio output voltage | 1 Vrms |
Maximum analog audio output frequency range | 30Hz ~ 18kHz |
HDMI ARC input cable length | ≤8m AWG26 Standard HDMI Cable |
Output distance of fiber optic cable | 30m (use fiber cable loss less than 0.2dB/m) |
Coaxial cable output distance | ≤10m (use standard coaxial cable) |
Analog audio cable output distance | ≤8m (Use a standard analog audio cable) |
Maximum operating current | 200 mA |
Operating temperature range | -0 to +40℃ |
Operating Humidity Range | 5-85% RH |
Size (L x W x H) | 105.6 x 58 x 20 (mm) |
The weight | 132 g |
Sampling frequency | 32 кГц, 44,1 кГц, 48 кГц, 88,2 кГц, 96 кГц, 176,4 кГц, 192 кГц |
---|---|
Current | 200 мА |
Operating Humidity | 5–85% относительной влажности |
Dimensions (D x W x H), mm | 105,6 x 58 x 20 |
Audio format support | PCM2.0 / Dolby AC3 / DTS |
Net weight | 132 г |
Working temperature | от -0 до + 40 ℃ |
