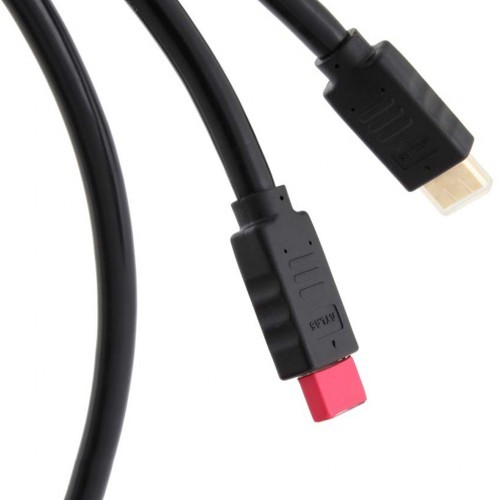

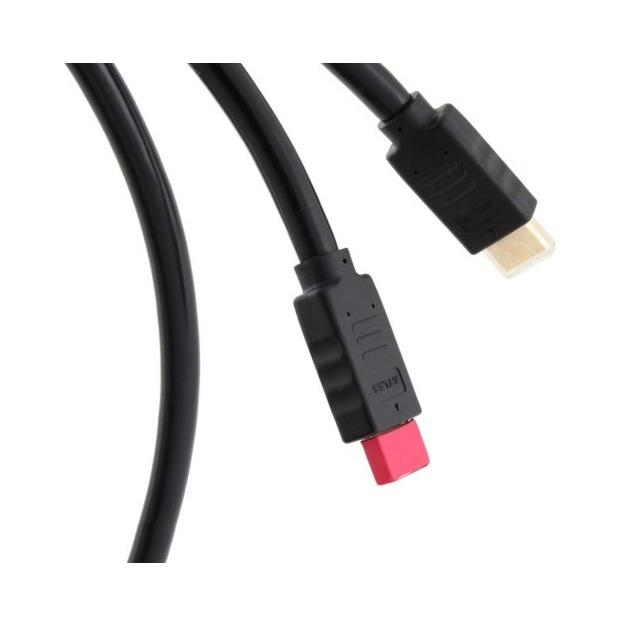

HDMI cable Atlas Hyper 4K (HDMI-HDMI) 7.0m

Passive HDMI cables have a natural limitation, which is the signal attenuation characteristic. Once the optimal length is exceeded, there is an exponential increase in data errors. Typically, around 8-10m is considered the maximum length for a passive HDMI cable under the less demanding HDMI 1.4a specification (lower resolution and bandwidth than the new HDMI 2.0 requirements).

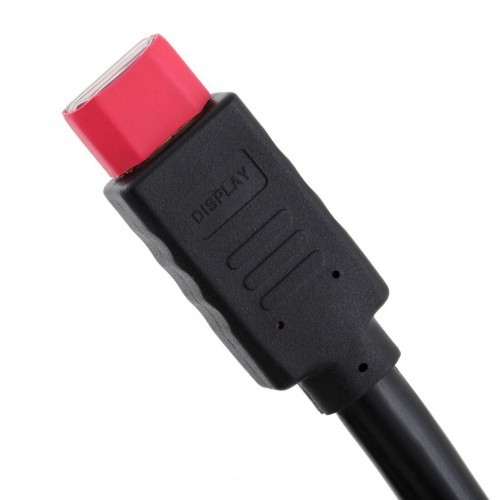

To meet the more stringent performance requirements (ultra-high resolution and wide range) of the HDMI 2.0 standard, Atlas has implemented "Active" HDMI technology. Sophisticated electronics are integrated into the end of the "Display" cable, effectively extending the performance of longer cables. This adaptive technology is effectively used to keep the outer diameter of the cable to a reasonable size by extending the length of the cable.

"Active" Hyper 4K HDMI is available in lengths of 7m, 10m, 12m and 15m with no loss in performance. Combined with precision gold-plated connectors, Atlas Hyper is perfect for high performance video applications.

As you might expect, given Atlas' passion for audio, the Hyper 4k HDMI is designed to deliver optimal audio quality. Atlas' experience in developing world-class digital interconnects ensures that "jitter" (digital "noise" that degrades a signal) is kept to extremely low levels.

Functional features:

• Supports resolutions up to 2160p/60.
• Supports multi-channel digital audio from 5.1, 7.1, 8.1 to 13.1 channels.
• Supports Dolby Digital+, Dolby TrueHD, DTS HD, PCM, LPCM, Dolby Digital EX, DTS/DTS ES and DTS 96/24 audio formats.
• Can support deep color - up to 48 bits.
• Up to 18 Gb/s Total Data Bandwidth (TMDS).
• Supports Ethernet data transfer (HDMI Ethernet Channel).

Specifications

• Type: HDMI digital audio/video cable
• Conductor Material: Oxygen Free Copper OFC
• Screen: OFC copper (90%) + triple layer of copper mylar
• Dielectric: PEF (data), HDPE (power)
• External insulation: PVC
• Outer braid: no
• Connectors: HDMI - HDMI, gold-plated
• Section shape: round
• External section (W x H): 9.5 mm
• Cable length: 7.0 m
