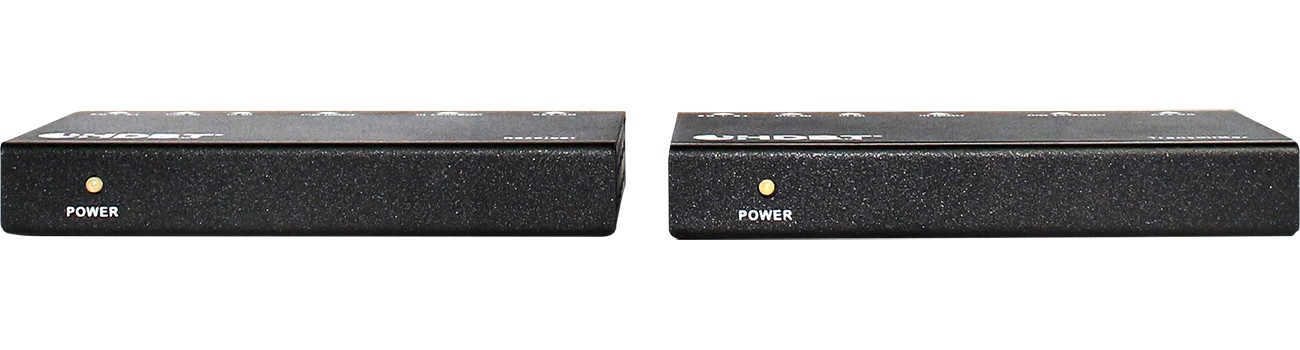

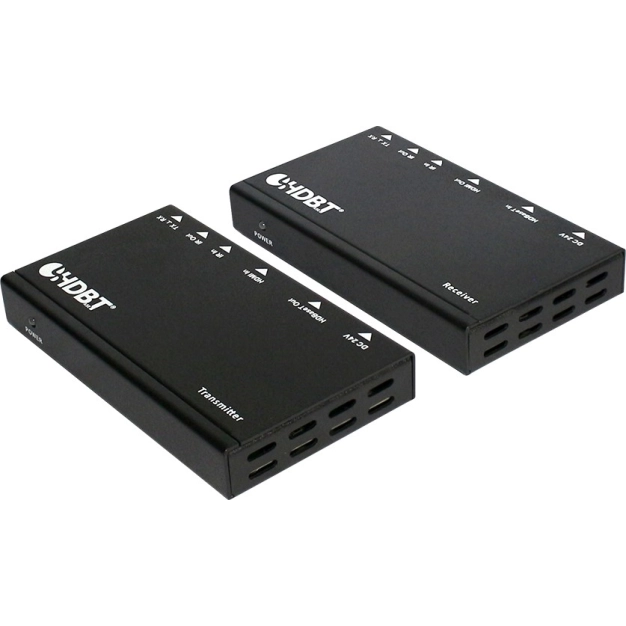

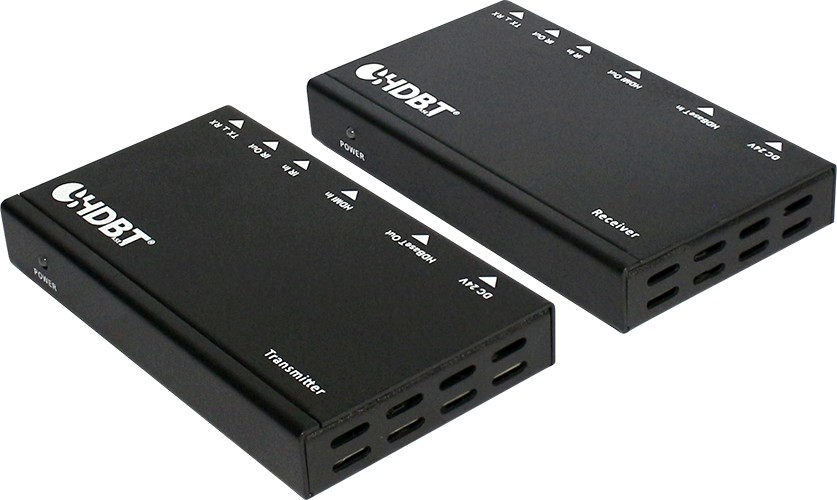

Transmitter over twisted pair Cat6 AirBase DC-EX70S HDMI 70m (HDBaseT)
₴8,408
₴12,012
-₴3,604
Do you want to know more?
We are happy to answer all your questions, assist with the selection, and place your order.
Available from 9:00 AM to 9:00 PM
Delivery
In Kyiv:
By courier 90 UAH.
1-2 working days
For orders over 5,000 UAH
FREE
In Ukraine:
Nova Poshta
Order dispatch on the next day
Check cost and delivery times for details
Guarantee
Exchange/return within 14 days
Payment
- By card on the website
- Cash on delivery
- Transfer via Visa/MasterCard
Delivery
In Kyiv:
Pickup is FREE
Revutskogo st., 5
By courier 90 UAH.
1-2 working days
For orders over 5,000 UAH
FREE
In Ukraine:
Nova Poshta
Order dispatch on the next day
Check cost and delivery times for details
Guarantee
Exchange/return within 14 days
Payment
- By card on the website
- Cash on delivery
- Transfer via Visa/MasterCard
HDMI Over One CAT5e/6/7 Extender with Bidirectional IR, RS-232 and Bidirectional PoC can make your home or office more efficient and easy to use. Uncompressed video and audio can be transmitted up to 70 meters.
View all products of the brand:
AirBase
HDMI Over One CAT5e/6/7 Extender with Bidirectional IR, RS-232 and Bidirectional PoC can make your home or office more efficient and easy to use. Uncompressed video and audio can be transmitted up to 70 meters. This family design of HDBaseT™ technology allows full use of HDMI and CAT5e/6/7 cable control.
Peculiarities:
- HDBaseT-Lite technology up to 70 m
- Simple plug-and-play for easy connection - no installation/drivers/software required
- Supports HD resolutions up to 4K2K@60Hz (4:2:0), 4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz
- Supports up to 7.1 channels of high definition audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
- Supports bi-directional wideband IR control from source to display or display to source
- Supports 24V bi-directional PoC
- Compact design for easy and flexible installation
Characteristics:
- HDMI Compatibility: HDMI 2.0a
- HDCP Compliant: HDCP 2.2
- Video bandwidth: 10.2Gbps
- Video Resolution: Up to 4K2K@60Hz (4:2:0), 4K2K@30Hz, 1080P@120Hz and 1080P 3D@60Hz
- Color space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
- Color Depth: 10bit, 12bit, 16bit
- Audio Formats: PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
- ESD protection: Model human body - ± 8 kV (air gap discharge) and ± 4 kV (contact discharge)

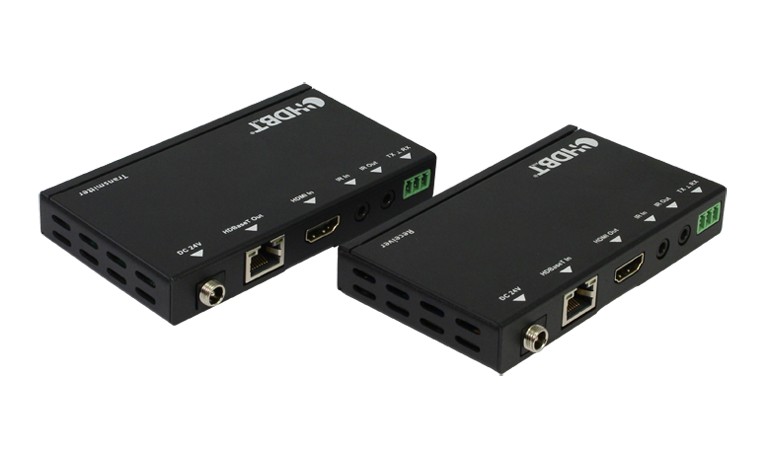

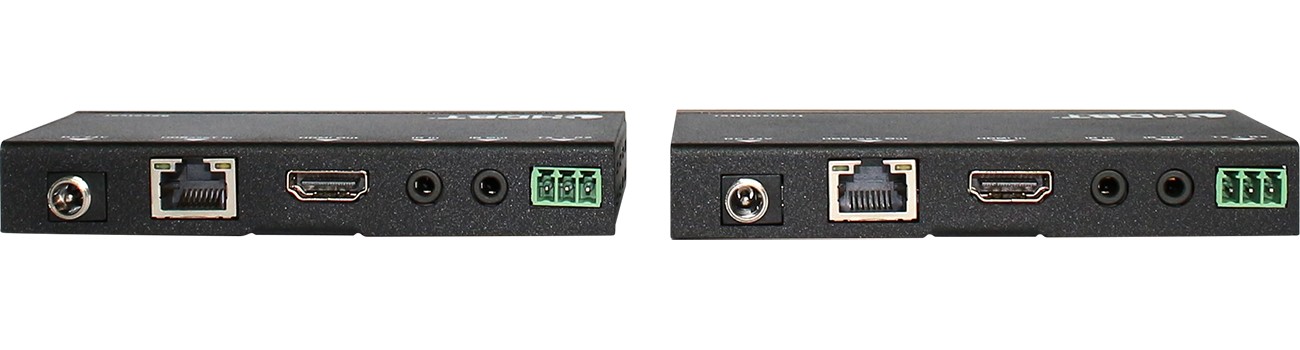

- Inputs:
- TX:1x HDMI type A [19-pin female]; 1x 3.5mm stereo mini-jack [IR receiver]; 1x Phoenix 3-pin [RS-232]
- RX: 1x RJ45 [HDMI and privacy data]; 1x 3.5mm stereo mini jack [IR receiver]
- Outputs:
- TX: 1x RJ45 [HDMI and privacy data]; 1x 3.5mm stereo mini jack [IR receiver]
- RX: 1x HDMI type A [19-pin female]; 1x 3.5mm stereo mini-jack [IR receiver]; 1x Phoenix 3-pin [RS-232]
- Body Material: Metal
- Dimensions (W x D x H), mm: TX/RX: 65 x 115 x 17
- Weight: TX/RX: 200g
- Power supply input: AC100 - 240V, 50/60Hz
- Output: DC 5V / 1A (US / EU standards, CE / FCC / UL certified)
- Power Consumption (Max): 12W with PoC
- Operating Temperature: 0-40°C
- Storage Temperature: -20 - 60°C
- Relative humidity: 20 - 90% (non-condensing)
| Color | Black |
|---|
