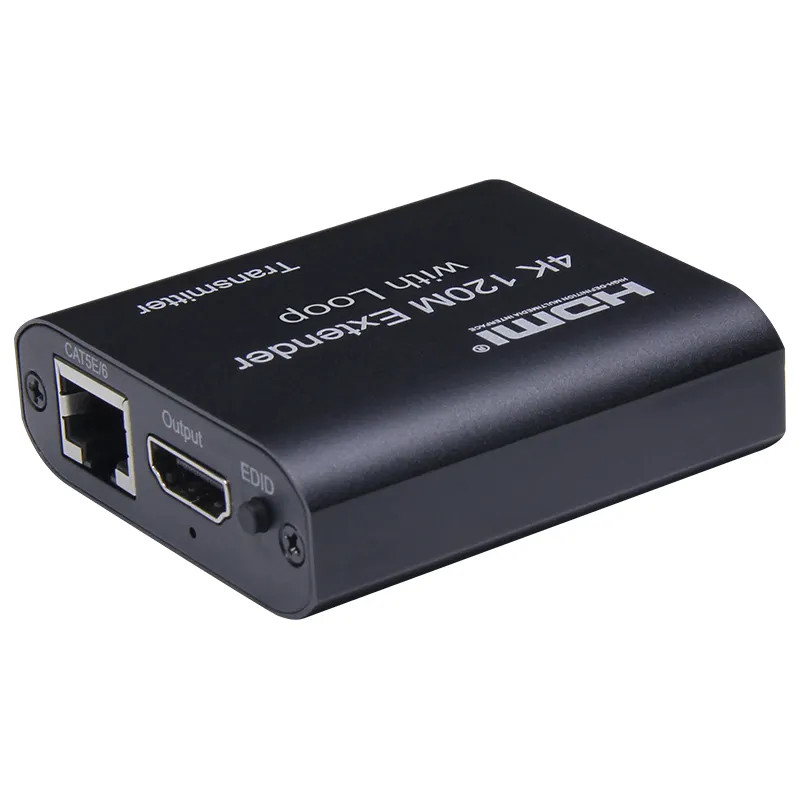

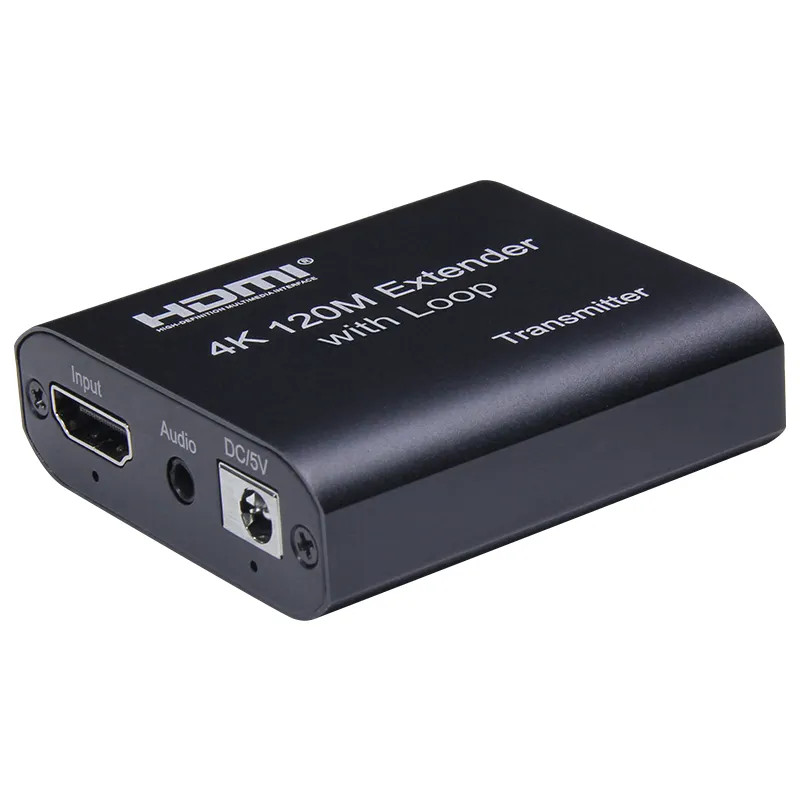

HDMI over twisted pair transmitter AirBase HD-EX1204k-Loop 120m Loop
Do you want to know more?
We are happy to answer all your questions, assist with the selection, and place your order.
Available from 9:00 AM to 9:00 PM
Delivery
In Kyiv:
By courier 90 UAH.
1-2 working days
For orders over 5,000 UAH
FREE
In Ukraine:
Nova Poshta
Order dispatch on the next day
Check cost and delivery times for details
Guarantee
Exchange/return within 14 days
Payment
- By card on the website
- Cash on delivery
- Transfer via Visa/MasterCard
Delivery
In Kyiv:
Pickup is FREE
Revutskogo st., 5
By courier 90 UAH.
1-2 working days
For orders over 5,000 UAH
FREE
In Ukraine:
Nova Poshta
Order dispatch on the next day
Check cost and delivery times for details
Guarantee
Exchange/return within 14 days
Payment
- By card on the website
- Cash on delivery
- Transfer via Visa/MasterCard
The extender uses a single cat5e or cat6 cable (recommended) instead of an HDMI cable. Transmits a high-definition signal up to 120 meters. The extender is designed to deliver high definition signal transmission over long distances.
View all products of the brand:
AirBase
Connection and operation
- Connect one HDMI cable between the source device and the TX extender, the maximum cable distance is 10 meters;
- Connect one HDMI cable between the display and the RX extender, the maximum cable distance is 10 meters;
- Connect one lamp or cat-6 (recommended) cables to the socket instead of HDMI cables between TX and RX extension cable, the maximum cable distance is 120 meters;
- Connect 5V power supply to TX and RX;
- EDID Button: The button can support EDID switch from 1080P to 4K. (4K is the default EDID when power on).
The kit includes:
- TX expander 1 pc.
- RX extension cable 1 pc.
- DC power adapter 5V/1A 2 pcs.
- User manual 1 pc.
Specifications:
- Local loopback support
- Support 3840*2160P/30Hz
- Both TX and RX support left and right 3.5MM left and right audio output;
- Support EDID switching between 1080P and 4K
- Low power consumption, low temperature and high safety
| Brand | AirBase |
|---|---|
| Model | HD-EX1204k |
| Type | Signal extender |
| HDMI version | HDMI 1.3 |
| Radius of action | 120 meters |
| Housing material | Металл |
| Color | Black |
| Dimensions (W x H x D), mm | 60 x 56 x 19 mm |
| Weight | 49 g (each) |
