Усилитель для наушников Ferrum OOR
Availability check
Ferrum OOR is a fully balanced analog headphone amplifier with patented discrete power amplifier technology. There is a proprietary 4-pin Ferrum connector for Hypsos, as well as balanced 4-pin XLR and unbalanced RCA inputs.

Ferrum OOR is the only headphone amp with soul...
Ferrum OOR will change the attitude towards headphone amplifiers. It will easily bring out the full potential of any headphone while retaining the essence of the music they play. Ultra-low distortion, non-fatiguing, huge dynamics and unsurpassed detail - all this delivers maximum pleasure. Ferrum OOR actually does what is very difficult to do, which seems to be the most natural thing on earth.
The most important features:
A truly balanced amp. The signal remains fully balanced all the way when using the XLR inputs and becomes fully balanced when using the RCA inputs. Fully balanced from A to Z, literally right after the RCA inputs, aimed at getting the most out of any headphone.

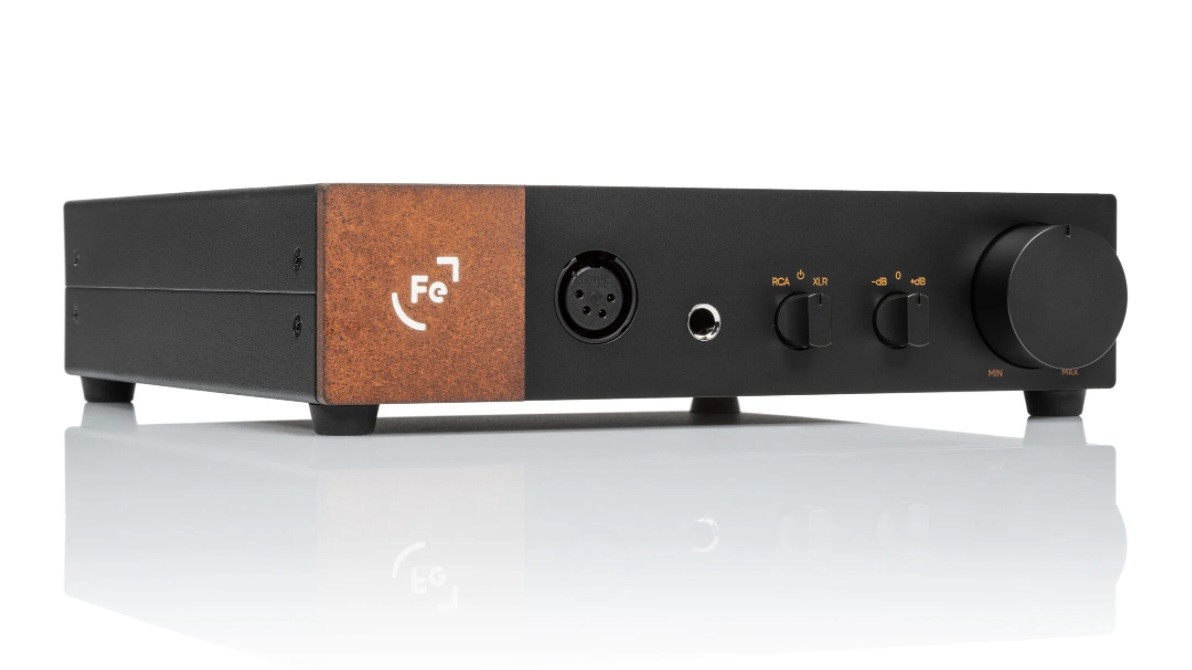

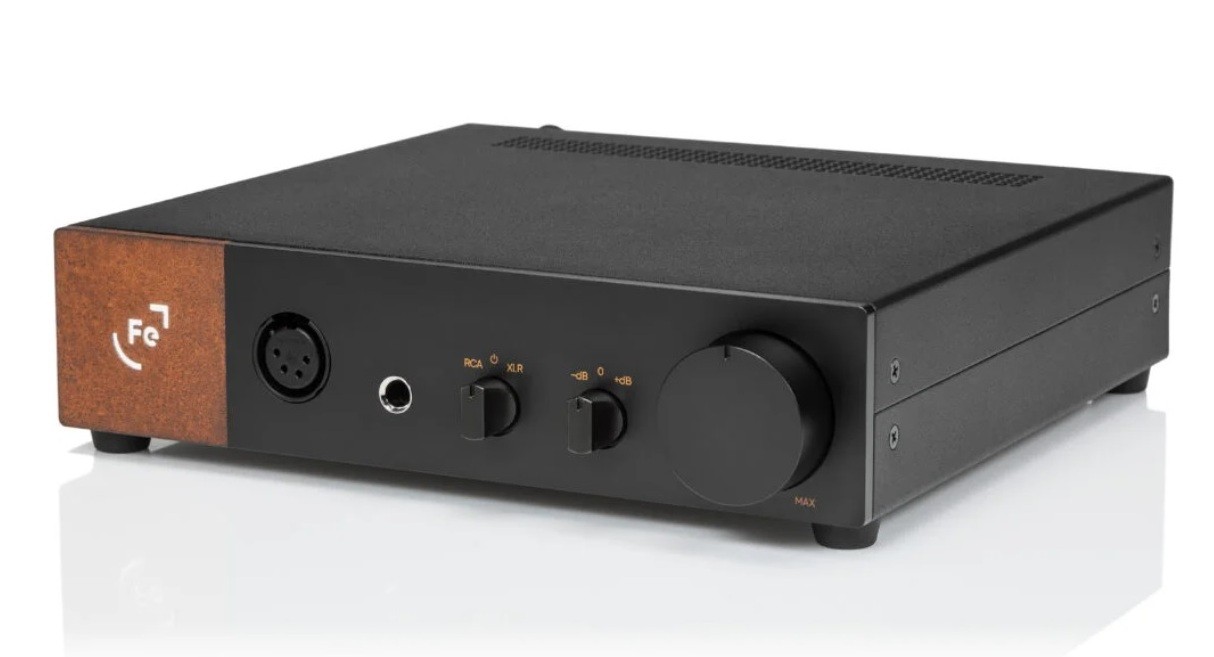

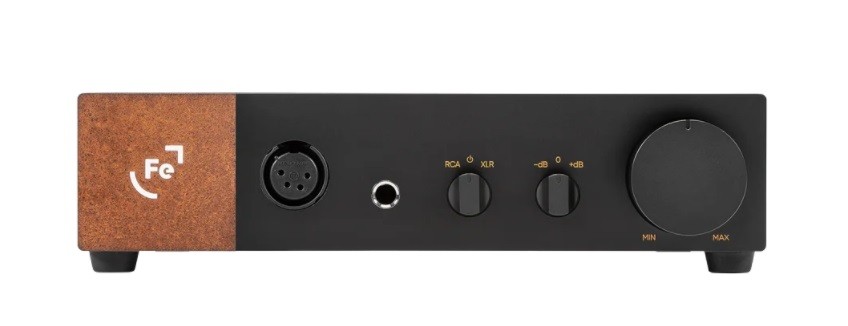

Ease and ease of use. Just three knobs on the front panel to control the most important settings.
Ferrum Power Link for optimal communication with Hypsos. The Ferrum OOR works great out of the box, but it's designed to outdo itself when used with Hypsos. To connect them, simply use what the developers have called Ferrum Power Link (FPL for short). It is in this case that Hypsos will work at full capacity, showing unheard-of musicality in combination with Ferrum OOR . Combine Ferrum OOR with HYPSOS for unparalleled musicality. Together they will surpass everything else.
Excellent control. Advanced control of the output transistors protects them and never allows them to turn off, thereby reducing distortion to inaudible levels and keeping them in a state where they can instantly unleash their full power. This is crucial for high dynamics, excellent control and sound weight.
Increased transparency. The entire design is focused on achieving a balanced and highly transparent sound signature, making listening fatigue a thing of the past.
The logo on the front of the Ferrum OOR can be dimmed to make it easier to see.

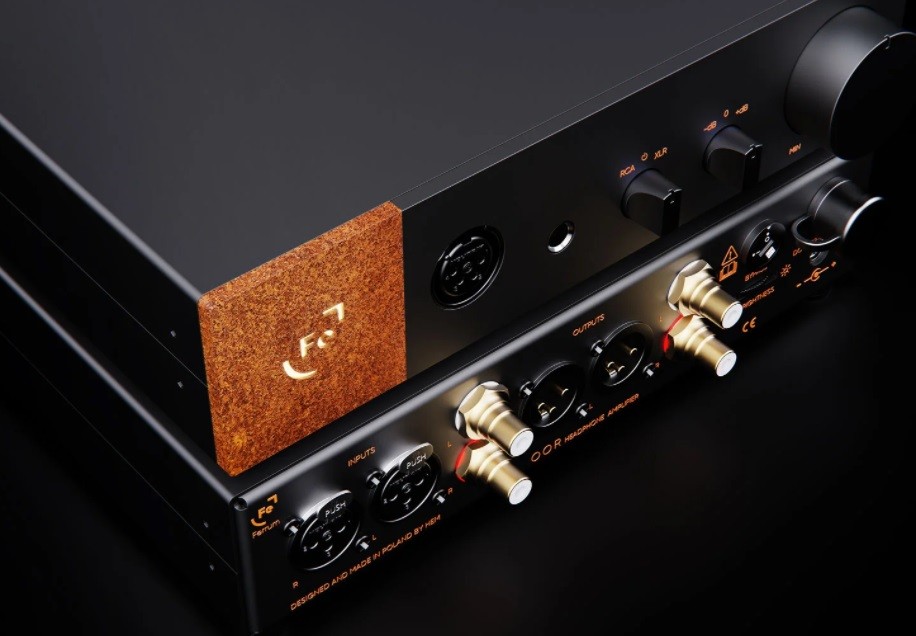

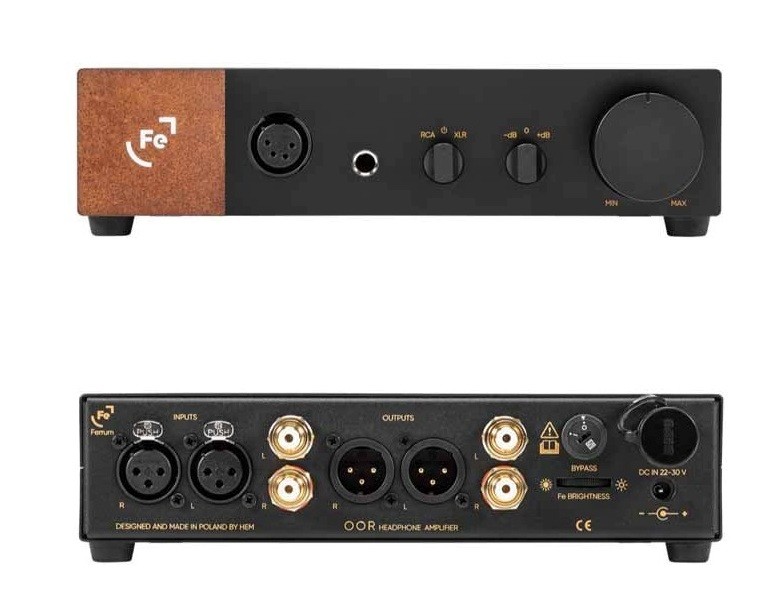

Discrete design. Discrete power amplifier technology is developed in-house to achieve the best analog quality. Take a close look at the Ferrum OOR 's sleek front panel design, which hides its complex construction, which can be appreciated by looking at the rear panel. 100% analog, 100% natural, 100% musical.
“OOR is produced by a group of very talented engineers and industrial designers in the heart of Poland. They like to call Ferrum "brand of brothers". OOR is the vehicle of choice for them when they need to completely relax and prepare for the next task.” Marcin Hamerla, founder and CEO of HEM.
Unique output cable design. Two wires for power supply and two wires for feedback, providing a constant voltage at any time. The developers call this technique Ferrum Power Link (FPL), and it eliminates the detrimental effects of cable resistance, effectively improving transient response. The current input bit rate of the connected device has been greatly improved.

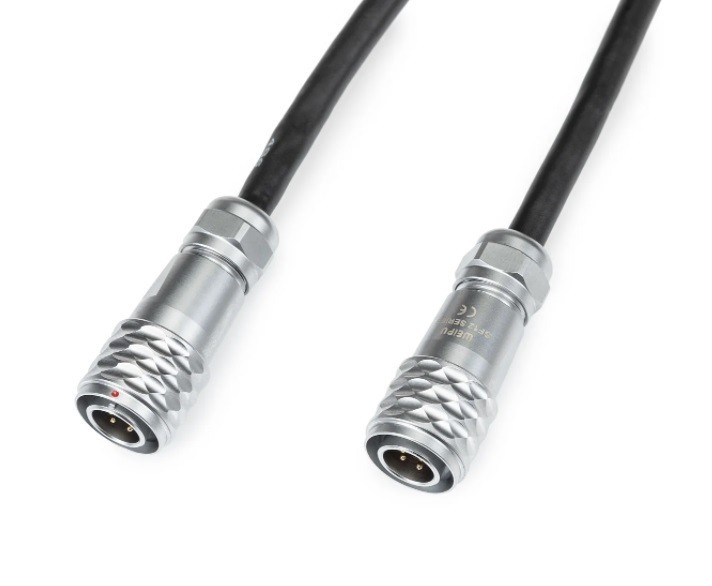

Ferrum OOR comes with a carefully selected DC power adapter. To get the most out of it, you can connect it to Hypsos with the proprietary Ferrum Power Link DC power cable. The FPL cable itself can be ordered separately.
Characteristics:
- Device Type: Headphone Amplifier
- Installation method: shelf, desktop
- Balanced Gain: -4dB, +6dB, +16dB
- Single ended gain: - 10dB, 0dB, 10dB
- How it works: Fully balanced patented discrete power amplifier technology

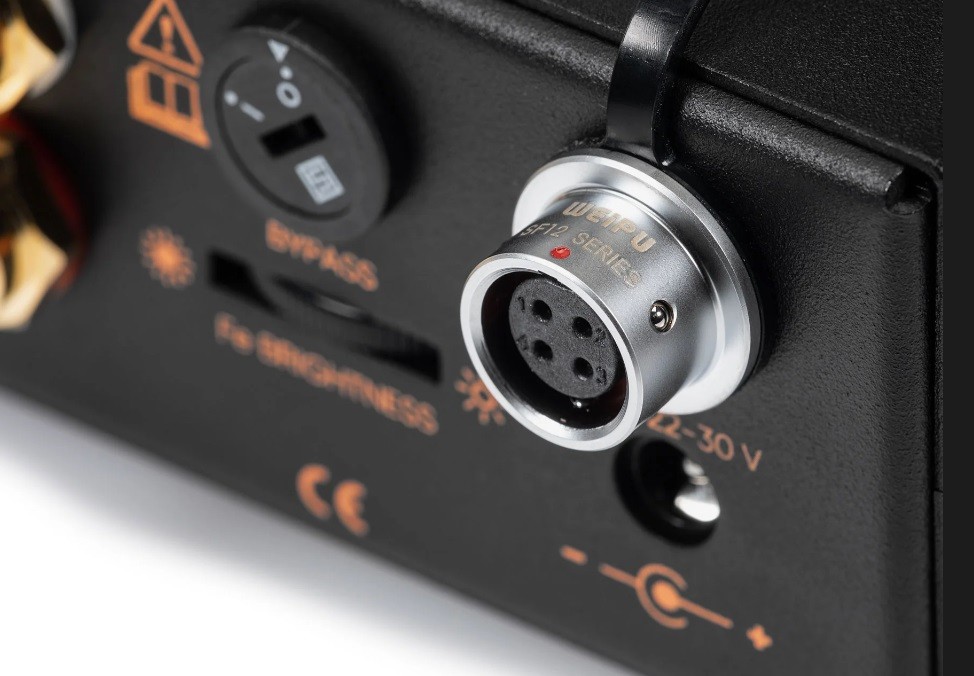

- Inputs: XLR, RCA, 2.5 mm DC jack current, center positive, branded 4-pin DC connector. current
- Outputs: balanced 4-pin XLR, 6.35 mm jack
- Frequency response: 20Hz - 100kHz (0.1dB)
- Output power (unbalanced, into 300 ohms): 400 mW
- Output power (unbalanced, into 60 ohms): 2 W
- Balanced output power (into a load of 300 ohms): 1600 mW
- Balanced output power (60 ohm load): 8 W
- Input impedance: 94 kOhm
- Output impedance (unbalanced, on preamp): 22 ohms
- Balanced output impedance (at preamp): 44 ohms
- Headphone output impedance: less than 0.3 ohm
- Standby power consumption: less than 15W
- Power adapter: 100 V/240 V AC up to 22 V - 30 V DC current
- Dimensions (W x D x H): 21.7 cm x 20.6 cm x 5 cm
- Weight: 1.8 kg
- Color: black with brown
Brand | Ferrum |
---|---|
Model | OOR |
Type | Усилитель для наушников |
type of instalation | Полочный |
Power | 1600 мВт (300 Ом), 8 Вт (60 Ом) балансная выходная |
Frequency range | 20 Гц - 100 кГц (0.1 дБ) |
output power | 400 мВт (300 Ом), 2 Вт (60 Ом) несимметричная |
Resistance | менее 0.3 Ом (для наушников, выходное) |
Inputs | XLR, RCA, 2.5 мм разъем пост. тока, центральный положительный, фирменный 4-х контактный разъем пост. тока |
exits | симметричный 4-х контактный XLR, джек 6.35 мм |
Impedance | 44 Ом (выходной баланс.) |
Notes | Балансное усиление: - 4 дБ, + 6 дБ, + 16 дБ. Несимметричное усиление: - 10 дБ, 0 дБ, 10 дБ |
Form | Прямоугольная |
Input impedance | 94 кОм |
Standby power | менее 15 Вт |
Color | черный с коричневым |
Dimensions (W x D x H), mm | 21.7 см x 20.6 см x 5 см |
Features | полностью балансная запатентованная технология дискретного усилителя мощности |
output impedance | 22 Ом (несим.) |
Weight | 1.8 кг |
Power adapter | от 100 В/240 В перем. тока до 22 В - 30 В пост. тока |
