Bluetooth Headphone Amplifier FIIO BTR7

FIIO BTR7 is the flagship wireless DAC. It is worth noting that this is the first such model with a dual THX AAA-28 amplification module, which will surprise you with the most accurate realistic sound.

Chipset Qualcomm QCC5124:
The model uses the Qualcomm QCC5124 chipset.
Connect your Bluetooth device to the BTR7 and easily turn it into a Hi-Res Wireless system.
Bluetooth version 5.1, with support for high-definition codecs such as aptX HD / LDAC up to 96 kHz and standard AAC / SBC / aptX / aptX low latency / aptX Adaptive - makes it possible to create a great-sounding duet with a connected device.

Two premium DACs:
The FiiO BTR7 is equipped with two premium ES9219 DAC + THX AAA amplifier ICs from ESS Technology, in independent configurations on the left and right. It combines low noise and distortion with high power output.

USB XMOS Controller:
The BTR7 is quite resourceful in terms of USB decoding. The amplifier is capable of USB Audio Class 2.0 asynchronous audio decoding using an independent XMOS XUF208 control IC.

MQA support:
BTR7 supports MQA to play audio files of the highest quality - Master Quality . The device must support MQA software such as UAPP, Tidal, etc.

Interfaces:
The model has a balanced and unbalanced output - for more detailed resolution and more power.
It is worth noting that each channel is controlled separately from the other, with its own DAC and amplifier, this technology creates a pure realistic sound with unsurpassed accuracy and balance.

Display - business card BTR7:

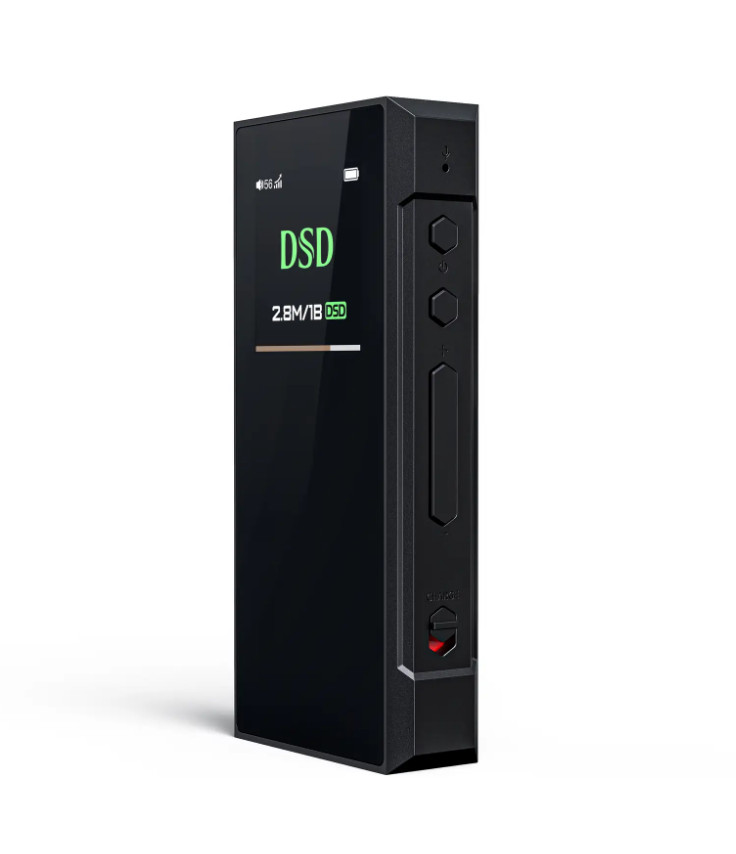

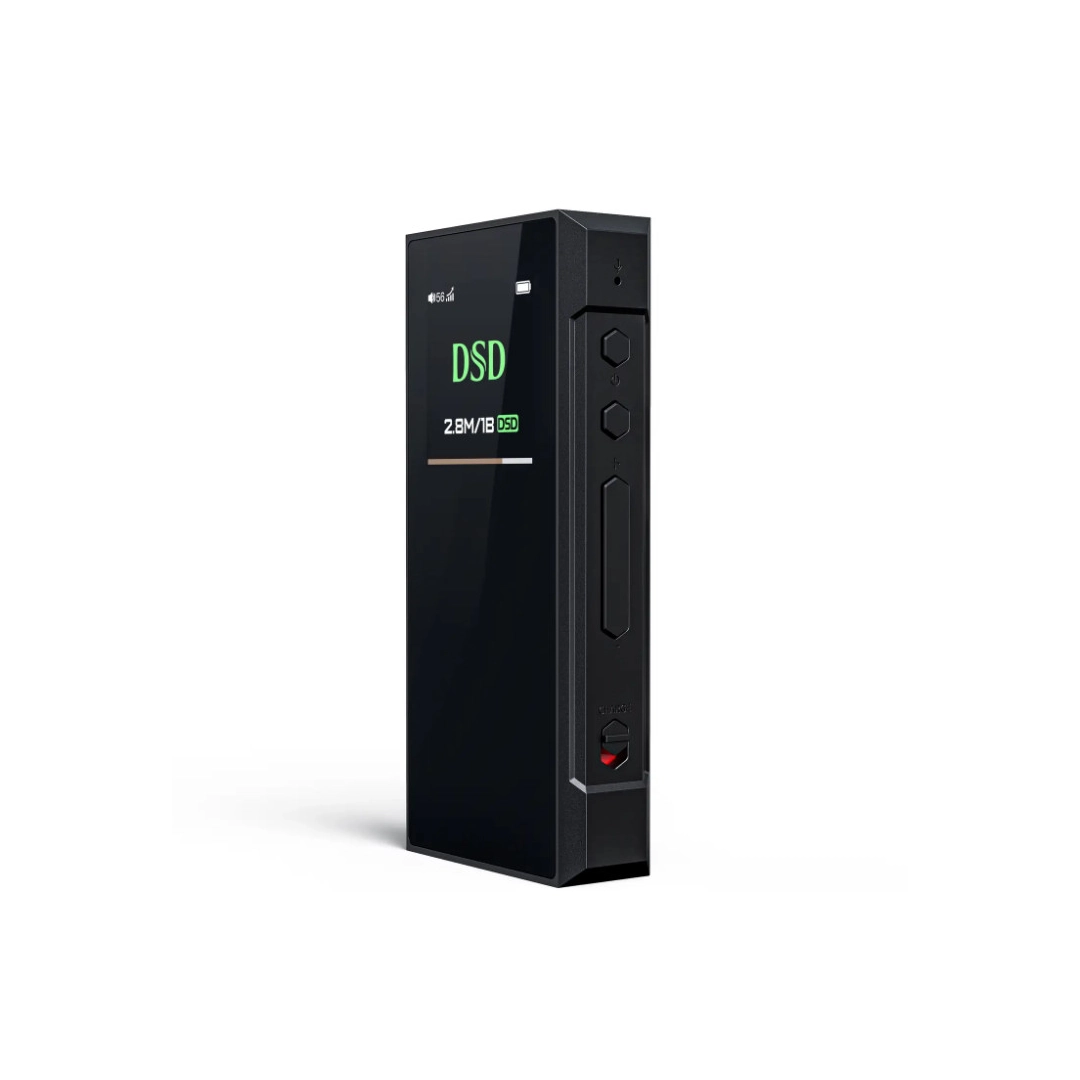

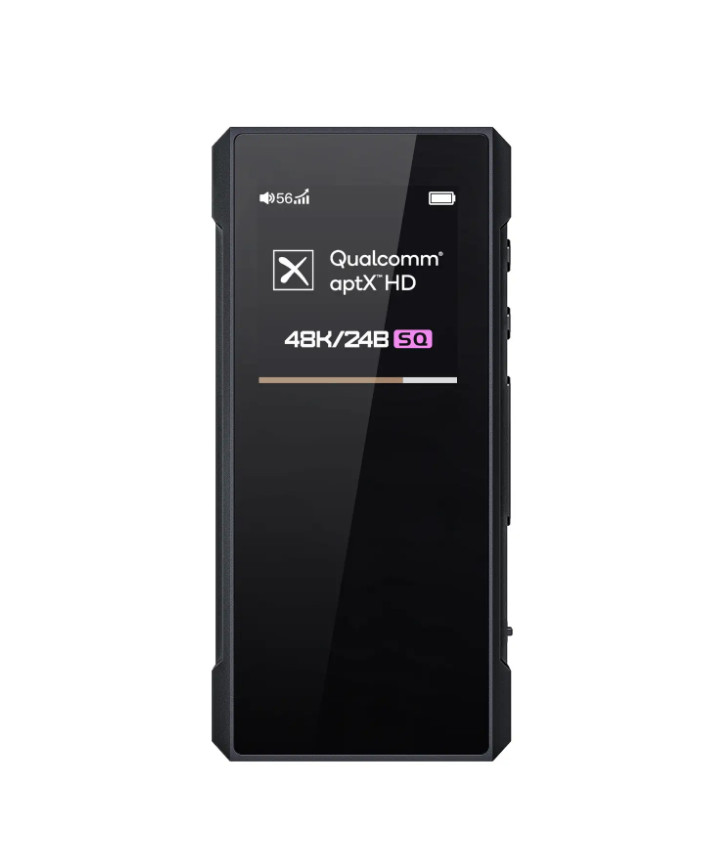

The 240x240 resolution 1.3" LCD screen is equipped with a completely new user interface that displays important information: pairing / connection / status / encoding format / volume.
Call up the menu using the display: view and adjust the charging status, filter settings, equalizer, etc.

Supports wireless charging:
FIIO BTR7 is an innovative model as it is the world's first Bluetooth DAC/AMP that supports wireless charging with Qi protocol.
The model has a built-in battery with a capacity of 880 mAh, a full charge lasts for 9 hours when using a 3.5 mm output. Charging time via USB Type-C port is 1.5 hours.

Convenient functionality:
When you connect the amplifier to your phone, you will be able to control the volume of the BTR7 and the volume of your phone separately - this will allow you to adjust the volume to your liking. Forget about adjusting the volume every time you use the device - BTR7 remembers the desired volume.
It is possible to view the remaining battery power in the widget when paired with an iOS device.

FIIO BTR7 can detect what type of headphones you are using and adjust the output automatically.
Playback automatically stops when you unplug the headphones, the device goes into low power mode.
When connecting headphones with CTIA controls, it is possible to use the controls - volume / track selection, play / pause.

Protective case:
The model comes with a custom-made Bejirog leatherette case that protects the anodized finish and doesn't interfere with any of the BTR7's features and controls.

Equipment:

BTR7
Type-C USB cable
Type-C to Type-C data cable
Faux leather case
Management
Warranty card

Peculiarities:

- Dual chip ES9219C.
- Dual THX AAA™ Amplifier
- Chipset Qualcomm QCC5124 Bluetooth
- Support for wireless codecs LDAC, AptX HD, Adaptive AptX, AptX LL, AAC, SBC.
- Stable connection with seamlessly integrated metal antenna.
- High resolution XMOS USB receiver.
- Support MQA in DAC USB mode.
- Wired and wireless charging.
- Balanced and unbalanced output.
- 1.3 inch IPS color display.
- Battery 880 mAh.

Specifications:

Model BTR7
Volume control: 60 steps / independent adjustment.

MQA playback:
Bluetooth profiles SBC, AAC, aptX, aptX Low Latency, aptX HD, aptX Adaptive, LDAC SBC, AAC, aptX, aptX LL, aptX HD, LDAC.

Audio format support: A2DP, AVRCP, HFP, HSP A2DP, AVRCP, HFP, HSP

Bluetooth version: 5.1 5.0

Bluetooth Chip: QCC5124 CSR8675
DAC Chip: ES9219C x2

Amplifier: THX AAA 28 x2

USB CHIP: XMOS XU208
USB DAC support: 384KHz 32bit/DSD256 384k/32bit
DSD 256

Transmission distance (in open area): up to 10 m Display: 1.3 inch IPS display

Settings menu:

CTIA Line Control: Mic/Volume/Track

CTIA: microphone/volume/track
Mobile app
Ability to answer calls
Siri support on iOS
Output: 3.5mm 160mW 80mW
Balanced Output: 2.5mm/240mW
Balanced output: 4.4mm 320mW/SNR 117dB 122dB
USB Port Type-C
Battery capacity: 880 mAh
Operating time (AAC mode): up to 9 hours

Charging time:

Wired charging: 1.5 hours

Wireless charging: 3 hours

Dimensions:
Dimensions 39.6 x 83.6 x 14.6 mm
Accessories: leather case, back clip + lanyard

Weight: 68g
