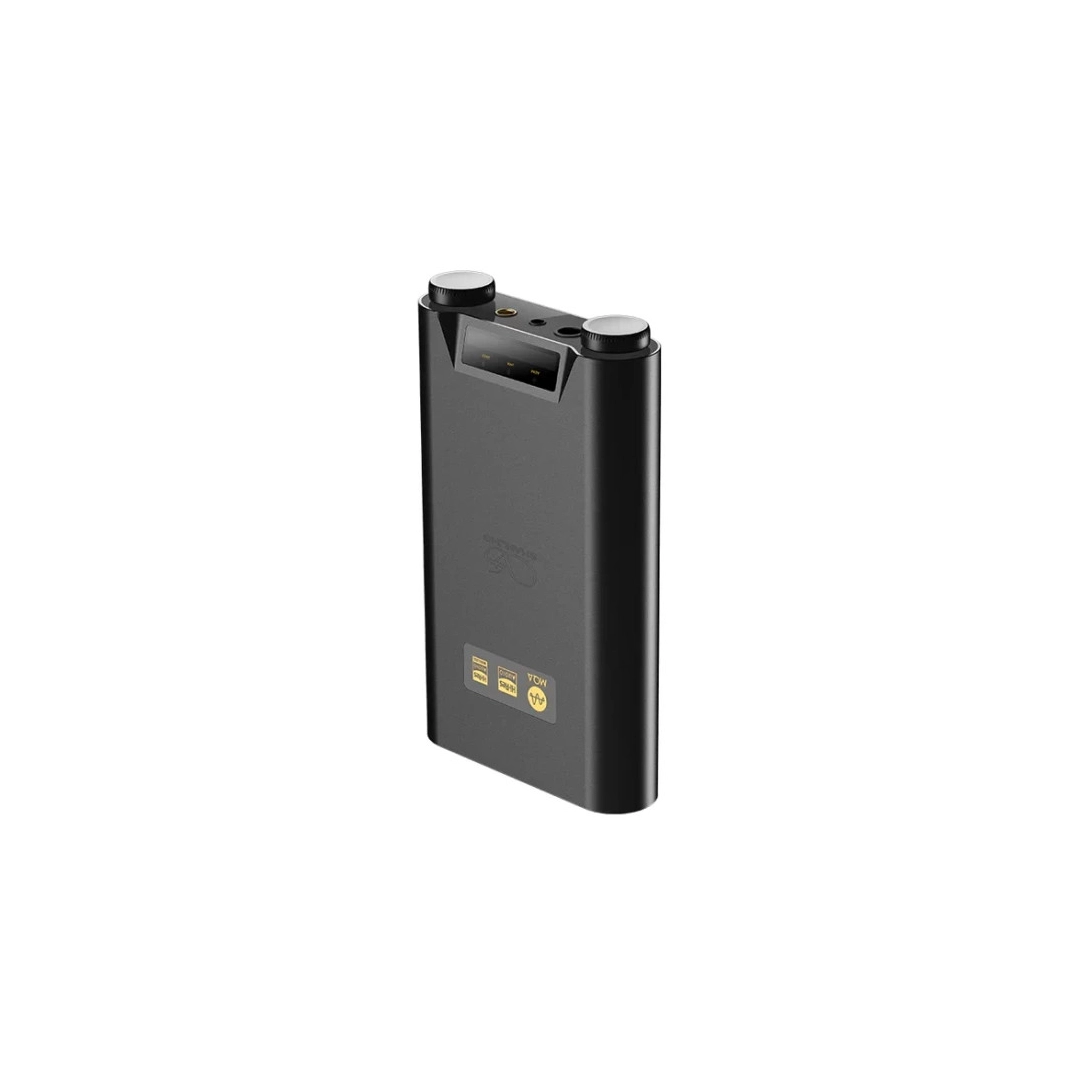

Shanling H7 Portable DAC/AMP Black

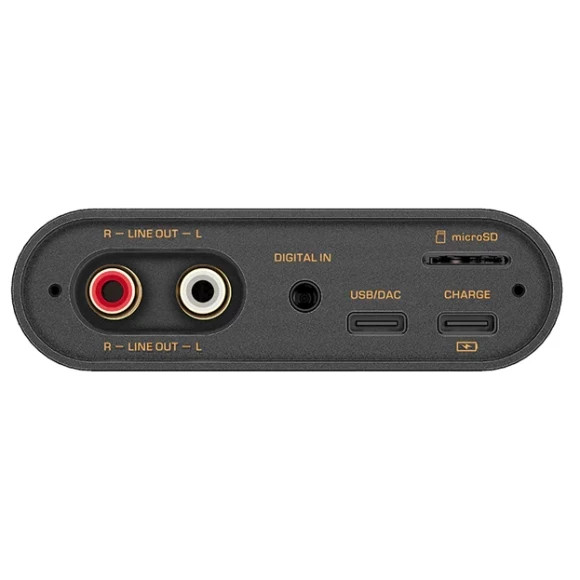

Shanling H7 is a brand new high-quality portable USB DAC/amplifier designed based on the flagship AKM4499EX DAC chipset. It is a complete Hi-Res audio package that includes high-quality components on its audio circuitry, promising quality audio to its users. Shanling uses a proprietary high-power amplifier circuit that delivers up to 1.3W of clean output power into a 32-ohm load. H7 is compatible with the Eddict player app on smartphones. It can read microSD cards up to 2TB in capacity and can also play most leading formats from them. Along with the headphone output we usually see on portable DAC/amplifiers, the Shanling H7 also has an analog line out feature with RCA ports on the rear panel!!
Shanling H7 is designed with premium DAC circuit. The device has the flagship AK4499EX DAC with AK4191EQ modulator. The AK4499EX is a 32-bit Velvet Verita sound DAC known for its organic, rich tonality and exceptionally clean high-resolution audio decoding with ultra-low distortion and background noise.
Shanling trusts the latest 16-core XMOS XU316 processor with USB chipset. XU316 is the latest generation USB processor that provides unprecedented signal transmission with less latency and latency during transmission. The H7 supports high-resolution 32-bit/768 kHz PCM and native DSD512. Along with high-resolution PCM and DSD audio signals, Shanling H7 also supports studio-grade MQA file deployment. The H7 device is MQA certified and supports 8x MQA deployments.

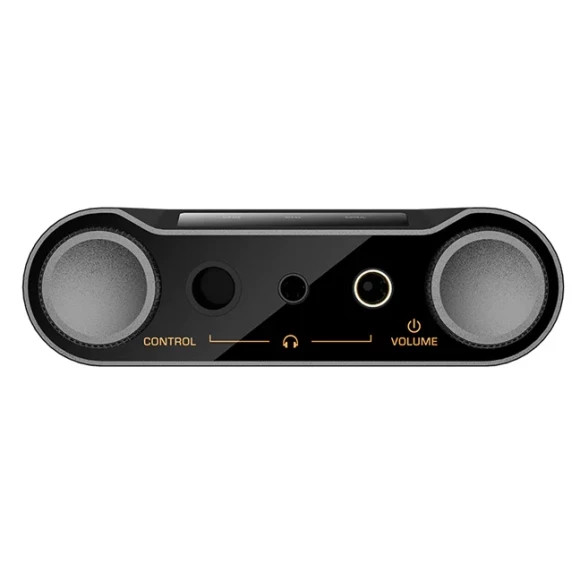

The Shanling H7 portable USB DAC/amplifier has multiple input options including USB, coaxial, optical and Bluetooth. It even has a microSD card slot that supports a 2TB microSD card. The Bluetooth connection on H7 is only for signal input, it cannot transmit BT signal. In terms of output, it has three headphone outputs (6.35mm, 4.4mm and 3.5mm) and an RCA line-in port.
Shanling H7 is equipped with a specially designed powerful amplification circuit. Designed using high-performance TPA612OA2/OPA2211/MUSES8920 chips, the H7 delivers up to 1300mW of clean output power through its balanced port in high gain mode.
Peculiarities:
- AKM's new flagship AK4499EX DAC chip with matching AK4191 modulator
- Heavy-duty amplifier delivering up to 1.2W @ 32 ohms
- Headphone outputs 3.5/4.4/6.35 mm and rear RCA
- Xmos USB input with support for Hi-Res playback, including MQA
- Combo input for coaxial and optical SPDIF
- Bluetooth receiver module with LDAC support

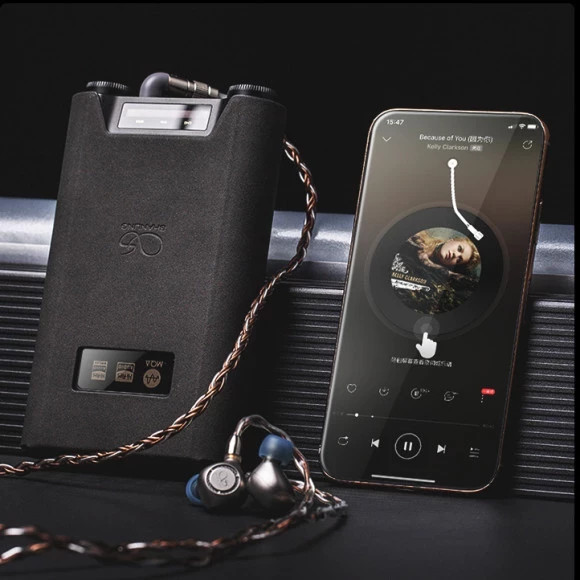

- An additional feature is a MicroSD card slot allowing direct local playback. Put all your music files on the card and then simply control the device using the Eddict Player app on your Android or iOS phone. You can even use the H7 as a completely independent player, just with limited controls.
Please note that Bluetooth H7 only supports reception, not transmission.
Characteristics:
- DAC:AKM AK4499EX WITH AKM AK4191EQ
- Audio circuit: TPA6120A2/OPA2211/MUSES8920
- USB input: XMOS XU316
- Platform: Ingenic X2000
- Output connectors: 6.35/4.4/3.5 mm and RCA
- Screen:1.44 inch screen
- System:Open Android 10
- Audio formats: DSD(".iso", "dsf",".dff") / ISO / DXD / APE / FLAC / WAV / AIFF / AlF / DTS / MP3 / WMA / AAC / OGG / ALAC / MP2 / M4A /AC3/M3U/M3U8/OPUS
- Hi-Res support: 32bit/768kHz, DSD 512, MQA 8x
- Gain Setting: Three Level Setting

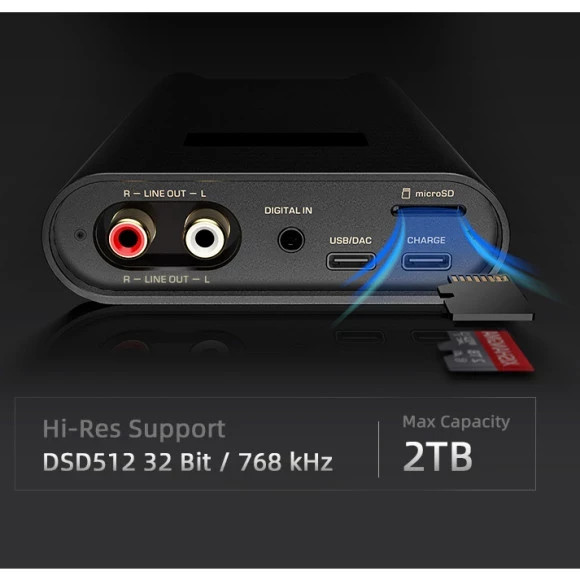

- Storage: MicroSD card slot, up to 2TB
- Digital filters:6 preset filters
- Battery: 2x 18650
- Battery capacity: 6800 mAh
- Battery life: up to 10 hours SE / 8 hours BAL
- Bluetooth 5.0 receiver
- Bluetooth codec support: LDAC/AAC/SBC
- RCA output
- Output Level: 2.4 Vrms
- Frequency response: 20 Hz - 40 kHz (-0.2 dB)
- THD+N: 0.0006%
- Dynamic range: 121 dB
- S/N: 121 dB
- Output impedance: 47KΩ
- One way output:
- Output power:
- Low Gain: 28 mW @32 ohms
- Average Gain: 112 mW @32 ohms
- High Gain:450mW @32ohm
- Frequency response:20Hz - 40KHz (-0.2dB)
- THD+N:0.0009%
- Channel Separation:75 dB @ 32 ohms
- Dynamic range:121 dB
- Signal-to-Noise:121 dB
- Noise:>113dB(<1.5uV)(Low gain)
- Output impedance:<1 ohm
- Output power:
- Balanced output:
- Output power:
- Low Gain: 87 mW @32 ohms
- Average Gain: 348 mW @32 ohms
- High Gain: 1300 mW @32 ohms
- Frequency response:20Hz - 40KHz (-0.2dB)
- THD+N:0.0007%
- Channel Separation:115 dB @ 32 ohms
- Dynamic range:123dB
- Signal-to-Noise:123 dB
- Noise:>111dB(<1.5uV)(Low gain)
- Output impedance:<1 ohm
- Output power:
- Dimensions: 142 x 85 x 25 mm
- Weight: 352.5 g
Brand | Shanling |
---|---|
Model | H7 Portable DAC/AMP |
Type | DAC and amplifier |
Output power to headphones | 25 (32 Ohm), 112 (32 Ohm), 450 (32 Ohm); 87 (32 Ohm), 348 (32 Ohm), 1300 (32 Ohm) |
Inputs | Bluetooth, Micro SD, USB, Coaxial (Coax), Optical (Toslink) |
exits | 3.5 mm, 4.4 mm, 6.3 mm, RCA |
Color | Black |
