Schiit Asgard 3 DAC & Headphone Amplifier

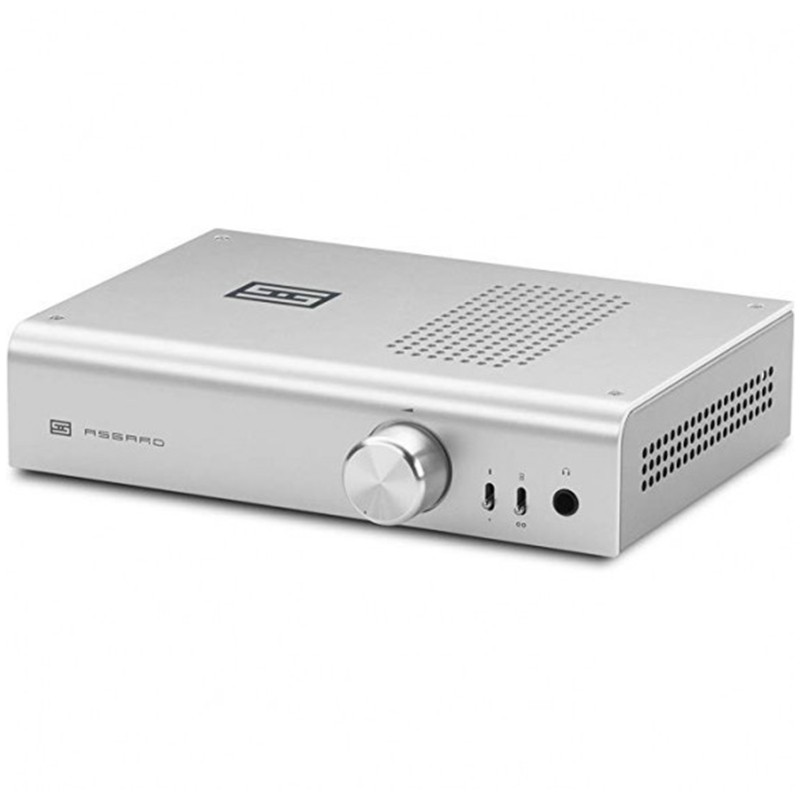

The Asgard 3 case is a compact aluminum box that does not take up much space on a table or shelf. On the front panel there is a volume wheel (encoder of extra class), a headphone jack (6.3 mm), two switches. The gain switch has two positions: low (low-gain), intended for IEMs with low impedance and high for high-impedance headphones, setting the gain to 15.6 dB. The second toggle switch enables/disables audio inputs (rear - a pair of sockets for "tulips" IN and a pair of OUT). Optionally, a high-quality Shiite DAC module is installed in Asgard-3 - delta-sigma based on AK4490 or True Multibit chips. The third upgrade option is to connect a phono stage module.

Each user who has a screwdriver can perform the operation of installing the expansion module independently. Instead of a plug, a USB-b port (DAC interface) or another pair of RCA jacks (phono stage interface) will appear on the rear panel. cascade made according to Schiit's own Continuity™ topology. The amplification unit at a load of 16 ohms produces 5 watts of power per channel, headphones with an impedance of 600 ohms will receive 300 mW per channel.

Characteristics:

• Type: Headphone Amplifier
• Power: 16 Ohm - 5W RMS per channel; 32 ohms - 3.5W RMS per channel; 50 ohms - 2.5W RMS per channel; 300 ohms - 600 mW RMS per channel; 600 ohm - 300 mW RMS per channel.
• Frequency response: 20Hz-20000Hz
• Inputs: 1 x RCA
• Inputs: USB USB-B
• Outputs: 1 x 6.3 mm; 1 x RCA
• Signal to noise ratio: 115 dB
• Harmonic Distortion: 0.002%
• Power Consumption: 30W
• Dimensions (H x W x D), mm: 230 x 155 x 50
• Features: Modular design
• DAC: AK4490
• Net weight: 2.3 kg
