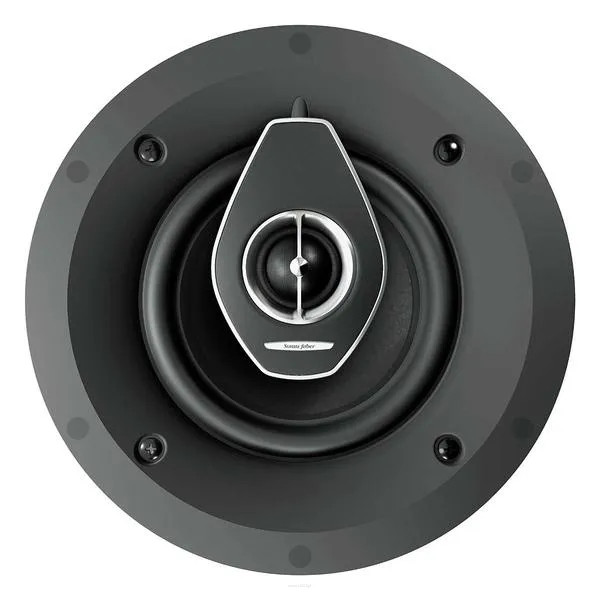

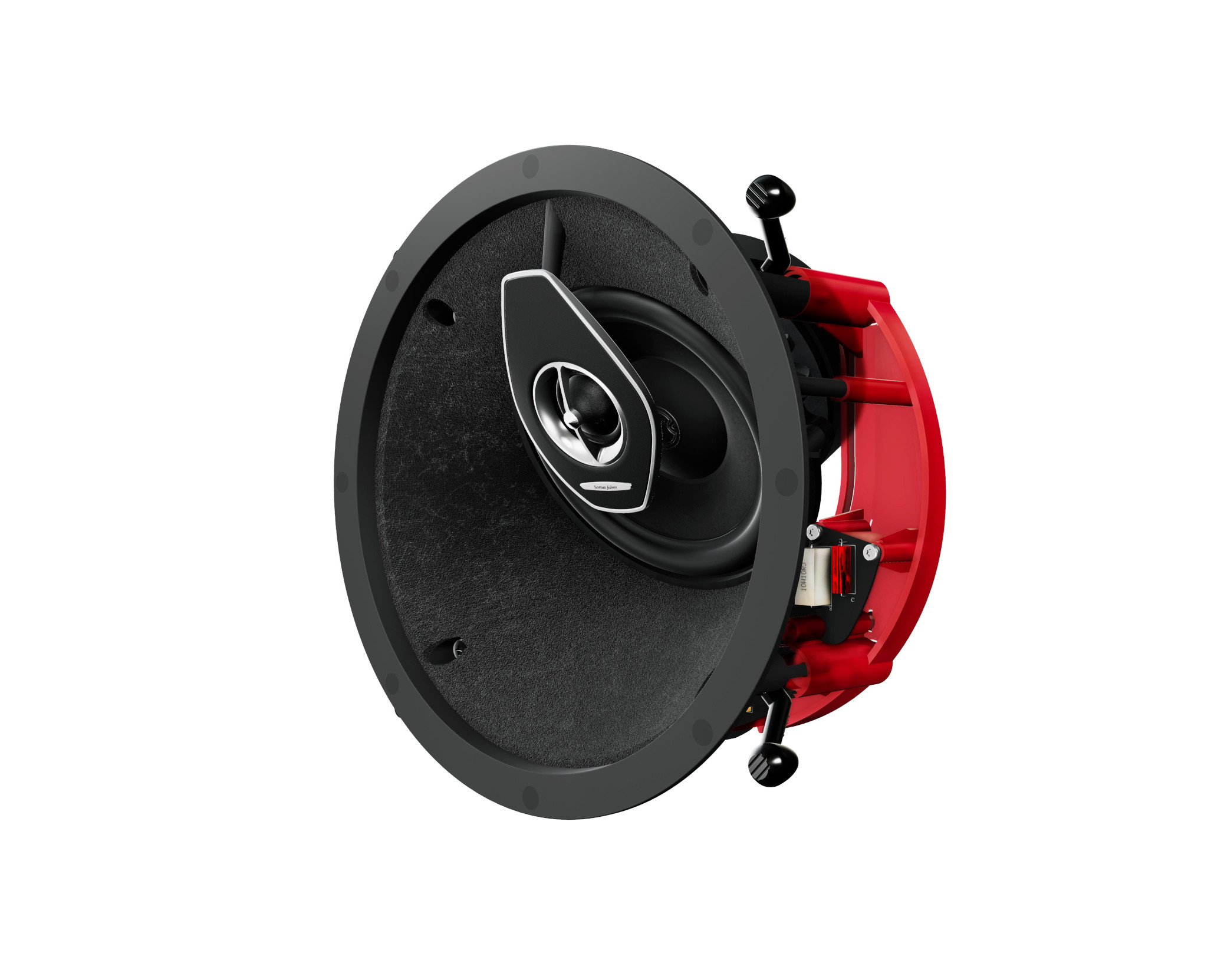

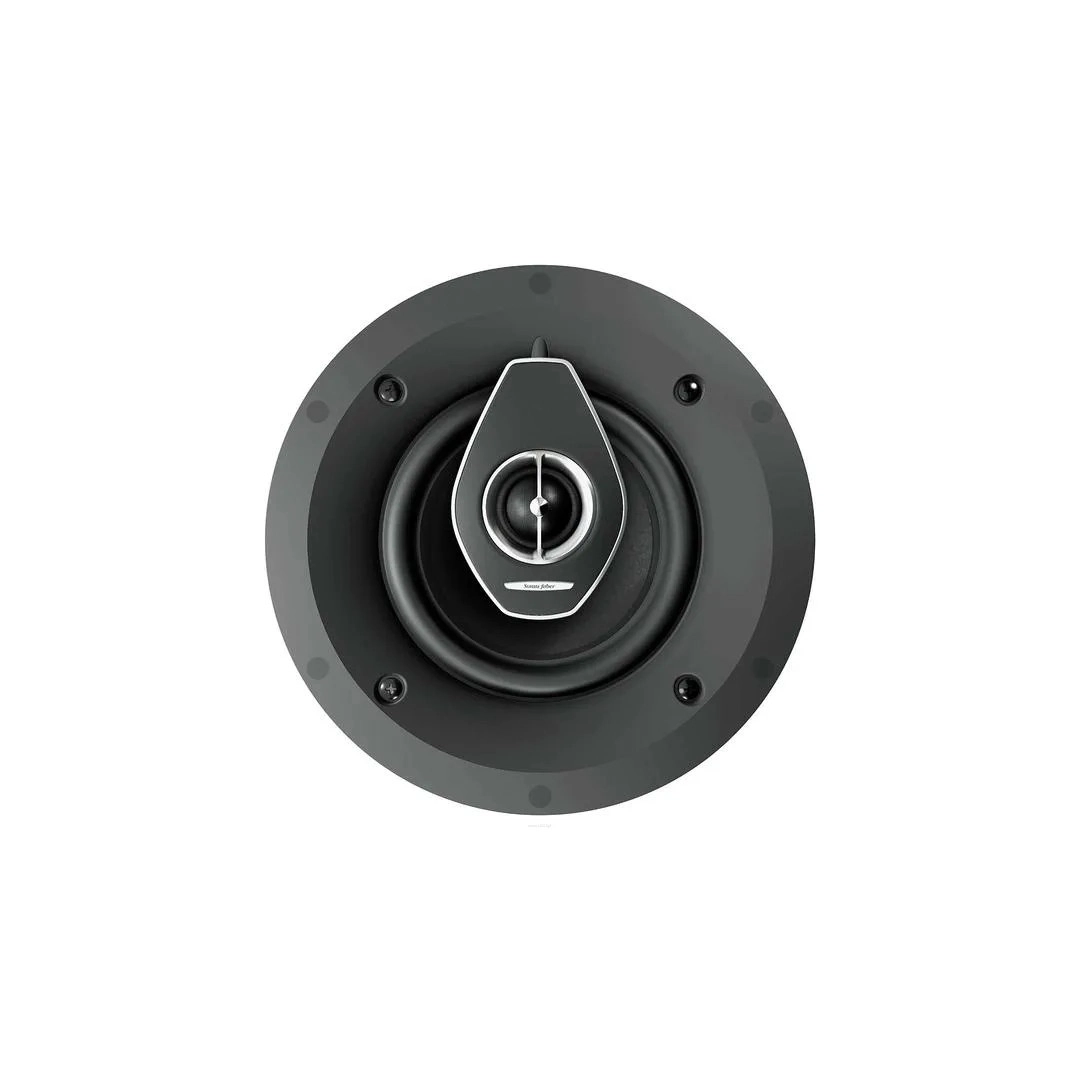

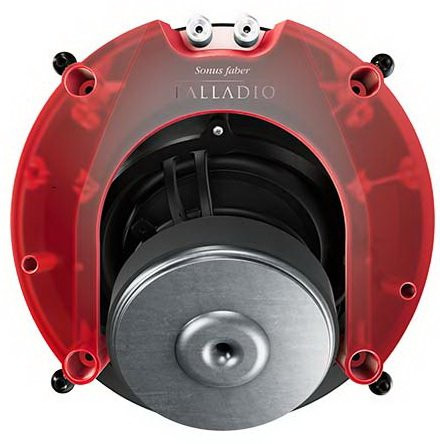

Built-in acoustics Sonus Faber PC-662Р ln-Ceiling
The Sonus Faber Palladio Level 5 line of installation acoustics also consists of ceiling speakers, created, according to Sonus Faber, taking into account all the company’s main developments. The line got its name in honor of the famous Italian Renaissance architect Andrea Palladio.
All Palladio speakers use DAD (Damped Apex Dome) tweeters and midrange and bass speakers with wood fiber diffusers. The new speakers also use Paracross technology: each pole has its own filter chain, which reduces distortion and increases noise immunity.
All speakers in the Palladio collection, according to the company, sound high quality and are easy to install. The model is equipped with a metal grill with magnets.
Sonus Faber PC-662P are distinguished by a special arrangement of speakers: the emitters are installed at an angle for more correct sound dispersion in relation to the listener.
Acoustic system
2-way speaker for installation in the ceiling with design as an acoustic screen. Endless partition.
TWEETER - DIVER DADTM
29 mm / 1.1 inches
MIDWOOFER
165 mm / 6.5 inches
CROSSOVER FREQUENCY - PARACROSS TOPOLOGYTM
3000 Hz
FREQUENCY RESPONSE
50 - 25,000 Hz (-6 dB)
SENSITIVITY (2.83 Vrms @ 1 m)
90 dBSPL
NOMINAL IMPEDANCE
4 ohm
RECOMMENDED AMPLIFIER OUTPUT POWER (*)
40 - 200 W Undistorted signal
FRAME EXTERNAL
Ø 265 mm / 10.4 inches
CUTOUT
Ø 244 mm / 9.6 inches
DEPTH BEYOND THE SURFACE
172 mm / 6.8 inches
PROTRUSION
10 mm / 0.40 inch
NET WEIGHT
3.83 kg / 8.44 lb
Black color
-
What's included

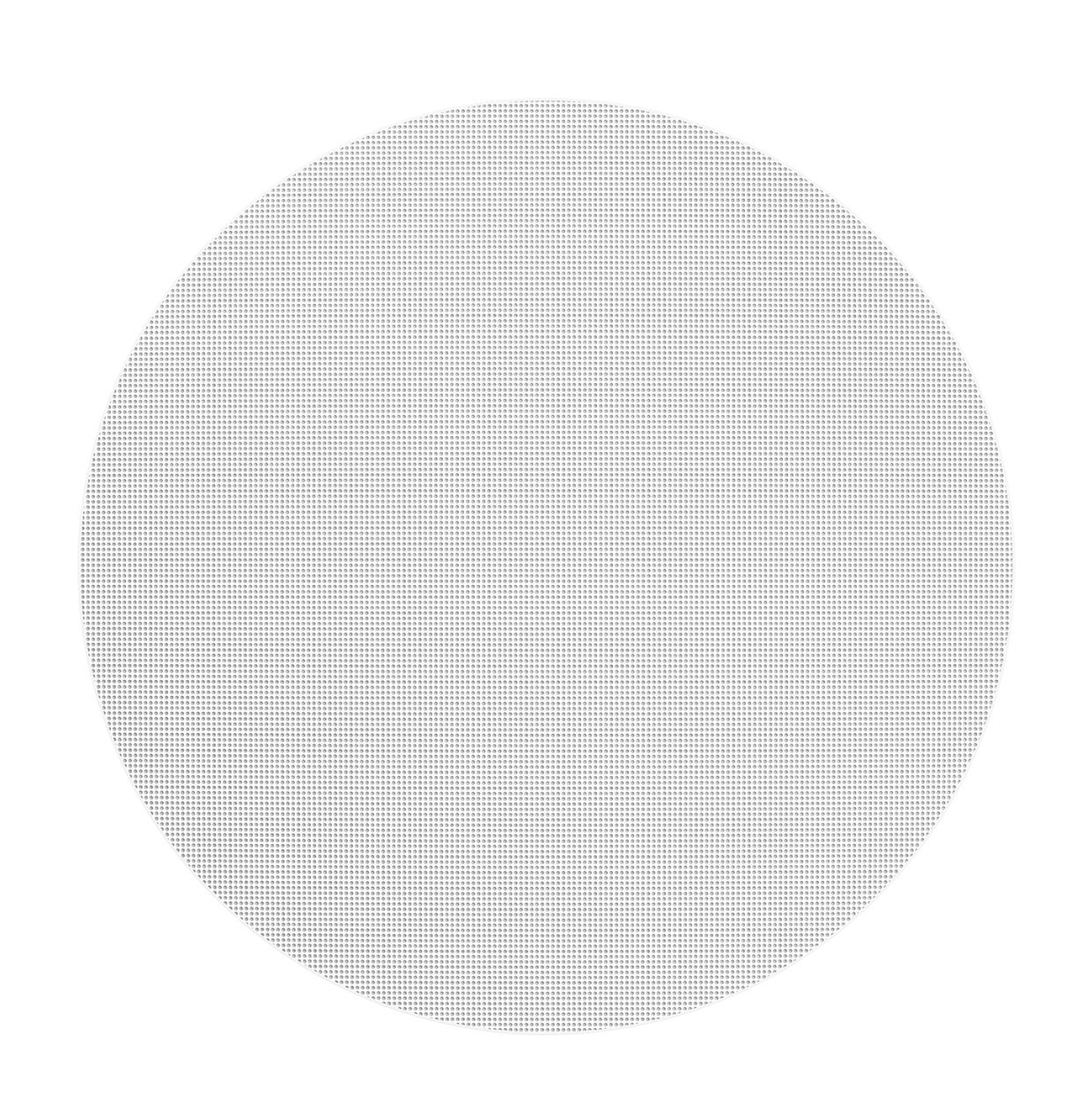

Round magnetic grid without panel
-
Additional accessories
Pre-mount kit | 0.34 kg / 0.74 lb
Frameless Square Magnetic Lattice | 0.44 kg / 0.97 lb | 287 x 287 mm / 11.3 x 11.3 inches
Brand | Sonus Faber |
---|---|
Model | РС-662Р |
Type of built-in acoustics | Built-in ceiling |
View | Пассивный |
Power | 40-200 W |
Frequency range | 50 Hz - 25 kHz |
Impedance | 4 Ом |
29 mm | |
Sensitivity | 90 дБ |
Crossover frequency | 3000 Hz |
Color | Black |
Full depth (including grill) | 172 mm |
Net weight | 3.83 kg |
