Built-in acoustics: DALI Phantom H60

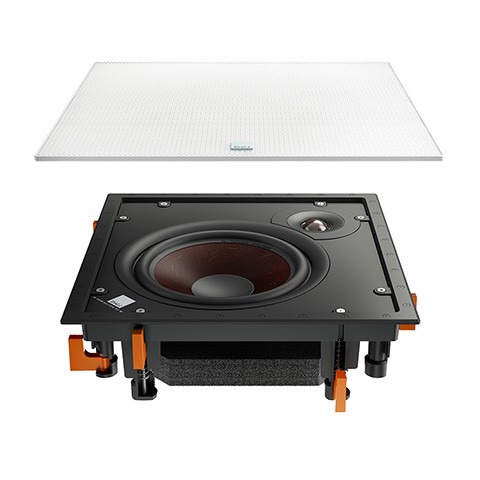

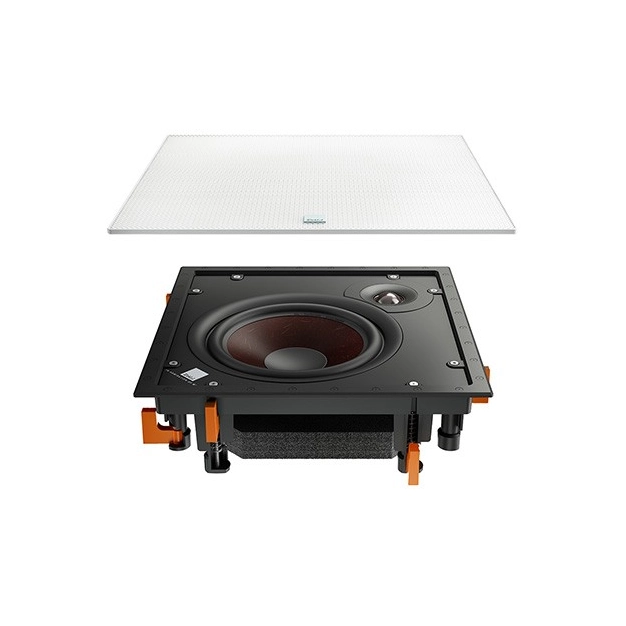

Acoustic systems DALI Phantom H-60 are designed to be built into the walls of the sounded room and have a square front panel. These speakers were developed on the basis of the same principles as traditional Hi-F acoustics and using components used in DALI cabinet speakers. Therefore, they can be used in audio systems (for example, home theater) together with them in various combinations, and these acoustics have a completely recognizable signature sound. The protective grid in acoustic systems has a magnetic fixation and has a small depth, which gives the speakers a very neat appearance and makes them almost invisible in the room.

The DALI Phantom H-60 is equipped with a 165 mm paper/wood pulp cone woofer mounted on an anti-resonant chassis. The speaker has an efficient magnetic system, and is equipped with an elastic suspension that provides a large linear amplitude of movement of the cone. To the side of the woofer on the front panel of the speaker is a tweeter with a 28 mm fabric dome. The crossover filter, tuned to a frequency of 1900 Hz, provides accurate matching of both emitters and introduces minimal phase distortion into the signal. To obtain an optimal stereo image, the speakers of the pair should be mirrored, that is, the tweeters should be directed inward, as in conventional speakers with tweeters shifted relative to the woofers on the front panels.

The speakers are equipped with convenient swivel mounts, the number of which has been increased to 8 for maximum secure fixation and damping of any parasitic vibrations. DALI Phantom H-60 have a fairly high sensitivity and stable impedance, and are well combined with modern receivers and integrated amplifiers. The extended frequency range allows the speakers to be used for sounding medium-sized rooms, however, if necessary, the DALI Phantom H-60 is in good agreement with most subwoofer models.

Features of built-in acoustics DALI Phantom H-60

• Classic Dali Signature Hi-Fi Sound
• Woofer 165 mm with paper-wood pulp cone
• Magnetic fastening of the safety net

Specifications:

• Features and purpose of acoustics: built into the walls, two-way
• Number of speakers: 2
• Number of lanes: 2
• Tweeter type: diameter 28 mm, fabric dome
• Diameter and type of woofer: 165 mm paper-wood pulp cone
• Frequency Range: 51Hz - 25000Hz (+/- 3dB)
• Impedance: 6 ohm
• Sensitivity: 89 dB
• Crossover setting: 1900 Hz
• Sound pressure: 107 dB (maximum)
• Recommended input power: 30 - 150 W
• Input connectors: 2 terminals
• Body material: mineral-filled ABS
• External dimensions (WxHxD): 300 x 300 x 95 mm
• Mounting hole: 264 x 264mm
• Weight: 2.6 kg
