Stereo cable Cordial CPM 2.5 VV
The CPM VV stereo cable is used in professional stage and studio operations to provide a stereo jack for connecting monitors.
This means increased flexibility for event and studio technicians as they can route two independent signals to one speaker on the left and another on the right. Moreover, this cable has already achieved legendary status in terms of stability and durability.

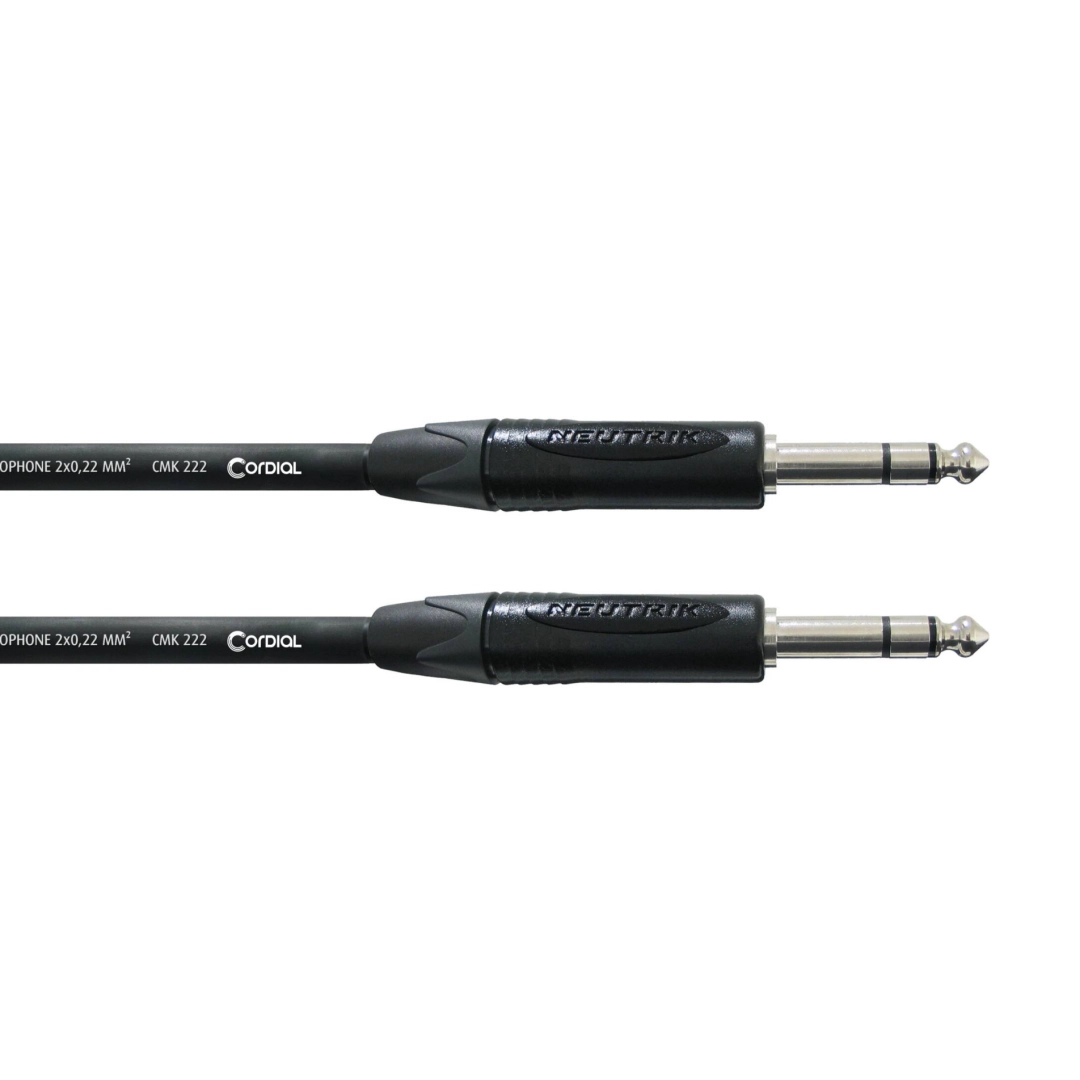

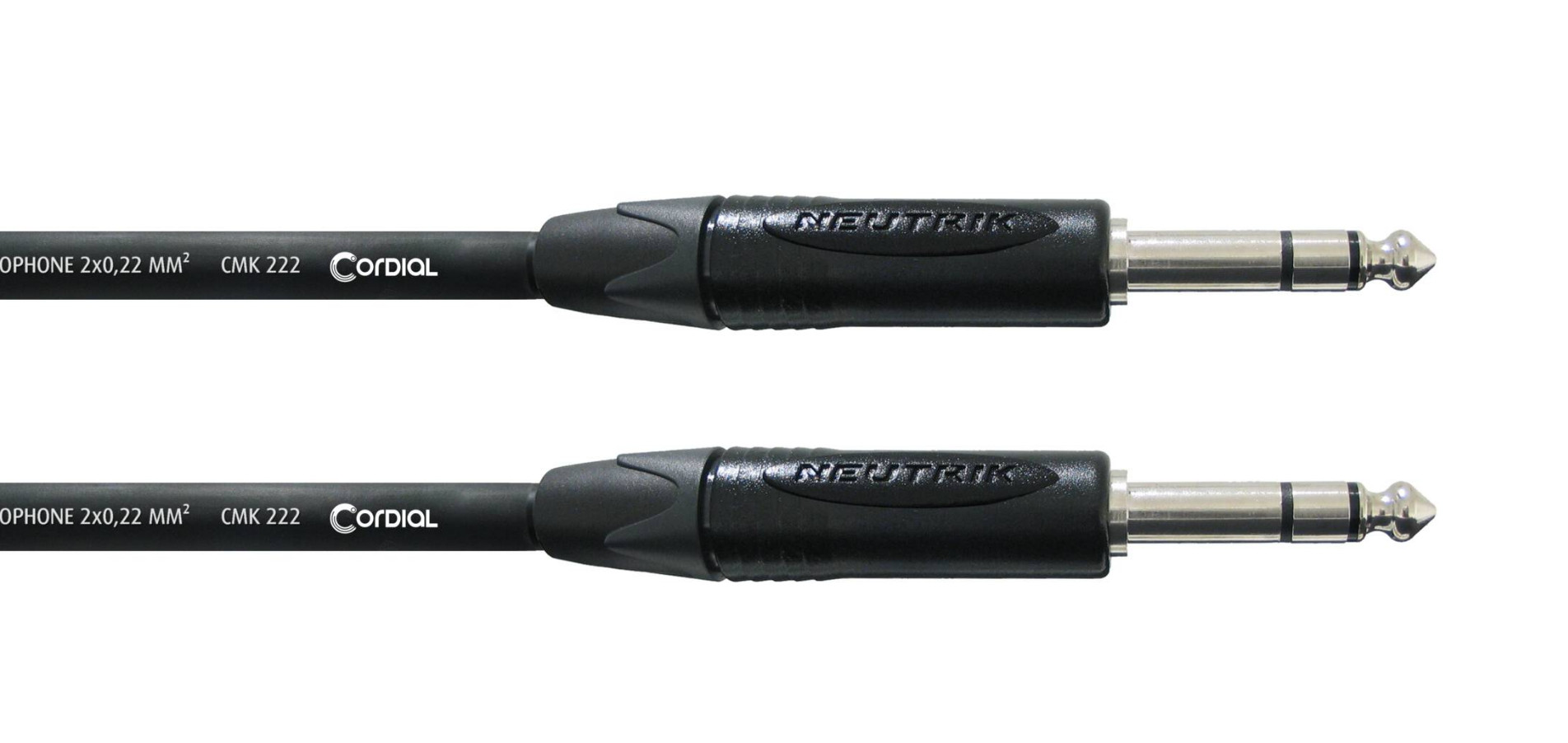

Cordial CPM 2.5 VV jack cable 2.5 m is a 2.5 m long stereo jack cable from the "Select" series. Particularly suitable for reliable use in the rehearsal room, studio and stage, ideal for microphone, instrument, lighting or data cables. Made from proven CMK 222 cable and Neutrik connectors, it is made from good materials and guarantees excellent workmanship.

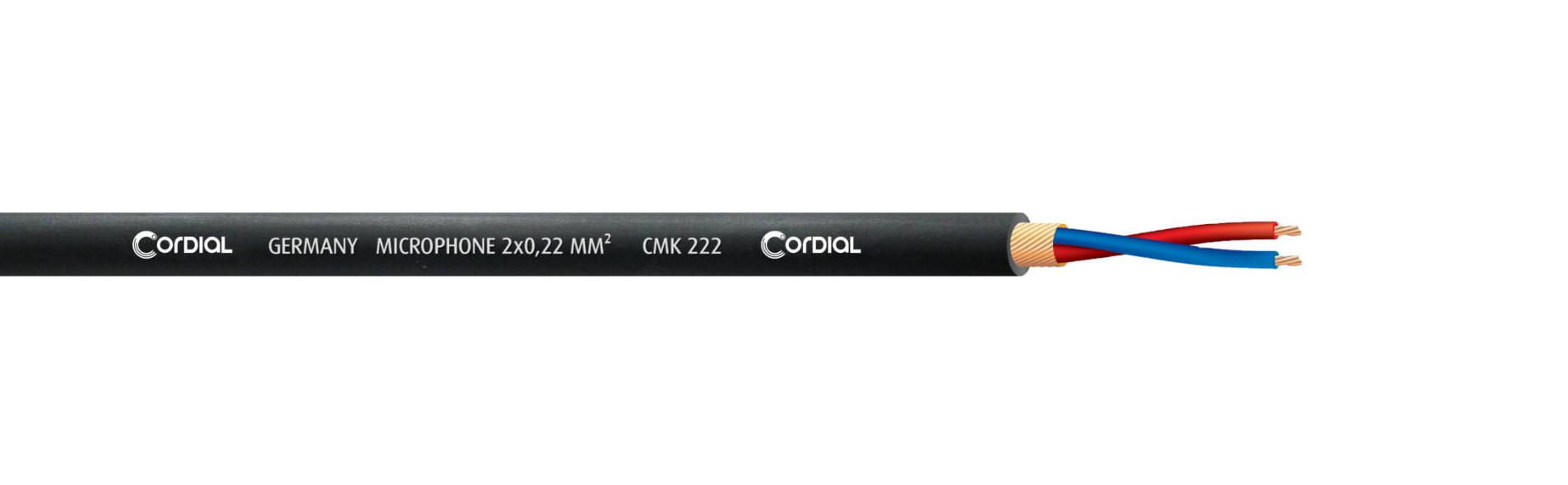

Cable CMK 222
The high-performance CMK 222 cable is suitable for stage and studio applications, where it provides first-class balanced connections. Balanced transmission is used in professional applications such as recording studios, mainly because it guarantees no interference even over long distances. Cables with balanced signal transmission have two signal conductors. Each of these two conductors radiates the same voltage, but their oscillations are reversed. Therefore, any interference affects the signal conductors equally. However, since the wanted signal consists of voltage values coming from opposite poles, the interference is canceled out by the difference.
This 0.22mm² microphone cable guarantees excellent signal transmission thanks to oxygen-free copper (OFC) conductors. An effective copper spiral shield provides additional protection against interference. The heat-resistant PVC jacket also allows the cable to be used in harsher environments.
Neutrik connectors
Neutrik 6.3 mm mastereo connectors impress with their impeccable quality and maximum functionality. This is primarily due to the high-quality workmanship and slim design, which ensures extremely comfortable use.
Characteristics:

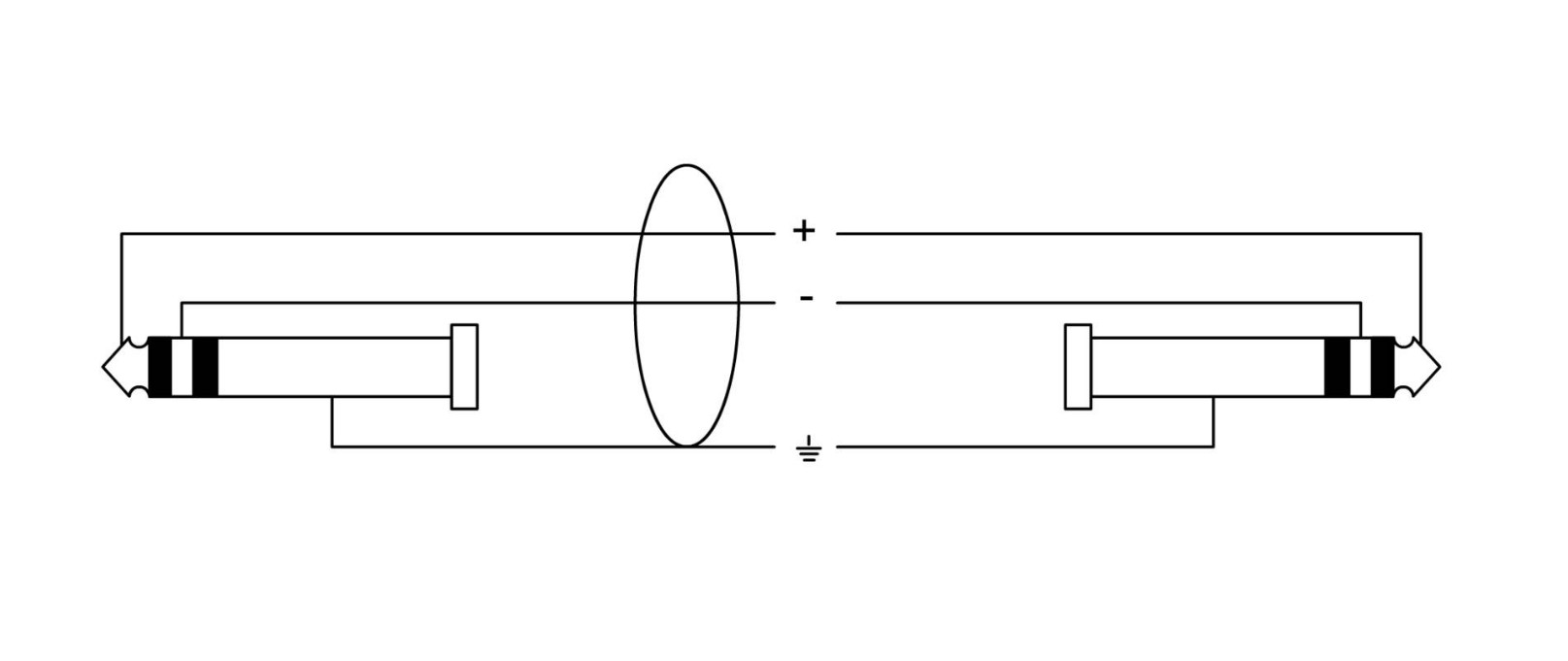

- Plug A: stereo jack
- Plug B: stereo jack
- Cross section 0.22 mm²
- Spiral shielded
- Sheath: PVC
- Conductor structure: 28 x 0.10mm
- Material: CU
- Conductor resistance: 85 Ohm/km
- Capacitance between conductors: 55 pF/m
- Diameter: 6.4mm
- Weight: 53 g/m
- Conductor insulation: PE
- Length: 2.5 m
Brand | Cordial |
---|---|
Model | CPM 2,5 VV |
Type | Cables |
Cable type | Microphone, Balance |
Cord type | Jack 6.3 M - Jack 6.3 M |
Cord length | 2.5 m |
Cable diameter | 6.4 mm |
Insulation material | polyvinyl chloride (PVC) |
Conductor material | Pure copper |
Conductor gauge (section) | 0.22 sq. mm |
Number of conductors | 2 |
Number of cores in the conductor | 28 x 0.10 mm |
Resistance | 85 Ohm/km |
Capacitance conductor-conductor | 55 pF/m |
Shielding | Yes |
Color | Black |
Weight | 53 g/m |
