Home karaoke system Studio Evolution EVOBOX (Ocean)
Availability check
Karaoke system for home Studio Evolution EVOBOX (Ocean) is 2000 preset songs and the ability to download new ones, plus 100 songs of your choice from the Studio Evolution catalog, which are available for free download. Support for 4K format, built-in effects Live FX, reverb and delay. Aircraft-grade aluminum body. Wi-Fi and Bluetooth support and more.

Description of the karaoke system for home Studio Evolution EVOBOX (Ocean):
Studio Evolution EVOBOX (Ocean) is a portable karaoke system that provides access to a huge database of various compositions, has convenient and efficient functionality for the most pleasant and comfortable work with the device, and also offers high-quality technical implementation. All of these add up to provide excellent sound, easy set-up and an enjoyable experience when using the system. The package includes a power adapter, two RCA cables and an HDMI cable.
The new Studio Evolution EVOBOX (Ocean) home karaoke system is a compact solution for home parties, with professional sound and high-quality 4K images.
The stylish body of the karaoke system is made of aircraft-grade aluminum, an alloy used in the aircraft industry. Choose the color of anodizing the case that suits your interior and mood best: classic black, silver, gold, graphite, bright ocean or ruby.
Studio Evolution EVOBOX (Ocean) is a professional karaoke studio in your home. Use original effects to process vocals, record your performances, connect two microphones - sing a duet or compete with friends. You have access to detailed sound settings, changing the tempo and key of phonograms, intelligent search for songs and an objective automatic assessment of singing.
SSD-drive and passive cooling system ensure absolutely silent operation of the karaoke system.

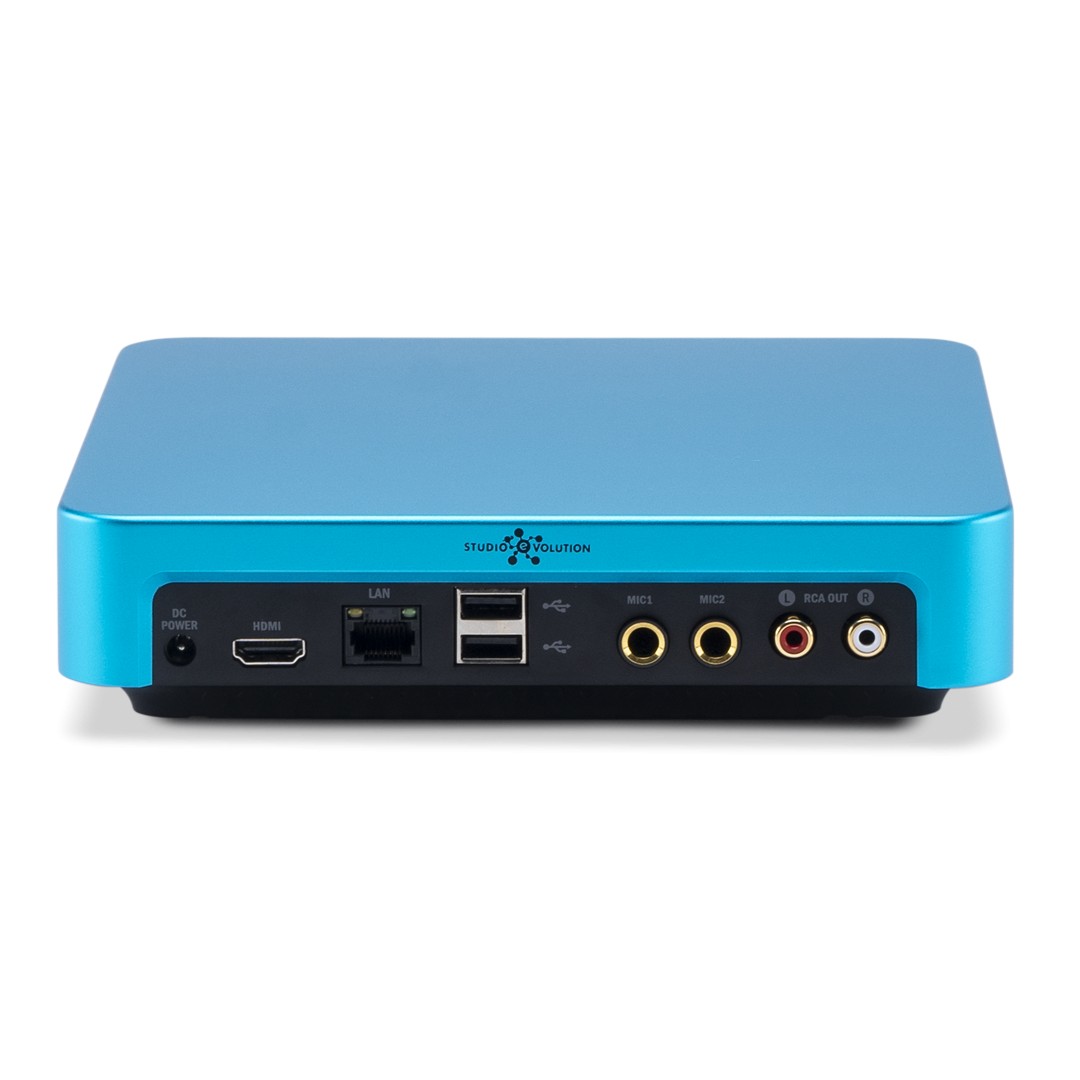

Switching with the TV screen is carried out through the HDMI output. To connect microphones, there are two balanced inputs on 1/4" Jack TRS connectors. Only dynamic models are supported. You can output sound to the speaker system using an unbalanced stereo output on two RCA connectors. The device offers extensive opportunities for processing and enriching microphone There are also reverb and delay effects, as well as a new Live FX algorithm that allows you to simulate a live performance on stage, including applause, feedback from the audience, as well as characteristic reverb.This effect is registered individually for each song, marked with the icon of the same name.
Save recordings of your performances in studio quality to a USB flash drive or send to friends via social networks and instant messengers using the EvoNet application.
Manage your karaoke party the way you want: use the Bluetooth remote control with keyboard or the EvoControl and EvoNet apps for your tablet and smartphone. The interface is simple and accessible to any user. There are features such as high-quality sound recording, convenient and advanced search for desired songs, singing quality evaluation technology and many other functions. For remote control, there are also mobile applications available for free download in the AppStore and Google Play online stores: EvoControl for the Android platform, EvoNet for the iPhone.
Sing for millions of fans with exclusive LiveFX! For EVOBOX owners only - effects of a live performance at a stadium, TV show or apartment house, prescribed individually for each of the songs, are available at a home karaoke party. Feel new emotions from the atmospheric concert sound and applauding, singing along with the crowd of listeners.
2000 of the most popular karaoke hits in various genres, consisting of 1800 domestic and 200 foreign ones, are already contained in your karaoke system. Download 100 more songs of your choice for free (within 90 days of system activation). Get the rest of the songs or karaoke collections that interest you from the largest Studio Evolution karaoke database.
Internet access is possible via Ethernet using the RJ45 port or via Wi-Fi. You can also upload your own files in MOV, AVI, MP4, MKV (for video), MP3, OGG, WAV (for audio), PNG, JPG, JPEG (for images) and EK2 (karaoke) formats. Built-in memory is 120 GB, there are two USB-A ports for connecting flash cards, to which you can also record your own performance. FAT32 and NTFS file systems are supported.
Features of the karaoke system Studio Evolution EVOBOX (Ocean ):
- Portable karaoke system
- Premium AD/DA converters for the highest sound quality
- 2000 preset songs, downloadable new ones
- Work with two microphones at the same time for duet performance
- 4K support
- Live FX mode simulates the effect of a live performance on stage
- Internet access via Wi-Fi or LAN
- Built-in 120 GB SSD
- 2 USB-A ports for flash cards
- Remote control via Bluetooth remote control or free mobile apps
- Rugged aircraft-grade aluminum housing
Characteristics of the karaoke system Studio Evolution EVOBOX (Ocean):
Audio inputs:
- Microphone inputs: 2 x balanced TRS 6.3 (Jack)
- Maximum Mic Input Gain: 32.5dB
- Maximum input amplitude: +0.14 dBu (0.788Vrms)
- Input signal-to-noise ratio: - 95.9 dB (A-weighted)
- Dynamic Range: 95.7 dB
- Harmonic distortion + noise: 0.0011%
- Bandwidth (+/-0.5 dB): 50 Hz - 20 kHz
- Mutual penetration of channels: - 95.3 dB
- Input impedance: 25 kOhm
- Audio ADC: Asahi Kasei Microdevices AK5703
Audio outputs:
- Stereo outputs: 2 x RCA
- Output signal-to-noise ratio: 99.3 dB (A-weighted)
- Dynamic Range: 99.4 dB
- Harmonic distortion + noise: 0.005%
- Bandwidth (+/- 0.5 dB): 20 Hz - 20 kHz
- Mutual penetration of channels: - 98.3 dB
- Maximum output amplitude: +4.7 dBu (1.34Vrms)
- Output impedance: 470 ohm
- Audio DAC: Asahi Kasei AK4430
Connectors and interfaces:
- WiFi support: 802.11ac
- Dual Band (Wi-Fi): 2.4 GHz and 5 GHz
- Bluetooth Version: 4.1 Low Energy
- 1 x HDMI 2.0 dedicated exclusively to image transmission
- 2 x USB Type-A (version 2.0), FAT32 and NTFS file systems
- Gigabit LAN: 1 x RJ45
- 1 x power connector
Video: maximum image resolution - 4K UHD (3840 x 2160)
Supported file formats:
- Video: MOV, AVI, MP4, MKV
- Audio: WAV, OGG, MP3
- Graphic: PNG, JPG, JPEG
- Karaoke: EK2
System:
- Processor: Quad Core Cortex - A53
- DDR4 RAM: 2 GB
- Graphics subsystem: Mali - T820 MP3 GPU
Drives: SSD capacity - 120 GB
Karaoke system control: Bluetooth remote control, app for smartphone, tablet
Body material: anodized aircraft-grade aluminum
Additionally:
- Effect types: Live FX, reverb, delay, pitch bend and tempo
- Song database: 2000 preset songs (1800 domestic, 200 foreign) + 100 (available for free download)
Other characteristics of the karaoke system:
- Power: 12V/2A power adapter
- Power Consumption: 24W
- Working temperature range: 0 - 50 ºC

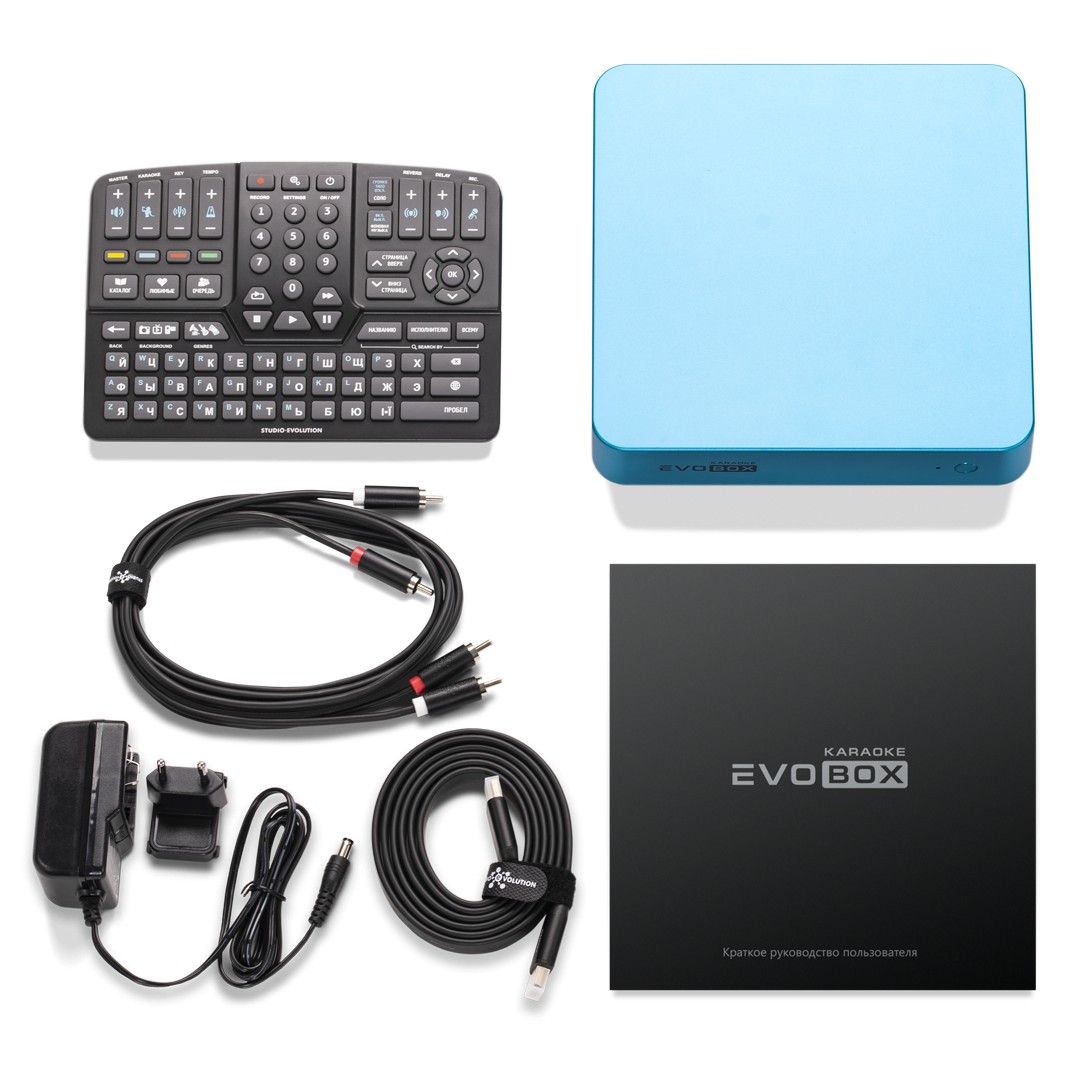

- Package contents: karaoke system, HDMI 2.0 cable, Bluetooth remote control, 2 RCA cables, power adapter
- Karaoke system dimensions (W × H × D), mm: 198 × 49 × 198
- Shipping box dimensions (W × H × D), mm: 313 × 124 × 316
- Net weight: 870g
- Gross weight: 3 kg
- Color: ocean
Brand | Studio Evolution |
---|---|
Model | EVOBOX (Ocean) |
Type | Караоке-система |
type of instalation | Полочный |
Control | Bluetooth-пульт дистанционного управления, приложение для смартфона, планшета |
Frequency range | 50 Гц - 20 кГц (+/-0.5 дБ) или 20 Гц - 20 кГц (+/- 0.5 дБ) |
Cord type | RCA |
HDMI version | HDMI 2.0 |
Video Resolution | 4K UHD (3840 х 2160) |
Dynamic Range | 95.7 дБ/99.4 дБ |
Bluetooth | 4.1 Low Energy |
USB inputs | 2 x USB Type-A (версия 2.0) |
Microphone input | 2 x балансных TRS 6.3 (Jack) |
exits | 2 x стереовыхода RCA |
Signal to noise ratio | - 95.9 дБ/99.3 дБ |
Nutrition | адаптер питания 12 В/2 А |
Notes | Максимальная входная амплитуда: + 0.14 дБн; выходная: + 4.7 дБн. АЦП: Asahi Kasei Microdevices AK5703. |
Form | Прямоугольная |
Input impedance | 25 кОм |
Control from tablet computer and smartphone | Да |
Downloading updates via the Internet | Да |
Supported formats | графические: PNG, JPG, JPEG; караоке: EK2 |
Housing material | анодированный авиационный алюминий |
Package | караоке-система, кабель HDMI 2.0, Bluetooth-пульт, 2 кабеля RCA, адаптер питания |
Power consumption | 24 Вт |
Color | океан |
Dimensions (W x H x D), mm | 198 × 49 × 198 мм |
Remote control | Есть |
Additionally | Взаимное проникновение каналов: - 95.3 дБ/- 98.3 дБ. Максимальное усиление по микрофонному входу: 32.5 дБ. |
Features | Типы доступных эффектов: Live FX, реверберация, дилей, изменение высоты тона и темпа. Графическая подсистема: Mali - T820 MP3 GPU. |
Connectors and interfaces | Wi-Fi, Bluetooth, 1 x HDMI 2.0, 1 x RJ45, 1 x разъем питания |
DAC | Asahi Kasei AK4430 |
Audio format support | WAV, OGG, MP3 |
Wireless frequency range | Wi-Fi: 2.4 ГГц и 5 ГГц |
Total number of songs | 2000 предустановленных песен + 100 для бесплатной загрузки |
output impedance | 470 Ом |
Weight | 870 г |
Working temperature | 0 - 50 ºC |
Video format | MOV, AVI, MP4, MKV |
WiFi | 802.11ac |
Downloading songs over the Internet | Да |
The volume of the built-in SSD drive | 120 Гб |
THD+N | 0.0011 %/0.005 % |
Functions | Bluetooth USB |
RAM | DDR4: 2 Гб |
CPU | Quad Core Cortex - A53 |
