Stagebox Allen & Heath DX168

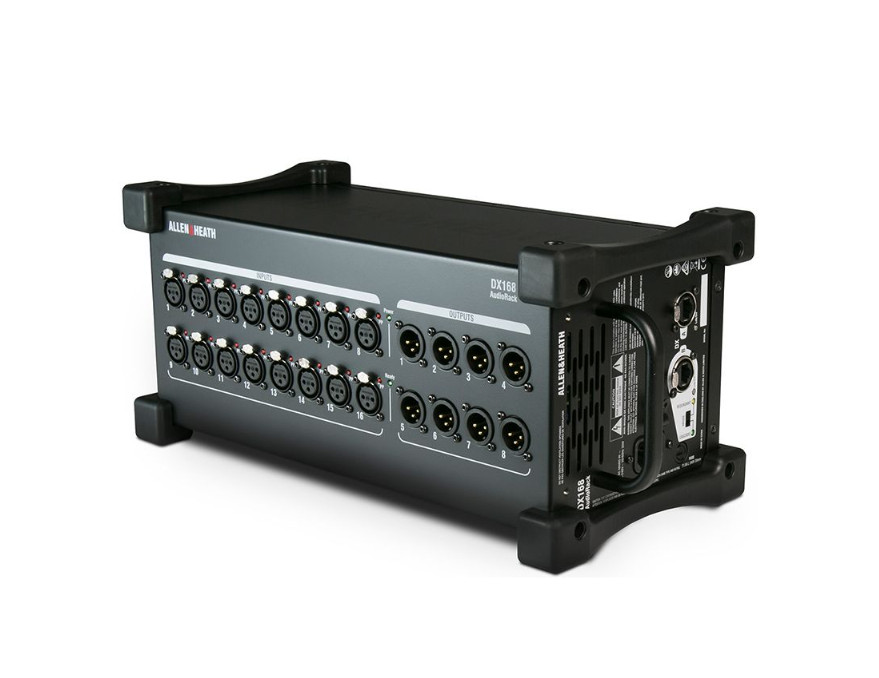

DX168 is a switching unit for the dLive digital mixing system, can be used both with the dLive S Class systems introduced the year before, and with the latest dLive C Class. The ALLEN & HEATH DX168 junction box has 16 XLR microphone inputs with preamps and 8 line outputs.
The DX168 is a rugged, portable expander for adding remote I/O to a dLiveSClass or dLiveCClass system.

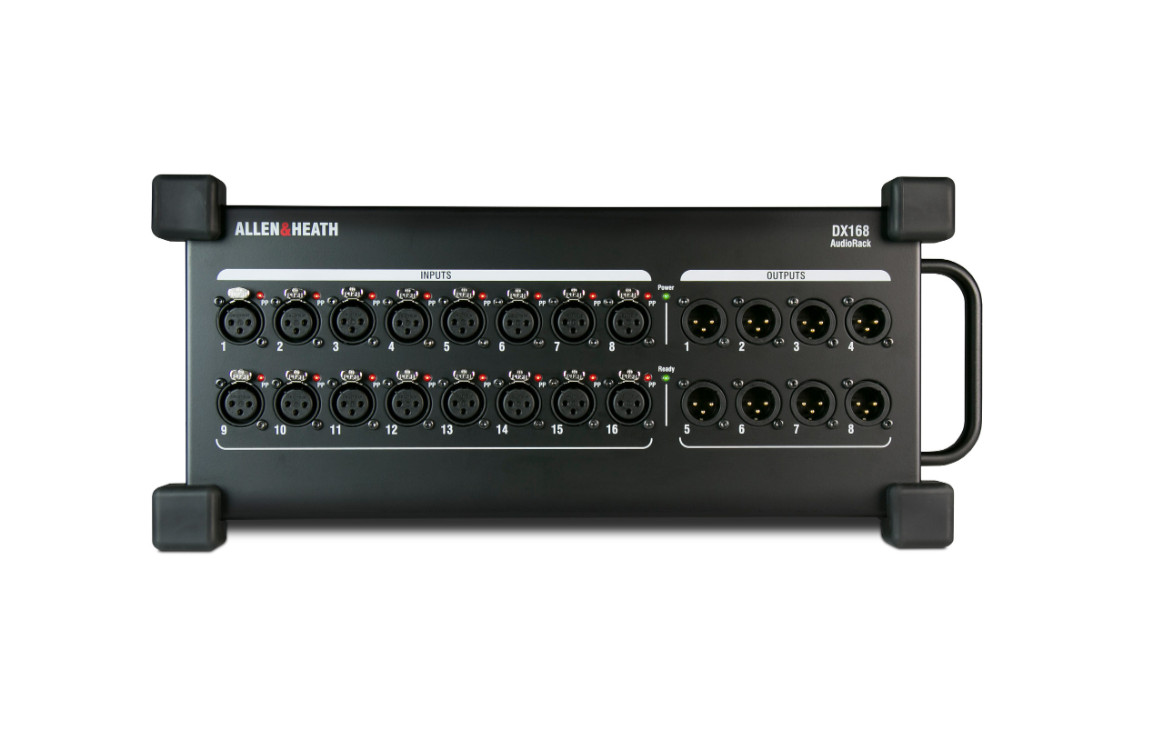

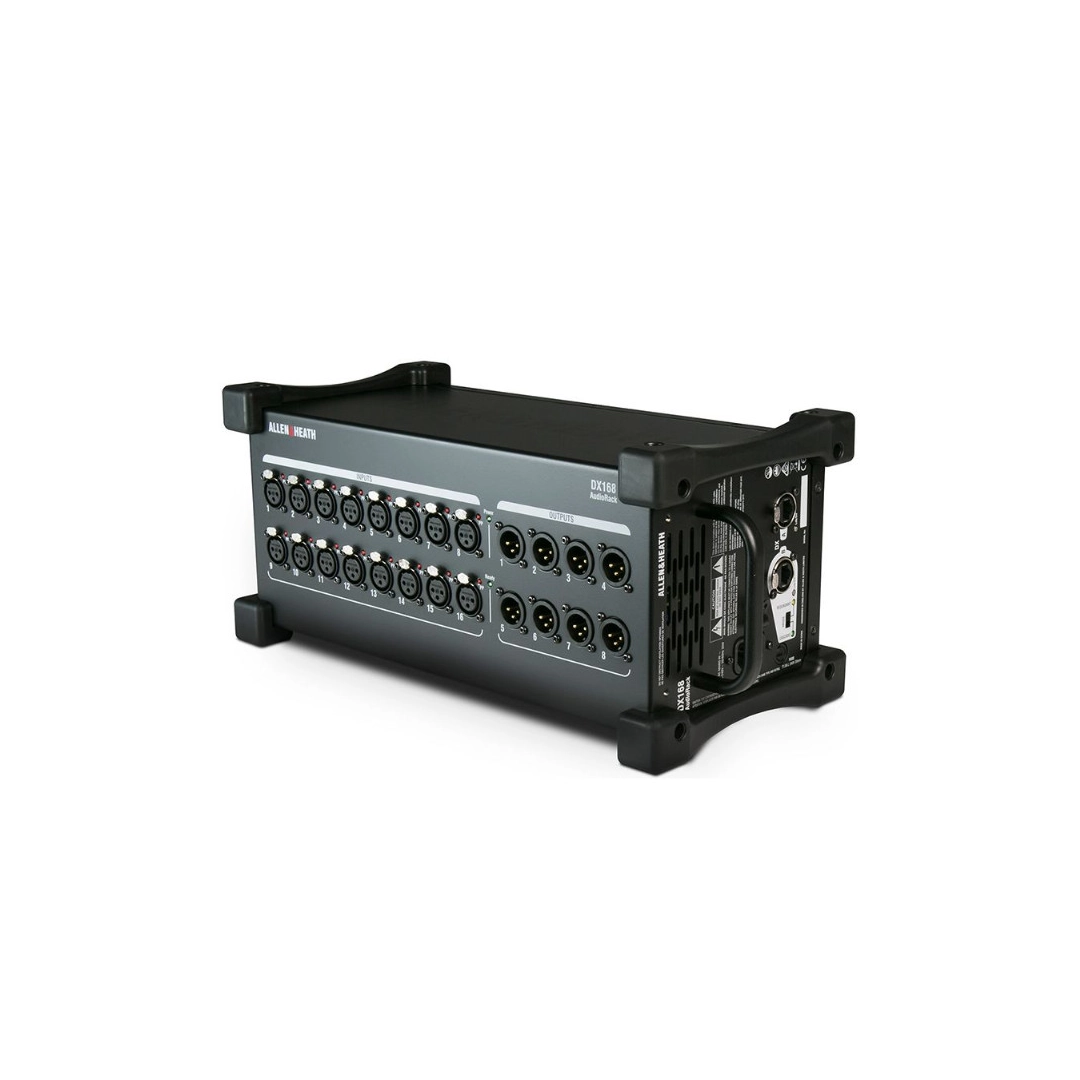

The DX168 features 16-micron preamps with independent PhantomPower LEDs, as well as 8 XLR line outputs. Up to 6 DX168 units can be connected to a dLive system - 4 via MixRack and 2 via Surface - allowing for up to 96 remote inputs and 48 remote outputs in addition to those provided by MixRack and Surface.

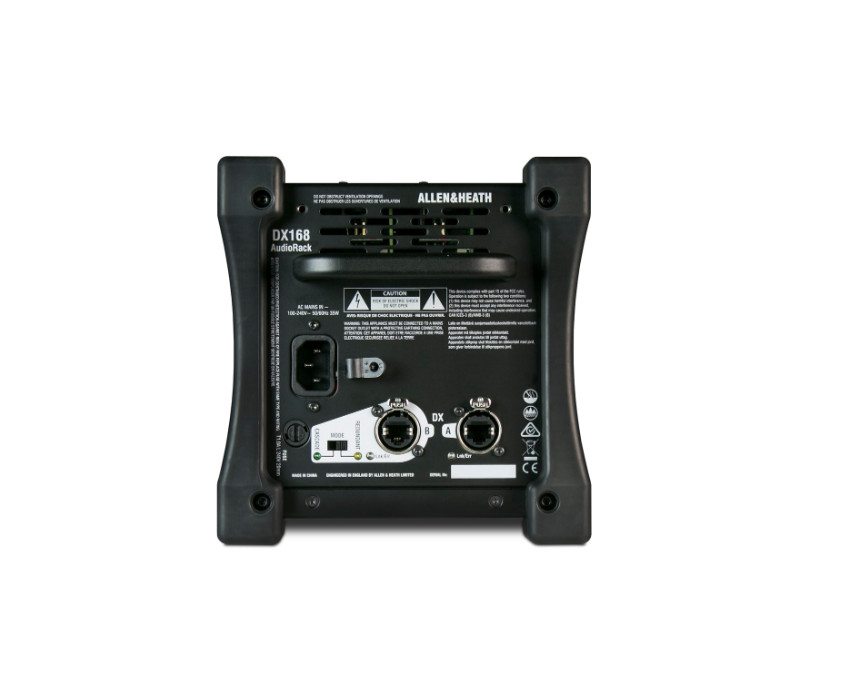

The DX168 connects via a single Cat5e cable to dLive, MixRack, or to another DX168 via a secure EtherCon port. A second EtherCon port block is provided for connection to compatible equipment or for daisy chaining to another DX168 for additional remote I/O.

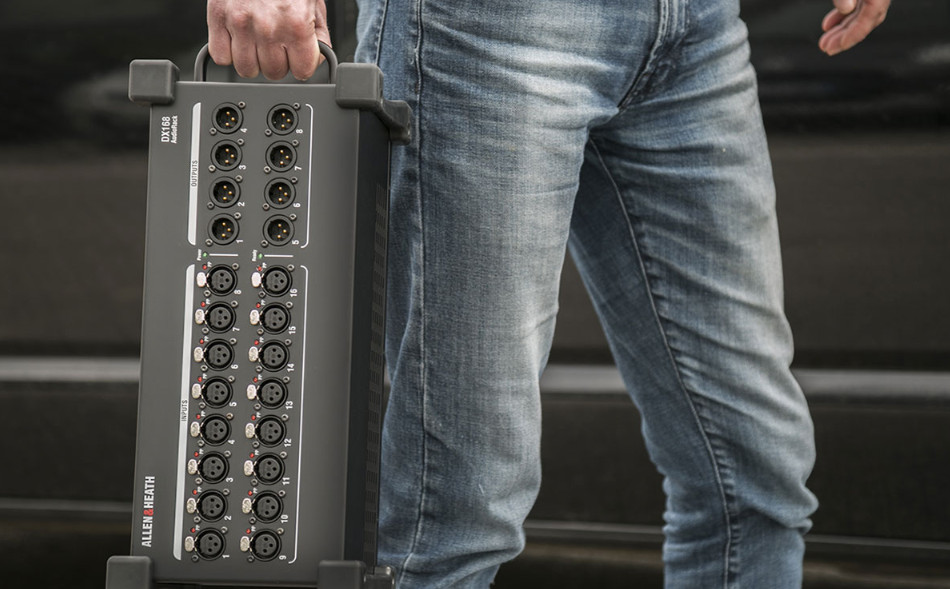

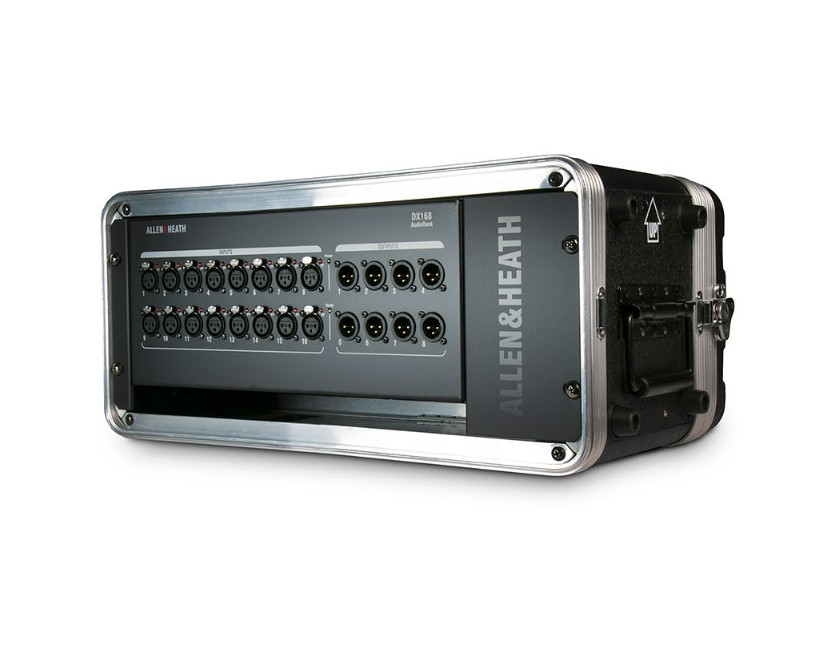

The durable design with rubber shock absorbers allows the DX168 to be placed directly on the stage floor during performances. Weighing just 4.8 kg and featuring a durable carrying handle, the DX168 offers the convenience and portability needed for rentals, education, houses of worship and many other environments. Includes optional 4U rack mounting hardware that allows the DX168 to be installed in standard 19-inch racks.
Allen & HeathDX168 Features:
-16 XLR mic preamps with PhantomPower status LEDs
-8 XLR line outputs
-Compatible with dLiveSClass and dLiveCClass equipment
-Up to 6 DX168 units can be added to a dLive system for 96 inputs/48 outputs
-Cascade mode provides the ability to daisy chain two DX168 expanders for additional I/O (requires firmware 1.60 or higher)
-Backup DX connection to dLiveSClass equipment
-Additional 19" rack mounting kit
-PlugandPlay - no IP addressing required
-Compatible with CAT5e (or higher) cables up to 100m
-Rubber bumpers
-Carrying handle
Contents: Allen & HeathDX168, rack mounting kit, power cord.
Allen & HeathDX168 Specifications:
Inputs:
-XLR mic/line inputs: balanced, +48V phantom power
- Mic/line preamp: fully recallable
-Input sensitivity: -60 to +15 dBu
-Analog Gain: +5 to +60 dB, 1 dB steps
-Pad: -20 dB ActivePAD
-Maximum input level: +30dBu (PADin)
-Input Impedance: >4KOhm (Pad Output), >10KOhm (Pad Input)
-Mic/Line Channel Noise: 22-22kHz, Direct Out @ Unbalanced Out
-MicEIN: -127 dB with 150 ohm source
-Unity Gain (Padin): -90dBu
-Low Gain (5dB, Pad Out): -96dBu
-Medium Gain (30dB, Pad Out): -90dBu
- Mic/Line Channel THD+N: 22-22kHz Direct Out @ Unbalanced Out
-Unitygain (Padin): 0.003% -88 dBu at 1 kHz, 0 dBu output
-Low Gain (5dB, Pad Out): 0.002% -93dBu at 1kHz, 0dBu Out
-Average Gain (30dB, Pad Out): 0.003% -88dBu @ 1kHz, 0dBu Out
Outputs:
-XLR outputs balanced, with relay protection
-Output impedance: <75 ohm
-Nominal output: +4 dBu = 0 dB meter reading
-Maximum output level: +22 dBu
- Residual output noise: -92 dBu (silent, 20-20 kHz)
- Mains power: 100-240 V, 50/60 Hz, 20 W max.
-Operating Temperature: 0°C to 35°C (32°F to 95°F)
Dimensions: 416.55 x 182.1 x 189 mm
Weight: 4.8 kg
