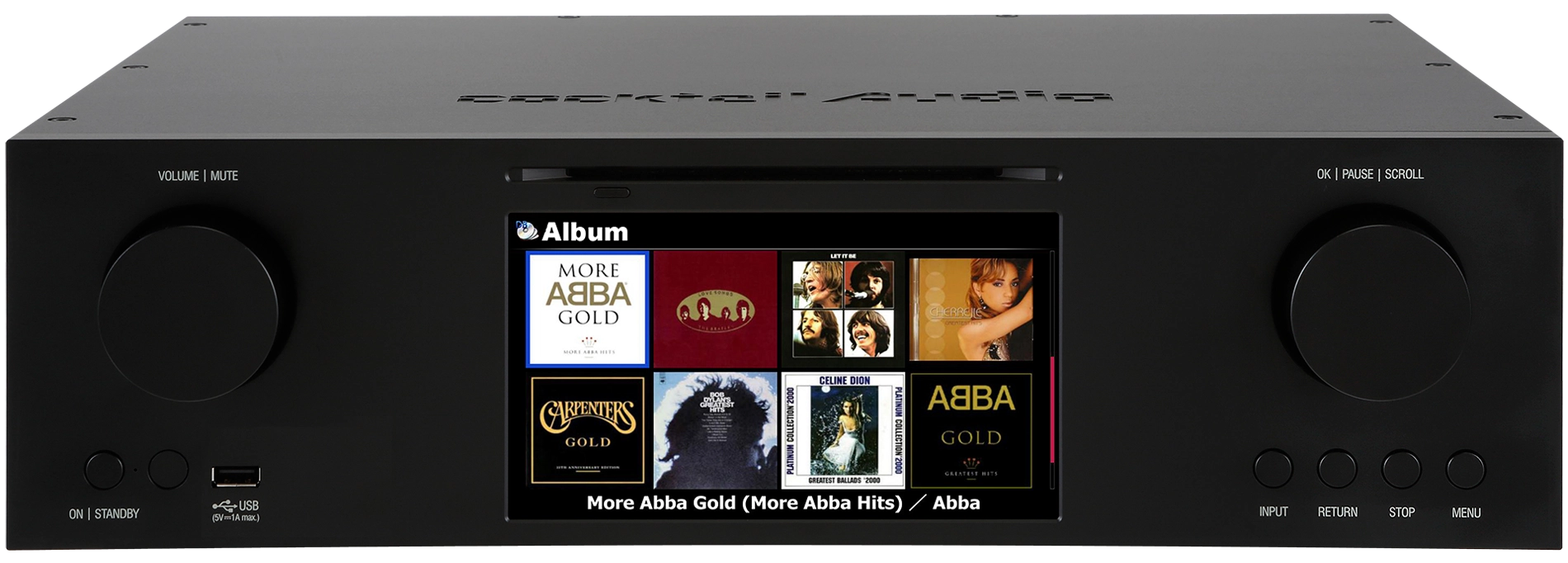

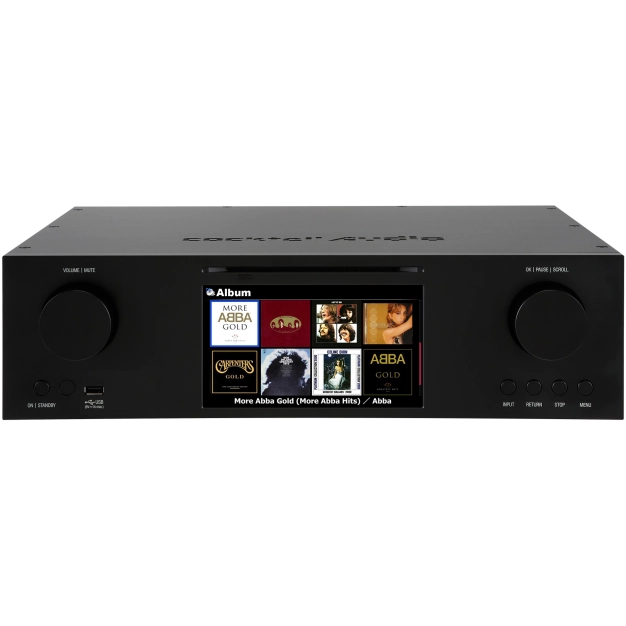

Network streamer cocktailAudio X50Pro Black
The ultimate pure digital music server, CD ripper and network streamer for audiophiles
Enjoy superior performance, versatile features and ease of use with audiophile-grade sound quality.
The X50Pro is the digital device audiophiles have been looking for to easily manage large collections of high-quality digital music and connect to existing external DACs and amplifiers for superior sound quality playback. The X50Pro is the benchmark multi-functional music server with the functions of a media player, CD ripper, network streamer, music recorder and much more for music lovers.
Since the X50Pro is equipped with the ultra-low-noise CCHD-575 phase shift oscillator from Crystek Corporation, a fully shielded power supply (SMPS) with an aluminum cover, and a high-quality PCB designed by the in-house R&D team, the X50Pro guarantees excellent sound quality with minimal jitter and electrical noise.
Equipped with a quad-core ARM Cortex A9 processor, a powerful XMOS microcontroller, a beautiful aluminum body crafted with sandblasting and precision CNC machining, and versatile software functions developed by the in-house R&D team, X50Pro is rightfully the best digital music player and server for audiophiles.
Hardware and engineering features
- Equipped with a high-performance dual-core ARM Cortex A9 processor running at 1.0 GHz
- XMOS 32-bit/500 MIPS 8-core Powerful Microcontroller
- Reference-quality audio is achieved by combining the ultra-low-noise CCHD-575 phase-shielded oscillator from Crystek Corporation with a fully shielded power supply (SMPS) with an aluminum cover to minimize electrical noise and using years of circuit design experience
- 1GB DDR-1066 Main Memory and 8GB NAND Flash Memory
- High-speed optical drive for fast CD ripping
- 7-inch TFT LCD (1024 x 600 pixels) for intuitive graphical interface
- Built-in DAB+/FM tuner
- USB Audio Class 2.0 output for connection to a USB digital-to-analog converter (DAC)
- I²S digital output (two HDMI and one RJ45) with support for up to Native DSD, including 24-bit/192 kHz, as well as two HDMI I²S outputs for increased compatibility with third-party devices
- Built-in Gigabit Ethernet (10/100/1000 Mbps)
- Supports storage devices up to 8TB, such as 3.5"/2.5" HDD or SSD
- Using the RAID function, a storage configuration of 16 TB is possible
- Durable and beautiful aluminum body, sandblasted with precision CNC machining
- HDMI connector for connecting an external display such as a TV as an extended interface or for audio output
Multifunctional software and usage
- Support various file formats such as MQA, DSD(64/128/256), PCM 32Bit/384KHz, DXD(24Bit/352.8KHz) , including 24Bit/192KHz WAV/FLAC and a full range of high-resolution audio formats
- Rip CDs with professional metadata and album art provided by Gracenote
- Convenient music database feature
- Load vinyl and cassette collections, DAB+/FM radio, internet radio into X50Pro's MusicDB with 192kHz recording
- Support for various network protocols (UPnP (DLNA) server/client, media renderer, Samba server/client, FTP server, web server and others)
- Access to major music streaming services ( TIDAL, TIDAL MQA, Deezer, Qobuz, Napster, Spotify Connect, HighresAudio ) and internet radio ( Airable )
- Customizable remote control app for NOVATRON MusicX for iOS and Android
- Customizable web interface (WebUI) for remote control and management of music database via PC
- Support for Roon Ready - a popular music player for music lovers
- High degree of connectivity
Characteristic | Description |
---|---|
Model name | cocktailAudio X50Pro |
Processor and memory | Quad-core ARM Cortex A9 1.0 GHz Main memory: DDR-1066 1GB NAND Flash: 8GB |
CD player | Front loading Supported media: CD, CD-DA, CD-R, CD-RW, DVD-R/RW |
Display | 7-inch TFT LCD screen (1024 x 600 pixels) (*can connect to external screen via HDMI Out) |
Interface | Buttons and regulator (Volume/Scroll), IR remote control, iOS and Android application, web interface |

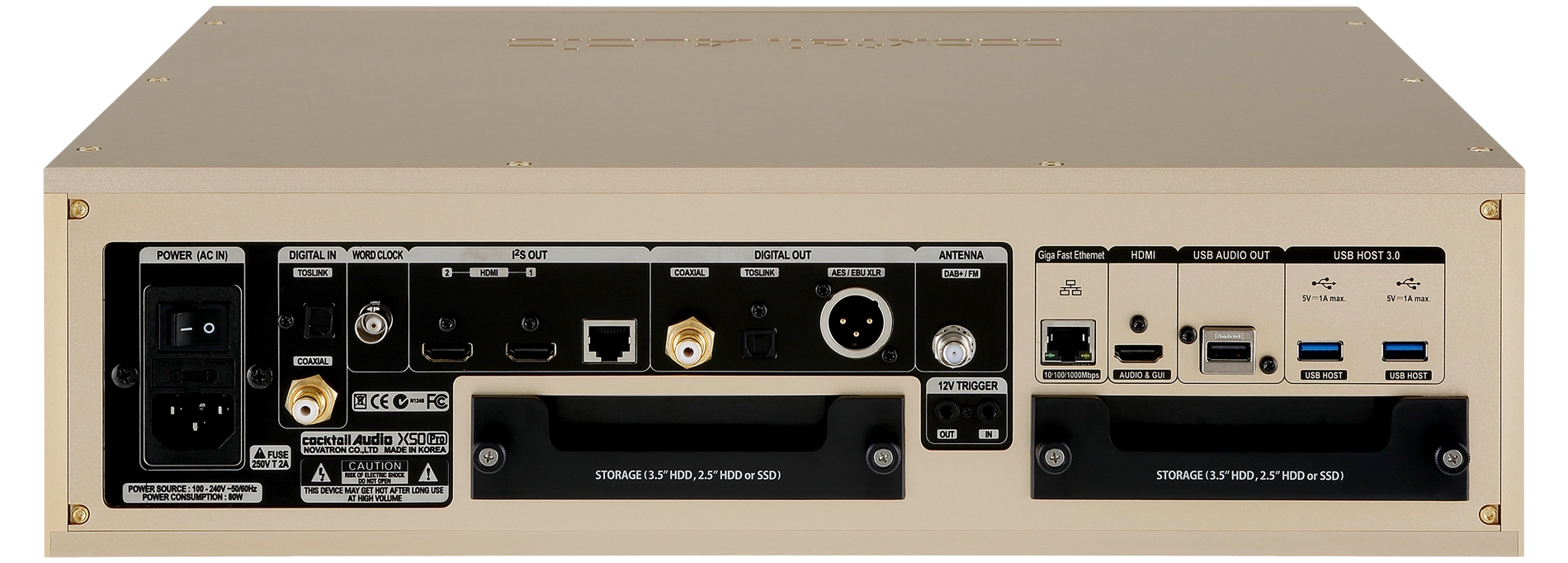

Digital output (variable/fixed) | COAXIAL x 1: S/PDIF 75 Ohm RCA, sampling rate up to 24-bit/192 kHz TOSLINK: S/PDIF, sampling frequency up to 24 bit/192 kHz AES/EBU XLR: 110 Ohm, sampling rate up to 24-bit/192 kHz I²S Out x 3 (RJ45 and two HDMI): support Native DSD, DoP, PCM up to 24 bit/192 kHz USB Audio Class 2.0: Support up to Native DSD256 HDMI Out: audio output (*combined with output for external screen) Word Clock Out: up to 192 kHz |
Digital input | COAXIAL: sampling rate up to 24-bit/192 kHz TOSLINK: sampling rate up to 24-bit/192 kHz |
Data storage support | 2.5" SATA Hard Drive, Up to 8TB 3.5" SATA Hard Drive, Up to 8TB SSD 2.5" SATA, up to 8 TB Two data storage decks RAID support (3 modes: Mirror, Stripe or Big) |
Tuner | DAB+/FM built-in tuner (choice between DAB/DAB+ and FM) |
Connections | USB Host: USB 3.0 (5V/1A) x 2 on rear panel, USB 2.0 (5V/1A) x 1 on front panel |
Network connections | Wired: Gigabit Ethernet (10/100/1000 Mbps) Wireless (optional): WiFi USB adapter (802.11b/g/n) |
12V Trigger | Output: max 200mA, 12V Input: max 12V |
HDMI Out | Connecting to an external screen (*combined with HDMI audio output) |
Supported formats and codecs | MQA, DSD (DSD64, DSD128, DSD256), DXD (24 bit/352.8 kHz), PCM 32 bit/384 kHz, HD WAV (24 bit/192 kHz), HD FLAC (24 bit/192 kHz), APE/CUE, WAV, FLAC, ALAC, AIFF, AIF, AAC, M4A, MP3, WMA Ogg, Vorbis, PCM, M3U, PLS, CAF, etc. |
Supported network protocols | UPnP (DLNA) server/client/media renderer, Samba server/client, FTP server, web server, etc. |
Internet services | Airable Internet Radio Music services: TIDAL, Deezer, Qobuz, Napster, Spotify Connect, HighresAudio |
Supported OSD languages | English, German, French, Spanish, Italian, Polish, Dutch, Russian, Traditional Chinese, Japanese, Korean (other languages on request) |
Power supply | AC 110 - 240 V / 50 - 60 Hz (universal input) |
Mechanical characteristics | The body is made of high-quality aluminum, processed on a CNC machine and sandblasted |
Dimensions | Without legs: 440mm (W) x 329mm (D) x 118mm (H) With legs: 440mm (W) x 329mm (D) x 130mm (H) |
Weight | 11.5 kg (device without accessories and box) |
Certification | CE, FCC, EMI, etc. |
Color | Black |
---|
