Surge protector Isotek EVO3 Gemini Silver

The IsoTek EVO3 Gemini is the next generation following the Discovery series. It takes advantage of the Polaris EVO3 filter. Although slightly redesigned to provide only two 10A output sockets, the EVO3 Gemini is a cost effective upgrade for AV systems and as a means of expanding the IsoTek Mosaic series power output sockets for sine wave generators. eg Genesis One.

The IsoTek EVO3 Gemini suppresses common mode and differential mode network noise. Radio frequency interference (RFI) suppression by 30 dB. Each of the independent outlets cleans cross contamination in differential mode. The unique delta filter topology enhances product performance. 13,500 A instantaneous protection incorporating IsoTek's unique sequential protection system. Internal multipurpose wiring is silver plated oxygen free copper (OFC) with polytetrafluoroethylene (PTFE) dielectric. Maximum power 2300 watts. A cost-effective upgrade that improves the quality of any audio or audiovisual system. Award winning IsoTek technology at an affordable price.

Distinctive features:

• Easy plug-n-play installation
• Suitable for complete audio or audio video system
• Equipped with star grounding
• Insulation of each of the components
• 13,500 A instantaneous protection
• Compact design for ease of placement

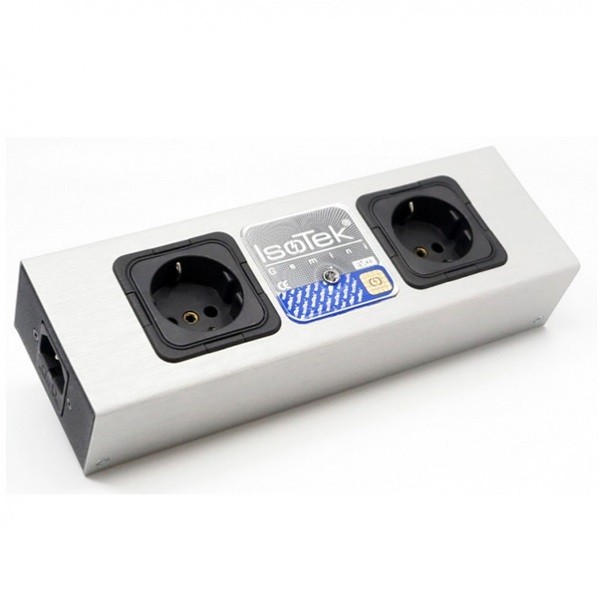

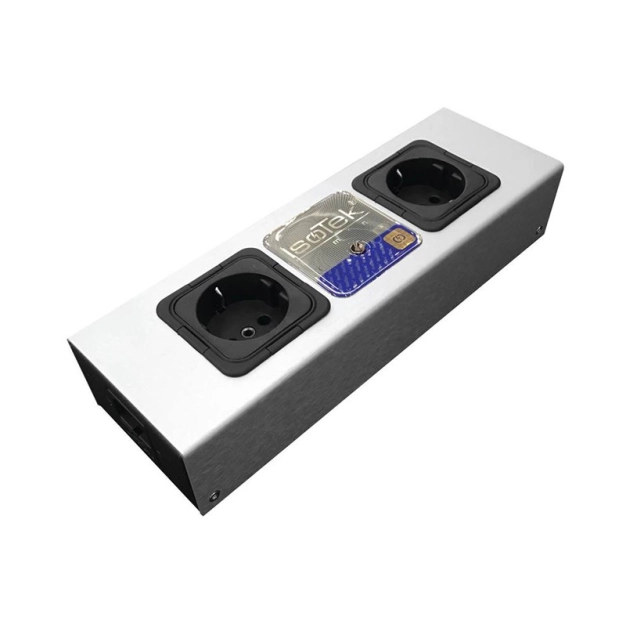

The EVO3 Gemini is a compact device at just 243mm long, 80mm wide and only 45mm high. It is equipped with two individual sockets, which have feedback from the central printed circuit board. Most power cleaners of this type tie output sockets together, routing each one in series. This is a mistake, as differential mode noise generated by connected electronics will crosstalk from one output socket to another. The EVO3 Gemini uses a unique delta filter topology to provide class-leading filtering of both common mode and differential mode mains noise, delivering extremely clean power to both outlets, each independently isolated to prevent cross-contamination of mains noise generated by connected electronics. In addition, 13,500 A instantaneous protection is provided, protecting valuable equipment with IsoTek's unique sequential and repeating protection system.

IsoTek EVO3 Gemini Specifications:

• Type - Surge protector
• Number of exits - 2 European standards
• Maximum power - 3680 W
• Rated current - 10 A
• Input voltage range - 100 - 240 Volts
• Input - 1 x C14 IEC
• Weight - 0.7 kg
• Dimensions (H x W x D) - 45 x 80 x 243 mm
• Color: Silver
