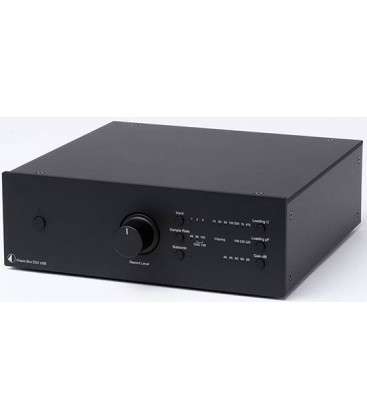

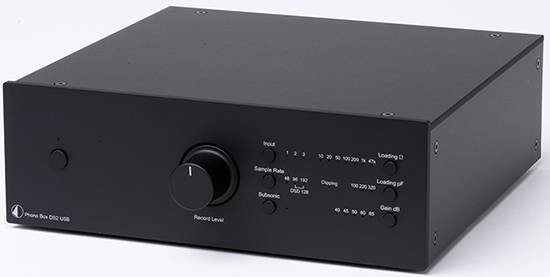

Pro-Ject PHONO BOX DS2 USB phono stage
Premium phono stage with high end sound. This machine is based on the advanced circuitry developed by the designer Sikora, and it uses the best components. Compatible with moving magnet (MM) and moving coil (MC) cartridges.

Premium phono stage with high end sound. This machine is based on the advanced circuitry developed by the designer Sikora, and it uses the best components. Compatible with moving magnet (MM) and moving coil (MC) cartridges. All components, including the output stage and polypropylene capacitors, are audiophile grade and provide an immersive sound experience. The perfect addition for aspiring vinyl lovers!
Peculiarities:
• Suitable for moving magnet (MM) and moving coil (MC) cartridges
• Accurate tuning according to the requirements of the American Recording Association RIAA
• Ultra-low noise circuit design
• Dual mono circuitry for optimal channel separation
• Choice of input impedance (for MS: fixed or adjustable)
• Choice of input capacitance level (for MM)
• Gold plated unbalanced inputs and outputs
• Aluminum and steel sandwich housing protects against vibration and EMI
Adjustable input impedance level 10-1000 Ohm, fixed - 47 kOhm
Capacitance 100 / 220 / 320 pF
Gain MM/MC 40 / 45 / 50 / 60 / 65 dB
Output voltage typ. 500 mV/1 kHz at 5 mV/1 kHz (at 40 dB)
Signal-to-noise ratio 80 dBA
THD < 0.02%
Curve accuracy according to RIAA +/- 0.3 dB/20 Hz - 20 kHz
Input/output connectors
Inputs 2xPhono, 1xLine In (RCA)
Outputs 1xLine Out (RCA), 1xUSB B, 1xOptical
Electrical supply 18 V / 1000 mA DC
Power consumption maximum 100 mA DC / < 0.5 W standby
Dimensions WxHxD 206 x 70 x 200 mm (aluminum) 240 x 93 x 227 mm (wood)
Weight (without power supply) 1500 g (aluminum) 1780 g (wood)
Country: Austria
